Android Question How to use built-in barcode reader?

[mandu]

I have an Android 5.1.1 device for logistic use with the built-in barcode reader.
Is there a library that allows me to use the built-in barcode reader?



[DonManfred]

They probably provide an SDK, Documentation and Java Example.
Upload them then we can say more.



[mandu]

Yes, I receive an SDK.
I send help section for 1D barcode reader (pdf).



[mandu]

Native library is indicated as "armeabi" lib



[mandu]

At this link

https://mandustorage06.blob.core.windows.net/mandu-web-site/DeviceAPI.zip

you can find SDK that I would like to use with my Android device.

Thanks in advance for help.



[DonManfred]

I don´t know if it works. You need to check

https://www.dropbox.com/s/s55gg80736g65my/DeviceApiV1.0.zip?dl=0
Code probably something like

dim bc as Barcode1D
bc.initialize("")
if bc.open then
    dim barcode as string = bc.scan
    bc.close
end if



[DonManfred]

you can find SDK that I would like to use with my Android device.

you need to write a wrapper for this in java to use the complete sdk



[mandu]

Thanks for your attention,
I need complete sdk because before using module barcode I have to power it and this is a method of sdk.

Unfortunately I am newer with B4A and I do not know how to do a wrapper.

Is there a tool for doing this? Or is there someone who can do this for me (paying the service obviously).

Thanks in advance,
Emanuele



[DonManfred]

Is there a tool for doing this?

No

You need to write a wrapper library in java for it. You need javaknowledge to do so.

Or is there someone who can do this for me (paying the service obviously).

You can create a new thread in the Joboffer forum about this.

But at the end you only want to use the barcode? The complete sdk is much more if i remember correctly.

Did you get any errormessage using the code and libray from me?



[DonManfred]

Check this version....

https://www.dropbox.com/s/iedllcnnggd9xoy/DeviceApiV1.1.zip?dl=0

There is a second object

dim api as DeviceAPI

and then you can try the methods

api.powerOn(0) ' 0 is the device to power. dont know what values are accepted. You need to try
api.poweroff(0)



[mandu]

I want only use barcode library: yes it is correct.

I try your code

Sub btnReadBarcode_Click
    Dim bc As Barcode1D

    lblInfo.Text = lblInfo.Text & " # " & "Click"

    bc.initialize("")

    If bc.IsInitialized Then
        lblInfo.Text = lblInfo.Text & " # " & "Initialized"

        If bc.open Then
            lblInfo.Text = lblInfo.Text & " # " & "Opened"
        Else
            lblInfo.Text = lblInfo.Text & " # " & "NON Opened"
        End If

        lblBarcode.Text = bc.scan

        If bc.close Then
            lblInfo.Text = lblInfo.Text & " # " & "Closed"
        Else
            lblInfo.Text = lblInfo.Text & " # " & "NON Closed"
        End If

        lblInfo.Text = lblInfo.Text & " # " & "The End"
    Else
        lblInfo.Text = lblInfo.Text & " # " & "NOT initialized"
    End If
End Sub

When I click the button "btnReadBarcode", the label "lblInfo" assume only this value "# Click # Initialized" but nothing of the section

        If bc.open Then
            lblInfo.Text = lblInfo.Text & " # " & "Opened"
        Else
            lblInfo.Text = lblInfo.Text & " # " & "NON Opened"
        End If

The reader light does not light up.

I try to click the button for the second time, the app closes without message.



[DonManfred]

See my last post!



[mandu]

I rename your file "DeviceAPIver20160323.jar" in "DeviceAPI20160323.jar" because this the reference name in "DeviceApi.xml": is it correct?

But nothing of good :-(

This is my new code (Module ID: 1、1D（9600） 2、RFID（115200） 3、UHF（115200） 4、Fingerprint（57600）):

Sub btnReadBarcode_Click
    Dim bc As Barcode1D
    Dim api As DeviceAPI

    Try
        lblInfo.Text = lblInfo.Text & " # " & "Click"

        api.Initialize("")
        bc.initialize("")

        If api.IsInitialized And bc.IsInitialized Then
            lblInfo.Text = lblInfo.Text & " # " & "Initialized"

            If api.powerOn(1) Then
                lblInfo.Text = lblInfo.Text & " # " & "Powered"
            Else
                lblInfo.Text = lblInfo.Text & " # " & "NOT Powered"
            End If

'            If bc.open Then
'                lblInfo.Text = lblInfo.Text & " # " & "Opened"
'            Else
'                lblInfo.Text = lblInfo.Text & " # " & "NOT Opened"
'            End If
'
'            lblBarcode.Text = bc.scan
'
'            If bc.close Then
'                lblInfo.Text = lblInfo.Text & " # " & "Closed"
'            Else
'                lblInfo.Text = lblInfo.Text & " # " & "NOT Closed"
'            End If

            If api.powerOff(1) Then
                lblInfo.Text = lblInfo.Text & " # " & "Powered off"
            Else
                lblInfo.Text = lblInfo.Text & " # " & "NOT Powered off"
            End If

            lblInfo.Text = lblInfo.Text & " # " & "The End"
        Else
            lblInfo.Text = lblInfo.Text & " # " & "NOT initialized"
        End If

    Catch
        Log(LastException)
    End Try
End Sub

The label "lblInfo" displays only "# Click # Initialized";
the second click causes crash.

Somethig with permissions?

In SDK I find this source code:
https://mandustorage06.blob.core.windows.net/mandu-web-site/1D-source.rar



[DonManfred]

Sorry. I thought it would be a easy run...
Seems you need to find someone who write it for you. I´m not interested to spend more time on it.



[mandu]

I receive amore recent version of api.
Can we try the last time with this version?

https://mandustorage06.blob.core.windows.net/mandu-web-site/ver20170825.zip



[mandu]

This is my last request ... can you send me wrapper for the last version of api (module and barcode1D?)?
Thanks in advance



[DonManfred]

https://www.dropbox.com/sh/yss48hn3ecvvbbr/AAArE_88G-lsNHPD4_8eQQmfa?dl=0
New version using the newer sdk, a few new methods in the Module wrapper...
Source available too

As i also added more .so files the lib became much bigger...
But at least you should try. if it works then we can find out which files are not needed....

If it still not work using the init methods. Adapt the source



[Johan Schoeman]

This is my last request ... can you send me wrapper for the last version of api (module and barcode1D?)?
Thanks in advance

What device is it that you have? PDAxxxxxx?



[mandu]

Hi,
thanks for your attention.

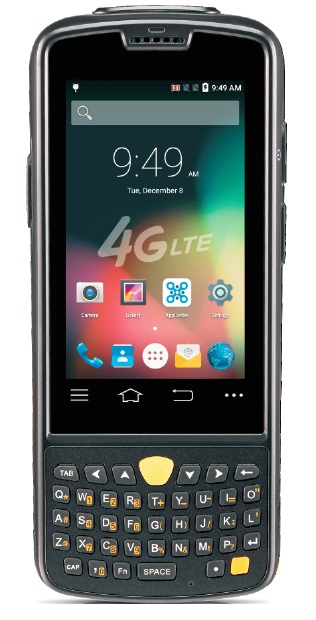

My device is "Handheld Terminal SV450-Q4"

I have SDK (from manufacturer).



[Johan Schoeman]

Hi,
thanks for your attention.

My device is "Handheld Terminal SV450-Q4"

I have SDK (from manufacturer).

OK - just thought that it might be a PDA401 or PDA3506. I managed to get their scanners working via b4a....
