Hi,
This program example allows you to control Output Pins P0 thru P7
on a Basic Stamp using a BlueTooth module and a HP210 PDA running
this Basic4PPC program.
When you press a button the PDA will send a one byte character command
to the Basic Stamp using a wireless BlueTooth connection. The program
running on the Basic Stamp will analyze the single byte character and
take the appropriate action.
This program example allows you to set each Basic Stamp Port Pin
(P0 thru P7) High or Low individually.
You can also set all Port Pins (P0 - P7) High at one time.
You can also set all Port Pins (P0 - P7) Low at one time.
You can Open and Close the BlueTooth Communications Port.
You can clear the TX and RX windows.

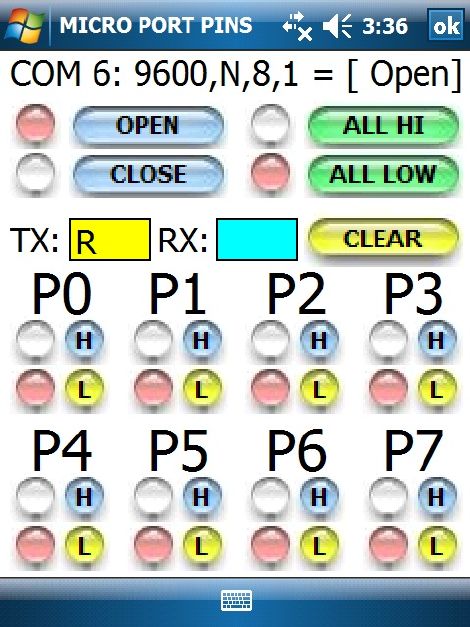

When you press a button the character that is transmitted is displayed in
the TX window. If your hardware sent a character back to the PDA it
would be displayed in the RX window.

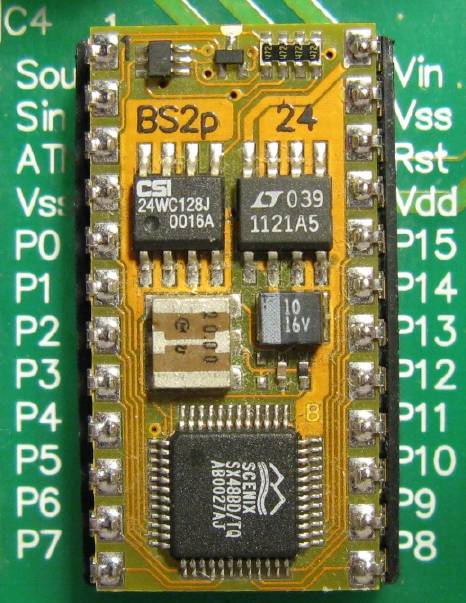

Port pin P15 on the Basic Stamp is used to receive serial data from the
wireless BlueTooth connection with the PDA.

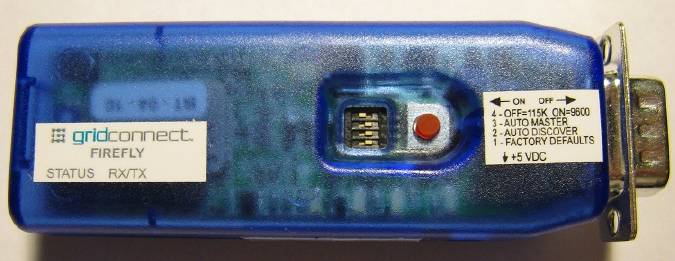

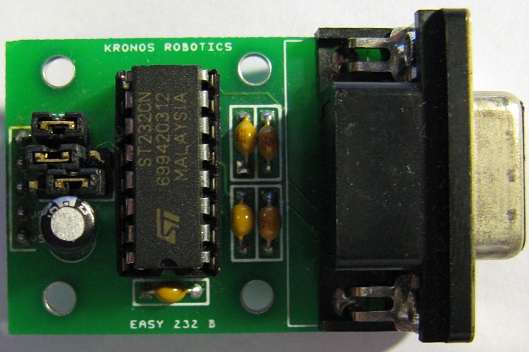

The RS232 module is plugged into the BlueTooth module to convert
the received data into TTL voltage levels before it enters Port pin
P15 on the Basic Stamp.
Here is a listing of the program code that runs on the Basic Stamp:
' {$STAMP BS2p}
' {$PBASIC 2.5}
serdata VAR Byte
Baud CON 240
INPUT 15
OUTPUT 0
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
OUTPUT 6
OUTPUT 7
LOW 0
LOW 1
LOW 2
LOW 3
LOW 4
LOW 5
LOW 6
LOW 7
Main:
DO
SERIN 15,Baud,[serdata]
'Character A was received. Set P0 High.
IF serdata=65 THEN
HIGH 0
ENDIF
'Character B was received. Set P0 Low.
IF serdata=66 THEN
LOW 0
ENDIF
'Character C was received. Set P1 High.
IF serdata=67 THEN
HIGH 1
ENDIF
'Character D was received. Set P1 Low.
IF serdata=68 THEN
LOW 1
ENDIF
'Character E was received. Set P2 High.
IF serdata=69 THEN
HIGH 2
ENDIF
'Character F was received. Set P2 Low.
IF serdata=70 THEN
LOW 2
ENDIF
'Character G was received. Set P3 High.
IF serdata=71 THEN
HIGH 3
ENDIF
'Character H was received. Set P3 Low.
IF serdata=72 THEN
LOW 3
ENDIF
'Character I was received. Set P4 High.
IF serdata=73 THEN
HIGH 4
ENDIF
'Character J was received. Set P4 Low.
IF serdata=74 THEN
LOW 4
ENDIF
'Character K was received. Set P5 High.
IF serdata=75 THEN
HIGH 5
ENDIF
'Character L was received. Set P5 Low.
IF serdata=76 THEN
LOW 5
ENDIF
'Character M was received. Set P6 High.
IF serdata=77 THEN
HIGH 6
ENDIF
'Character N was received. Set P6 Low.
IF serdata=78 THEN
LOW 6
ENDIF
'Character O was received. Set P7 High.
IF serdata=79 THEN
HIGH 7
ENDIF
'Character P was received. Set P7 Low.
IF serdata=80 THEN
LOW 7
ENDIF
'Character Q was received. Set P0,P1,P2,P3,P4,P5,P6,P7 High.
IF serdata=81 THEN
HIGH 0
HIGH 1
HIGH 2
HIGH 3
HIGH 4
HIGH 5
HIGH 6
HIGH 7
ENDIF
'Character R was received. Set P0,P1,P2,P3,P4,P5,P6,P7 Low.
IF serdata=82 THEN
LOW 0
LOW 1
LOW 2
LOW 3
LOW 4
LOW 5
LOW 6
LOW 7
ENDIF
LOOP
END
When you run the Basic4PPC program on the PDA you will need to Open the Bluetooth serial port connection first.
If you do not then you will get error messages when you press a button and the program tries to send a character
out the serial port. If the port is closed when you push a button then you will get an error message.
This Basic4ppc program was written to run on a HP210 PDA.
The file MicroInstall.zip is the zipped up .CAB installation file for the PDA.
The file MICRO.sbp is the Basic4PPc source code file.
The file serialmicro.txt is the code for the Basic Stamp.
This program example allows you to control Output Pins P0 thru P7
on a Basic Stamp using a BlueTooth module and a HP210 PDA running
this Basic4PPC program.
When you press a button the PDA will send a one byte character command
to the Basic Stamp using a wireless BlueTooth connection. The program
running on the Basic Stamp will analyze the single byte character and
take the appropriate action.
This program example allows you to set each Basic Stamp Port Pin
(P0 thru P7) High or Low individually.
You can also set all Port Pins (P0 - P7) High at one time.
You can also set all Port Pins (P0 - P7) Low at one time.
You can Open and Close the BlueTooth Communications Port.
You can clear the TX and RX windows.
When you press a button the character that is transmitted is displayed in
the TX window. If your hardware sent a character back to the PDA it
would be displayed in the RX window.
Port pin P15 on the Basic Stamp is used to receive serial data from the
wireless BlueTooth connection with the PDA.
The RS232 module is plugged into the BlueTooth module to convert
the received data into TTL voltage levels before it enters Port pin
P15 on the Basic Stamp.
Here is a listing of the program code that runs on the Basic Stamp:
' {$STAMP BS2p}
' {$PBASIC 2.5}
serdata VAR Byte
Baud CON 240
INPUT 15
OUTPUT 0
OUTPUT 1
OUTPUT 2
OUTPUT 3
OUTPUT 4
OUTPUT 5
OUTPUT 6
OUTPUT 7
LOW 0
LOW 1
LOW 2
LOW 3
LOW 4
LOW 5
LOW 6
LOW 7
Main:
DO
SERIN 15,Baud,[serdata]
'Character A was received. Set P0 High.
IF serdata=65 THEN
HIGH 0
ENDIF
'Character B was received. Set P0 Low.
IF serdata=66 THEN
LOW 0
ENDIF
'Character C was received. Set P1 High.
IF serdata=67 THEN
HIGH 1
ENDIF
'Character D was received. Set P1 Low.
IF serdata=68 THEN
LOW 1
ENDIF
'Character E was received. Set P2 High.
IF serdata=69 THEN
HIGH 2
ENDIF
'Character F was received. Set P2 Low.
IF serdata=70 THEN
LOW 2
ENDIF
'Character G was received. Set P3 High.
IF serdata=71 THEN
HIGH 3
ENDIF
'Character H was received. Set P3 Low.
IF serdata=72 THEN
LOW 3
ENDIF
'Character I was received. Set P4 High.
IF serdata=73 THEN
HIGH 4
ENDIF
'Character J was received. Set P4 Low.
IF serdata=74 THEN
LOW 4
ENDIF
'Character K was received. Set P5 High.
IF serdata=75 THEN
HIGH 5
ENDIF
'Character L was received. Set P5 Low.
IF serdata=76 THEN
LOW 5
ENDIF
'Character M was received. Set P6 High.
IF serdata=77 THEN
HIGH 6
ENDIF
'Character N was received. Set P6 Low.
IF serdata=78 THEN
LOW 6
ENDIF
'Character O was received. Set P7 High.
IF serdata=79 THEN
HIGH 7
ENDIF
'Character P was received. Set P7 Low.
IF serdata=80 THEN
LOW 7
ENDIF
'Character Q was received. Set P0,P1,P2,P3,P4,P5,P6,P7 High.
IF serdata=81 THEN
HIGH 0
HIGH 1
HIGH 2
HIGH 3
HIGH 4
HIGH 5
HIGH 6
HIGH 7
ENDIF
'Character R was received. Set P0,P1,P2,P3,P4,P5,P6,P7 Low.
IF serdata=82 THEN
LOW 0
LOW 1
LOW 2
LOW 3
LOW 4
LOW 5
LOW 6
LOW 7
ENDIF
LOOP
END
When you run the Basic4PPC program on the PDA you will need to Open the Bluetooth serial port connection first.
If you do not then you will get error messages when you press a button and the program tries to send a character
out the serial port. If the port is closed when you push a button then you will get an error message.
This Basic4ppc program was written to run on a HP210 PDA.
The file MicroInstall.zip is the zipped up .CAB installation file for the PDA.
The file MICRO.sbp is the Basic4PPc source code file.
The file serialmicro.txt is the code for the Basic Stamp.
