B4J Library [ABMaterial]: Trying to wrap a multi-select

Discussion in 'B4J Libraries & Classes' started by Mashiane, Jun 25, 2018.

  1. Mashiane

    Mashiane Expert Licensed User

    Ola

    Get Library + Source Code

    I'm trying to get this component running. I need a way to select multiple items from a list, so I found this here.

    Just need to put it in a container and make it have a title and then return selected items.


    Code:
    page.AddExtraCSSFile("custom/multi-select.css")

    page.AddExtraJavaScriptFile("custom/jquery.multi-select.js")

    Dim mms As MashMultiSelect
        mms.Initialize(
    page,"mms")
        mms.AddItem(
    "elem_1","Element 1",True)
        mms.AddItem(
    "elem_2","Element 2",False)
        mms.AddItem(
    "elem_3","Element 3",False)
        mms.AddItem(
    "elem_4","Element 4",False)
        mms.AddItem(
    "elem_5","Element 5",False)
        mms.AddItem(
    "elem_6","Element 6",False)

    page.Cell(1,1).AddComponent(mms.ABMComp)
    To select items automatically via code, you can...

    Code:
    mms.ClearSelection
        mms.AddSelection(
    "elem_6")
        mms.AddSelection(
    "elem_5")
        mms.SelectItems
    This will include these items on the selected items, other methods exist too, see the attached code.

    Last edited: Jun 26, 2018
  2. Mashiane

    Mashiane Expert Licensed User

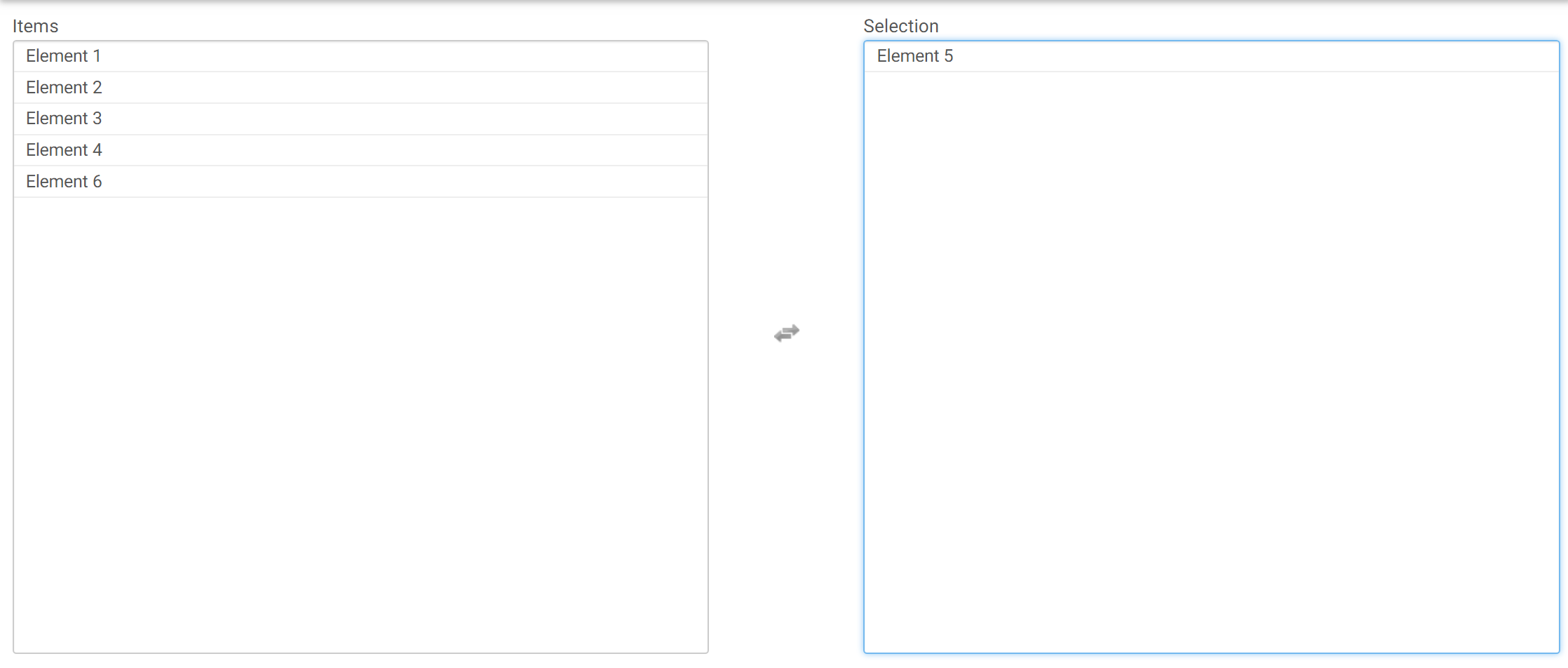

    Updates:

    1. Increase of the Multi-Select area
    2. Width to fill 100% of the area
    3. Trapping select & deselect events
    4. Setting selected items via code
    5. Added headers for both sections (can accept HTML


    Code:
    'multi select events
    Sub mms_select(value As Map)

    Dim valuex As String = value.GetDefault("value","")

    Log(valuex)

    page.Msgbox("",valuex,"Select","OK",False,"","")
    End Sub


    Sub mms_deselect(value As Map)

    Dim valuex As String = value.GetDefault("value","")

    Log(valuex)

    page.Msgbox("",valuex,"DeSelect","OK",False,"","")
    End Sub

    Last edited: Jun 26, 2018
    Anser, Johan Hormaza and joulongleu like this.
  3. joulongleu

    joulongleu Member

    Hi:Mashiane:logs show : Invalid number of parentheses

    Last edited: Jun 26, 2018
  4. Mashiane

    Mashiane Expert Licensed User

    B4J logs or browser logs?

  5. joulongleu

    joulongleu Member

    B4J logs

  6. Mashiane

    Mashiane Expert Licensed User

    I'm not sure what the cause is though, have you included the css and js files? This is what works for me. Also ensure that MashPlugIns Library Source is the latest compiled as per provision.

    Code:
    Dim mms As MashMultiSelect
        mms.Initialize(
    page,"mms","500px")
        mms.selectableHeader =
    "Items"
        mms.selectionHeader =
    "Selection"
        mms.keepOrder =
    True
        mms.dblClick =
    False
        mms.AddItem(
    "elem_1","Element 1",True)
        mms.AddItem(
    "elem_2","Element 2",False)
        mms.AddItem(
    "elem_3","Element 3",False)
        mms.AddItem(
    "elem_4","Element 4",False)
        mms.AddItem(
    "elem_5","Element 5",False)
        mms.AddItem(
    "elem_6","Element 6",False)

    page.Cell(1,1).AddComponent(mms.ABMComp)

  7. joulongleu

    joulongleu Member

    :)Very good function, test is ok , thanks a lot

    Last edited: Jun 26, 2018
    Mashiane likes this.
  8. Mashiane

    Mashiane Expert Licensed User

    In finality, this would not be complete without a way to return all the selected values. So I have added a GetSelection method to return a list of selected values (see logs) For this to work, you need to run the UpdateSelection method when you select or deselect an item.


    Code:
    'multi select events
    Sub mms_select(value As Map)

    'get the selected values
        Dim valuex As String = value.GetDefault("value","")

    'ensure that our selection is updated, the second parameter should be true
        mms.UpdateSelection(valuex,True)

    Log(mms.GetSelection)

    'page.Msgbox("",valuex,"Select","OK",False,"","")
    End Sub


    Sub mms_deselect(value As Map)

    'get the selected values
        Dim valuex As String = value.GetDefault("value","")

    'ensure that our selection is updated, this time remove the de-selection
        mms.UpdateSelection(valuex,False)

    Log(mms.GetSelection)

    'page.Msgbox("",valuex,"DeSelect","OK",False,"","")
    End Sub
    PS: your variable name, e.g. mms should be declared in Class_Globals

    Get Library + Source in #1

    prajinpraveen and joulongleu like this.
  9. joulongleu

    joulongleu Member

    :pwow+good+likes:)

    Mashiane likes this.
