B4J Library [B4x] B4xBitSet_Utils Serialize a B4xBitSet

I had a need to save the state of a B4xBitSet so I thought I should serializable its data. The easiest method and compatible with B4xSerializator, was to create a list of Int values representing the bits.
I considered using a byte array but without adding complexity, that would mean that the BitSet size would be limited to 255. Not that I could really imagine working with that many bits, but it would be an arbitrary limit.

There is probably a simpler way to do this. If there is, please let me know.

B4X:
'Return a List of Ints in which the first element contains the B4xBitSet size
'The remaining elements contain the B4xBitSet converted to Ints
Public Sub Serialize(BitSet As B4XBitSet) As List
    Dim IntSize As Int = 32
    Dim Values As List
    Values.Initialize
    Values.Add(BitSet.Size)
    For i = 0 To Ceil(BitSet.Size / IntSize) -1
        Values.Add(0)
    Next

    Dim Index As Int = 1
    For i = 0 To BitSet.Size - 1
        If BitSet.Get(i) Then
            Dim Shift As Int =  i Mod IntSize
            Values.Set(Index,Bit.Or(Values.Get(Index),Bit.ShiftLeft(1,Shift)))
        End If
        If i <> 0 And i Mod IntSize = IntSize - 1 Then Index = Index + 1
    Next
    Return Values
End Sub

'Recreate a B4xBitSet from a serialized List.  The first element containing the B4xBitSet size.
Public Sub Deserialize(Serialized As List) As B4XBitSet
    Dim BitSet As B4XBitSet
    BitSet.Initialize(Serialized.Get(0))
    Dim IntSize As Int = 32

    For i = 1 To Serialized.Size - 1
        For j = 0 To IntSize - 1
            Dim BitPos As Int = (i - 1) * IntSize + j
            If BitPos = BitSet.Size Then Exit
            If Bit.And(Bit.ShiftRight(Serialized.Get(i),j),1) = 1 Then
                BitSet.Set(BitPos,True)
            End If
        Next
    Next

    Return BitSet
End Sub

I have tested as much as I can but I attach a test project if you would like to help test this. and a B4xLib.

Please do test it thoroughly before using in anger.


Attachments

  • B4xBitSetUtils.zip
    3.1 KB · Views: 89
  • B4xBitSet_Utils-b4xlib.b4xlib
    1.1 KB · Views: 92
Last edited:

stevel05

Expert
Licensed User
Longtime User
Oh well, I just found Erel's suggestion on serializing the B4xBitSet here. But I also wanted to be able to compare arrays to test matching patterns which is why the library contains a method to get the data as an array of Ints. Live and learn :)


MicroDrie

Well-Known Member
Licensed User

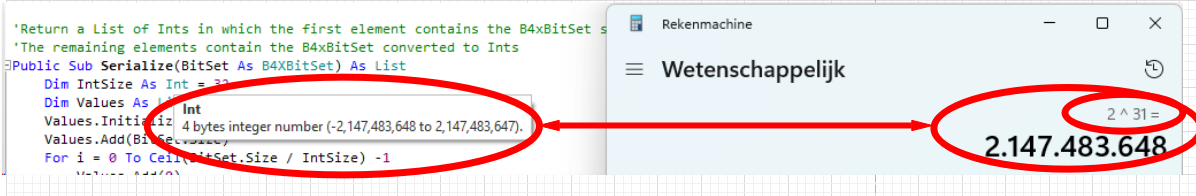

Hi Steve, I've looked at your program, but I have my doubts about the 4 bytes, because 1 bit is used to indicate whether the number is negative or positive. So 4 * 8 = 32 - 1 = 31 bits remain. If you really want to be able to use 32 bits you could use a long type of 8 * 8 = 64 - 1 = 63 bits.


stevel05

Expert
Licensed User
Longtime User
Thanks Microdrie,

In this case the idea isn't to store the values, just the bit state so the bitsets can be recreated. all 32 bits set returns a value of -1, but the bits are all set.
I agree, if you want accurate values, this wouldn't be the way to do it, but I think it is the least expensive on memory for this job.

Last edited:
