B4A Library [B4X] [XUI] AS CheckBoxAdvanced

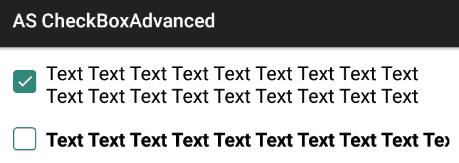

This is a CheckBox library that can be displayed together with text. So you can now add checkboxes and text them even faster.
If you want a standalone checkbox, then have a look at the AS_CheckBox library.

I spend a lot of time in creating views, like this and to create a high quality view cost a lot of time. If you want to support me and further views, then you can do it here by Paypal or with a coffee. :)

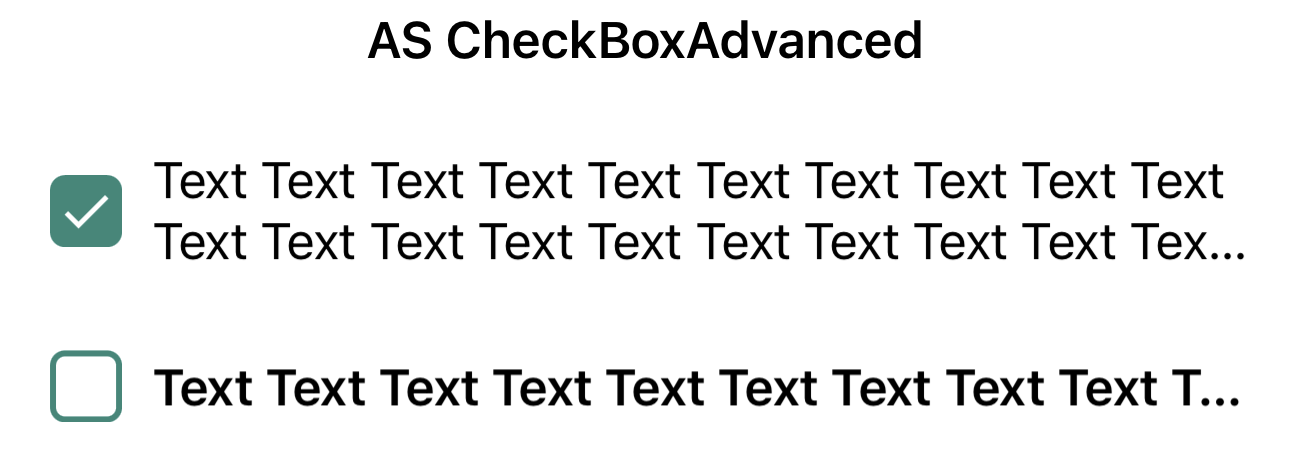

(41) mage.png

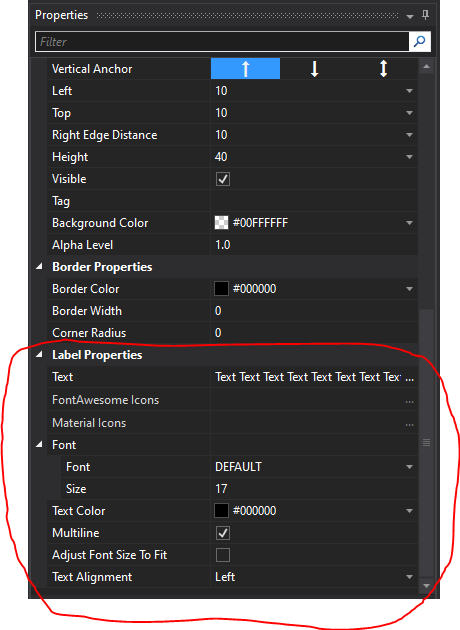

How the text should look like, you decide completely in the designer, under the "Label properties:

or in the code:
AS_CheckboxAdvanced1.TextLabel.TextColor = xui.Color_Red

Author: Alexander Stolte
Version: 1.00

  • AS_CheckboxAdvanced
    • Events:
      • CheckedChange (Checked As Boolean)
    • Fields:
      • mBase As B4XView
      • Tag As Object
    • Functions:
      • Base_Resize (Width As Double, Height As Double) As String
      • Class_Globals As String
      • DesignerCreateView (Base As Object, Lbl As Label, Props As Map) As String
        Base type must be Object
      • getCheckBoxWidthHeight As Float
        Call Refresh if you change this value
      • getChecked As Boolean
      • getDisabledBackgroundColor As Int
      • getDisabledIconColor As Int
      • getEnabled As Boolean
      • getIconColor As Int
      • getisEvent As Boolean
      • getisFontAswesome As Boolean
      • getisHaptic As Boolean
      • getText As String
      • getTextLabel As B4XView
      • Initialize (Callback As Object, EventName As String) As String
      • IsInitialized As Boolean
        Tests whether the object has been initialized.
      • Refresh As String
      • setBorderCornerRadius (radius As Int) As String
      • setBorderWidth (width As Int) As String
      • setCheckBoxWidthHeight (WidthHeight As Float) As String
      • setChecked (b_checked As Boolean) As String
      • setCheckedAnimated (animated As Boolean) As String
      • setCheckedBackgroundColor (crl As Int) As String
      • setDisabledBackgroundColor (crl As Int) As String
      • setDisabledIconColor (crl As Int) As String
      • setEnabled (enable As Boolean) As String
      • SetIcon (icon As String, isfontawesome As Boolean) As String
      • setIconColor (Color As Int) As String
      • setisEvent (Enabled As Boolean) As String
      • setisFontAswesome (FontAwesome As Boolean) As String
      • setisHaptic (Enabled As Boolean) As String
      • setText (Text As String) As String
    • Properties:
      • BorderCornerRadius
      • BorderWidth
      • CheckBoxWidthHeight As Float
        Call Refresh if you change this value
      • Checked As Boolean
      • CheckedAnimated
      • CheckedBackgroundColor
      • DisabledBackgroundColor As Int
      • DisabledIconColor As Int
      • Enabled As Boolean
      • IconColor As Int
      • isEvent As Boolean
      • isFontAswesome As Boolean
      • isHaptic As Boolean
      • Text As String
      • TextLabel As B4XView [read only]
  • 1.00
    • Release
  • 1.01
    • The checkbox is now also toggled when you click on the text
Have Fun :)


  • AS CheckboxAdvanced Example.zip
    178.1 KB · Views: 119
  • AS_CheckboxAdvanced.b4xlib
    3.3 KB · Views: 122
