Android Question [ CircularProgressBar ] How can i change color in code ?

Waldemar Lima

Well-Known Member
Licensed User
hello everyone !!

i am trying change color of CircularProgressBar on code ... but dont works ...

im using this code :
B4X:
'Custom View class
'version: 2.00
#DesignerProperty: Key: ColorFull, DisplayName: Color Full, FieldType: Color, DefaultValue: 0xFF06F96B, Description:
#DesignerProperty: Key: ColorEmpty, DisplayName: Color Empty, FieldType: Color, DefaultValue: 0xFF868686, Description:
#DesignerProperty: Key: StrokeWidth, DisplayName: Stroke Width, FieldType: Int, DefaultValue: 10, Description:
#DesignerProperty: Key: Duration, DisplayName: Duration From 0 To 100, FieldType: Int, DefaultValue: 3000, Description: Milliseconds

Sub Class_Globals
    Private mEventName As String 'ignore
    Private mCallBack As Object 'ignore
    Private cvs As B4XCanvas
    Private xui As XUI
    Private mLbl As B4XView
    Private cx, cy, radius As Float
    Private stroke As Float
    Private clrFull, clrEmpty As Int
    Private mBase As B4XView
    Private currentValue As Float
    Private DurationFromZeroTo100 As Int

End Sub

Public Sub Initialize (Callback As Object, EventName As String)
    mEventName = EventName
    mCallBack = Callback
End Sub

Public Sub DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
    mBase = Base
    mBase.SetLayoutAnimated(0, mBase.Left, mBase.Top,  Min(mBase.Width, mBase.Height), Min(mBase.Width, mBase.Height))

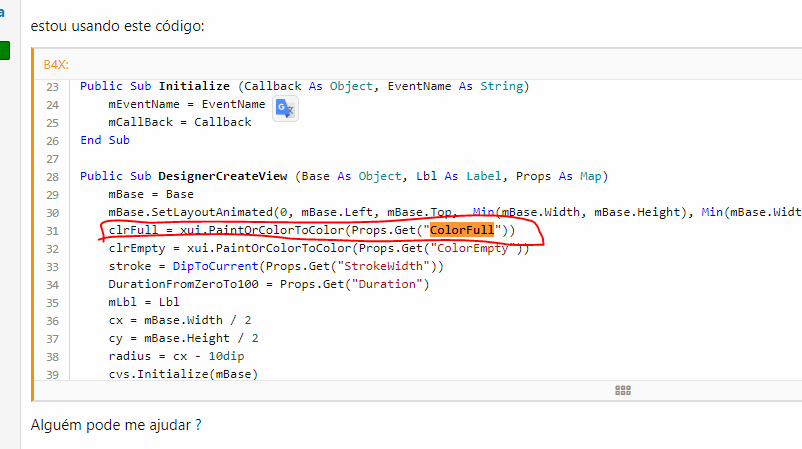

    clrFull = xui.PaintOrColorToColor(Props.Get("ColorFull"))
    clrEmpty = xui.PaintOrColorToColor(Props.Get("ColorEmpty"))
    stroke = DipToCurrent(Props.Get("StrokeWidth"))
    DurationFromZeroTo100 = Props.Get("Duration")
    mLbl = Lbl
    cx = mBase.Width / 2
    cy = mBase.Height / 2
    radius = cx - 10dip
    cvs.Initialize(mBase)
    mLbl.SetTextAlignment("CENTER", "CENTER")
    mBase.AddView(mLbl, 0, cy - 20dip, mBase.Width, 40dip)
    cvs.Initialize(mBase)
    DrawValue(currentValue)
End Sub

Private Sub Base_Resize (Width As Double, Height As Double)
    cx = Width / 2
    cy = Height / 2
    radius = cx - 10dip
    mBase.SetLayoutAnimated(0, mBase.Left, mBase.Top,  Min(Width,Height), Min(Width, Height))
    cvs.Resize(Width, Height)
    mLbl.SetLayoutAnimated(0, 0, cy - 20dip, Width, 40dip)
    DrawValue(currentValue)
End Sub

Public Sub setValue(NewValue As Float)
    AnimateValueTo(NewValue)
End Sub

Public Sub getValue As Float
    Return currentValue
End Sub

Private Sub AnimateValueTo(NewValue As Float)
    Dim n As Long = DateTime.Now
    Dim duration As Int = Abs(currentValue - NewValue) / 100 * DurationFromZeroTo100 + 1000
    Dim start As Float = currentValue
    currentValue = NewValue
    Dim tempValue As Float
    Do While DateTime.Now < n + duration
        tempValue = ValueFromTimeEaseInOut(DateTime.Now - n, start, NewValue - start, duration)
        DrawValue(tempValue)
        Sleep(10)
        If NewValue <> currentValue Then Return 'will happen if another update has started
    Loop
    DrawValue(currentValue)
End Sub

'quartic easing in/out from http://gizma.com/easing/
Private Sub ValueFromTimeEaseInOut(Time As Float, Start As Float, ChangeInValue As Float, Duration As Int) As Float
    Time = Time / (Duration / 2)
    If Time < 1 Then
        Return ChangeInValue / 2 * Time * Time * Time * Time + Start
    Else
        Time = Time - 2
        Return -ChangeInValue / 2 * (Time * Time * Time * Time - 2) + Start
    End If
End Sub

Private Sub DrawValue(Value As Float)
    cvs.ClearRect(cvs.TargetRect)
    cvs.DrawCircle(cx, cy, radius, clrEmpty, False, stroke)
    mLbl.Text = $"$1.0{Value}"$
    Dim startAngle = -90, sweepAngle = Value / 100 * 360 As Float

    If Value < 100 Then
        Dim p As B4XPath
        p.InitializeArc(cx, cy, radius + stroke + 1dip, startAngle, sweepAngle)
        cvs.ClipPath(p)
        cvs.DrawCircle(cx, cy, radius - 0.5dip, clrFull, False, stroke + 1dip)
        cvs.RemoveClip
    Else
        cvs.DrawCircle(cx, cy, radius - 0.5dip, clrFull, False, stroke + 1dip)
    End If
    cvs.Invalidate
End Sub

' This is function to change color

Public Sub DrawValueColor(Value As Float, clr As Int)
    Log("Pega no meu pau")
    cvs.ClearRect(cvs.TargetRect)
    cvs.DrawCircle(cx, cy, radius, clrEmpty, False, stroke)
    mLbl.Text = $"$1.0{Value}"$
    Dim startAngle = -90, sweepAngle = Value / 100 * 360 As Float

    If Value < 100 Then
        Dim p As B4XPath
        p.InitializeArc(cx, cy, radius + stroke + 1dip, startAngle, sweepAngle)
        cvs.ClipPath(p)
        cvs.DrawCircle(cx, cy, radius - 0.5dip, clr, False, stroke + 1dip)
        cvs.RemoveClip
    Else
        cvs.DrawCircle(cx, cy, radius - 0.5dip, clr, False, stroke + 1dip)
    End If
    cvs.Invalidate

End Sub

someone can help me ?


Lucas Siqueira

Active Member
Licensed User
Longtime User

Upvote 0

Brian Michael

Active Member
Licensed User
Hi i modify the code, now you can change the color on runtime.
Use this codes:

B4X:
CircularProgress1.changeFullColor(Colors.RED) ' Change de full color


CircularProgress1.changeEmptyColor(Colors.RED) ' Change the empty color


Attachments

  • CircularProgressBar.bas
    4.9 KB · Views: 212
