B4A Library [Class] A simple gauge/meter

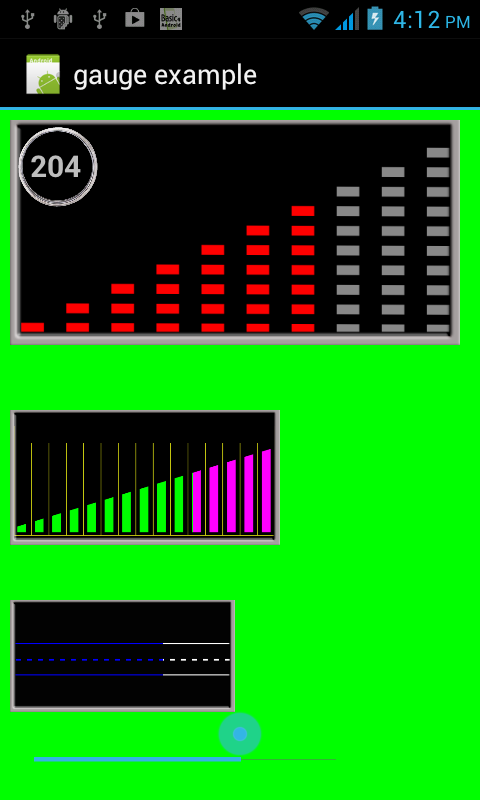

Here it goes...my first attempt at a class. I have done a simple meter/gauge which displays a graphical representation of a value. I have done an example and the usage is quite straight forward and it is commented. There are images which are the display in the files folder these are required. Some of the displays are a bit whacky but I was just showing what can be done . In the example I have 3 gauges in different sizes and displays so you can see what they look like. It is a graphical display not a calibrated display, it is correct as percentage of the max value . I will do a vertical option eventually. It is best to make the gauge size width 2 times the height, other ratios work but will look best at width 2 x height.

...New upload coming

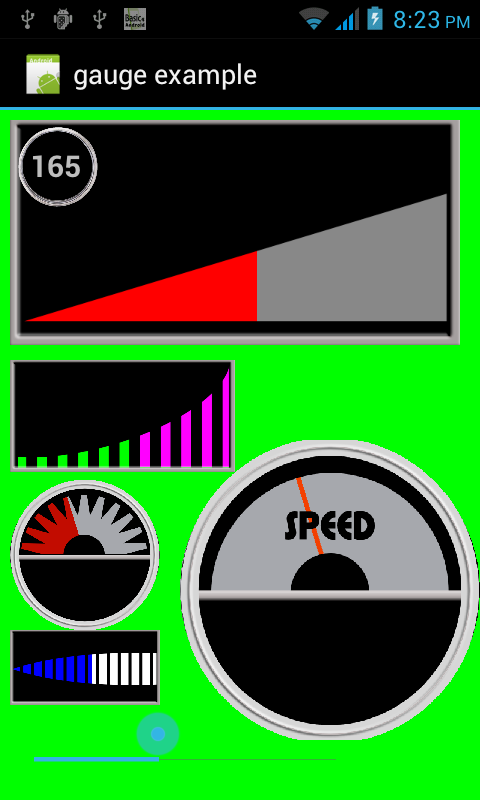

added round gauges.......
when you unzip the round images put them in the files folder of the unzipped project......enjoy



[positrom2]

Great. Could you add a cicular gauge?
positrom2



[tremara1]

Will Look at it

I'll have a go....



[barx]

Certainly looks nice.



[Scantech]

Nice. Circular Analog/Digital Gauges will be nice.



[moster67]

Nice!

and thanks for sharing.

:sign0188:



[tremara1]

Added some round dials

In the first post are 2 new zips. you need to put the round images in the files folder of the zipped project before opening.....good luck



[kawawong]

Nice and Useful

:icon_clap:
The gauge widget is very useful in many apps.

We change the image to make it very versatile. Right?

I used the following gauges for windows application, and user always wish to have dashboard like application.
WinForms Gauge Control - Analog and Digital Gauges for Windows Forms

Now, it will be done in the Android APP as well.



[tremara1]

Different types

All you need to do is change to one of the "bg*.png" files for the rect gauge and round*.png" files for the round gauge. I am still working on improving the round gauges.



[bluedude]

Like these a lot!

Nice start!

A visualization library would be sooo nice. I like these a lot too: justGage.com

Cheers,



[Philip Prins]

Great

Trevor is it possible to add some vertical indicators?

Regards
Philip



[tremara1]

vertical gauge

I have a vertical version but as I said earlier these gauges are good representations of data but there are not calibrated you need a label to display the value represented. This is a link to the zip as it is over the limit for the forum. https://dl.dropboxusercontent.com/u/72148014/gauges.zip ...hope you enjoy it....
