B4J Library [Class] SelectionListView - drag and drop between 2 clv

This class allows you to manage two lists (available and selected) with a display based on CustomListView and advanced features such as multiple selection and drag and drop of elements.

Internal Structure

Main Variables:

​

AviableList and SelectedList: the source lists.​

​

clvAvailable and clvSelected: the two CustomListViews displaying the items.​

​

Aviable_SelectedValue and Selected_SelectedValue: the currently selected values.​

​

CSelections_a and CSelections_s: selection handlers (CLVSelections class).​

​

Drag & Drop Management: DragGhost, DragValue, DragSource, etc.​

​

Initialization :

Initialize(Callback As Object, EventName As String) : Standard signature for a B4X class.​

​

Setup(Container As B4XView, RootPane As B4XView) : class configuration with container and window root.​

Main features

List management:

SetAvailableList(lst As List): loads a list into the "available" section.​

​

MoveItem(...): moves an item from one list to another.​

Multiple selection:

ToggleSelection(values As List, selections As CLVSelections, index As Int, value As String): adds or removes an element from the selection.​

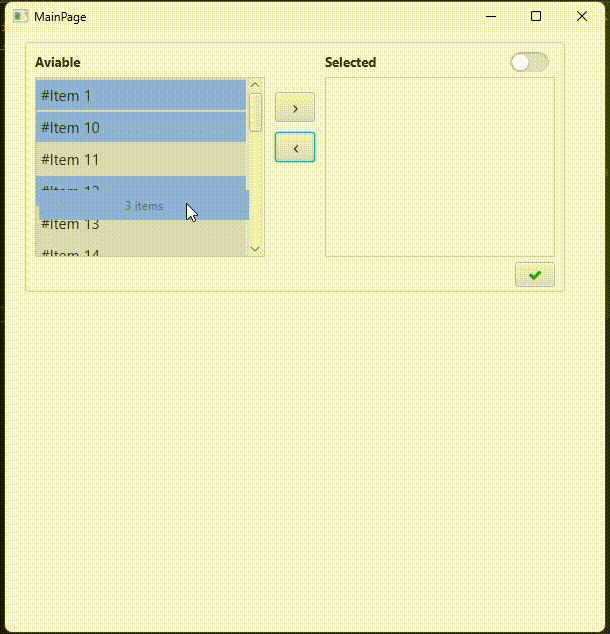

Drag and drop:

dragitem_MousePressed, dragitem_MouseDragged, dragitem_MouseReleased: manage the creation of a visual "ghost" and the movement of items between lists.​

Action buttons:

btn_AviableToSelected_Click and btn_SelectedToAviable_Click: transfer the selected items from one list to the other.​

​

btAccept_MouseClicked: returns the final list of selected items to the main page via CallSubDelayed2.​

​

Example of use:

In your main code, you initialize and configure the class as follows:​

​

slv.Initialize(Me, "NewList")
slv.Setup(Pane1, B4XPages.MainPage.Root)
slv.SetAvailableList(AviableList)
...

Sub NewList(mList As List)
    Log("List received : " & mList)
End Sub

​
