iOS Question Close Keyboard

[lePeKa]

Hi,

I do have a TextField in my B4XView. Once the user presses "Enter" on the keyboard, the keyboard closes - just as expected. The Views/UI Elements that have been covered, are visible again.

But is it also possible to hide the keyboard, once the users "taps" (Clicks/Touches) outside the TextField?

I have tried to catch the "Click" and "Touch" Event of the page itself, but not even got a Log. So I assume I hadn't got that right. Is there some workaround/trick? I had fired up the search, but none of the results, I read and tested, have been successful.
Is there somewhere a minimal example? I have tested the "Coordinates" example, but it behaves weird (very slow / unresponsive) and does not close the keyboard as well.

I have considered replacing it with a B4XFloatTextField, but haven't worked with it yet.

Thank you!



[tufanv]

Page_touch even should close the keyboard with page.resignfocus. Maybe something else is covering the page like a panel so that you have to use panel_touch instead of page_touch ? just guessing. It would be nice to see a small example



[moore_it]

Hi try this,

a) create a global variable

Public gTf As TextField

b) initialize the textfield

Private  Sub InitKeyboard(tf As TextField)
    Globals.gTf = tf
    ' img with mini keyboard
    Dim img As ImageView
    img.Initialize("EKB")
    img.Height = 32
    img.Width = 32
    img.ContentMode = img.MODE_CENTER
    img.Bitmap = LoadBitmap(File.DirAssets,"keyboard.png")
    Dim no As NativeObject = tf
    no.SetField("inputAccessoryView", img)
End Sub

c) catch the event

Private Sub EKB_Click
    Globals.gTf.ResignFocus
End Sub



[Num3]

Add these lines where needed to close the keyboard

    Dim ime As IME ' Hide the keyboard
    ime.Initialize("blabla")
    ime.HideKeyboard



[Alexander Stolte]

Add these lines where needed to close the keyboard

We are in B4I there is no IME.



[Num3]

We are in B4I there is no IME.

I am sorry, i did not notice this post was on the B4i thread
Gzzzz I need more coffee ?



[lePeKa]

Page_touch even should close the keyboard with page.resignfocus. Maybe something else is covering the page like a panel so that you have to use panel_touch instead of page_touch ? just guessing. It would be nice to see a small example

Thank you. I can generate a Touch-Event for the page. For a standard B4XPage-Project in B4i it creates an empty sub.

Private Sub Page1_Touch(Action As Int, X As Float, Y As Float)

End Sub

However, I struggle with referring to that page.
Is it "me" or B4XPage.Get... or is it "MainPage" (when referring to the default Designer Layout)?

Hi try this,

a) create a global variable

Public gTf As TextField

b) initialize the textfield

Private  Sub InitKeyboard(tf As TextField)
    Globals.gTf = tf
    ' img with mini keyboard
    Dim img As ImageView
    img.Initialize("EKB")
    img.Height = 32
    img.Width = 32
    img.ContentMode = img.MODE_CENTER
    img.Bitmap = LoadBitmap(File.DirAssets,"keyboard.png")
    Dim no As NativeObject = tf
    no.SetField("inputAccessoryView", img)
End Sub

c) catch the event

Private Sub EKB_Click
    Globals.gTf.ResignFocus
End Sub

Thank you as well.
Here also: I struggle with the placement and naming of the code. Define the global Textfield in "main" or "b4xpage".

Why do I have to have an ImageView with a Keyboard.png?



[moore_it]



[lePeKa]

View attachment 130713

Thank you. I'm really trying to get all the bits and pieces together.



[lePeKa]

Here you'll find a working example (works on my machine ?), based on @moore_it s great example/help. Thank you so much for that!

Usage:

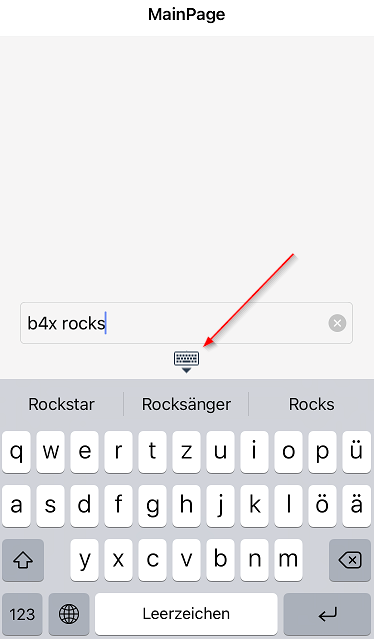

Once you click/tap/touch INTO the TextField, the keyboard opens AND additionally - the small picture/keyboard icon shows up.

Now you can do the following:
Use the "Enter" button on the keyboard (my TextField was configured that way in the Designer), or
Tap the small keyboard-icon.

Very intuitive - my users will like it!



[moore_it]

It's very useful in case of the numpad keyboard



[lePeKa]

It's very useful in case of the numpad keyboard

Indeed. I can already see the benefit.
Do you have to do this for every page, or can this be handled globally?



[moore_it]

as you like ... but attention on event
