B4J Question Designer Scripts!

[Colin Evans]

Hi, getting myself in a mess trying to work with designer scripts
Basically, I have a Pane that's set to the width of the screen with left and right set to 10 in properties, and the height is set to 70,

What I am trying to do is put 9 labels in the panel that are 100% in height and spread evenly across the panel, I've tried a few this to set the width of each label to 11.11% of the panel but getting nowhere fast, to be honest, I'm not sure of the syntax even though I've tried various examples in B4A, is it different in B4J



[josejad]

Hi.

Maybe you can adapt this example?

[B4X] [Visual Designer] Spreading Controls

Question: How can I build a layout with X controls spread horizontally or vertically? Answer: You can use the designer script for this. As the designer script engine (currently) doesn't support loops it requires copying a few lines, however it is quite simple. The code goes like this: n = 4...

www.b4x.com



[Colin Evans]

Hi.

Maybe you can adapt this example?

[B4X] [Visual Designer] Spreading Controls

Question: How can I build a layout with X controls spread horizontally or vertically? Answer: You can use the designer script for this. As the designer script engine (currently) doesn't support loops it requires copying a few lines, however it is quite simple. The code goes like this: n = 4...

www.b4x.com

Thanks, whilst it does go some way to solving my problem it doesn't spread the 9 labels evenly across the panel that is 100% of the width of the screen, so I'm back to playing with set width but given I now have nine labels across the panel the width of each label needs to be set to 11.11% and place according in the panel. If it's possible



[William Lancee]

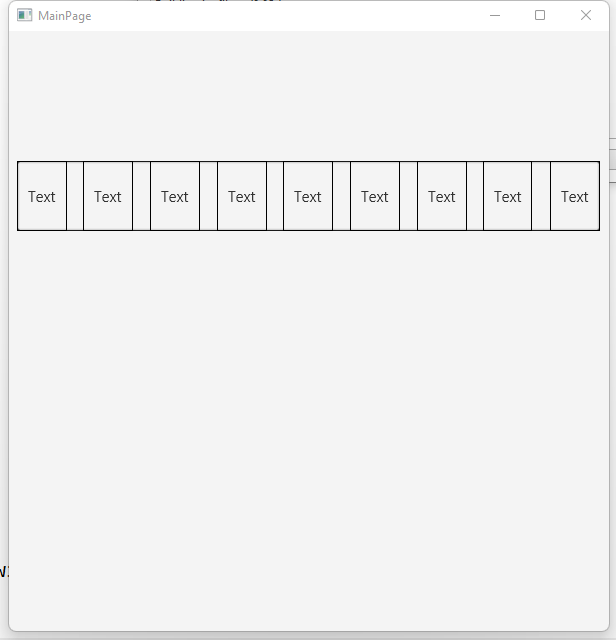

If you want something like this, a small modification of @Erel 's example will do it.

'All variants script
n = 9: MaxSize = 50dip : MinGap = 5 'change here (n = number of views)
AllWidth = 100%x
w = Min((AllWidth + 22dip)/ n, MaxSize)
gap = (AllWidth - n * w) / n

'Only change the views names and 'i' value:
i = 0 : Label1.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 1 : Label2.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 2 : Label3.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 3 : Label4.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 4 : Label5.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 5 : Label6.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 6 : Label7.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 7 : Label8.SetLeftAndRight(i * gap + i * w,i * gap + (i + 1) * w)
i = 8 : Label9.SetLeftAndRight(i * gap + i * w, i * gap + (i + 1) * w)
Pane1.SetLeftAndRight(Pane1.Left, 10 + Label9.Right)
Pane1.SetLeftAndRight(50%x - Pane1.Width / 2, 50%x + Pane1.Width / 2)



[William Lancee]

If you don't want any gaps set MaxSize = 11.11%x and gap = 0
