Android Question Ellipse detection in an image with OpenCV

Discussion in 'Android Questions' started by Toky Olivier, Aug 3, 2019.

  1. Toky Olivier

    Toky Olivier Member Licensed User

    Hello all,
    I tried to detect circles/ellipse as done here: https://stackoverflow.com/questions/26087035/detecting-circles-in-binary-image/26125304#26125304 with this good very library: OpenCV (wrapped by @JordiCP: ) but I cannot get the perimeter of each contour. Areas, I can get them.
    The function arcLength exists but it requested OCVMatOfPoint2f for the first argument. It seems that contours.Get(i) return a OCVMatOfPoint not OCVMatOfPoint2f. So I cannot get it working if someone can help.

    My Code is:
    Code:
    Sub ProcessImage
        srcMat.copyTo( tmpMat)
    ' Clone source
        dstBitmap.InitializeMutable(tmpMat.size.width,tmpMat.size.height)


    Dim edge As OCVMat

    Dim contours As List

    Dim hierarchy As OCVMat

    Dim offset As OCVPoint

    Dim i As Int
        mImgProc.cvtColor1(tmpMat,tmpMat,mImgProc.COLOR_RGBA2GRAY)
        mImgProc.Canny3(tmpMat,edge,
    50,150)
        offset.Initialize(
    00)
        contours.Initialize
        mImgProc.findContours(edge, contours, hierarchy, mImgProc.RETR_EXTERNAL, mImgProc.CHAIN_APPROX_NONE, offset)

    Dim myColorScalar As OCVScalar
        myColorScalar.Initialize3(
    0,0,255)

    For i=0 To contours.Size-1

    'Dim curve As OCVMatOfPoint2f
            'Dim mat As OCVMatOfPoint = contours.Get(i)
            'curve.Initialize2(mat)
            Dim p As Double = 0 'mImgProc.arcLength(contours.Get(i), False)
            Dim a As Double = mImgProc.contourArea(contours.Get(i), False)

    Log("area: " & a & " perimeter: " & p)

    'If Abs(1-p*p/(4*3.1413*a))<0.2 Then
                mImgProc.drawContours1(srcMat, contours, i, myColorScalar, 2)

    'End If
        Next

        mUtils.matToBitmap1(srcMat,dstBitmap)
        dstIV.Bitmap = dstBitmap

    End Sub
    Please see enclosed the project.

    Objective:

    It can detect all contours as you can see here:


    Thank you so much


    Attached Files:

    Last edited: Aug 3, 2019
  2. Toky Olivier

    Toky Olivier Member Licensed User

    Finally I solved it:
    Code:
    Sub ProcessImage

    Dim edge As OCVMat

    Dim contours As List

    Dim hierarchy As OCVMat

    Dim offset As OCVPoint

    Dim i As Int

    Dim p As Double, a As Double
        srcMat.copyTo( tmpMat)
    ' Clone source
        dstBitmap.InitializeMutable(tmpMat.size.width,tmpMat.size.height)

        mImgProc.cvtColor1(tmpMat,tmpMat,mImgProc.COLOR_RGBA2GRAY)
        mImgProc.Canny3(tmpMat,edge,
    50,150)
        offset.Initialize(
    00)
        contours.Initialize
        mImgProc.findContours(edge, contours, hierarchy, mImgProc.RETR_EXTERNAL, mImgProc.CHAIN_APPROX_NONE, offset)

    Dim myColorScalar As OCVScalar
        myColorScalar.Initialize3(
    255,0,255)

    For i=0 To contours.Size-1

    Dim mat As OCVMatOfPoint = contours.Get(i)

    Dim pnt() As OCVPoint = mat.toArray

    Dim mat2 As OCVMatOfPoint2f
            mat2.Initialize3(pnt)
            p = mImgProc.arcLength(mat2,
    False)
            a = mImgProc.contourArea(contours.Get(i),
    False)

    Log("area: " & a & " perimeter: " & p)

    If Abs(1-p*p/(4*3.1413*a))<0.2 Then
                mImgProc.drawContours1(srcMat, contours, i, myColorScalar,
    2)

    End If

    Next


        mUtils.matToBitmap1(srcMat,dstBitmap)
        dstIV.Bitmap = dstBitmap
    End Sub

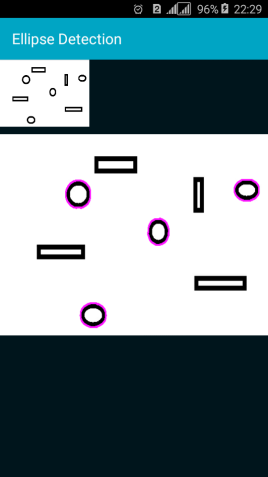

    Screenshot:

    Attached the project:


    Attached Files:

    JordiCP, Erel and inakigarm like this.
