B4R Question ESP32 and DS1307 , when try using i2c scanner, can't find i2c address.

janderkan

Well-Known Member
Licensed User
Longtime User
I2C on Esp32 works flawlessly also with DS1307.

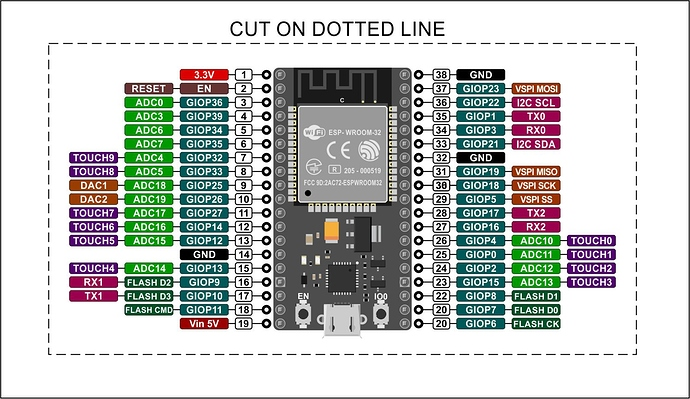

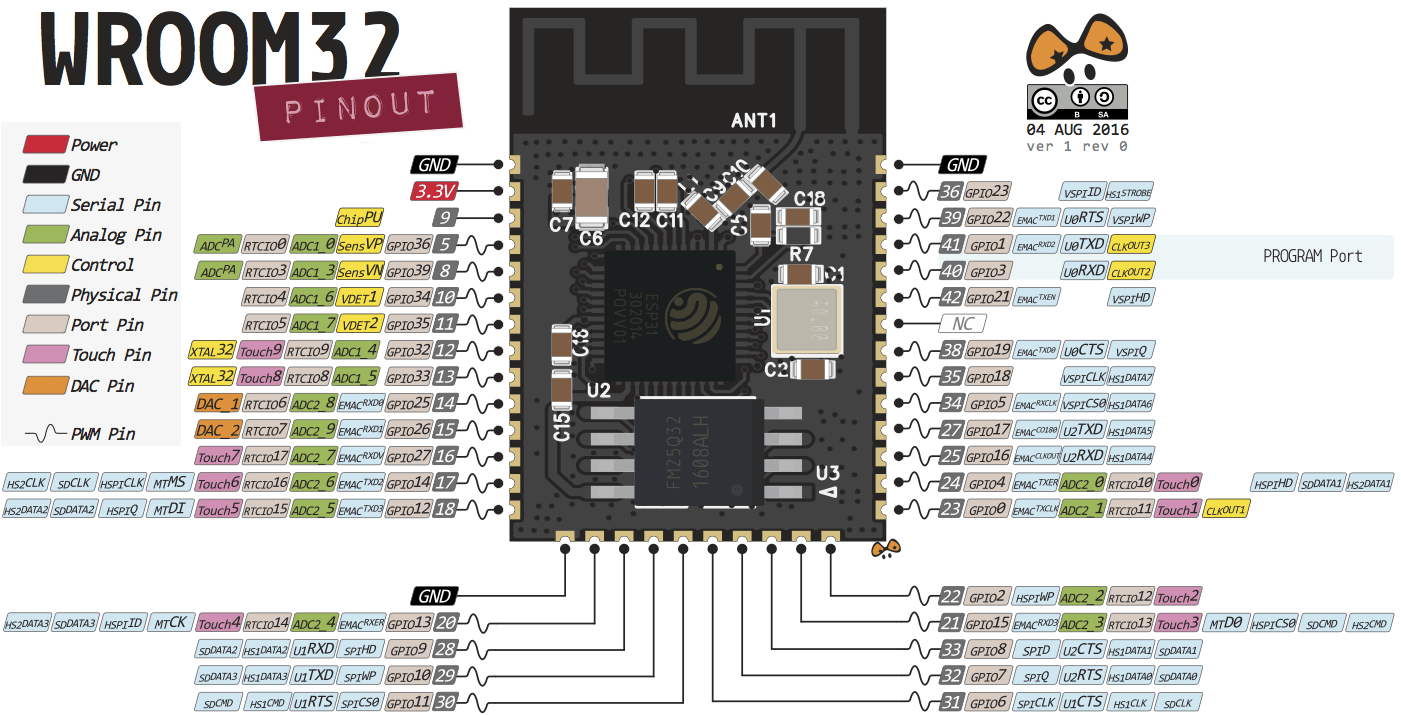

Do you know that IO21 is on pin 33 and IO 22 is on pin 36 on this module ?


What module do you have ?


Attachments

  • 1621495516520.png
    265.9 KB · Views: 260
Last edited:
Upvote 0

rbghongade

Active Member
Licensed User
Longtime User
Are you using a breakout board for DS1307? If not check for the pull-up resistors on SDA and SCL lines.

Upvote 0

tzfpg

Active Member
Licensed User
Longtime User
I connect without using breakout board and pull-up resistor.
It is we need to used pull-up resistor in order to used DS1307?
How many Kilo Ohm pull-up resistor I needed for 5v power?

Upvote 0
