HI, All

Strange, my ESP8266 project works OK in B4R, but now i'm trying to start with ESP32 ... with no success.

Arduino IDE connects, starts the board OK, logging is OK, the reset button makes the reset OK.
In B4R the flashing of the min template app is OK, but no log output.

B4X:
Sub Process_Globals
    Public Serial1 As Serial
    Private wifi As ESP8266WiFi
End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    Delay(3000)
    Log("AppStart")
    'example of connecting to a local network
    If wifi.Connect2("ssid", "password") Then
        Log("Connected to network")
    Else
        Log("Failed to connect to network")
    End If
End Sub

p.s. Arduino can log the output of B4R sketch !
B4X:
ets Jun  8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO, clock div:2
load:0x3fff0018,len:4
load:0x3fff001c,len:1216
ho 0 tail 12 room 4
load:0x40078000,len:10944
load:0x40080400,len:6360
entry 0x400806b4
AppStart
Connected to network

Where to dig ?

Last edited:

peacemaker

Expert
Licensed User
Longtime User

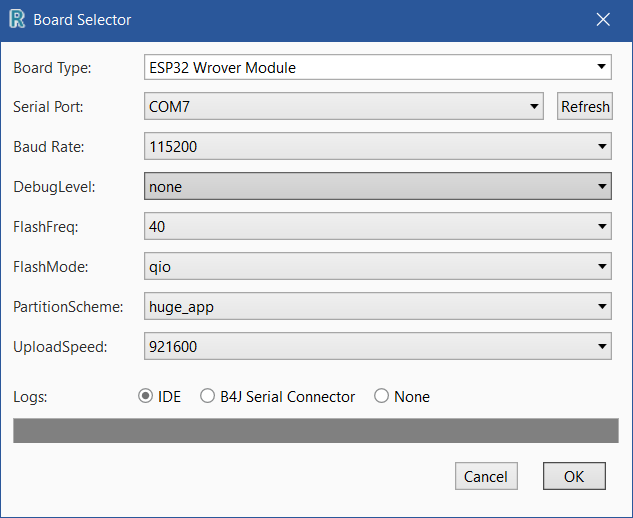

correct board:
AI Thinker ESP32-CAM
No help - no log from B4R:
TRACE StatusLogger Unregistering 1 MBeans: [org.apache.logging.log4j2:type=1e6f5c3,component=StatusLogger]
TRACE StatusLogger Unregistering 1 MBeans: [org.apache.logging.log4j2:type=1e6f5c3,component=ContextSelector]
TRACE StatusLogger Unregistering 1 MBeans: [org.apache.logging.log4j2:type=1e6f5c3,component=Loggers,name=]
TRACE StatusLogger Unregistering 2 MBeans: [org.apache.logging.log4j2:type=1e6f5c3,component=Appenders,name=RollingFile, org.apache.logging.log4j2:type=1e6f5c3,component=Appenders,name=Console]
TRACE StatusLogger Unregistering but no MBeans found matching 'org.apache.logging.log4j2:type=1e6f5c3,component=AsyncAppenders,name=*'
TRACE StatusLogger Unregistering but no MBeans found matching 'org.apache.logging.log4j2:type=1e6f5c3,component=AsyncLoggerRingBuffer'
TRACE StatusLogger Unregistering but no MBeans found matching 'org.apache.logging.log4j2:type=1e6f5c3,component=Loggers,name=*,subtype=RingBuffer'
TRACE StatusLogger Stopping XmlConfiguration[location=jar:file:/C:/Program%20Files%20(x86)/Arduino/lib/pde.jar!/log4j2.xml]...
TRACE StatusLogger XmlConfiguration notified 2 ReliabilityStrategies that config will be stopped.
TRACE StatusLogger XmlConfiguration stopping 1 LoggerConfigs.
TRACE StatusLogger XmlConfiguration stopping root LoggerConfig.
TRACE StatusLogger XmlConfiguration notifying ReliabilityStrategies that appenders will be stopped.
TRACE StatusLogger XmlConfiguration stopping remaining Appenders.
DEBUG StatusLogger Shutting down RollingFileManager C:\Users\VLAD-HP\AppData\Local\Arduino15/logs/application.log
DEBUG StatusLogger Shutting down RollingFileManager C:\Users\VLAD-HP\AppData\Local\Arduino15/logs/application.log
DEBUG StatusLogger All asynchronous threads have terminated
DEBUG StatusLogger RollingFileManager shutdown completed with status true
DEBUG StatusLogger Shut down RollingFileManager C:\Users\VLAD-HP\AppData\Local\Arduino15/logs/application.log, all resources released: true
DEBUG StatusLogger Appender RollingFile stopped with status true
DEBUG StatusLogger Shutting down OutputStreamManager SYSTEM_ERR.false.false
DEBUG StatusLogger Shut down OutputStreamManager SYSTEM_ERR.false.false, all resources released: true
DEBUG StatusLogger Appender Console stopped with status true
TRACE StatusLogger XmlConfiguration stopped 2 remaining Appenders.
TRACE StatusLogger XmlConfiguration cleaning Appenders from 2 LoggerConfigs.
DEBUG StatusLogger Stopped XmlConfiguration[location=jar:file:/C:/Program%20Files%20(x86)/Arduino/lib/pde.jar!/log4j2.xml] OK
DEBUG StatusLogger Stopped LoggerContext[name=1e6f5c3, [email protected]] with status true
********************* PROGRAM STARTING ****************
But Arduino shows that B4R's sketch is running:
ets Jun 8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x3 (DOWNLOAD_BOOT(UART0/UART1/SDIO_REI_REO_V2))
waiting for download
ets Jun 8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
flash read err, 1000
ets_main.c 371
ets Jun 8 2016 00:22:57

rst:0x10 (RTCWDT_RTC_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO, clock div:1
load:0x3fff0018,len:4
load:0x3fff001c,len:1216
ho 0 tail 12 room 4
load:0x40078000,len:10944
load:0x40080400,len:6388
entry 0x400806b4
AppStarted
Camera Image Chunk Size:
4096
ESP32CAM AppStarted
Connected. IP Addr: 192.168.0.128
Starting Web Server...
Starting Web Server STARTED. /live to get the live stream or /pic for a picture capture
But anyway the video at http://192.168.0.128/live is terrible, so, the board can be thrown out with no regret.

Last edited:
Upvote 0

f0raster0

Well-Known Member
Licensed User
Longtime User
No help - no log from B4R:

But Arduino shows that B4R's sketch is running:

But anyway the video at http://192.168.0.128/live is terrible, so, the board can be thrown out with no regret
Good you make the board working now:)

Yes.. B4R havae to reviewed to work with that board.

I'm happy with the board/video - it works great for me. (Also less of 10usd)

For better video - I use a 97usd camare :)
