B4R Question ESP32 strange behaviour? [solved]

Discussion in 'B4R Questions' started by KMatle, Mar 15, 2019 at 4:15 PM.

  1. KMatle

    KMatle Expert Licensed User

    My new ESP32 dev. board with USB arrived today. It behaves strange:

    - to connect to it, I have to press the "Boot" button (the ESP8266 just connected without pressing anything)
    - only every 2nd start (power off -> power on OR EN-Key pressed) the app starts. Any ideas why that happens? Very strange.

  2. thetahsk

    thetahsk Member Licensed User

    What ESP Board did you bought ?

    Last edited: Mar 15, 2019 at 5:50 PM
  3. KMatle

    KMatle Expert Licensed User

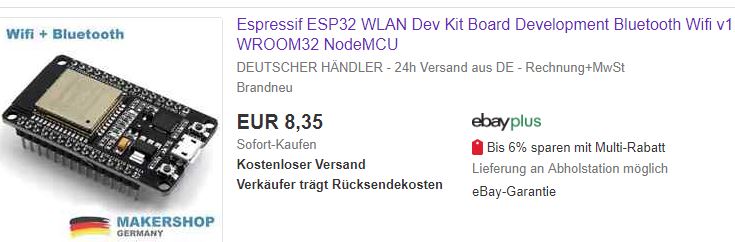

    Espressif ESP32 WLAN Dev Kit Board Development Bluetooth Wifi v1 WROOM32 NodeMCU

    Seems to be a known issue with floating pins. Will buy another one from another company.

  4. thetahsk

    thetahsk Member Licensed User

    Do you have more information. Some Photos and link where you bought it.

  5. KMatle

    KMatle Expert Licensed User

  6. KMatle

    KMatle Expert Licensed User

    Forget about the "does not start at reboot". It starts but every 2nd time WiFi doesn't connect at the first try which caused my code to exit.

    Logs:

    Code:
    Hard resetting via RTS pin...
    ********************* Programm startet ****************
    ets Jun
    8 2016 00:22:57
    rst:
    0x1 (POWERON_RESET),boot:0x13 (SPI_FAST_FLASH_BOOT)
    configsip:
    0, SPIWP:0xee
    clk_drv:
    0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
    mode:DIO, clock div:
    1
    load:
    0x3fff0018,len:4
    load:
    0x3fff001c,len:1100
    load:
    0x40078000,len:10312
    load:
    0x40080400,len:6460
    entry
    0x400806a4
    *** B4R AppStart ***
    Connecting
    to WiFi...
    1
    Failed
    to connect. -> First try
    Connecting
    to WiFi... -> 2nd
    2
    Connected
    to wireless network.
    My ip:
    192.168.178.73
    So I did a loop (max. 10 retries to connect) which works fine now (2nd try will work).

    Code

    Code:
    Private Sub AppStart

        Serial1.Initialize(
    115200)


    Log("*** B4R AppStart ***")


    For i=1 To 10

    Log("Connecting to WiFi...")

    Log(i)

    If wifi.Connect2("SSID","PW"Then 'change to your network SSID (use Connect2 if a password is required).
                Log("Connected to wireless network.")

    Log("My ip: ", wifi.LocalIp)
                pin16.Initialize(
    16, pin16.MODE_OUTPUT)
                pin16.DigitalWrite(
    True)
                pin2.Initialize(
    2, pin16.MODE_OUTPUT)
                pin2.DigitalWrite(
    True)

    Exit 'leave the FOR loop
            Else

    Log("Failed to connect."'try again after
            End If

    Next


    server.Initialize(51042"server_NewConnection")

    server.Listen


    End Sub
