B4R Tutorial ESP32 WITH LCD (20x4) Interface Using I2C

ESP32 WITH 20X4 LCD USING I2C:
#Region Project Attributes
    #AutoFlushLogs: True
    #CheckArrayBounds: True
    #StackBufferSize: 600
#End Region
'Ctrl+Click to open the C code folder: ide://run?File=%WINDIR%\System32\explorer.exe&Args=%PROJECT%\Objects\Src

Sub Process_Globals
    Public Serial1 As Serial
    Private wifi As ESP8266WiFi
    Private lcd As LiquidCrystal_I2C
End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    Log("AppStart")
    lcd.Initialize(0x27, 20, 4) 'based on the example from the project.
    lcd.Backlight = True
    lcd.SetCursor(0,0)
    lcd.Write("THANK    YOU    EREL")
    lcd.SetCursor(0,1)
    lcd.Write("   FOR B4X WORLD")
    lcd.SetCursor(0,2)
    lcd.Write("ITS SIMPLIFY")
    lcd.SetCursor(0,3)
    lcd.Write("MY PROGRAMMING WORLD")
    'example of connecting to a local network
'    If wifi.Connect2("SSID", "PASSWORD") Then
'        Log("Connected to network")
'    Else
'        Log("Failed to connect to network")
'    End If
End Sub


Attachments

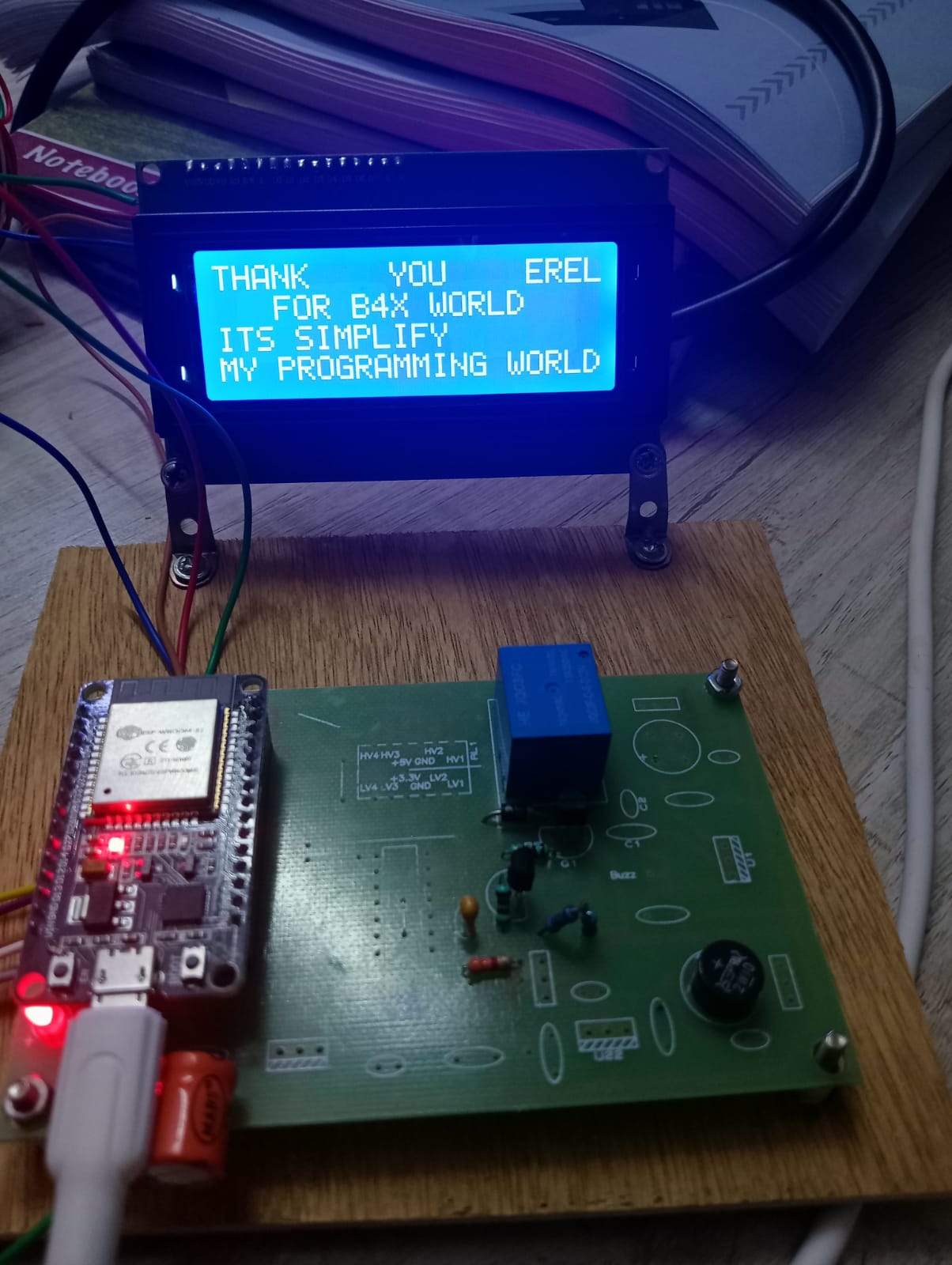

  • WhatsApp Image 2023-05-15 at 18.44.23.jpeg
    WhatsApp Image 2023-05-15 at 18.44.23.jpeg
    174.3 KB · Views: 275
