'Activity module
Sub Process_Globals
'These global variables will be declared once when the application starts.
'These variables can be accessed from all modules.
Type ActionItem (Text As String, Image As Bitmap, Value As Object)
Type ActionList (Pnl As Panel, Canvas As Canvas _
,Actions As List _
,Visible As Boolean _
,Title As String _
,InAnimation As Animation _
,OutAnimation As Animation _
,Selected As Int _
,ActivityName As String _
)
Dim fact As Float:fact=1
Dim ItemHeight As Int : ItemHeight = 60*fact
Dim TextSize As Float : TextSize = 20 'NOT dip.
Dim TextLeftPos As Int : TextLeftPos = 70*fact
Dim TextColor As Int : TextColor = Colors.White
Dim TopPadding As Int : TopPadding = 5*fact
Dim ImageWidth As Int : ImageWidth = 50*fact
Dim ImageHeight As Int : ImageHeight = 50*fact
Dim ImageLeftPos As Int : ImageLeftPos = 10*fact
Dim ImageTopPos As Int : ImageTopPos = (ItemHeight - ImageHeight) / 2
Dim SelectionColor As Int : SelectionColor = 0xFFFF8000
''
Dim selection As Int
Dim change As Boolean
End Sub
Sub Globals
'These global variables will be redeclared each time the activity is created.
'These variables can only be accessed from this module.
Dim al As ActionList
Dim scroll As ScrollView
Dim cd As CustomDialog2
End Sub
Sub Activity_Create(FirstTime As Boolean)
'Do not forget to load the layout file created with the visual designer. For example:
'Activity.LoadLayout("Layout1")
change=True
mnuitems
End Sub
Sub Activity_Resume
End Sub
Sub Activity_Pause (UserClosed As Boolean)
End Sub
Sub mnuitems'_click
If change= True Then
al =InitializeList(77%x, "SELECT ITEM + OK", "Main")
AddActionItem("Bargraph", LoadBitmap(File.DirAssets, "mn_bargraph.png"), 17)
AddActionItem("Bit label", LoadBitmap(File.DirAssets, "mn_label01.png"), 20)
AddActionItem("Call page", LoadBitmap(File.DirAssets, "mn_page.png"), 14)
AddActionItem("Cam ip", LoadBitmap(File.DirAssets, "mn_cam.png"), 18)
AddActionItem("Classic button", LoadBitmap(File.DirAssets, "mn_bpn.png"), 2)
AddActionItem("Fix label", LoadBitmap(File.DirAssets, "mn_label.png"), 0)
AddActionItem("Flap", LoadBitmap(File.DirAssets, "mn_volet.png"), 8)
AddActionItem("Galvanometer", LoadBitmap(File.DirAssets, "mn_galva.png"), 15)
AddActionItem("Gauge", LoadBitmap(File.DirAssets, "mn_gauge.png"), 6)
AddActionItem("Graph button", LoadBitmap(File.DirAssets, "bp_on.jpg"), 1)
AddActionItem("Message", LoadBitmap(File.DirAssets, "mn_message.png"), 19)
AddActionItem("On/off toggle button",LoadBitmap(File.DirAssets, "mn_tooglebp.png"), 3)
AddActionItem("Oscilloscope", LoadBitmap(File.DirAssets, "mn_oscillo.png"), 16)
AddActionItem("Picture", LoadBitmap(File.DirAssets, "mn_pic.png"), 10)
AddActionItem("Receiver", LoadBitmap(File.DirAssets, "mn_recept.png"), 4)
AddActionItem("Scenario", LoadBitmap(File.DirAssets, "mn_scenario.png"), 13)
AddActionItem("Seekbar", LoadBitmap(File.DirAssets, "mn_seekbar.png"), 7)
AddActionItem("Variable button", LoadBitmap(File.DirAssets, "mn_bpvar.png"), 11)
AddActionItem("Variable label", LoadBitmap(File.DirAssets, "mn_labelvar.png"), 5)
AddActionItem("Variable text", LoadBitmap(File.DirAssets, "mn_txtvar.png"), 9)
AddActionItem("Web page", LoadBitmap(File.DirAssets, "mn_web.png"), 12)
'
Show
Else
ToastMessageShow("No edit mode !",False)
End If
End Sub
Sub ActionList_Touch (Action As Int, X As Float, Y As Float) As Boolean
'Delegates the touch event to the code module
Touch(Sender, Action, X, Y)
Return True
End Sub
Sub ActionList_Result (ReturnValue As Object)
selection =ReturnValue
End Sub
Sub InitializeList (Width As Int, Title As String, ActivityName As String) As ActionList
al.Initialize
al.Actions.Initialize
scroll.Initialize( (TopPadding + ItemHeight)*21)
scroll.Panel.Height = (TopPadding + ItemHeight)*21
Dim bmp As Bitmap
bmp.InitializeMutable(Width, (TopPadding + ItemHeight)*21)
al.Canvas.Initialize2(bmp)
al.Pnl.Initialize("ActionList")
al.Pnl.Tag = al
Dim bd As BitmapDrawable
bd.Initialize(bmp)
bd.Gravity = Bit.Or(Gravity.LEFT, Gravity.TOP)
al.Pnl.background = bd
al.Title = Title
al.InAnimation.InitializeAlpha("", 0, 1)
al.InAnimation.Duration = 300
al.OutAnimation.InitializeAlpha("", 1, 0)
al.OutAnimation.Duration = 200
al.ActivityName = ActivityName
al.Selected=-1
Return al
End Sub
Sub AddActionItem(Text As String, Image As Bitmap, ReturnValue As Object)
Dim item As ActionItem
item.Initialize
item.Text = Text
item.Image = Image
item.Value = ReturnValue
al.Actions.add(item)
End Sub
Sub Show
Dim ret As Int
'list_add =True
cd.AddView(scroll,77%x, 60%y)
If al.Visible Then
al.InAnimation.stop(al.Pnl)
al.Pnl.RemoveView
End If
Dim h As Int
h = (al.Actions.Size + 1) * ItemHeight + TopPadding
scroll.Panel.AddView(al.Pnl, 0, 0, scroll.Width, (TopPadding + ItemHeight)*21)'
If al.Visible = False Then
al.InAnimation.Start(al.Pnl)
End If
Dim c As Canvas
c = al.Canvas
Dim r As Rect
r.Initialize(0, 0, al.Pnl.Width, al.Pnl.Height)
c.DrawRect(r, Colors.transparent, True, 0)
c.DrawText(al.Title, scroll.Width / 2, TopPadding + ItemHeight / 2, Typeface.DEFAULT_BOLD, _
TextSize, Colors.White, "CENTER")
'Draw the items
For i = 0 To al.Actions.Size - 1
drawItem(i)
Next
al.Pnl.Invalidate
al.Visible = True

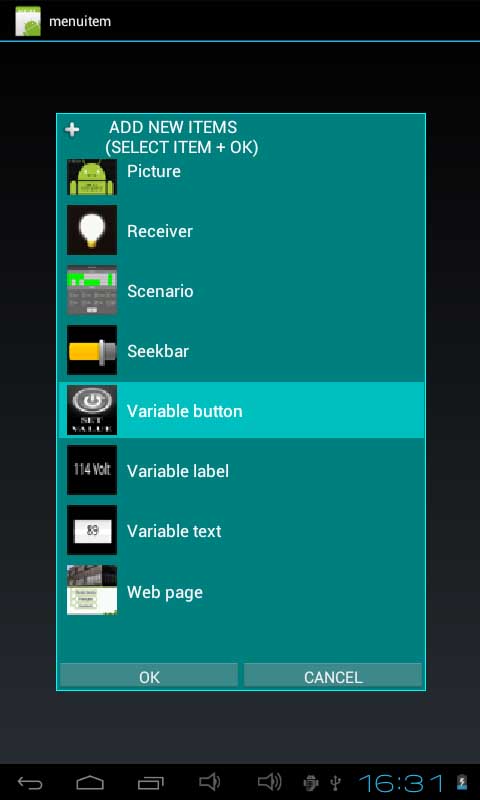

ret = cd.Show("ADD NEW ITEMS", "OK", "CANCEL", "",LoadBitmapSample(File.DirAssets, "menu_add.png",25dip,25dip))
If ret=-1 Then
'
Else
End If
End Sub
Sub Touch(Sdr As Object, Action As Int, X As Float, Y As Float)
Dim pa As Panel
pa = Sdr
al = pa.Tag
'Log(Action)
If Action <> 1 Then
Dim currentItem As Int
currentItem = Floor((Y - TopPadding - ItemHeight) / ItemHeight)
If currentItem = al.Selected Then Return
changeSelection(currentItem)
Else If al.Selected >= 0 Then
Dim item As ActionItem
item = al.Actions.Get(al.Selected)
CallSub2(al.ActivityName, "ActionList_Result", item.Value)
al.Selected =-1
End If
End Sub
Sub drawItem(index As Int)
Dim item As ActionItem
item = al.Actions.Get(index)
If item.Image.IsInitialized Then
Dim imageRect As Rect
imageRect.Initialize(ImageLeftPos, 0, ImageLeftPos + ImageWidth, 0)
imageRect.Top = (index + 1) * ItemHeight + TopPadding + ImageTopPos
imageRect.Bottom = imageRect.Top + ImageHeight
al.Canvas.DrawBitmap(item.Image, Null, imageRect)
End If
al.Canvas.DrawText(item.Text, TextLeftPos, _
(index + 1 + 0.5) * ItemHeight + TopPadding + al.Canvas.MeasureStringHeight(item.Text, Typeface.DEFAULT, TextSize) /2 _
, Typeface.DEFAULT, TextSize, TextColor, "LEFT")
End Sub
Sub changeSelection(NewSelection As Int)
Dim r As Rect
Dim top As Int
'delete the old selection
If al.Selected >= 0 Then
Dim pa As Path
Dim y As Int
y = (al.Selected + 1) * ItemHeight + TopPadding
pa.Initialize(0, y)
pa.LineTo(0, y + ItemHeight)
pa.LineTo(al.Pnl.Width, y + ItemHeight)
pa.LineTo(al.Pnl.Width, y)
al.Canvas.ClipPath(pa)
r.Initialize(0, 0, al.Pnl.Width, al.Pnl.Height)
al.Canvas.DrawRect(r, Colors.transparent, True, 0)
drawItem(al.Selected)
al.Canvas.RemoveClip
End If
If NewSelection >= 0 AND NewSelection < al.Actions.Size Then
top = (NewSelection + 1) * ItemHeight + TopPadding + 3dip
r.Initialize(3dip, top, al.Pnl.Width - 3dip, top + ItemHeight - 6dip)
al.Canvas.DrawRect(r, SelectionColor, True, 0)
drawItem(NewSelection)
al.Selected = NewSelection
Else
al.Selected = -1
End If
al.Pnl.Invalidate
End Sub
