hi
this full Example CubeExample ( GPUImage gruop)

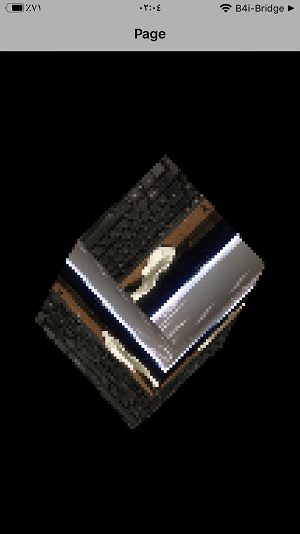

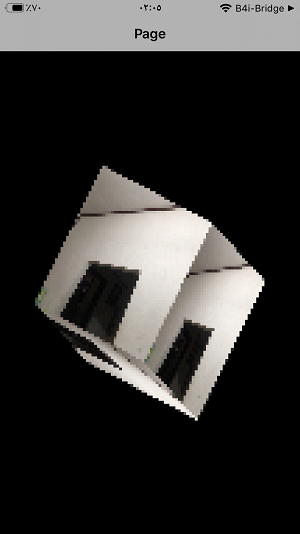

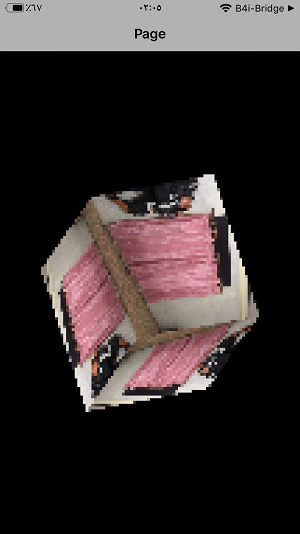

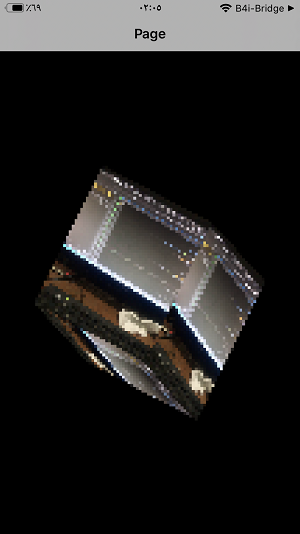

THIS example showing the video is a 3D square
I collected the codes and put them inside the code main b4i
the wrapper class inside main ..
files *.h inside folder <Files->Special>
These are open files source, not library, so you can develop files

***************************************************************
They are reserved for their respective owners,
***************************************************************






important note
The codes are reserved for their owners
.

This is Jeff LaMarche's GLProgram OpenGL shader wrapper class from his OpenGL ES 2.0 book.


[GPUImage files]
Copyright (c) 2012, Brad Larson, Ben Cochran, Hugues Lismonde, Keitaroh Kobayashi, Alaric Cole, Matthew Clark, Jacob Gundersen, Chris Williams.
All rights reserved.


thia some code
B4X:
#Region  Project Attributes
    #ApplicationLabel: B4i Example
    #Version: 1.0.0
    'Orientation possible values: Portrait, LandscapeLeft, LandscapeRight and PortraitUpsideDown
    #iPhoneOrientations: Portrait, LandscapeLeft, LandscapeRight
    #iPadOrientations: Portrait, LandscapeLeft, LandscapeRight, PortraitUpsideDown
    #Target: iPhone, iPad
    #ATSEnabled: True
    #MinVersion: 8
        #PlistExtra:<key>NSFaceIDUsageDescription</key><string>Uses n</string>


'    #PlistExtra: <key>UIBackgroundModes</key><array><string>fetch</string></array>
    #PlistExtra: <key>UIFileSharingEnabled</key><true/>
    #PlistExtra: <key>UIViewControllerBasedStatusBarAppearance</key><false/>
    #PlistExtra: <key>NSCameraUsageDescription</key><string>App d via chat</string>

#End Region

Sub Process_Globals
    Public App As Application
    Public NavControl As NavigationController
    Private Page1 As Page
    Private Panel1 As Panel
    Private Button1 As Button
    Private ImageView1 As ImageView
End Sub

Private Sub Application_Start (Nav As NavigationController)
    NavControl = Nav
    Page1.Initialize("Page1")
    Page1.RootPanel.LoadLayout("Page1")
    NavControl.ShowPage(Page1)


End Sub

Sub Button1_Click
    Dim no As NativeObject =Me
    Dim p1 As Page
    Dim o As Object
        no.RunMethod("StartApp:", Array  (Panel1))
'    Panel1.AddView(o,0,0,500,500)

End Sub


#If OBJC



#import "DisplayViewController.h"
#import "ES2Renderer.h"
#import "ESRenderer.h"

//---------File view------------

//\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

// ------------- بداية العرض----------
//  Failed to load vertex shader
//Failed to load vertex shader
//Failed to compile vertex shader

//#import "ResultsTableViewController.h"

-(UIViewController * )StartApp :(UIViewController*)tarjets   // :(UIApplication *)application
{

     DisplayViewController *tarjet1 = [[DisplayViewController alloc]init];
//     [tarjet1 viewDidLoad ];


//     UIViewController *tarjetx = [[UIViewController alloc]init];
//    tarjetx = [tarjet1 viewDidLoadf:tarjets];

    //   tarjet2 = [tarjet1  viewChange ];

        return [tarjet1 viewDidLoadf:tarjets];
//     [self viewDidLoad];

}

// exampele
    // SMKDetectionCamera *sampleClass1 = [[SMKDetectionCamera alloc]init];
    // [sampleClass1 stopAllDetection];

#end if
#if objc
//---------------------------------ملف الاستقبال


//------------------------------
//------------------------ملف الادوات
#import "DisplayViewController.h"

@end

@interface DisplayViewController ()

@end

@implementation DisplayViewController

- (id)initWithNibName:(NSString *)nibNameOrNil bundle:(NSBundle *)nibBundleOrNil
{
    self = [super initWithNibName:nibNameOrNil bundle:nibBundleOrNil];
    if (self) {
        // Custom initialization
    }


    return self;
}

- (void)dealloc
{
//   [renderer release];

//   [super dealloc];
}
- (UIViewController*)viewDidLoadf :(UIViewController*)tarjet2
{
    self.view =  tarjet2 ;
    CGRect mainScreenFrame = [[UIScreen mainScreen] applicationFrame];
    GPUImageView *primaryView = [[GPUImageView alloc] initWithFrame:mainScreenFrame];
    self.view = primaryView;

    renderer = [[ES2Renderer alloc] initWithSize:[primaryView sizeInPixels]];

    textureInput = [[GPUImageTextureInput alloc] initWithTexture:renderer.outputTexture size:[primaryView sizeInPixels]];
    filter = [[GPUImagePixellateFilter alloc] init];
    [(GPUImagePixellateFilter *)filter setFractionalWidthOfAPixel:0.01];

//    filter = [[GPUImageGaussianBlurFilter alloc] init];
//    [(GPUImageGaussianBlurFilter *)filter setBlurSize:3.0];

    [textureInput addTarget:filter];
    [filter addTarget:primaryView];

    [renderer setNewFrameAvailableBlock:^{
        float currentTimeInMilliseconds = [[NSDate date] timeIntervalSinceDate:startTime] * 1000.0;

        [textureInput processTextureWithFrameTime:CMTimeMake((int)currentTimeInMilliseconds, 1000)];
    }];

    [renderer startCameraCapture];
    return   self  ;
}
- (void)loadView
{
    CGRect mainScreenFrame = [[UIScreen mainScreen] applicationFrame];
    GPUImageView *primaryView = [[GPUImageView alloc] initWithFrame:mainScreenFrame];
    self.view = primaryView;

    renderer = [[ES2Renderer alloc] initWithSize:[primaryView sizeInPixels]];

    textureInput = [[GPUImageTextureInput alloc] initWithTexture:renderer.outputTexture size:[primaryView sizeInPixels]];
    filter = [[GPUImagePixellateFilter alloc] init];
    [(GPUImagePixellateFilter *)filter setFractionalWidthOfAPixel:0.01];

//    filter = [[GPUImageGaussianBlurFilter alloc] init];
//    [(GPUImageGaussianBlurFilter *)filter setBlurSize:3.0];

    [textureInput addTarget:filter];
    [filter addTarget:primaryView];

    [renderer setNewFrameAvailableBlock:^{
        float currentTimeInMilliseconds = [[NSDate date] timeIntervalSinceDate:startTime] * 1000.0;

        [textureInput processTextureWithFrameTime:CMTimeMake((int)currentTimeInMilliseconds, 1000)];
    }];

    [renderer startCameraCapture];
}

- (BOOL)shouldAutorotateToInterfaceOrientation:(UIInterfaceOrientation)interfaceOrientation
{
    return (interfaceOrientation == UIInterfaceOrientationPortrait);
}

- (void)drawView:(id)sender
{
    [renderer renderByRotatingAroundX:0 rotatingAroundY:0];
}

#pragma mark -
#pragma mark Touch-handling methods

- (void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event
{
    NSMutableSet *currentTouches = [[event touchesForView:self.view] mutableCopy];
    [currentTouches minusSet:touches];

    // New touches are not yet included in the current touches for the view
    lastMovementPosition = [[touches anyObject] locationInView:self.view];
}

- (void)touchesMoved:(NSSet *)touches withEvent:(UIEvent *)event;
{
    CGPoint currentMovementPosition = [[touches anyObject] locationInView:self.view];
    [renderer renderByRotatingAroundX:(currentMovementPosition.x - lastMovementPosition.x) rotatingAroundY:(lastMovementPosition.y - currentMovementPosition.y)];
    lastMovementPosition = currentMovementPosition;
}

- (void)touchesEnded:(NSSet *)touches withEvent:(UIEvent *)event
{
    NSMutableSet *remainingTouches = [[event touchesForView:self.view] mutableCopy];
    [remainingTouches minusSet:touches];

    lastMovementPosition = [[remainingTouches anyObject] locationInView:self.view];
}

- (void)touchesCancelled:(NSSet *)touches withEvent:(UIEvent *)event
{
    // Handle touches canceled the same as as a touches ended event
    [self touchesEnded:touches withEvent:event];
}


//--------------------------------
//-----------------ملف العرض

#import "ES2Renderer.h"
//ES2Renderer.h

// uniform index
enum {
    UNIFORM_MODELVIEWMATRIX,
    UNIFORM_TEXTURE,
    NUM_UNIFORMS
};
GLint uniforms[NUM_UNIFORMS];

// attribute index
enum {
    ATTRIB_VERTEX,
    ATTRIB_TEXTUREPOSITION,
    NUM_ATTRIBUTES
};
@end

@interface ES2Renderer (PrivateMethods)
- (BOOL)loadShaders;
- (BOOL)compileShader:(GLuint *)shader type:(GLenum)type file:(NSString *)file;
- (BOOL)linkProgram:(GLuint)prog;
- (BOOL)validateProgram:(GLuint)prog;
@end

@implementation ES2Renderer

@synthesize outputTexture;
@synthesize newFrameAvailableBlock;

- (id)initWithSize:(CGSize)newSize;
{
    if ((self = [super init]))
    {
        // Need to use a share group based on the GPUImage context to share textures with the 3-D scene
        context = [[EAGLContext alloc] initWithAPI:kEAGLRenderingAPIOpenGLES2 sharegroup:[[[GPUImageContext sharedImageProcessingContext] context] sharegroup]];

        if (!context || ![EAGLContext setCurrentContext:context] || ![self loadShaders])
        {
//           [self release];
            return nil;
        }

        backingWidth = (int)newSize.width;
        backingHeight = (int)newSize.height;

        currentCalculatedMatrix = CATransform3DIdentity;
        currentCalculatedMatrix = CATransform3DScale(currentCalculatedMatrix, 0.5, 0.5 * (320.0/480.0), 0.5);

        glActiveTexture(GL_TEXTURE0);
        glGenTextures(1, &outputTexture);
        glBindTexture(GL_TEXTURE_2D, outputTexture);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
        // This is necessary for non-power-of-two textures
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
        glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
        glBindTexture(GL_TEXTURE_2D, 0);

        glActiveTexture(GL_TEXTURE1);
        glGenFramebuffers(1, &defaultFramebuffer);
        glBindFramebuffer(GL_FRAMEBUFFER, defaultFramebuffer);

        glBindTexture(GL_TEXTURE_2D, outputTexture);
        glTexImage2D(GL_TEXTURE_2D, 0, GL_RGBA, backingWidth, backingHeight, 0, GL_RGBA, GL_UNSIGNED_BYTE, 0);
        glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, outputTexture, 0);

//        GLenum status = glCheckFramebufferStatus(GL_FRAMEBUFFER);
//
//        NSAssert(status == GL_FRAMEBUFFER_COMPLETE, @"Incomplete filter FBO: %d", status);
        glBindTexture(GL_TEXTURE_2D, 0);



        videoCamera = [[GPUImageVideoCamera alloc] initWithSessionPreset:AVCaptureSessionPreset640x480 cameraPosition:AVCaptureDevicePositionBack];
        videoCamera.outputImageOrientation = UIInterfaceOrientationPortrait;
        inputFilter = [[GPUImageSepiaFilter alloc] init];
        textureOutput = [[GPUImageTextureOutput alloc] init];
        textureOutput.delegate = self;

        [videoCamera addTarget:inputFilter];
        [inputFilter addTarget:textureOutput];
    }

    return self;
}

- (void)renderByRotatingAroundX:(float)xRotation rotatingAroundY:(float)yRotation;
{
    if (!newFrameAvailableBlock)
    {
        return;
    }

    static const GLfloat cubeVertices[] = {
        -1.0, -1.0, -1.0, // 0
        1.0,  1.0, -1.0, // 2
        1.0, -1.0, -1.0, // 1

        -1.0, -1.0, -1.0, // 0
        -1.0,  1.0, -1.0, // 3
        1.0,  1.0, -1.0, // 2

        1.0, -1.0, -1.0, // 1
        1.0,  1.0, -1.0, // 2
        1.0,  1.0,  1.0, // 6

        1.0,  1.0,  1.0, // 6
        1.0, -1.0,  1.0, // 5
        1.0, -1.0, -1.0, // 1

        -1.0, -1.0,  1.0, // 4
        1.0, -1.0,  1.0, // 5
        1.0,  1.0,  1.0, // 6

        1.0,  1.0,  1.0, // 6
        -1.0,  1.0,  1.0,  // 7
        -1.0, -1.0,  1.0, // 4

        1.0,  1.0, -1.0, // 2
        -1.0,  1.0, -1.0, // 3
        1.0,  1.0,  1.0, // 6

        1.0,  1.0,  1.0, // 6
        -1.0,  1.0, -1.0, // 3
        -1.0,  1.0,  1.0,  // 7

        -1.0, -1.0, -1.0, // 0
        -1.0,  1.0,  1.0,  // 7
        -1.0,  1.0, -1.0, // 3

        -1.0, -1.0, -1.0, // 0
        -1.0, -1.0,  1.0, // 4
        -1.0,  1.0,  1.0,  // 7

        -1.0, -1.0, -1.0, // 0
        1.0, -1.0, -1.0, // 1
        1.0, -1.0,  1.0, // 5

        -1.0, -1.0, -1.0, // 0
        1.0, -1.0,  1.0, // 5
        -1.0, -1.0,  1.0 // 4
    };

    const GLfloat cubeTexCoords[] = {
        0.0, 0.0,
        1.0, 1.0,
        1.0, 0.0,

        0.0, 0.0,
        0.0, 1.0,
        1.0, 1.0,

        0.0, 0.0,
        0.0, 1.0,
        1.0, 1.0,

        1.0, 1.0,
        1.0, 0.0,
        0.0, 0.0,

        1.0, 0.0,
        0.0, 0.0,
        0.0, 1.0,

        0.0, 1.0,
        1.0, 1.0,
        1.0, 0.0,

        0.0, 1.0,
        1.0, 1.0,
        0.0, 0.0,

        0.0, 0.0,
        1.0, 1.0,
        1.0, 0.0,

        1.0, 0.0,
        0.0, 1.0,
        1.0, 1.0,

        1.0, 0.0,
        0.0, 0.0,
        0.0, 1.0,

        0.0, 1.0,
        1.0, 1.0,
        1.0, 0.0,

        0.0, 1.0,
        1.0, 0.0,
        0.0, 0.0


    };

    [EAGLContext setCurrentContext:context];

    glBindFramebuffer(GL_FRAMEBUFFER, defaultFramebuffer);

    glEnable(GL_CULL_FACE);
    glCullFace(GL_BACK);

    glViewport(0, 0, backingWidth, backingHeight);

    glClearColor(0.0f, 0.0f, 0.0f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT);

    glUseProgram(program);

    // Perform incremental rotation based on current angles in X and Y
    if ((xRotation != 0.0) || (yRotation != 0.0))
    {
        GLfloat totalRotation = sqrt(xRotation*xRotation + yRotation*yRotation);

        CATransform3D temporaryMatrix = CATransform3DRotate(currentCalculatedMatrix, totalRotation * M_PI / 180.0,
                                                            ((xRotation/totalRotation) * currentCalculatedMatrix.m12 + (yRotation/totalRotation) * currentCalculatedMatrix.m11),
                                                            ((xRotation/totalRotation) * currentCalculatedMatrix.m22 + (yRotation/totalRotation) * currentCalculatedMatrix.m21),
                                                            ((xRotation/totalRotation) * currentCalculatedMatrix.m32 + (yRotation/totalRotation) * currentCalculatedMatrix.m31));
        if ((temporaryMatrix.m11 >= -100.0) && (temporaryMatrix.m11 <= 100.0))
            currentCalculatedMatrix = temporaryMatrix;
    }
    else
    {
    }

    GLfloat currentModelViewMatrix[16];


    [self convert3DTransform:&currentCalculatedMatrix toMatrix:currentModelViewMatrix];

    glActiveTexture(GL_TEXTURE4);
    glBindTexture(GL_TEXTURE_2D, textureForCubeFace);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);

    // Update uniform value
    glUniform1i(uniforms[UNIFORM_TEXTURE], 4);
    glUniformMatrix4fv(uniforms[UNIFORM_MODELVIEWMATRIX], 1, 0, currentModelViewMatrix);

    // Update attribute values
    glVertexAttribPointer(ATTRIB_VERTEX, 3, GL_FLOAT, 0, 0, cubeVertices);
    glEnableVertexAttribArray(ATTRIB_VERTEX);
    glVertexAttribPointer(ATTRIB_TEXTUREPOSITION, 2, GL_FLOAT, 0, 0, cubeTexCoords);
    glEnableVertexAttribArray(ATTRIB_TEXTUREPOSITION);

    glDrawArrays(GL_TRIANGLES, 0, 36);

    // The flush is required at the end here to make sure the FBO texture is written to before passing it back to GPUImage
    glFlush();

    newFrameAvailableBlock();
}

- (BOOL)compileShader:(GLuint *)shader type:(GLenum)type file:(NSString *)file
{
    GLint status;
    const GLchar *source;

    source = (GLchar *)[[NSString stringWithContentsOfFile:file encoding:NSUTF8StringEncoding error:nil] UTF8String];
    if (!source)
    {
        NSLog(@"Failed to load vertex shader");
        return FALSE;
    }

    *shader = glCreateShader(type);
    glShaderSource(*shader, 1, &source, NULL);
    glCompileShader(*shader);


    glGetShaderiv(*shader, GL_COMPILE_STATUS, &status);
    if (status == 0)
    {
        glDeleteShader(*shader);
        return FALSE;
    }

    return TRUE;
}

- (BOOL)linkProgram:(GLuint)prog
{
    GLint status;

    glLinkProgram(prog);


    glGetProgramiv(prog, GL_LINK_STATUS, &status);
    if (status == 0)
        return FALSE;

    return TRUE;
}

- (BOOL)validateProgram:(GLuint)prog
{
    GLint logLength, status;

    glValidateProgram(prog);
    glGetProgramiv(prog, GL_INFO_LOG_LENGTH, &logLength);
    if (logLength > 0)
    {
        GLchar *log = (GLchar *)malloc(logLength);
        glGetProgramInfoLog(prog, logLength, &logLength, log);
        NSLog(@"Program validate log:\n%s", log);
        free(log);
    }

    glGetProgramiv(prog, GL_VALIDATE_STATUS, &status);
    if (status == 0)
        return FALSE;

    return TRUE;
}

- (BOOL)loadShaders
{
    GLuint vertShader, fragShader;
    NSString *vertShaderPathname, *fragShaderPathname;

    // Create shader program
    program = glCreateProgram();

    // Create and compile vertex shader
    vertShaderPathname = [[NSBundle mainBundle] pathForResource:@"Shader" ofType:@"vsh"];
    if (![self compileShader:&vertShader type:GL_VERTEX_SHADER file:vertShaderPathname])
    {
        NSLog(@"Failed to compile vertex shader");
        return FALSE;
    }

    // Create and compile fragment shader
    fragShaderPathname = [[NSBundle mainBundle] pathForResource:@"Shader" ofType:@"fsh"];
    if (![self compileShader:&fragShader type:GL_FRAGMENT_SHADER file:fragShaderPathname])
    {
        NSLog(@"Failed to compile fragment shader");
        return FALSE;
    }

    // Attach vertex shader to program
    glAttachShader(program, vertShader);

    // Attach fragment shader to program
    glAttachShader(program, fragShader);

    // Bind attribute locations
    // this needs to be done prior to linking
    glBindAttribLocation(program, ATTRIB_VERTEX, "position");
    glBindAttribLocation(program, ATTRIB_TEXTUREPOSITION, "inputTextureCoordinate");

    // Link program
    if (![self linkProgram:program])
    {
        NSLog(@"Failed to link program: %d", program);

        if (vertShader)
        {
            glDeleteShader(vertShader);
            vertShader = 0;
        }
        if (fragShader)
        {
            glDeleteShader(fragShader);
            fragShader = 0;
        }
        if (program)
        {
            glDeleteProgram(program);
            program = 0;
        }

        return FALSE;
    }

    // Get uniform locations
    uniforms[UNIFORM_MODELVIEWMATRIX] = glGetUniformLocation(program, "modelViewProjMatrix");
    uniforms[UNIFORM_TEXTURE] = glGetUniformLocation(program, "texture");

    // Release vertex and fragment shaders
    if (vertShader)
        glDeleteShader(vertShader);
    if (fragShader)
        glDeleteShader(fragShader);

    return TRUE;
}

- (void)dealloc
{
    // Tear down GL
    if (defaultFramebuffer)
    {
        glDeleteFramebuffers(1, &defaultFramebuffer);
        defaultFramebuffer = 0;
    }

    if (colorRenderbuffer)
    {
        glDeleteRenderbuffers(1, &colorRenderbuffer);
        colorRenderbuffer = 0;
    }

    if (program)
    {
        glDeleteProgram(program);
        program = 0;
    }

    // Tear down context
    if ([EAGLContext currentContext] == context)
        [EAGLContext setCurrentContext:nil];

//   [context release];
    context = nil;

  //  [super dealloc];
}

- (void)convert3DTransform:(CATransform3D *)transform3D toMatrix:(GLfloat *)matrix;
{
    //    struct CATransform3D
    //    {
    //        CGFloat m11, m12, m13, m14;
    //        CGFloat m21, m22, m23, m24;
    //        CGFloat m31, m32, m33, m34;
    //        CGFloat m41, m42, m43, m44;
    //    };

    matrix[0] = (GLfloat)transform3D->m11;
    matrix[1] = (GLfloat)transform3D->m12;
    matrix[2] = (GLfloat)transform3D->m13;
    matrix[3] = (GLfloat)transform3D->m14;
    matrix[4] = (GLfloat)transform3D->m21;
    matrix[5] = (GLfloat)transform3D->m22;
    matrix[6] = (GLfloat)transform3D->m23;
    matrix[7] = (GLfloat)transform3D->m24;
    matrix[8] = (GLfloat)transform3D->m31;
    matrix[9] = (GLfloat)transform3D->m32;
    matrix[10] = (GLfloat)transform3D->m33;
    matrix[11] = (GLfloat)transform3D->m34;
    matrix[12] = (GLfloat)transform3D->m41;
    matrix[13] = (GLfloat)transform3D->m42;
    matrix[14] = (GLfloat)transform3D->m43;
    matrix[15] = (GLfloat)transform3D->m44;
}

- (void)startCameraCapture;
{
    [videoCamera startCameraCapture];
}

#pragma mark -
#pragma mark GPUImageTextureOutputDelegate delegate method

- (void)newFrameReadyFromTextureOutput:(GPUImageTextureOutput *)callbackTextureOutput;
{
    // Rotation in response to touch events is handled on the main thread, so to be safe we dispatch this on the main queue as well
    // Nominally, I should create a dispatch queue just for the rendering within this application, but not today
    dispatch_async(dispatch_get_main_queue(), ^{
        textureForCubeFace = callbackTextureOutput.texture;

        [self renderByRotatingAroundX:0.0 rotatingAroundY:0.0];
        [callbackTextureOutput doneWithTexture];
    });
}

//-----------------
@end
#import "GPUImageSepiaFilter.h"

@implementation GPUImageSepiaFilter

- (id)init;
{
    if (!(self = [super init]))
    {
        return nil;
    }

    self.intensity = 1.0;
    self.colorMatrix = (GPUMatrix4x4){
        {0.3588, 0.7044, 0.1368, 0.0},
        {0.2990, 0.5870, 0.1140, 0.0},
        {0.2392, 0.4696, 0.0912 ,0.0},
        {0,0,0,1.0},
    };

    return self;
}


@end

#import "GPUImageTextureInput.h"

@implementation GPUImageTextureInput

#pragma mark -
#pragma mark Initialization and teardown

- (id)initWithTexture:(GLuint)newInputTexture size:(CGSize)newTextureSize;
{
    if (!(self = [super init]))
    {
        return nil;
    }

    runSynchronouslyOnVideoProcessingQueue(^{
        [GPUImageContext useImageProcessingContext];
    });

    textureSize = newTextureSize;

    runSynchronouslyOnVideoProcessingQueue(^{
        outputFramebuffer = [[GPUImageFramebuffer alloc] initWithSize:newTextureSize overriddenTexture:newInputTexture];
    });

    return self;
}

#pragma mark -
#pragma mark Image rendering

- (void)processTextureWithFrameTime:(CMTime)frameTime;
{
    runAsynchronouslyOnVideoProcessingQueue(^{
        for (id<GPUImageInput> currentTarget in targets)
        {
            NSInteger indexOfObject = [targets indexOfObject:currentTarget];
            NSInteger targetTextureIndex = [[targetTextureIndices objectAtIndex:indexOfObject] integerValue];

            [currentTarget setInputSize:textureSize atIndex:targetTextureIndex];
            [currentTarget setInputFramebuffer:outputFramebuffer atIndex:targetTextureIndex];
            [currentTarget newFrameReadyAtTime:frameTime atIndex:targetTextureIndex];
        }
    });
}

//--------------------------
#import "GPUImageTextureOutput.h"
@end

@implementation GPUImageTextureOutput

@synthesize delegate = _delegate;
@synthesize texture = _texture;
@synthesize enabled;

#pragma mark -
#pragma mark Initialization and teardown

- (id)init;
{
    if (!(self = [super init]))
    {
        return nil;
    }

    self.enabled = YES;

    return self;
}

- (void)doneWithTexture;
{
    [firstInputFramebuffer unlock];
}

#pragma mark -
#pragma mark GPUImageInput protocol

- (void)newFrameReadyAtTime:(CMTime)frameTime atIndex:(NSInteger)textureIndex;
{
    [_delegate newFrameReadyFromTextureOutput:self];
}

- (NSInteger)nextAvailableTextureIndex;
{
    return 0;
}

// TODO: Deal with the fact that the texture changes regularly as a result of the caching
- (void)setInputFramebuffer:(GPUImageFramebuffer *)newInputFramebuffer atIndex:(NSInteger)textureIndex;
{
    firstInputFramebuffer = newInputFramebuffer;
    [firstInputFramebuffer lock];

    _texture = [firstInputFramebuffer texture];
}

- (void)setInputRotation:(GPUImageRotationMode)newInputRotation atIndex:(NSInteger)textureIndex;
{
}

- (void)setInputSize:(CGSize)newSize atIndex:(NSInteger)textureIndex;
{
}

- (CGSize)maximumOutputSize;
{
    return CGSizeZero;
}

- (void)endProcessing
{
}

- (BOOL)shouldIgnoreUpdatesToThisTarget;
{
    return NO;
}

- (BOOL)wantsMonochromeInput;
{
    return NO;
}

- (void)setCurrentlyReceivingMonochromeInput:(BOOL)newValue;
{

}
//------------------------------------------------------

#import "GPUImageVideoCamera.h"
#import "GPUImageMovieWriter.h"
#import "GPUImageFilter.h"

void setColorConversion601( GLfloat conversionMatrix[9] )
{
    kColorConversion601 = conversionMatrix;
}

void setColorConversion601FullRange( GLfloat conversionMatrix[9] )
{
    kColorConversion601FullRange = conversionMatrix;
}

void setColorConversion709( GLfloat conversionMatrix[9] )
{
    kColorConversion709 = conversionMatrix;
}

#pragma mark -
#pragma mark Private methods and instance variables
@end

@interface GPUImageVideoCamera ()
{
    AVCaptureDeviceInput *audioInput;
    AVCaptureAudioDataOutput *audioOutput;
    NSDate *startingCaptureTime;

    dispatch_queue_t cameraProcessingQueue, audioProcessingQueue;

    GLProgram *yuvConversionProgram;
    GLint yuvConversionPositionAttribute, yuvConversionTextureCoordinateAttribute;
    GLint yuvConversionLuminanceTextureUniform, yuvConversionChrominanceTextureUniform;
    GLint yuvConversionMatrixUniform;
    const GLfloat *_preferredConversion;

    BOOL isFullYUVRange;

    int imageBufferWidth, imageBufferHeight;

    BOOL addedAudioInputsDueToEncodingTarget;
}

- (void)updateOrientationSendToTargets;
- (void)convertYUVToRGBOutput;

@end

@implementation GPUImageVideoCamera

@synthesize captureSessionPreset = _captureSessionPreset;
@synthesize captureSession = _captureSession;
@synthesize inputCamera = _inputCamera;
@synthesize runBenchmark = _runBenchmark;
@synthesize outputImageOrientation = _outputImageOrientation;
@synthesize delegate = _delegate;
@synthesize horizontallyMirrorFrontFacingCamera = _horizontallyMirrorFrontFacingCamera, horizontallyMirrorRearFacingCamera = _horizontallyMirrorRearFacingCamera;
@synthesize frameRate = _frameRate;

#pragma mark -
#pragma mark Initialization and teardown

- (id)init;
{
    if (!(self = [self initWithSessionPreset:AVCaptureSessionPreset640x480 cameraPosition:AVCaptureDevicePositionBack]))
    {
        return nil;
    }

    return self;
}

- (id)initWithSessionPreset:(NSString *)sessionPreset cameraPosition:(AVCaptureDevicePosition)cameraPosition;
{
    if (!(self = [super init]))
    {
        return nil;
    }

    cameraProcessingQueue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_HIGH,0);
    audioProcessingQueue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_LOW,0);

    frameRenderingSemaphore = dispatch_semaphore_create(1);

    _frameRate = 0; // This will not set frame rate unless this value gets set to 1 or above
    _runBenchmark = NO;
    capturePaused = NO;
    outputRotation = kGPUImageNoRotation;
    internalRotation = kGPUImageNoRotation;
    captureAsYUV = YES;
    _preferredConversion = kColorConversion709;

    // Grab the back-facing or front-facing camera
    _inputCamera = nil;
    NSArray *devices = [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];
    for (AVCaptureDevice *device in devices)
    {
        if ([device position] == cameraPosition)
        {
            _inputCamera = device;
        }
    }

    if (!_inputCamera) {
        return nil;
    }

    // Create the capture session
    _captureSession = [[AVCaptureSession alloc] init];

    [_captureSession beginConfiguration];

    // Add the video input
    NSError *error = nil;
    videoInput = [[AVCaptureDeviceInput alloc] initWithDevice:_inputCamera error:&error];
    if ([_captureSession canAddInput:videoInput])
    {
        [_captureSession addInput:videoInput];
    }

    // Add the video frame output
    videoOutput = [[AVCaptureVideoDataOutput alloc] init];
    [videoOutput setAlwaysDiscardsLateVideoFrames:NO];

//    if (captureAsYUV && [GPUImageContext deviceSupportsRedTextures])
    if (captureAsYUV && [GPUImageContext supportsFastTextureUpload])
    {
        BOOL supportsFullYUVRange = NO;
        NSArray *supportedPixelFormats = videoOutput.availableVideoCVPixelFormatTypes;
        for (NSNumber *currentPixelFormat in supportedPixelFormats)
        {
            if ([currentPixelFormat intValue] == kCVPixelFormatType_420YpCbCr8BiPlanarFullRange)
            {
                supportsFullYUVRange = YES;
            }
        }

        if (supportsFullYUVRange)
        {
            [videoOutput setVideoSettings:[NSDictionary dictionaryWithObject:[NSNumber numberWithInt:kCVPixelFormatType_420YpCbCr8BiPlanarFullRange] forKey:(id)kCVPixelBufferPixelFormatTypeKey]];
            isFullYUVRange = YES;
        }
        else
        {
            [videoOutput setVideoSettings:[NSDictionary dictionaryWithObject:[NSNumber numberWithInt:kCVPixelFormatType_420YpCbCr8BiPlanarVideoRange] forKey:(id)kCVPixelBufferPixelFormatTypeKey]];
            isFullYUVRange = NO;
        }
    }
    else
    {
        [videoOutput setVideoSettings:[NSDictionary dictionaryWithObject:[NSNumber numberWithInt:kCVPixelFormatType_32BGRA] forKey:(id)kCVPixelBufferPixelFormatTypeKey]];
    }

    runSynchronouslyOnVideoProcessingQueue(^{

        if (captureAsYUV)
        {
            [GPUImageContext useImageProcessingContext];
            //            if ([GPUImageContext deviceSupportsRedTextures])
            //            {
            //                yuvConversionProgram = [[GPUImageContext sharedImageProcessingContext] programForVertexShaderString:kGPUImageVertexShaderString fragmentShaderString:kGPUImageYUVVideoRangeConversionForRGFragmentShaderString];
            //            }
            //            else
            //            {
            if (isFullYUVRange)
            {
                yuvConversionProgram = [[GPUImageContext sharedImageProcessingContext] programForVertexShaderString:kGPUImageVertexShaderString fragmentShaderString:kGPUImageYUVFullRangeConversionForLAFragmentShaderString];
            }
            else
            {
                yuvConversionProgram = [[GPUImageContext sharedImageProcessingContext] programForVertexShaderString:kGPUImageVertexShaderString fragmentShaderString:kGPUImageYUVVideoRangeConversionForLAFragmentShaderString];
            }

            //            }

            if (!yuvConversionProgram.initialized)
            {
                [yuvConversionProgram addAttribute:@"position"];
                [yuvConversionProgram addAttribute:@"inputTextureCoordinate"];

                if (![yuvConversionProgram link])
                {
                    NSString *progLog = [yuvConversionProgram programLog];
                    NSLog(@"Program link log: %@", progLog);
                    NSString *fragLog = [yuvConversionProgram fragmentShaderLog];
                    NSLog(@"Fragment shader compile log: %@", fragLog);
                    NSString *vertLog = [yuvConversionProgram vertexShaderLog];
                    NSLog(@"Vertex shader compile log: %@", vertLog);
                    yuvConversionProgram = nil;
                    NSAssert(NO, @"Filter shader link failed");
                }
            }

            yuvConversionPositionAttribute = [yuvConversionProgram attributeIndex:@"position"];
            yuvConversionTextureCoordinateAttribute = [yuvConversionProgram attributeIndex:@"inputTextureCoordinate"];
            yuvConversionLuminanceTextureUniform = [yuvConversionProgram uniformIndex:@"luminanceTexture"];
            yuvConversionChrominanceTextureUniform = [yuvConversionProgram uniformIndex:@"chrominanceTexture"];
            yuvConversionMatrixUniform = [yuvConversionProgram uniformIndex:@"colorConversionMatrix"];

            [GPUImageContext setActiveShaderProgram:yuvConversionProgram];

            glEnableVertexAttribArray(yuvConversionPositionAttribute);
            glEnableVertexAttribArray(yuvConversionTextureCoordinateAttribute);
        }
    });

    [videoOutput setSampleBufferDelegate:self queue:cameraProcessingQueue];
    if ([_captureSession canAddOutput:videoOutput])
    {
        [_captureSession addOutput:videoOutput];
    }
    else
    {
        NSLog(@"Couldn't add video output");
        return nil;
    }

    _captureSessionPreset = sessionPreset;
    [_captureSession setSessionPreset:_captureSessionPreset];

// This will let you get 60 FPS video from the 720p preset on an iPhone 4S, but only that device and that preset
//    AVCaptureConnection *conn = [videoOutput connectionWithMediaType:AVMediaTypeVideo];
//
//    if (conn.supportsVideoMinFrameDuration)
//        conn.videoMinFrameDuration = CMTimeMake(1,60);
//    if (conn.supportsVideoMaxFrameDuration)
//        conn.videoMaxFrameDuration = CMTimeMake(1,60);

    [_captureSession commitConfiguration];

    return self;
}

- (GPUImageFramebuffer *)framebufferForOutput;
{
    return outputFramebuffer;
}

- (void)dealloc
{
    [self stopCameraCapture];
    [videoOutput setSampleBufferDelegate:nil queue:dispatch_get_main_queue()];
    [audioOutput setSampleBufferDelegate:nil queue:dispatch_get_main_queue()];

    [self removeInputsAndOutputs];

// ARC forbids explicit message send of 'release'; since iOS 6 even for dispatch_release() calls: stripping it out in that case is required.
//#if !OS_OBJECT_USE_OBJC
//    if (frameRenderingSemaphore != NULL)
//   {
//       dispatch_release(frameRenderingSemaphore);
//    }
//#endif
}

- (BOOL)addAudioInputsAndOutputs
{
    if (audioOutput)
        return NO;

    [_captureSession beginConfiguration];

    _microphone = [AVCaptureDevice defaultDeviceWithMediaType:AVMediaTypeAudio];
    audioInput = [AVCaptureDeviceInput deviceInputWithDevice:_microphone error:nil];
    if ([_captureSession canAddInput:audioInput])
    {
        [_captureSession addInput:audioInput];
    }
    audioOutput = [[AVCaptureAudioDataOutput alloc] init];

    if ([_captureSession canAddOutput:audioOutput])
    {
        [_captureSession addOutput:audioOutput];
    }
    else
    {
        NSLog(@"Couldn't add audio output");
    }
    [audioOutput setSampleBufferDelegate:self queue:audioProcessingQueue];

    [_captureSession commitConfiguration];
    return YES;
}

- (BOOL)removeAudioInputsAndOutputs
{
    if (!audioOutput)
        return NO;

    [_captureSession beginConfiguration];
    [_captureSession removeInput:audioInput];
    [_captureSession removeOutput:audioOutput];
    audioInput = nil;
    audioOutput = nil;
    _microphone = nil;
    [_captureSession commitConfiguration];
    return YES;
}

- (void)removeInputsAndOutputs;
{
    [_captureSession beginConfiguration];
    if (videoInput) {
        [_captureSession removeInput:videoInput];
        [_captureSession removeOutput:videoOutput];
        videoInput = nil;
        videoOutput = nil;
    }
    if (_microphone != nil)
    {
        [_captureSession removeInput:audioInput];
        [_captureSession removeOutput:audioOutput];
        audioInput = nil;
        audioOutput = nil;
        _microphone = nil;
    }
    [_captureSession commitConfiguration];
}

#pragma mark -
#pragma mark Managing targets

- (void)addTarget:(id<GPUImageInput>)newTarget atTextureLocation:(NSInteger)textureLocation;
{
    [super addTarget:newTarget atTextureLocation:textureLocation];

    [newTarget setInputRotation:outputRotation atIndex:textureLocation];
}

#pragma mark -
#pragma mark Manage the camera video stream

- (BOOL)isRunning;
{
    return [_captureSession isRunning];
}

- (void)startCameraCapture;
{
    if (![_captureSession isRunning])
    {
        startingCaptureTime = [NSDate date];
        [_captureSession startRunning];
    };
}

- (void)stopCameraCapture;
{
    if ([_captureSession isRunning])
    {
        [_captureSession stopRunning];
    }
}

- (void)pauseCameraCapture;
{
    capturePaused = YES;
}

- (void)resumeCameraCapture;
{
    capturePaused = NO;
}

- (void)rotateCamera
{
    if (self.frontFacingCameraPresent == NO)
        return;

    NSError *error;
    AVCaptureDeviceInput *newVideoInput;
    AVCaptureDevicePosition currentCameraPosition = [[videoInput device] position];

    if (currentCameraPosition == AVCaptureDevicePositionBack)
    {
        currentCameraPosition = AVCaptureDevicePositionFront;
    }
    else
    {
        currentCameraPosition = AVCaptureDevicePositionBack;
    }

    AVCaptureDevice *backFacingCamera = nil;
    NSArray *devices = [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];
    for (AVCaptureDevice *device in devices)
    {
        if ([device position] == currentCameraPosition)
        {
            backFacingCamera = device;
        }
    }
    newVideoInput = [[AVCaptureDeviceInput alloc] initWithDevice:backFacingCamera error:&error];

    if (newVideoInput != nil)
    {
        [_captureSession beginConfiguration];

        [_captureSession removeInput:videoInput];
        if ([_captureSession canAddInput:newVideoInput])
        {
            [_captureSession addInput:newVideoInput];
            videoInput = newVideoInput;
        }
        else
        {
            [_captureSession addInput:videoInput];
        }
        //captureSession.sessionPreset = oriPreset;
        [_captureSession commitConfiguration];
    }

    _inputCamera = backFacingCamera;
    [self setOutputImageOrientation:_outputImageOrientation];
}

- (AVCaptureDevicePosition)cameraPosition
{
    return [[videoInput device] position];
}

+ (BOOL)isBackFacingCameraPresent;
{
    NSArray *devices = [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];

    for (AVCaptureDevice *device in devices)
    {
        if ([device position] == AVCaptureDevicePositionBack)
            return YES;
    }

    return NO;
}

- (BOOL)isBackFacingCameraPresent
{
    return [GPUImageVideoCamera isBackFacingCameraPresent];
}

+ (BOOL)isFrontFacingCameraPresent;
{
    NSArray *devices = [AVCaptureDevice devicesWithMediaType:AVMediaTypeVideo];

    for (AVCaptureDevice *device in devices)
    {
        if ([device position] == AVCaptureDevicePositionFront)
            return YES;
    }

    return NO;
}

- (BOOL)isFrontFacingCameraPresent
{
    return [GPUImageVideoCamera isFrontFacingCameraPresent];
}

- (void)setCaptureSessionPreset:(NSString *)captureSessionPreset;
{
    [_captureSession beginConfiguration];

    _captureSessionPreset = captureSessionPreset;
    [_captureSession setSessionPreset:_captureSessionPreset];

    [_captureSession commitConfiguration];
}

- (void)setFrameRate:(int32_t)frameRate;
{
    _frameRate = frameRate;

    if (_frameRate > 0)
    {
        if ([_inputCamera respondsToSelector:@selector(setActiveVideoMinFrameDuration:)] &&
            [_inputCamera respondsToSelector:@selector(setActiveVideoMaxFrameDuration:)]) {

            NSError *error;
            [_inputCamera lockForConfiguration:&error];
            if (error == nil) {
//#if defined(__IPHONE_7_0)
                [_inputCamera setActiveVideoMinFrameDuration:CMTimeMake(1, _frameRate)];
                [_inputCamera setActiveVideoMaxFrameDuration:CMTimeMake(1, _frameRate)];
//#endif
            }
            [_inputCamera unlockForConfiguration];

        } else {

            for (AVCaptureConnection *connection in videoOutput.connections)
            {
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wdeprecated-declarations"
                if ([connection respondsToSelector:@selector(setVideoMinFrameDuration:)])
                    connection.videoMinFrameDuration = CMTimeMake(1, _frameRate);

                if ([connection respondsToSelector:@selector(setVideoMaxFrameDuration:)])
                    connection.videoMaxFrameDuration = CMTimeMake(1, _frameRate);
#pragma clang diagnostic pop
            }
        }

    }
    else
    {
        if ([_inputCamera respondsToSelector:@selector(setActiveVideoMinFrameDuration:)] &&
            [_inputCamera respondsToSelector:@selector(setActiveVideoMaxFrameDuration:)]) {

            NSError *error;
            [_inputCamera lockForConfiguration:&error];
            if (error == nil) {
//#if defined(__IPHONE_7_0)
                [_inputCamera setActiveVideoMinFrameDuration:kCMTimeInvalid];
                [_inputCamera setActiveVideoMaxFrameDuration:kCMTimeInvalid];
//#endif
            }
            [_inputCamera unlockForConfiguration];

        } else {

            for (AVCaptureConnection *connection in videoOutput.connections)
            {
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wdeprecated-declarations"
                if ([connection respondsToSelector:@selector(setVideoMinFrameDuration:)])
                    connection.videoMinFrameDuration = kCMTimeInvalid; // This sets videoMinFrameDuration back to default

                if ([connection respondsToSelector:@selector(setVideoMaxFrameDuration:)])
                    connection.videoMaxFrameDuration = kCMTimeInvalid; // This sets videoMaxFrameDuration back to default
#pragma clang diagnostic pop
            }
        }

    }
}

- (int32_t)frameRate;
{


Attachments

Last edited:
Top
