Looking in the tutorial section of B4R I noticed that there was no example of how to connect and use the joystick module. So here is an example
Wiki:

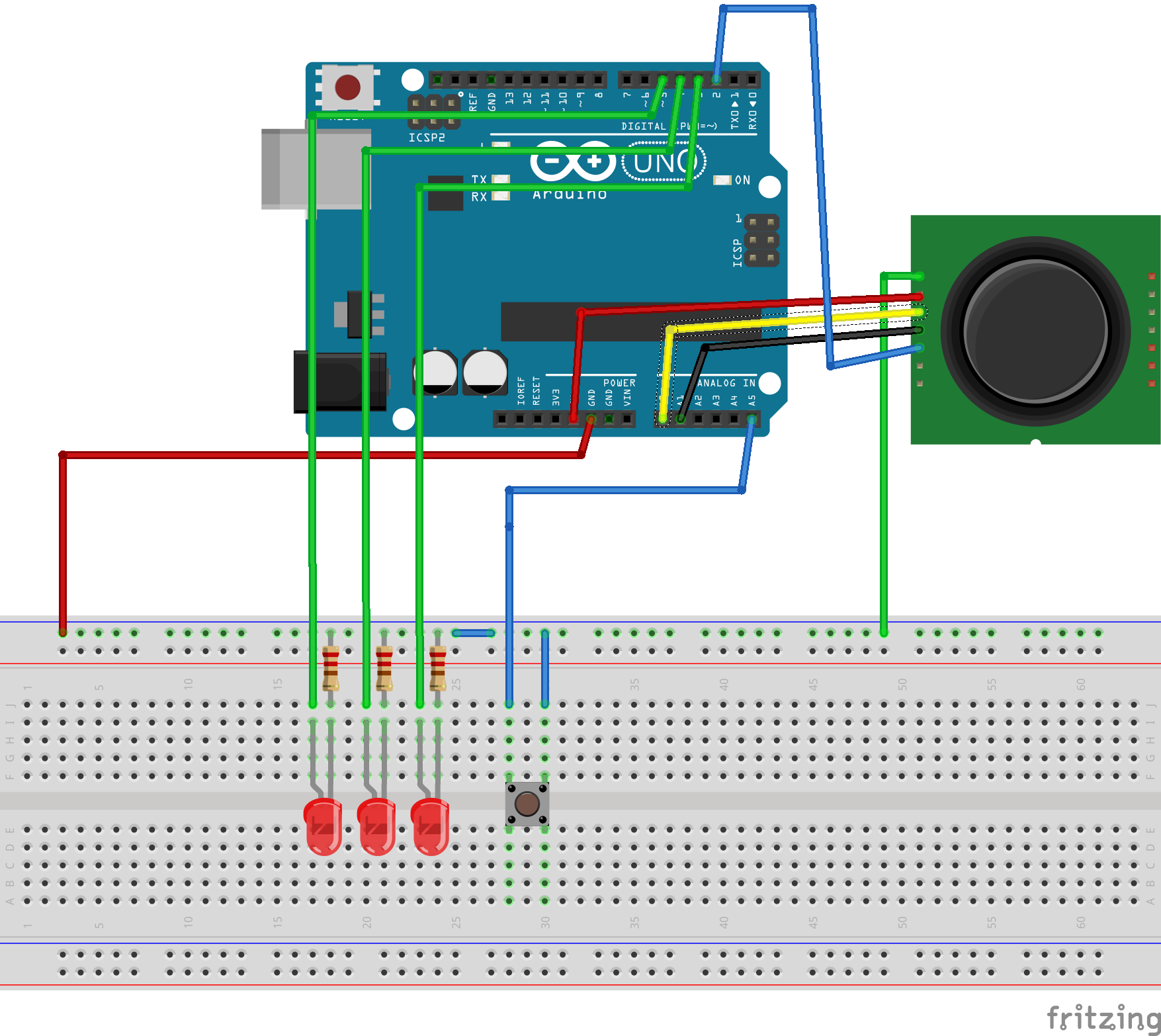

Joystick Module MH / pin

 green : GND
   Red : +5V
Yellow : VRX
 Black : VRY

B4R CODE : This code activates the LEDs in sequence by clicking once on the button. Clicking the second time activates the controller.:
#Region Project Attributes
    #AutoFlushLogs: True
    #CheckArrayBounds: True
    #StackBufferSize: 300
#End Region

Sub Process_Globals
    'These global variables will be declared once when the application starts.
    'Public variables can be accessed from all modules.

    Public Serial1 As Serial
    Private btn As Pin
    Private pinledgreen As Pin
    Private pinledRed As Pin
    Private pinledYellow As Pin

    Dim timer1 As Timer
    Dim timer2 As Timer
    Dim timer3 As Timer

    Dim Mode1 As Int=0
    Dim Mode2 As Int=0
    Dim set1 As Int=0
    Dim set2 As Int=0

    Private lightOnR=False As Boolean
    Private lightOnG=False As Boolean
    Private lightOnV=False As Boolean

    Private Switch, VRx, VRy As Pin
    Private timerloop As Timer

End Sub

Private Sub AppStart

    Serial1.Initialize(115200)
    Log("AppStart")

    'inizializzazione Timer
    timer1.Initialize("timer1_tick",500)
    timer2.Initialize("timer2_tick",500)
    timer3.Initialize("timer3_tick",500)

    'inizializzazione btn
    btn.Initialize(btn.A5, btn.MODE_INPUT_PULLUP)
    btn.AddListener("btn_StateChanged")

    'inizializzazione led
    pinledgreen.Initialize(9,pinledgreen.MODE_OUTPUT)
    pinledYellow.Initialize(8,pinledYellow.MODE_OUTPUT)
    pinledRed.Initialize(7,pinledRed.MODE_OUTPUT)
    pinledgreen.DigitalWrite(False)
    pinledYellow.DigitalWrite(False)
    pinledRed.DigitalWrite(False)

    'inizializzazione Module Joystick
    Switch.Initialize(2, Switch.MODE_INPUT_PULLUP)
    VRx.Initialize(VRx.A0, VRx.MODE_INPUT)
    VRy.Initialize(VRy.A1, VRy.MODE_INPUT)
    timerloop.Initialize("timerLoop_Tick", 250)
    timerloop.Enabled = True

End Sub

Sub TimerLoop_tick

    Log("X = ", VRx.AnalogRead)
    Log("Y = ", VRy.AnalogRead)
    Log("Button = ", Switch.DigitalRead)
    If VRy.AnalogRead>512 And lightOnV=False And lightOnG=True And lightOnR=False Then
        lightOnG=False
        pinledYellow.DigitalWrite(False)
        lightOnV=True
        pinledgreen.DigitalWrite(True)
        set1=1
    End If
    If VRy.AnalogRead>512 And lightOnV=False And lightOnG=False And lightOnR=True And set1=0 Then
        lightOnR=False
        pinledRed.DigitalWrite(False)
        lightOnG=True
        pinledYellow.DigitalWrite(True)

    End If
    If VRy.AnalogRead>512  And lightOnV=True And lightOnG=False And lightOnR=False And set1=0 Then
        lightOnR=True
        pinledRed.DigitalWrite(True)
        lightOnV=False
        pinledgreen.DigitalWrite(False)
    End If

    '/////////////////////////////////////Returns////////////////////////////////////////////////////////

    If VRy.AnalogRead<511 And lightOnV=False And lightOnG=True And lightOnR=False Then
        lightOnG=False
        pinledYellow.DigitalWrite(False)
        lightOnR=True
        pinledRed.DigitalWrite(True)
        set2=1
        set1=0
    End If

    If VRy.AnalogRead<511  And lightOnV=True And lightOnG=False And lightOnR=False Then
        lightOnG=True
        pinledYellow.DigitalWrite(True)
        lightOnV=False
        pinledgreen.DigitalWrite(False)

    End If


    If VRy.AnalogRead>512 And lightOnV=False And lightOnG=False And lightOnR=True And set2=0 Then
        lightOnR=False
        pinledRed.DigitalWrite(False)
        lightOnG=True
        pinledYellow.DigitalWrite(True)
    End If


End Sub

Sub timer1_tick

    lightOnR=True
    pinledRed.DigitalWrite(True)
    lightOnG=False
    pinledYellow.DigitalWrite(False)
    lightOnV=False
    pinledgreen.DigitalWrite(False)

    timer3.Enabled=False
    timer2.Enabled=True

End Sub

Sub timer2_tick

    lightOnR=False
    pinledRed.DigitalWrite(False)
    lightOnG=True
    pinledYellow.DigitalWrite(True)
    lightOnV=False
    pinledgreen.DigitalWrite(False)

    timer1.Enabled=False
    timer3.Enabled=True

End Sub

Sub timer3_tick

    lightOnR=False
    pinledRed.DigitalWrite(False)
    lightOnG=False
    pinledYellow.DigitalWrite(False)
    lightOnV=True
    pinledgreen.DigitalWrite(True)

    timer2.Enabled=False
    timer1.Enabled=True

End Sub

Sub btn_StateChanged (State As Boolean)

    If State =False Then
        If Mode2=1 Then
            timer1.Enabled=False
            timer2.Enabled=False
            timer3.Enabled=False
            lightOnR=True
            pinledRed.DigitalWrite(True)
            lightOnG=False
            pinledYellow.DigitalWrite(False)
            lightOnV=False
            pinledgreen.DigitalWrite(False)
            Mode2=1
        End If
    End If
    If State =False Then
        If Mode1=0 Then
        timer1.Enabled=True
        Mode1=1
        Mode2=1
        End If
    End If
    Log("state : ",State)

End Sub
