Help! is this traffic signal sequence correct?

[Beja]

Hi all,

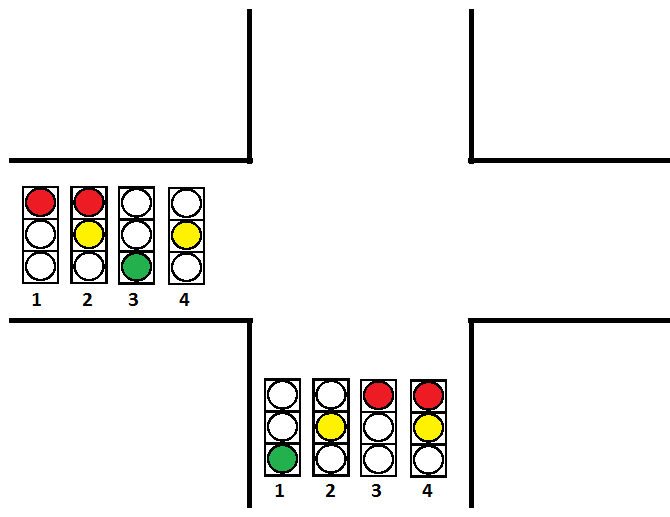

is this traffic signal sequence correct for both sides? your thoughtful input greatly appreciated.



[JordiCP]

I don't think that the transition from red to green has an intermediate 'ambar' state in all countries. At least in Spain it goes directly from red to green

Second thought: depending on the country, they are completely useless



[An Schi]

For germany it is correct (iirc )
But like jordi said: it is countryspecific....



[Cableguy]

Portugal and France too, red to green directly!

hum, I better watch out for ilan, I just got a ticket for going through a red light... glad I did, it means it was for ilan and he was stopped!



[asales]

Brazil too, red to green directly!



[ilan]

it means it was for ilan and he was stopped!

no problem as long as you pay it



[Emme Developer]

no problem as long as you pay it

Do you pay with money got from app?



[ilan]

Do you pay with money got from app?

that's not enough for all tickets i got every month



[Beja]

that's not enough for all tickets i got every month

Hi Ilan,
I have an idea of an app that will prevent any future ticket to get to your mailbox. You have got to pay me first so I can explain it to you. I can send you the ticket, sorry I mean the bill if you agree.



[ilan]

Hi Ilan,
I have an idea of an app that will prevent any future ticket to get to your mailbox. You have got to pay me first so I can explain it to you. I can send you the ticket, sorry I mean the bill if you agree.

I have the filling that i need to pay for this service on each ticket i get right?



[Beja]

I have the filling that i need to pay for this service on each ticket i get right?

Just a small amount for each click!
I wouldn't mind if you donate more.. After All you will be free from paying any ticket from DMV or whatever it's name in Israel.



[Beja]

You're right guys.. From red direct to green.. but the green transitions through yellow for some reason.
I am also thinking about the two reds stay on together for a few seconds but the two greens would never.



[Lahksman]

I am also thinking about the two reds stay on together for a few seconds but the two greens would never.

True, you have to give some time for the cars to clear the intersection (unless you like T-bones ).



[pjetson]

I think there are six states, as follows:

State    East/West    North/South
1          RED          RED
2          GREEN        RED
3          YELLOW       RED
4          RED          RED
5          RED          GREEN
6          RED          YELLOW

The states repeat in that order endlessly, but with variables times for each state. Perhaps 1 second for states 1 and 4, three seconds for states 3 and 6, and however long you want for green in states 2 and 5.

You'd obviously need extra states for turn arrows and pedestrian signals.



[Peter Simpson]

UK full sequence is as follows:-
Red
Red/Amber
Green
Amber
Red



[udg]

Naples, Italy: traffic lights are useless...

Yellow = pay attention
Red = you should go (just to avoid to be bumped by following vehicles) paying additional caution
Green = go on but pay great attention to those having yellow/red lights

It's easy. You never stop and always keep an eye on the surrounding flow... good luck!



[sorex]

no multi light lit in Belgium either.



[Beja]

A driver blocks traffic at intersection and doesn't go on green.. police approuched him and said: Sir! sorry but these are all the lights we have.. the only thing left for you now is to pull out and show me your driver license, registration and insurance cards.
