B4R Question I can't make it work esp8266 + relay Elegoo 4 +MFRC522

[omarruben]

I need some help to make it work, read the card and open the relay

the esp8266 and the RFID work just fine, but when connected to the relays Elegoo4 can't even upload the code to the esp8266

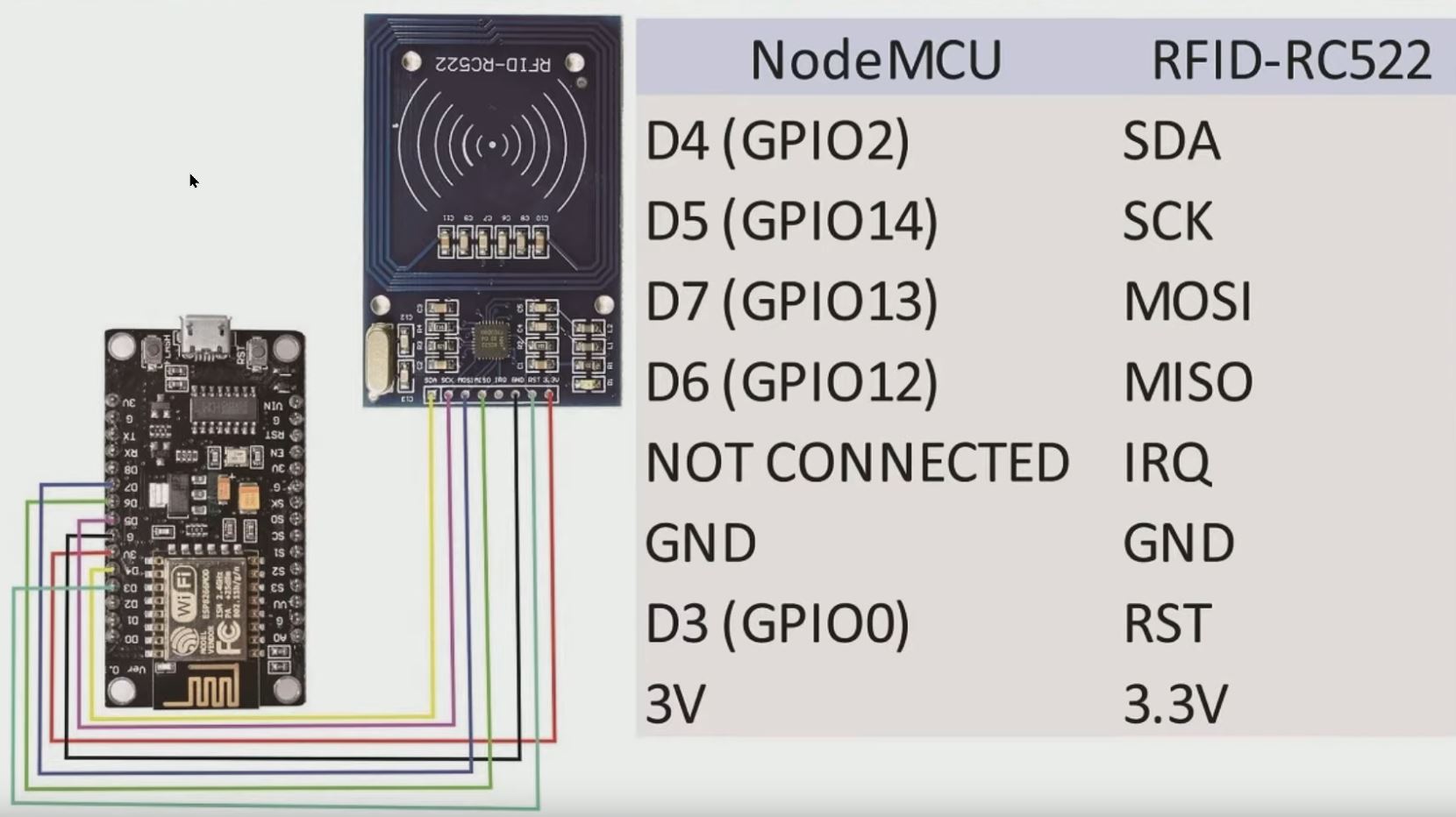

RELAY is connected to D8, GND,+5 v on the esp8266 (not on the picture)

* question: do I need an external 5v power supply?


what I am doing wrong ??

Sub Process_Globals
    Public Serial1 As Serial


    Private rfid As MFRC522
    Private bc As ByteConverter
    Dim d1 As D1Pins
    Private d8 As Pin
    Private relay1 As Pin
    Private relay1State As Boolean

End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    Log("AppStart")

    d8.Initialize(d1.D8, d8.MODE_OUTPUT)
    'relay1.Initialize(d1.D8, relay1.MODE_OUTPUT) 'Pin D8 ESP Relay 1
    d8.DigitalWrite(True)'True = 1 | Pin D8 Esp is Off | Relay_1 is Off
    relay1State = True

    rfid.Initialize(d1.D4, d1.D3, "rfid_CardPresent")
    rfid.LogVersion

End Sub

Sub rfid_CardPresent (UID() As Byte, CardType As Byte)
    Log("UID: ", bc.HexFromBytes(UID))
    relay1State = Not(relay1State)
    Log(relay1State)
    d8.DigitalWrite(relay1State)'Relay 1 ON/OFF House Alarm
End Sub



[dragonguy]

please refer this website https://randomnerdtutorials.com/esp8266-pinout-reference-gpios/



[omarruben]

please refer this website https://randomnerdtutorials.com/esp8266-pinout-reference-gpios/

thank you



[omarruben]

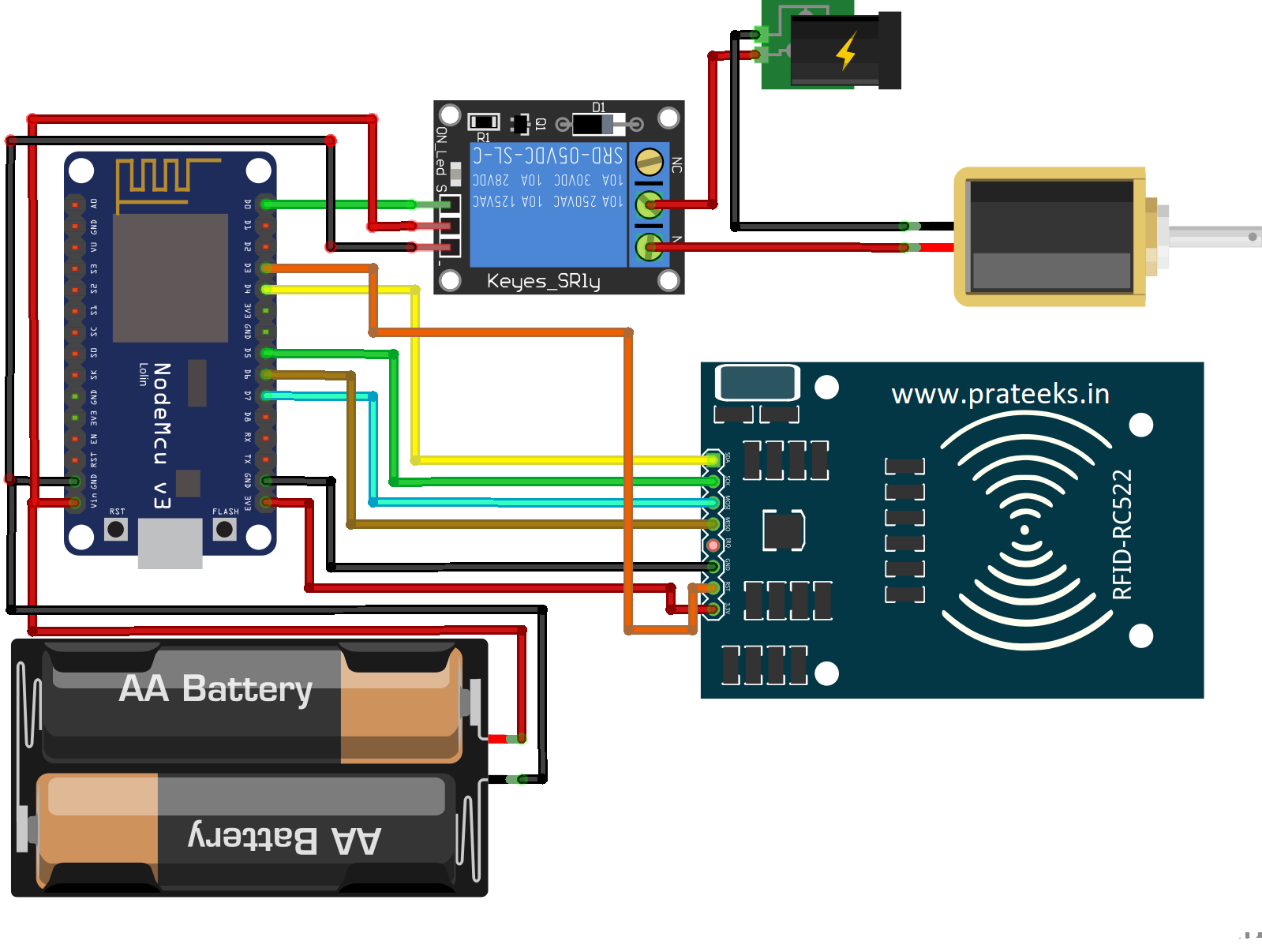

after a few days of researching:

#Region Project Attributes
    #AutoFlushLogs: True
    #CheckArrayBounds: True
    #StackBufferSize: 600
#End Region
'Ctrl+Click to open the C code folder: ide://run?File=%WINDIR%\System32\explorer.exe&Args=%PROJECT%\Objects\Src

Sub Process_Globals
    Public Serial1 As Serial


    Private rfid As MFRC522
    Private bc As ByteConverter
    Dim d1 As D1Pins
    Private d0 As Pin
    Private relay1 As Pin
    Private relay1State As Boolean

End Sub

Private Sub AppStart
    Serial1.Initialize(115200)
    Log("AppStart")

    d0.Initialize(d1.D0, d0.MODE_OUTPUT)
    'relay1.Initialize(d1.D8, relay1.MODE_OUTPUT) 'Pin D8 ESP Relay 1
    d0.DigitalWrite(True)'True = 1 | Pin D8 Esp is Off | Relay_1 is Off
    relay1State = True

    rfid.Initialize(d1.D4, d1.D3, "rfid_CardPresent")
    rfid.LogVersion

End Sub

Sub rfid_CardPresent (UID() As Byte, CardType As Byte)
    Log("UID: ", bc.HexFromBytes(UID))
    relay1State = Not(relay1State)
    Log(relay1State)
    d0.DigitalWrite(relay1State)'Relay 1 ON/OFF House Alarm

End Sub

WORKS PERFECTLY!!!!!
total invested on hardware :$55 (and have left overs to make 3 more circuits) all fro Amazon, I don't put the links, I don't know if it is allowed
