Android Question Int() to Byte()?

[stu14t]

Looking for some guidance on How to convert an array of integers to array of bytes?

Many thanks



[Jeffrey Cameron]

See: https://www.b4x.com/android/help/byteconverter.html



[stu14t]

I've had a look at that but I think i'm doing something wrong. I start with a comma separated text string of numbers (234,3,149,74,114,102,1,60,68,163,73,10,190,179,241,21) and then use this code, but It's not working:

    Code = Regex.Split(",",Dline)

        For n = 0 To 16
            If IsNumber (Code(n)) Then
                Val(n) = Code(n)            'Converts Chr$ to Int
                iv3 = conv.IntsToBytes(Val) 'Coverts Int() to Bytes
            End If

        Next



[OliverA]

What are you expecting? What are you getting?



[rbghongade]

Hi,
I think line no 6 should be:

iv3(n) = conv.IntsToBytes(Val(n))



[OliverA]

Hi,
I think line no 6 should be:

iv3(n) = conv.IntsToBytes(Val(n))

Ah, close, I think the integer to byte conversion needs to happen outside of the loop

    Code = Regex.Split(",",Dline)

        For n = 0 To 16
            If IsNumber (Code(n)) Then
                Val(n) = Code(n)            'Converts Chr$ to Int
                'iv3 = conv.IntsToBytes(Val) 'Coverts Int() to Bytes
            End If

        Next
        iv3 = conv.IntsToBytes(Val) 'Coverts Int() to Bytes

Also, the output may be affected by the Endian setting (https://www.b4x.com/android/help/byteconverter.html#byteconverter_littleendian)



[stu14t]

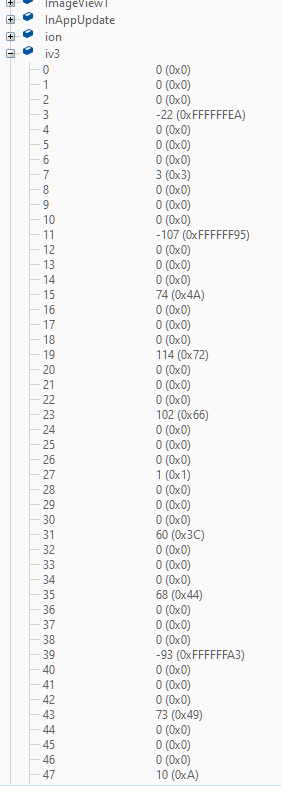

@OliverA Many thanks, I tried the code you suggested but It has created an array that's 64 bytes long instead 16 It looks (a sample) like this:
Not sure why it's padded it out



[OliverA]

64 bytes long instead 16

Of course, since each Int is 4 bytes and 16 Int(s) make 64 bytes.

Try

    Code = Regex.Split(",",Dline)
        Dim asInt as Int
        Dim asBytes(16) As Byte
        For n = 0 To 16
            If IsNumber (Code(n)) Then
                asInt = Code(n)            'Converts Chr$ to Int
                asBytes(n) = Bit.And(asInt, 0xFF)
            End If
        Next
        iv3 = asBytes

This should create a 16 byte Byte array. Note, the code can be cleaned up a bit more, I just did not want to mess with the existing iv3 declaration (you may not need asBytes). Also, I just typed this in here, you may need to fix some errors



[stu14t]

Of course, since each Int is 4 bytes and 16 Int(s) make 64 bytes.

Try

    Code = Regex.Split(",",Dline)
        Dim asInt as Int
        Dim asBytes(16) As Byte
        For n = 0 To 15
            If IsNumber (Code(n)) Then
                asInt = Code(n)            'Converts Chr$ to Int
                asBytes(n) = Bit.And(asInt, 0xFF)
            End If
        Next
        iv3 = asBytes

This should create a 16 byte Byte array. Note, the code can be cleaned up a bit more, I just did not want to mess with the existing iv3 declaration (you may not need asBytes). Also, I just typed this in here, you may need to fix some errors

That's done it, Many thanks. Just had to change the for next loop to 0 to 15 but otherwise perfect
