B4R Tutorial MAX7219 7-Segment Driver

Discussion in 'B4R Tutorials' started by Mostez, Aug 1, 2019.

  1. Mostez

    Mostez Active Member

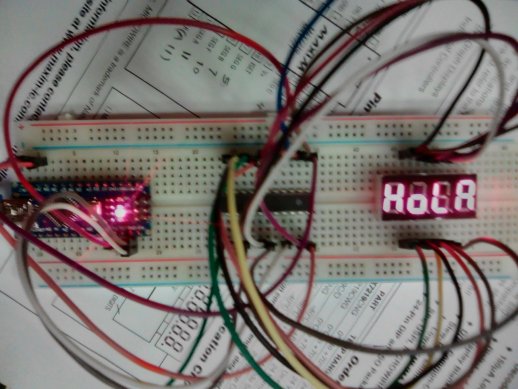

    this is a very simple example shows how to drive 4-digits 7-segment display with MAX7219 and rLedControl library, this code example displays 'HoLA' word, you can add more digits and MAX7219 devices.
    each MAX device can drive up to 8 7-segment digits.
    33K ohm resistor should be connected between pin 18(ISET) and pin 19(V+) of MAX7219, not shown in provided datasheet.
    datasheet and connection links below.

    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'Public variables can be accessed from all modules.
        Public Serial1 As Serial

    Private Sg As LedControl

    '33Kohm resistor should be connected between pin 18(ISET) and pin 19(V+) of MAX7219
        'CNQ-3641 4 digits 7-segment display module used(com cathode)
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        Sg.Initialize(
    12,11,10,1)
        Sg.Shutdown(
    0,False)
        Sg.SetIntensity(
    0,8)
        Sg.SetScanLimit(
    0,4'
        Sg.ClearDisplay(0)
        RunTest
    End Sub

    private Sub RunTest()
        Sg.SetChar(
    0,0,"H",False)
        Sg.SetChar(
    0,1,"o",False)
        Sg.SetChar(
    0,2,"L",False)
        Sg.SetChar(
    0,3,"A",False)
    End Sub
    7-Segment display datasheet
    MAX7219 datasheet and connection

    emexes, Johan Schoeman and Erel like this.
  2. Mostez

    Mostez Active Member

    this is a modified example code, with string display and decimal point placement.
    Code:
    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'Public variables can be accessed from all modules.
        Public Serial1 As Serial

    Private Sg As LedControl

    Private bc As ByteConverter

    '33Kohm resistor should be connected between pin 18(ISET) and pin 19(V+) of MAX7219
        'CNQ-3641 4 digits 7-segment display module used(com cathode)
    End Sub

    Private Sub AppStart
        Serial1.Initialize(
    115200)

    Log("AppStart")
        Sg.Initialize(
    12,11,10,1)
        Sg.Shutdown(
    0,False)
        Sg.SetIntensity(
    0,8)
        Sg.SetScanLimit(
    0,4'
        Sg.ClearDisplay(0)
        RunTest
    End Sub

    private Sub PrintMAX(Address As Int,Str() As Byte)


    Dim ArrayIndex As Byte

    Dim S As String

    Dim isDP As Int = bc.IndexOf(Str,".".GetBytes) 'check if DP in string and get index(place)
        If isDP > 0 Then
            Str = ReplaceString(Str,
    ".".GetBytes,"".GetBytes ) 'remove DP from original string
        End If

    Do While ArrayIndex < Str.Length
            S = bc.StringFromBytes(
    Array As Byte(Str(ArrayIndex)))
            Sg.SetChar(
    Address,ArrayIndex,s,False)
            ArrayIndex = ArrayIndex +
    1

    Loop
        Sg.SetLed(
    0,isDP-1,0,True'place DP
    End Sub

    private Sub RunTest()

        PrintMAX(
    0,"HoLA")
        Delay(
    1000)
        Sg.ClearDisplay(
    0)
        PrintMAX(
    0,"b4A")
        Delay(
    1000)
        Sg.ClearDisplay(
    0)
        PrintMAX(
    0,"12.34")
        Delay(
    1000)
        PrintMAX(
    0,"0.000")
        Delay(
    1000)
        PrintMAX(
    0,NumberFormat(55/16,2,2))
        Delay(
    1000)

    End Sub

    Public Sub ReplaceString(Original() As Byte, SearchFor() As Byte, ReplaceWith() As Byte) As Byte()

    'count number of occurrences
        Dim c As Int = 0

    Dim i As Int

    If SearchFor.Length <> ReplaceWith.Length Then
            i = bc.IndexOf(Original, SearchFor)

    Do While i > -1
                c = c +
    1
                i = bc.IndexOf2(Original, SearchFor, i + SearchFor.Length)

    Loop

    End If

    Dim result(Original.Length + c * (ReplaceWith.Length - SearchFor.Length)) As Byte

    Dim prevIndex As Int = 0

    Dim targetIndex As Int = 0
        i = bc.IndexOf(Original, SearchFor)

    Do While i > -1
            bc.ArrayCopy2(Original, prevIndex, result, targetIndex, i - prevIndex)
            targetIndex = targetIndex + i - prevIndex
            bc.ArrayCopy2(ReplaceWith,
    0, result, targetIndex, ReplaceWith.Length)
            targetIndex = targetIndex + ReplaceWith.Length
            prevIndex = i + SearchFor.Length
            i = bc.IndexOf2(Original, SearchFor, prevIndex)

    Loop

    If prevIndex < Original.Length Then
            bc.ArrayCopy2(Original, prevIndex, result, targetIndex, Original.Length - prevIndex)

    End If

    Return result

    End Sub

    Johan Schoeman likes this.
