MSMaterialDrawer

thedesolatesoul · Jun 12, 2015

I guess its a difficult library to work with from a resources and dependency point of view.
From a code point of view its extremely simple.

Douglas Farias · Jun 23, 2015

Copy the MSMaterialDrawer.jar and xml files to your AdditionalLibs folder.

where it is?

thedesolatesoul · Jun 23, 2015

Douglas Farias said:
where it is?

Its hidden in the first 3 posts to make sure you read all of it

asales · Jun 30, 2015

Hello again, @thedesolatesoul .

I have a problem with this library in my new app (in other apps the library works fine).

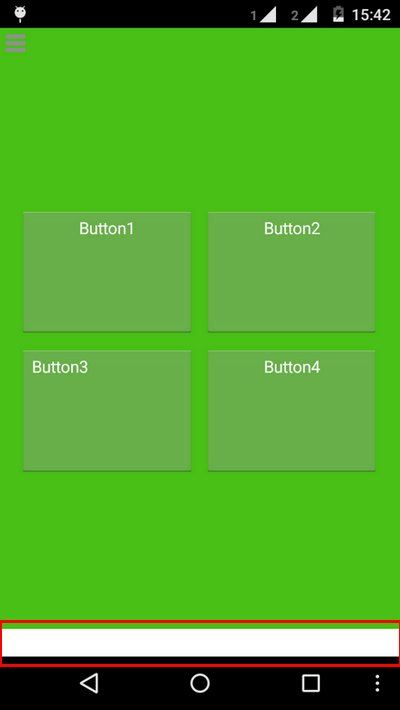

It shows an blank line in the footer (see image1).
When I open the drawer the blank line disappears.

My code is in attached.

I tried, but I don't know what's happening and how to solve.

Thanks in advance for any tip.

thedesolatesoul · Jun 30, 2015

hmmm its not compiling

B4X:

H:\MyProjects\Github_masters\MaterialDrawer-master\MaterialDrawer-master\library\src\main\res\values\styles.xml:55: error: Error: No resource found that matches the given name: attr 'windowNoTitle'.

give me a while

thedesolatesoul · Jun 30, 2015

Looks like files are missing from your project:

Caused by: java.lang.RuntimeException: java.io.FileNotFoundException: btn_menu5.png

thedesolatesoul · Jun 30, 2015

im really not a fan of the designer...how on earth do i remove the drawable setting from the imageview?
and there is no delete in the context menu for the imageview

thedesolatesoul · Jun 30, 2015

AS2 said:
Hello again, @thedesolatesoul .

I have a problem with this library in my new app (in other apps the library works fine).

It shows an blank line in the footer (see image1).
When I open the drawer the blank line disappears.

My code is in attached.

I tried, but I don't know what's happening and how to solve.

Thanks in advance for any tip.

View attachment 35445

i dont see a blank line. what device and os are you testing on?

asales · Jun 30, 2015

thedesolatesoul said:
Looks like files are missing from your project:

Caused by: java.lang.RuntimeException: java.io.FileNotFoundException: btn_menu5.png

Thanks!

Updated with btn_menu5.png.

asales · Jun 30, 2015

thedesolatesoul said:
i dont see a blank line. what device and os are you testing on?

Moto G2 and Sony Xperia E1.
It shows a blank line in the footer of screen.

I tested now in tablet Galaxy Note 8 and it don't shows the blank line.

Thanks for your answers. I will continue the tests.

Jerez · Jul 8, 2015

Hi,
I'm testing your demo app: MSMaterialDrawerSample.zip

I've this libraries on my "Library" folder:
android-support-v4
android-support-v7-appcompat
android-support-v7-mediarouter

Also i'm using the android-22.

And...

I've changed the lines to:

B4X:

'#AdditionalRes: H:\Eclipse\adt-bundle-windows-x86_64\sdk\extras\android\support\v7\appcompat\res, android.support.v7.appcompat
    '#AdditionalRes: H:\MyProjects\Github_masters\MaterialDrawer-master\MaterialDrawer-master\library\src\main\res
    '#AdditionalRes: H:\MyProjects\Github_masters\MaterialDrawer-master\MaterialDrawer-master\app\src\main\res
    #AdditionalRes: C:\Xamarin\Android-SDK\extras\android\support\v7\appcompat\res, android.support.v7.appcompat
    #AdditionalRes: C:\Xamarin\Android-SDK\Drawer\AdditionalResources\md-lib\res
    #AdditionalRes: C:\Xamarin\Android-SDK\Drawer\AdditionalResources\md-app\res

And compile without problems!, but when i click the button to open drawer i get an error on this line:

MD = MDB.Build

B4X:

** Activity (main) Pause, UserClosed = false **
** Activity (main) Create, isFirst = true **
** Activity (main) Resume **
** Activity (main) Pause, UserClosed = false **
** Activity (actheader) Create, isFirst = true **
actheader_activity_create (B4A line: 64)
MD = MDB.Build

android.view.InflateException: Binary XML file line #12: Error inflating class com.mikepenz.materialdrawer.view.ScrimInsetsFrameLayout
    at android.view.LayoutInflater.createView(LayoutInflater.java:620)
    at android.view.LayoutInflater.createViewFromTag(LayoutInflater.java:696)
    at android.view.LayoutInflater.rInflate(LayoutInflater.java:755)
    at android.view.LayoutInflater.inflate(LayoutInflater.java:492)
    at android.view.LayoutInflater.inflate(LayoutInflater.java:397)
    at com.mikepenz.materialdrawer.Drawer.withDrawerLayout(Drawer.java:246)
    at com.mikepenz.materialdrawer.Drawer.build(Drawer.java:965)
    at com.maximussoft.msmaterialdrawer.MSMaterialDrawerBuilder.Build(MSMaterialDrawerBuilder.java:112)
    at com.maximussoft.materialdrawer.actheader._activity_create(actheader.java:472)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:515)
    at anywheresoftware.b4a.BA.raiseEvent2(BA.java:187)
    at com.maximussoft.materialdrawer.actheader.afterFirstLayout(actheader.java:100)
    at com.maximussoft.materialdrawer.actheader.access$100(actheader.java:17)
    at com.maximussoft.materialdrawer.actheader$WaitForLayout.run(actheader.java:78)
    at android.os.Handler.handleCallback(Handler.java:733)
    at android.os.Handler.dispatchMessage(Handler.java:95)
    at android.os.Looper.loop(Looper.java:136)
    at android.app.ActivityThread.main(ActivityThread.java:5021)
    at java.lang.reflect.Method.invokeNative(Native Method)
    at java.lang.reflect.Method.invoke(Method.java:515)
    at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:827)
    at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:643)
    at dalvik.system.NativeStart.main(Native Method)
Caused by: java.lang.reflect.InvocationTargetException
    at java.lang.reflect.Constructor.constructNative(Native Method)
    at java.lang.reflect.Constructor.newInstance(Constructor.java:423)
    at android.view.LayoutInflater.createView(LayoutInflater.java:594)
    ... 23 more
Caused by: android.content.res.Resources$NotFoundException: Resource is not a Drawable (color or path): TypedValue{t=0x5/d=0x1 a=1}
    at android.content.res.Resources.loadDrawable(Resources.java:2068)
    at android.content.res.TypedArray.getDrawable(TypedArray.java:602)
    at com.mikepenz.materialdrawer.view.ScrimInsetsFrameLayout.init(ScrimInsetsFrameLayout.java:66)
    at com.mikepenz.materialdrawer.view.ScrimInsetsFrameLayout.<init>(ScrimInsetsFrameLayout.java:52)
    ... 26 more
** Activity (main) Resume **

what is wrong with my setup? looks like a resource is missing...

BIG THANKS!

thedesolatesoul · Jul 8, 2015

1. What theme did you apply in the manifest?
2. What OS version are you testing on?

Jerez · Jul 8, 2015

Yeah! was the theme... i changed to:

B4X:

SetApplicationAttribute(android:theme, "@android:style/Theme.Holo.Light.DarkActionBar")

And it work! thanks!

B4X:

'This code will be applied to the manifest file during compilation.
'You do not need to modify it in most cases.
'See this link for for more information: http://www.b4x.com/forum/showthread.php?p=78136
AddManifestText(
<uses-sdk android:minSdkVersion="5" android:targetSdkVersion="14"/>
<supports-screens android:largeScreens="true"
    android:normalScreens="true"
    android:smallScreens="true"
    android:anyDensity="true"/>)
SetApplicationAttribute(android:icon, "@drawable/icon")
SetApplicationAttribute(android:label, "$LABEL$")
'SetApplicationAttribute(android:theme, "@android:style/Theme.AppCompat")
'SetApplicationAttribute(android:theme, "@style/Theme.AppCompat")
SetApplicationAttribute(android:theme, "@style/MaterialDrawerTheme.ActionBar")
'End of default text.
SetActivityAttribute(actLight, android:theme, "@style/MaterialDrawerTheme.Light")

thedesolatesoul · Jul 8, 2015

Fusseldieb · Jul 8, 2015

hi guys, please can someone help me, i want to change the icon color when selected, and when the user select another item, the icon color back to the default color. something like youtube app and many other google apps.
thanks

Jerez · Jul 10, 2015

@thedesolatesoul: Please adviseme here:
one of the most awesome features of your library are the icon library. But, i want to share same UI in Android and iPhone. So, i want to load my custom icons on this line:

B4X:

MDB.AddPrimaryDrawerItem  ("Notificaciones"  , p1.Drawable ,Null ,"99+" ,True,1, "Shows the weather")

This line make my app crash

B4X:

MDB.AddPrimaryDrawerItem  ("Notifications"  , LoadBitmap(File.DirAssets,"app.png") ,Null ,"99+" ,True,1, "Shows the weather")

Can you help me?

Thanks for your time!

thedesolatesoul · Jul 10, 2015

Use a drawable not a bitmap.

Jerez · Jul 10, 2015

thedesolatesoul said:
Use a drawable not a bitmap.

I know, but i don't know how to load a file from my assets as drawable... i always use LoadBitmap :s

Edit:

I found the solution:

B4X:

Dim icon As BitmapDrawable
icon.Initialize(LoadBitmap(File.DirAssets,"star.png"))

...
MDB.AddPrimaryDrawerItem  ("Notificaciones"  , icon ,Null ,"99+" ,True,1, "Shows the weather")

Thanks

Fusseldieb · Jul 10, 2015

Jerez said:
I know, but i don't know how to load a file from my assets as drawable... i always use LoadBitmap :s

Edit:

I found the solution:

B4X:

Dim icon As BitmapDrawable icon.Initialize(LoadBitmap(File.DirAssets,"star.png")) ... MDB.AddPrimaryDrawerItem ("Notificaciones" , icon ,Null ,"99+" ,True,1, "Shows the weather")

Thanks

there is any way to change that icon image when click in another icon or button ?
thanks

ArminKH · Jul 11, 2015

how is possible to change items font and gravity?
for example i want to make a side bar for right to left writing language
i want to change gravity of items(icon and title) to right
is this possible?
