B4R Question Nextion Touch Display Serial Commutation

[Klaas]

Hello,
im reaching out in order to see if others have had this problem before regadring the Nextion Series Screens.
im trying to send data from the esp32 to 7inch screen i have added my code below, i am able to recive data but unsure of sending data as i used examples from andriod itself to adapt to b4r.
sorry i dont have the sorce code.

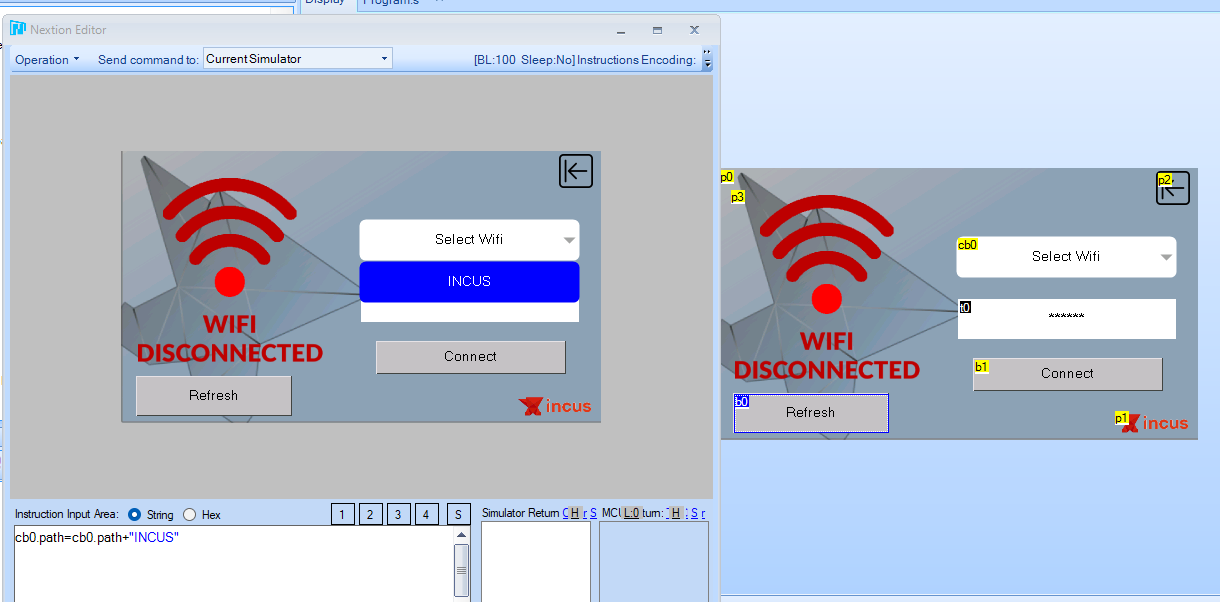

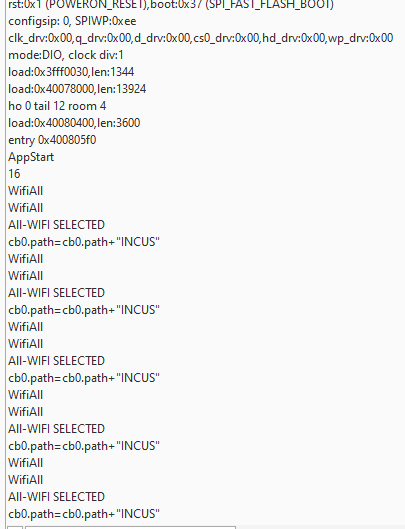

you can see here when i use the nextion commands i send a way to list all wifi. from the code below it seems it does send as if i touch the two pins it will for ever loop but not sure if others know if the devcie needs the data to be different format.

#Region Project Attributes
    #AutoFlushLogs: True
    #CheckArrayBounds: True
    #StackBufferSize: 600
#End Region
'Ctrl+Click to open the C code folder: ide://run?File=%WINDIR%\System32\explorer.exe&Args=%PROJECT%\Objects\Src



Sub Process_Globals
    Public Serial1 As Serial
    Private wifi As ESP8266WiFi
    Private serialnative2 As Stream
    Private astream As AsyncStreams
    Private RXD2,TXD2 As Byte 'ignore
    Private bc As ByteConverter

    Private LeDCount As Int = 60
    Public RBG_LIGHT As AdafruitNeoPixel 'RGB WITH WS2812 - OUTPUT

    Dim endChar As String = JoinStrings ( Array As String ( 0xff , 0xff , 0xff))


End Sub



Private Sub AppStart
    Serial1.Initialize(115200)
    Log("AppStart")
    astream.Initialize(serialnative2, "astream_NewData", Null)
    'example of connecting to a local network




    RBG_LIGHT.Initialize(LeDCount,26,RBG_LIGHT.NEO_GRB) 'change led count as import!! to show!    Rnd
    RXD2 = 4
    TXD2 = 2
    RunNative("SerialNative2", Null)

    Dim nodeInt As Int = wifi.Scan
    Dim nodeString As String = nodeInt

    GlobalStore.Put(5,nodeString)
    Log(GlobalStore.Slot5)

    Dim quot() As Byte = bc.HexToBytes(22)
    'Dim SSID As String = JoinStrings( Array As String("<cb0.path=cb0.path+",bc.StringFromBytes(quot),wifi.ScannedSSID(i),bc.StringFromBytes(quot),">"))
'    Dim SSID As String = JoinStrings( Array As String("t0.txt=\",bc.StringFromBytes(quot),wifi.ScannedSSID(0),"\",bc.StringFromBytes(quot)))
'    Log(SSID.GetBytes)
'    astream.Write(SSID.GetBytes)
'    Dim k() As Byte = "0xff"
'    astream.Write(k)
'    astream.Write(k)
'    astream.Write(k)
    Log("write Array")
    astream.Write("t2.txt=\""abcd""\").Write(Array As Byte(0xFF, 0xFF, 0xFF))
    astream.Write("t2.txt=""abcd""").Write(Array As Byte(0xFF, 0xFF, 0xFF))
    astream.Write("t2.txt=""abcd""").Write(Array As Byte(0xFF, 0xFF, 0xFF))
End Sub




#if C
void SerialNative2(B4R::Object* unused){
::Serial2.begin(9600, SERIAL_8N1, b4r_main::_rxd2, b4r_main::_txd2);
b4r_main::_serialnative2->wrappedStream = &::Serial2;
}
#End if

*btw i know its not written the best but i was really just testing!
any help will be super great

thanks!



[embedded]

Sub nextion_write_tb(textbox As String,datavalue As String)'tested working 11/06/23
    Main.astream.Write(textbox)'"t1.txt="
    Main.astream.Write(Array As Byte(34))
    Main.astream.Write(datavalue)'"1234.5"
    Main.astream.Write(Array As Byte(34,0xFF,0xFF,0xFF))
End Sub



[embedded]

Above subroutine write a textbox name "t1" having value "1234.5" display in nextion display.



[Klaas]

thanks! from other testing ive found out that

astream.Write("cb0.path=cb0.path+").Write(QUOTE).Write(wifi.ScannedSSID(i)).Write(QUOTE).Write(Array As Byte(0xFF, 0xFF, 0xFF))

also works for sending!
