B4A Library OCR - Optical Character Recognition with Google Play Services (Android Vision)

Discussion in 'Additional libraries, classes and official updates' started by Johan Schoeman, Aug 28, 2016.

  1. Johan Schoeman

    Johan Schoeman Expert Licensed User

    This is a wrap for this Github project. It is a SUPER OCR (Optical Character Recognition) app. I have even managed to read motor car number plates with it! Posting the following:
    1. B4A sample project (it will only work with B4A V6.00)
    2. B4A library files
    3. resource.zip - extract it and copy the resource folder to be on the same folder level as that of the /Files and /Objects folders of the B4A project
    4. OCRres.zip - extract it and copy the OCRres folder to be on the same folder level as that of the /Files and /Objects folders of the B4A project

    You need to have the Google Repository installed (via the SDK manager). I have Google Repository V32 installed.

    I am using this on a Samsung S4 mini with KitKat.

    This is the libraries that I have enabled in my B4A project:


    You will need the following jars in your additional library folder:
    android-support-design.jar
    android-support-v4.jar
    android-support-v7-appcompat.jar
    android-support-annotations.jar

    You will also need the following libraries by @corwin42 (download from the forum):
    AppCompat V3.20 - https://www.b4x.com/android/forum/t...compatible-with-older-android-versions.48423/
    DesignSupport V2.00 - https://www.b4x.com/android/forum/threads/designsupport-additional-material-design-components.58893/



    Click on Detect Text to start the OCR (you can set the flash mode as well as autofocus).

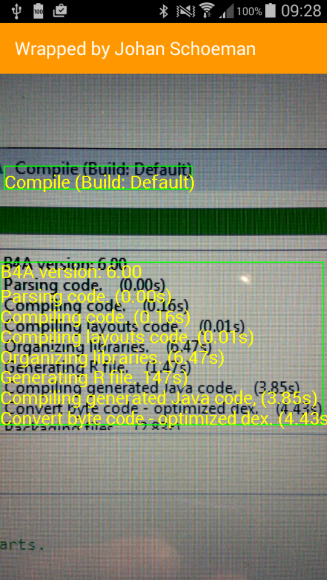

    Touch any of the highlighted blocks of text - I have clicked on the big block:


    Just another sample of the OCR capability:


    Can do some mods to bring back info to the B4A project via an event from the library....

    Sample Code:
    Code:
    #Region  Project Attributes

    #ApplicationLabel: b4aAndroidVisionOCR

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: portrait

    #CanInstallToExternalStorage: False
    #End Region

    #AdditionalRes: ..\resource
    #AdditionalRes: ..\OCRres


    '#AdditionalRes: C:\Users\----------2\Documents\Basic 4 Android\JOHAN APPS\JHS LIBS\resource\b4a_appcompat, de.amberhome.objects.appcompat
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\android\support\v7\appcompat\res, android.support.v7.appcompat
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\google\google-play-services\libproject\google-play-services_lib\res, com.google.android.gms
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\android\support\design\res, android.support.design

    '#ExcludeClasses: .games, .drive, .ads, .fitness, .wearable, .measurement, .cast, .auth, .nearby
    '#ExcludeClasses: .tagmanager, .analytics, .wallet, .plus, .gcm, .maps, .panorama

    '#Extends: android.support.v7.app.AppCompatActivity

    #Region  Activity Attributes

    #FullScreen: False

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.



    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.


    Private Button1 As Button

    Dim avocr As AndroidVisionOCR


    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:


    Activity.LoadLayout("main")
        avocr.Initialize(
    "")

        avocr.OCRtextColor =
    Colors.Yellow
        avocr.OCRtextSize =
    30.0


    End Sub

    Sub Activity_Resume



    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub Button1_Click

    avocr.StartCameraFilter

    End Sub
    Library as it is at present:
    AndroidVisionOCR
    Author:
    Github: Benjamin Johns, Wrapped by: Johan Schoeman
    Version: 1
    • AndroidVisionOCR
      Fields:
      • OCRtextColor As Int
      • OCRtextSize As Float
      Methods:
      • Initialize (paramString As String)
      • IsInitialized As Boolean
      • StartCameraFilter
      Permissions:
      • android.permission.CAMERA

    Take note of the B4A manifest Files:
    Code:
    'This code will be applied to the manifest file during compilation.
    'You do not need to modify it in most cases.
    'See this link for for more information: http://www.b4x.com/forum/showthread.php?p=78136
    AddManifestText(
    <uses-sdk android:minSdkVersion=
    "19" android:targetSdkVersion="23"/>
    <supports-screens android:largeScreens=
    "true"
        android:normalScreens=
    "true"
        android:smallScreens=
    "true"
        android:anyDensity=
    "true"/>)
    SetApplicationAttribute(android:icon,
    "@drawable/icon")
    SetApplicationAttribute(android:
    label"$LABEL$")
    SetApplicationAttribute(android:theme,
    "@style/MyAppTheme")
    AddApplicationText(<meta-data
                android:name=
    "com.google.android.gms.version"
                android:value=
    "@integer/google_play_services_version" />

    <meta-data
                android:name=
    "com.google.android.gms.vision.DEPENDENCIES"
                android:value=
    "ocr" />

            <
    activity
                android:name=
    "com.google.android.gms.samples.vision.ocrreader.MainActivity"
                android:
    label="@string/title_activity_main" >

            </
    activity>

            <
    activity android:name="com.google.android.gms.samples.vision.ocrreader.OcrCaptureActivity"
                android:
    label="Read Text" />)
    AddPermission(android.permission.CAMERA)
    ' Required to be able to access the camera device.
    AddPermission(android.permission.GET_TASKS)
    AddPermission(
    "android.hardware.camera")
    AddPermission(
    "android.permission.FLASHLIGHT")


    Attached Files:

    Last edited: Aug 28, 2016
  2. MarcoRome

    MarcoRome Expert Licensed User

    Hi Johan this is really great library ( 100+ )
    I would give you some tips.
    1. The theme is color orange is if i wanted to change this theme ?

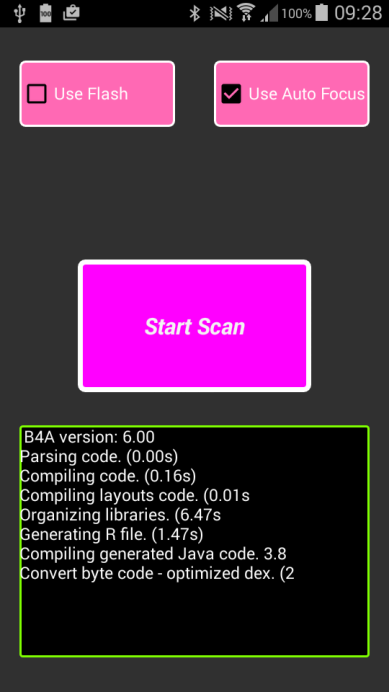

    2. In the first mask I find the "Start Scan" button and if you wanted to change the color and text in the button?
    2016-08-28 07.06.15.png

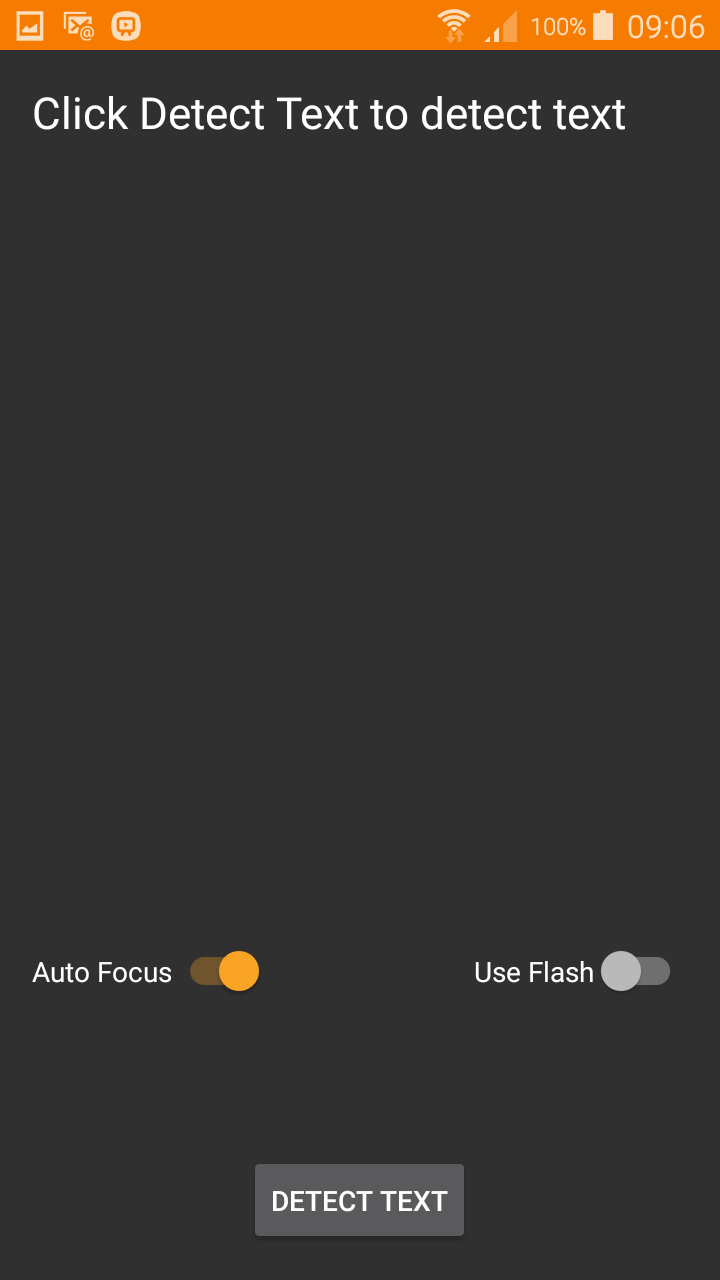

    3. The second form I find "Click Detect Text to Detect Text" and "Detect Text" button and if you wanted to change this ?

    2016-08-28 07.06.18.png

    The library is really great, but it might be possible to customize the same ( example in another language and with another color as you barcode where is possibile change all )
    Great library...really great.
    Thank you
    Marco

  3. Johan Schoeman

    Johan Schoeman Expert Licensed User

    1. The theme is color orange is if i wanted to change this theme ? - see themes.xml in the \resource\values folder of the B4A project.
    2. In the first mask I find the "Start Scan" button and if you wanted to change the color and text in the button? - In the B4A designer
    3. The second form I find "Click Detect Text to Detect Text" and "Detect Text" button and if you wanted to change this ? - I need to amend the library and will do so

    Johan Hormaza, Devan and MarcoRome like this.
  4. MarcoRome

    MarcoRome Expert Licensed User

    Thank you very much

  5. MarcoRome

    MarcoRome Expert Licensed User

    Another thing Johan ...when i have result will be possible save the same ?

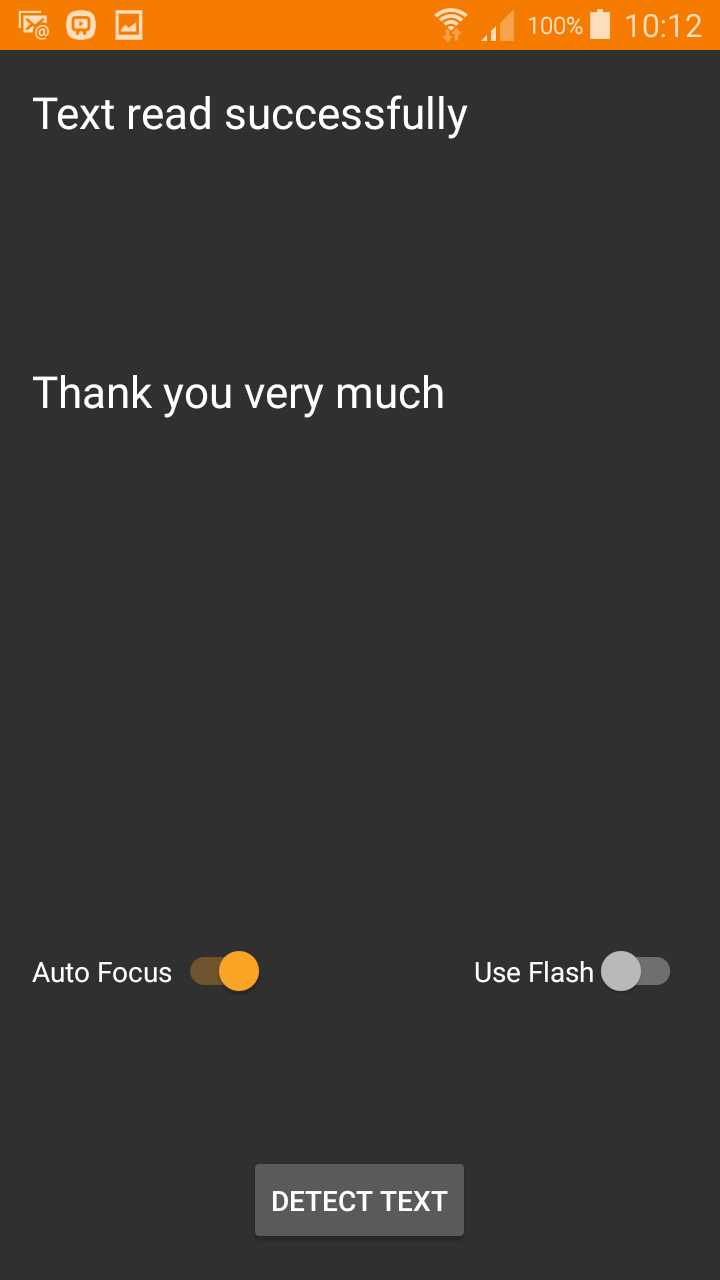

    For now i have this result. I can see but isnt possible save the result.

    2016-08-28 08.12.36.png

    Thank you
    Marco

    Johan Schoeman likes this.
  6. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Yes, I will do some mods to bring the scanned info back to B4A via an event.

    Devan likes this.
  7. MarcoRome

    MarcoRome Expert Licensed User

    This work only about latin characters language right ?
    Is it possible add also chinese char ?

    rboeck likes this.
  8. Johan Schoeman

    Johan Schoeman Expert Licensed User

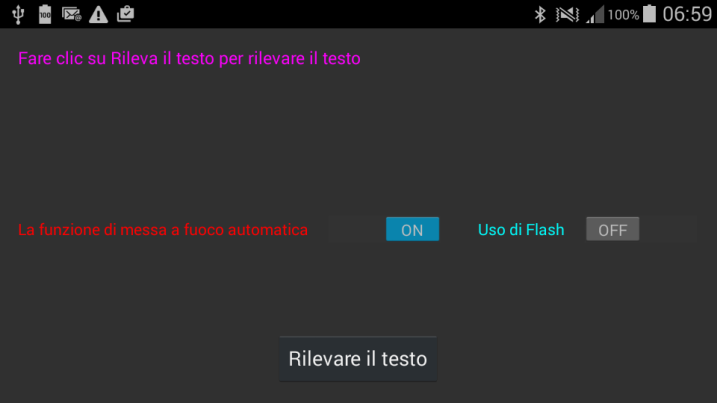

    This update allows you to set the text to different languages. It will also bring back the text in the block that you have touched to B4A (use the back button to get back to the B4A project and check the B4A log for the returned text) via an event:
    Code:
    Sub avocr_scanned_text(scannedText As String)


    Log("Scanned text = " & scannedText)

    End Sub
    Replace folder \OCRres in the B4A project with the attached folder. See the change that I have done to \OCRres\values\strings.xml to get some Italian text displayed.

    The \resource folder stays as is as what I have posted in post #1. Make sure you add it to this project!

    Code:
    <?xml version="1.0" encoding="utf-8"?>
    <resources>
        <
    string name="ok">OK</string>
        <
    string name="permission_camera_rationale">Access to the camera is needed for detection</string>
        <
    string name="no_camera_permission">This application cannot run because it does not have the camera permission.  The application will now exit.</string>
        <
    string name="low_storage_error">Ocr dependencies cannot be downloaded due to low device storage</string>
        <
    string name="title_activity_main">Ocr Detector Sample</string>
        <
    string name="ocr_header">Click &quot;Detect Text&quot; to detect text</string>
        <
    string name="read_text">Rilevare il testo</string>
        <
    string name="auto_focus">Auto Focus</string>
        <
    string name="use_flash">Use Flash</string>
        <
    string name="ocr_success">Text read successfully</string>
        <
    string name="ocr_failure">No text captured</string>
        <
    string name="ocr_error">"Error reading text: %1$s"</string>
    </resources>
    The other "different language text" can be set from within the B4A project.



    Sample Code:
    Code:
    #Region  Project Attributes

    #ApplicationLabel: b4aAndroidVisionOCR

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: portrait

    #CanInstallToExternalStorage: False
    #End Region

    #AdditionalRes: ..\resource
    #AdditionalRes: ..\OCRres


    '#AdditionalRes: C:\Users\----------2\Documents\Basic 4 Android\JOHAN APPS\JHS LIBS\resource\b4a_appcompat, de.amberhome.objects.appcompat
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\android\support\v7\appcompat\res, android.support.v7.appcompat
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\google\google-play-services\libproject\google-play-services_lib\res, com.google.android.gms
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\android\support\design\res, android.support.design

    '#ExcludeClasses: .games, .drive, .ads, .fitness, .wearable, .measurement, .cast, .auth, .nearby
    '#ExcludeClasses: .tagmanager, .analytics, .wallet, .plus, .gcm, .maps, .panorama

    '#Extends: android.support.v7.app.AppCompatActivity

    #Region  Activity Attributes

    #FullScreen: False

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.


    Private Button1 As Button

    Dim avocr As AndroidVisionOCR

    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:


    Activity.LoadLayout("main")
        avocr.Initialize(
    "avocr")

        avocr.OCRtextColor =
    Colors.Yellow                                    'the color of the text while OCR takes place
        avocr.OCRtextSize = 30.0                                              'the size of the text while OCR take place
        avocr.OCRrectangleColor = Colors.Green
        avocr.OCRrectangleWidth =
    2.0
        avocr.OCRInfoMessage =
    "Toccare per acquisire. Pizzica/Stretch per lo zoom"         'used https://www.freetranslation.com/en/translate-english-italian for translation

        avocr.StatusMessage =
    "Fare clic su Rileva il testo per rilevare il testo"          'used https://www.freetranslation.com/en/translate-english-italian for translation
        avocr.StatusMessageTextColor = Colors.Magenta
        avocr.StatusMessageTextSize =
    15

        avocr.TextValue =
    ""                                                                'used https://www.freetranslation.com/en/translate-english-italian for translation
        avocr.TextValueTextColor = Colors.Yellow
        avocr.TextValueTextSize =
    12

        avocr.UseFlashText =
    "Uso di Flash"                                                 'used https://www.freetranslation.com/en/translate-english-italian for translation
        avocr.UseFlashTextColor = Colors.Cyan

        avocr.AutoFocusText =
    "La funzione di messa a fuoco automatica"                     'used https://www.freetranslation.com/en/translate-english-italian for translation
        avocr.AutoFocusTextColor = Colors.Red

    End Sub

    Sub Activity_Resume


    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub Button1_Click

    avocr.StartCameraFilter

    End Sub

    Sub avocr_scanned_text(scannedText As String)


    Log("Scanned text = " & scannedText)

    End Sub
    Updated Library:
    AndroidVisionOCR
    Author:
    Github: Benjamin Johns, Wrapped by: Johan Schoeman
    Version: 1.01
    • AndroidVisionOCR
      Fields:
      • AutoFocusText As String
      • AutoFocusTextColor As Int
      • OCRInfoMessage As String
      • OCRrectangleColor As Int
      • OCRrectangleWidth As Float
      • OCRtextColor As Int
      • OCRtextSize As Float
      • StatusMessage As String
      • StatusMessageTextColor As Int
      • StatusMessageTextSize As Int
      • TextValue As String
      • TextValueTextColor As Int
      • TextValueTextSize As Int
      • UseFlashText As String
      • UseFlashTextColor As Int
      Methods:
      • Initialize (paramString As String)
      • IsInitialized As Boolean
      • StartCameraFilter
      Permissions:
      • android.permission.CAMERA

    I need to do some more work on this to eliminate the initial activity so that the scan activity can be invoked directly from B4A - that will be the next exercise.

    All translations from English to Italian was done using (not sure how accurate it is) -

    https://www.freetranslation.com/en/translate-english-italian


    Attached Files:

    Last edited: Aug 28, 2016
    RauchG, Devan, Reids and 2 others like this.
  9. MarcoRome

    MarcoRome Expert Licensed User

    Great work Johan.
    This is my donation ( 1RF27995FB400972R )
    Thank you very much

    Johan Schoeman likes this.
  10. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Thank you Mr Amici!

  11. MarcoRome

    MarcoRome Expert Licensed User

    Hi Johan i have this result:

    Code:
    Sub avocr_scanned_text(scannedText As String)


    Log("Scanned text = " & scannedText)

    End Sub
    Result in Log windows:


  12. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Is this the result that you get when you click your device's back button (after a scan) and when you are back in B4A?

    MarcoRome likes this.
  13. MarcoRome

    MarcoRome Expert Licensed User

    ok right. When i tap back i have this

    Johan Schoeman likes this.
  14. MarcoRome

    MarcoRome Expert Licensed User

    Johan in chinese is possible that work this fantastic library ?

  15. Johan Schoeman

    Johan Schoeman Expert Licensed User

    Not sure Marco. Will have to read up on this and see if it is possible.

  16. MarcoRome

    MarcoRome Expert Licensed User

    i tried and isnt possible for now ... can you check if this engine have this possibility ?

  17. Johan Schoeman

    Johan Schoeman Expert Licensed User

    An update that does not show the additional startup activity. You can now set the flash and the autofocus from B4A and immediately start the OCR scanner from B4A. Posting:

    1. New B4A library files - AndroidVisionOCRLibFiles_V1_02.zip (extract the jar and xml and copy them to your additional library folder.
    2. OCRres.zip - extract it and copy the folder to the B4A project so that it is on the same folder level as the /Files and /Objects folders of the B4A project
    3. resource.zip - extract it and copy the folder to the B4A project so that it is on the same folder level as the /Files and /Objects folders of the B4A project
    4. B4A sample project - b4aAndroidVisionOCR.zip

    See post #1 for anything else that might be of importance. Also take note of the B4A manifest file. Keep in mind that you need B4A V6.00 for this project to work

    Remember to touch a box when the scanner is active to return the text of that box to B4A

    Sample Code:
    Code:
    #Region  Project Attributes

    #ApplicationLabel: b4aAndroidVisionOCR

    #VersionCode: 1

    #VersionName:

    'SupportedOrientations possible values: unspecified, landscape or portrait.
        #SupportedOrientations: portrait

    #CanInstallToExternalStorage: False
    #End Region

    #AdditionalRes: ..\resource
    #AdditionalRes: ..\OCRres


    '#AdditionalRes: C:\Users\----------2\Documents\Basic 4 Android\JOHAN APPS\JHS LIBS\resource\b4a_appcompat, de.amberhome.objects.appcompat
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\android\support\v7\appcompat\res, android.support.v7.appcompat
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\google\google-play-services\libproject\google-play-services_lib\res, com.google.android.gms
    '#AdditionalRes: C:\ANDRIOD_SDK_TOOLS\extras\android\support\design\res, android.support.design

    '#ExcludeClasses: .games, .drive, .ads, .fitness, .wearable, .measurement, .cast, .auth, .nearby
    '#ExcludeClasses: .tagmanager, .analytics, .wallet, .plus, .gcm, .maps, .panorama

    '#Extends: android.support.v7.app.AppCompatActivity

    #Region  Activity Attributes

    #FullScreen: False

    #IncludeTitle: True
    #End Region

    Sub Process_Globals

    'These global variables will be declared once when the application starts.
        'These variables can be accessed from all modules.

    End Sub

    Sub Globals

    'These global variables will be redeclared each time the activity is created.
        'These variables can only be accessed from this module.


    Private Button1 As Button

    Dim avocr As AndroidVisionOCR


    Private CheckBox1 As CheckBox

    Private CheckBox2 As CheckBox

    Private Label1 As Label
    End Sub

    Sub Activity_Create(FirstTime As Boolean)

    'Do not forget to load the layout file created with the visual designer. For example:


    Activity.LoadLayout("main")
        avocr.Initialize(
    "avocr")

        avocr.OCRtextColor =
    Colors.Yellow                                    'the color of the text while OCR takes place
        avocr.OCRtextSize = 30.0                                              'the size of the text while OCR take place
        avocr.OCRrectangleColor = Colors.Green
        avocr.OCRrectangleWidth =
    2.0
        avocr.OCRInfoMessage =
    "Toccare per acquisire. Pizzica/Stretch per lo zoom"         'used https://www.freetranslation.com/en/translate-english-italian for translation


    End Sub

    Sub Activity_Resume


    End Sub

    Sub Activity_Pause (UserClosed As Boolean)

    End Sub

    Sub Button1_Click


    If CheckBox1.Checked = True Then
          avocr.UseFalse =
    True

    Else
          avocr.UseFalse =
    False

    End If


    If CheckBox2.Checked = True Then
          avocr.UseAutoFocus =
    True

    Else
          avocr.UseAutoFocus =
    False

    End If

        avocr.StartOCRReader

    End Sub

    Sub avocr_scanned_text(scannedText As String)


    Log("Scanned text = " & scannedText)
        Label1.Text =
    " " & scannedText

    End Sub
    Updated library (V1.02):

    AndroidVisionOCR
    Author:
    Github: Benjamin Johns, Wrapped by: Johan Schoeman
    Version: 1.02
    • AndroidVisionOCR
      Fields:
      • OCRInfoMessage As String
      • OCRrectangleColor As Int
      • OCRrectangleWidth As Float
      • OCRtextColor As Int
      • OCRtextSize As Float
      Methods:
      • Initialize (paramString As String)
      • IsInitialized As Boolean
      • StartOCRReader
      Permissions:
      • android.permission.CAMERA
      Properties:
      • UseAutoFocus As Boolean [write only]
      • UseFalse As Boolean [write only]

    Use the check boxes to enable the Flash and / or Auto Focus and then click on Start Scan:

    Click on one of the green boxes with yellow text to return that text to your B4A project


    The text of the box that was touched returned to B4A and displayed in the label below the Start Scan button.


    Attached Files:

  18. MarcoRome

    MarcoRome Expert Licensed User

    Work very well. Great work

    lemonisdead and Johan Schoeman like this.
  19. Cableguy

    Cableguy Expert Licensed User

    Have you tested handwritten text? If so, achieved good result's?

  20. MarcoRome

    MarcoRome Expert Licensed User

    This is Icr no Ocr

Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
