Android Question Offline maps for google maps

[yfleury]

Is it possible to load offline map for my app using google maps when I am not connected to internet. My app doesn't need to be connected to internet, except when i am at home with wifi.



[TILogistic]

It can be helpful.

Open Street Map viewer - GPS

Hi, This b4Xlib contains a custom view (cvMap) which can display Open Street Map. The tiles are retrieved from the internet and cached in a database. You can add shapes and images on the map. UI : - Lat/lng Center of the map - Zoom Level - Compass Direction with rotation - Scale - Button...

www.b4x.com



[yfleury]

Thank @Omar Parra A.
I check your link and osm look to have all a need. But it doesn't have satelit image and maps is very light for detail. Look at osm and google maps

OpenStreetMap

OpenStreetMap is a map of the world, created by people like you and free to use under an open license.

www.openstreetmap.org

Google Maps

Find local businesses, view maps and get driving directions in Google Maps.

www.google.com

I have to stay with Google map and Googlemapsextra.



[TILogistic]

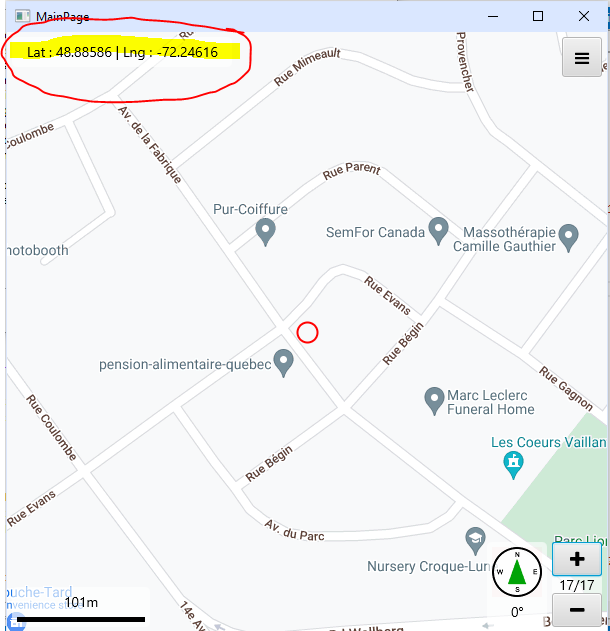

change:

for googlemaps:

j.Download($"https://mt1.google.com/vt/lyrs=r&x=${aX}&y=${aY}&z=${aZ}"$)

'Get Tile from internet openstreemap website
public Sub getTileFromInternet(aZ As Int,aX As Int,aY As Int) As ResumableSub
    Dim j As HttpJob
    Dim bmp As B4XBitmap
    Try
        j.Initialize("", Me)
'        j.Download($"https://a.tile.openstreetmap.org/${aZ}/${aX}/${aY}.png"$)
        j.Download($"https://mt1.google.com/vt/lyrs=r&x=${aX}&y=${aY}&z=${aZ}"$)
        j.GetRequest.SetHeader("User-Agent","Mozilla/5.0 (Windows NT 6.1; WOW64; rv:27.0) Gecko/20100101 Firefox/27.0")
        Wait For (j) JobDone(j As HttpJob)
        If j.Success Then
            Try
                bmp=j.GetBitmap
            Catch
                Log(LastException.Message)
            End Try
        End If
    Catch
        Log(LastException.Message)
    End Try
    If j.IsInitialized Then
        j.Release
    End If
    Return bmp
End Sub



[TILogistic]

Note:
View map tile cache file



[TILogistic]

type maps:

Google Maps: https://mt1.google.com/vt/lyrs=r&x={x}&y={y}&z={z} Google Satellite: http://mt0.google.com/vt/lyrs=s&hl=en&x={x}&y={y}&z={z}&s=Ga Google Hybrid: https://mt1.google.com/vt/lyrs=y&x={x}&y={y}&z={z}G Google Traffic: https://mt1.google.com/vt?lyrs=h@159000000,traffic|seconds_into_week:-1&style=3&x={x}&y={y}&z={z} Google Roads: https://mt1.google.com/vt/lyrs=h&x={x}&y={y}&z={z}



[TILogistic]

other;

Proveedor Bing​

Bing maps: http://ecn.dynamic.t0.tiles.virtualearth.net/comp/CompositionHandler/{q}?mkt=en-us&it=G,VE,BX,L,LA&shading=hill

Bing Satélite: http://ecn.t3.tiles.virtualearth.net/tiles/a{q}.jpeg?g=0&dir=dir_n’

Proveedor Esri​

ESRI Imagery/Satellite: https://server.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}

ESRI National Geographic: http://services.arcgisonline.com/ArcGIS/rest/services/NatGeo_World_Map/MapServer/tile/{z}/{y}/{x}

ESRI Physical: https://server.arcgisonline.com/ArcGIS/rest/services/World_Physical_Map/MapServer/tile/{z}/{y}/{x}

ESRI Streets: https://server.arcgisonline.com/ArcGIS/rest/services/World_Street_Map/MapServer/tile/{z}/{y}/{x}

ESRI Terrain: https://server.arcgisonline.com/ArcGIS/rest/services/World_Terrain_Base/MapServer/tile/{z}/{y}/{x}

ESRI Topo: https://server.arcgisonline.com/ArcGIS/rest/services/World_Topo_Map/MapServer/tile/{z}/{y}/{x}

ESRI Transportation: https://server.arcgisonline.com/ArcGIS/rest/services/Reference/World_Transportation/MapServer/tile/{z}/{y}/{x}



[DonManfred]

View map tile cache file

where did you get/see this file?



[kgf]

If you want to stay with Google maps then you can use custom tile provider to show mbtiles that will show offline. You will need to create them yourself and have the file on the device. High zooms and large areas will mean large files though.

Also note that the 'Get_MbTile' event wont fire under debug mode, it will only show tiles in release mode.

Dim sqlTiles As SQL

Sub AddMbTiles(filepath As String, filename As String)
    'Log("AddMbTiles " & filepath & "  " & filename)
    If File.Exists(filepath, filename) Then
        Log(filename & " is found")
        sqlTiles.Initialize(filepath, filename, False)
        CustomTileProvider1.Initialize(B4XPages.MainPage.PageMap, "Get_MbTile")
        TileOverlayOptions1.Initialize
        TileOverlayOptions1.SetTileProvider(CustomTileProvider1)
        ' sets to back so that polygons etc  show
        TileOverlayOptions1.SetZIndex(-1)
        TileOverlay1 = GoogleMapsExtras1.AddTileOverlay(GoogleMap1, TileOverlayOptions1)
    '    Log("CustomTileProvider1.IsInitialized " & CustomTileProvider1.IsInitialized)
Else
        Log(filename & " NOT found")
        TileOverlay1.Remove
    End If
End Sub

Sub Get_MbTile(TileX As Int, TileY As Int, Zoom As Int) As Tile
    'Log("Get_MbTile X="&TileX&", Y"&TileY&", Zoom="&Zoom)
    Dim Cursor1 As Cursor
    Dim Buffer() As Byte
    Dim newY As Int = adjustTmsY(TileY, Zoom)
    Dim strSql As String = "Select tile_data from tiles where zoom_level = " & Zoom & " AND [tile_column] = " & TileX & " AND [tile_row] = " & newY & ";"
    'Log(strSql)
    Cursor1 = sqlTiles.ExecQuery(strSql)
    Cursor1.Position = 0
    Buffer = Cursor1.GetBlob("tile_data")
    'Log("Buffer.Length " & Buffer.Length)
    If Buffer.Length>1 Then
        'Log("MbTile Found at X="&TileX&", newY"&newY&", Zoom="&Zoom)
        Dim Tile1 As Tile
        Tile1.Initialize(256,256,Buffer)
        'Cursor1.Close
        Return Tile1
    Else
        'Cursor1.Close
        Return CustomTileProvider1.NO_TILE
    End If
End Sub

Sub adjustTmsY(Y As Int, Zoom As Int) As Int
    'Invert tile y origin from top To bottom of map google TMS to Mbtiles Y reference
    'https://alastaira.wordpress.com/2011/07/06/converting-tms-tile-coordinates-to-googlebingosm-tile-coordinates/
    Dim ymax As Int = Bit.shiftleft(1,Zoom)
    Return ymax - Y - 1
End Sub



[yfleury]

thanks all.
All of that make me busy for a long time, but I don't have so mush time for now. I keep your work here for the next update of my app. For now, I create app demo for a client then I can connect to internet by mobile. I bookmark this threads



[Hannibal]

type maps:

other;

I tried but get errors, maybe links changed, can you update them?
