Android Question Regex.replace " " with 60h

[StarinschiAndrei]

Hi everyone,
Could anybody help me how to replace space with 60h ?
I'm working on integration with an API , if a send a string that contain " "(space) the API replace with +
Based on the documentation description :"NamePLU - 30 symbols for article's name plus separator for MU=60h"

If PLUName.Contains(" ") Then
        PLUName= Regex.Replace(" ",PLUName,"\<")
    End If



[teddybear]

You don't need to escape the “<"

 PLUName= Regex.Replace(" ",PLUName,"<")



[StarinschiAndrei]

You don't need to escape the “<"

 PLUName= Regex.Replace(" ",PLUName,"<")

Hi , thank you for you answer.
I was trying to send "TEST 3" now the ECR print : "TEST<3&"



[teddybear]

Hi , thank you for you answer.
I was trying to send "TEST 3" now the ECR print : "TEST<3&"

Where is the "&" from? could you post the project?



[StarinschiAndrei]

Where is the "&" from? could you post the project?

I think it is useless to post the project , because my app communicate with an API witch is connected to a cash register.
This is the the documentation

<Command Name="SellPLUwithSpecifiedVAT" CmdByte="0x31">

  <FPOperation>Register the sell (for correction use minus sign in the price field) of article with specified name, price, quantity, VAT class and/or discount/addition on the transaction.</FPOperation>

  <Args>

    <Arg Name="NamePLU" Value="" Type="Text" MaxLen="36">

      <Desc>30 symbols for article's name plus separator for MU=60h

followed up to 3 symbols for unit plus 2 symbols spaces</Desc>

    </Arg>

    <Arg Name="OptionVATClass" Value="" Type="Option" MaxLen="1">

      <Options>

        <Option Name="Alte taxe" Value="F" />

        <Option Name="VAT Class A" Value="A" />

        <Option Name="VAT Class B" Value="B" />

        <Option Name="VAT Class C" Value="C" />

        <Option Name="VAT Class D" Value="D" />

        <Option Name="VAT Class E" Value="E" />

      </Options>

      <Desc>1 symbol for article's VAT class with optional values:

 - 'A' - VAT Class A

 - 'B' - VAT Class B

 - 'C' - VAT Class C

 - 'D' - VAT Class D

 - 'E' - VAT Class E

 - 'F' - Alte taxe</Desc>

    </Arg>

    <Arg Name="Price" Value="" Type="Decimal" MaxLen="10">

      <Desc>1 to 10 symbols for article's price</Desc>

    </Arg>

    <Arg Name="Quantity" Value="" Type="Decimal" MaxLen="10">

      <Desc>1 to 10 symbols for quantity</Desc>

      <Meta MinLen="1" Compulsory="false" ValIndicatingPresence="*" />

    </Arg>

    <Arg Name="DiscAddP" Value="" Type="Decimal" MaxLen="7">

      <Desc>1 to 7 for percentage of discount/addition</Desc>

      <Meta MinLen="1" Compulsory="false" ValIndicatingPresence="," />

    </Arg>

    <Arg Name="DiscAddV" Value="" Type="Decimal" MaxLen="8">

      <Desc>1 to 8 for value of discount/addition</Desc>

      <Meta MinLen="1" Compulsory="false" ValIndicatingPresence=":" />

    </Arg>

    <Arg Name="DiscNamed" Value="" Type="Decimal" MaxLen="8">

      <Desc>1 to 8 symbols for value of named discount</Desc>

      <Meta MinLen="1" Compulsory="false" ValIndicatingPresence="@" />

    </Arg>

    <Arg Name="Category" Value="" Type="Decimal_with_format" MaxLen="7" Format="0000.00">

      <Desc>Up to 7 symbols for PLU Category code in format ####.##</Desc>

      <Meta MinLen="1" Compulsory="false" ValIndicatingPresence="+" />

    </Arg>

    <Arg Name="NamePLUextension" Value="" Type="Text" MaxLen="12">

      <Desc>12 symbols for extension of the PLU Name: FP Only</Desc>

      <Meta MinLen="12" Compulsory="false" ValIndicatingPresence="!" />

    </Arg>

    <Arg Name="AdditionalNamePLU" Value="" Type="Text" MaxLen="108">

      <Desc>108 symbols for additional PLU name</Desc>

      <Meta MinLen="108" Compulsory="false" ValIndicatingPresence=";" />

    </Arg>

    <ArgsFormatRaw><![CDATA[ <NamePLU[36]> <;> <OptionVATClass[1]> <;> <Price[1..10]>  {<'*'> <Quantity[1..10]>} {<','> <DiscAddP[1..7]>} {<':'><DiscAddV[1..8]>} {<'@'><DiscNamed[1..8]>} {<'+'><Category[1..7]>} {<'!'><NamePLUextension[12]>} {<;><AdditionalNamePLU[108]> } ]]></ArgsFormatRaw>

  </Args>

</Command>

Below you can see the main part of communication

Sub Submit_Action(command As String)As ResumableSub
    'Dim command As String = "SellPLUWithSpecifiedVat(NamePLU=Article1,OptionVATClass=A,Price=10.2,Quantity=1,DiscAddP=0,DiscAddV=0)"
    Dim command As String = command' "CashPayCloseReceipt()"
    Dim su As StringUtils
    command = su.EncodeUrl(command, "UTF-8")
    Dim j As HttpJob
    j.Initialize("",Me )
    j.Download("http://localhost:4444/" & command)
    Wait For(j) JobDone(j As HttpJob)
    If j.Success Then
        Log(j.GetString)
        Return Code
    End If
    j.Release
End Sub

Public Sub sellItem(PLUName As String,VATRate As String,UnitPrice As String,quantity As String,DiscProc As String,DiscVal As String) As String
    If PLUName.Contains(" ") Then
        PLUName= Regex.Replace(" ",PLUName,"<")
    End If
    Return $"SellPLUWithSpecifiedVat(NamePLU=${PLUName},OptionVATClass=${VATRate}$,Price=${UnitPrice},quantity=${quantity},DiscAddP=${DiscProc},DiscAddV=${DiscVal})"$
End Sub



[teddybear]

I mean that you post a snippet like this

 Dim PLUName as String="TEST 3"
 PLUName= Regex.Replace(" ",PLUName,"<")
 log(PLUName)

what is the result?



[StarinschiAndrei]

I mean that you post a snippet like this

 Dim PLUName as String="TEST 3"
 PLUName= Regex.Replace(" ",PLUName,"<")
 log(PLUName)

what is the result?

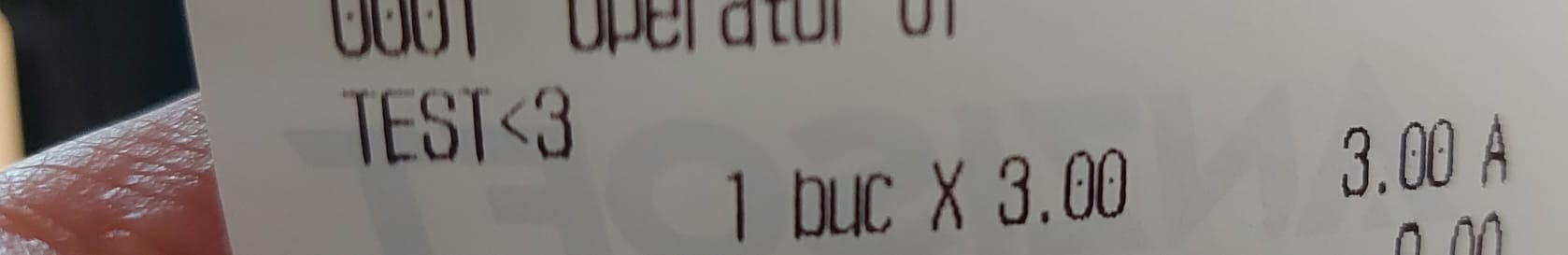

Here is the log result : TEST<3
And here is the printed line by device :



[Daestrum]

Can you not just use

PLUName = PLUName.Replace(" ","+")

As you said it replaces spaces with '+' not a '<'



[teddybear]

Here is the log result : TEST<3
And here is the printed line by device :
View attachment 141760

Try to send "TEST<3" to printer. see what result is?
The ECR prints TEST<3, isn't it the resullt you want?



[StarinschiAndrei]

Can you not just use

PLUName = PLUName.Replace(" ","+")

As you said it replaces spaces with '+' not a '<'

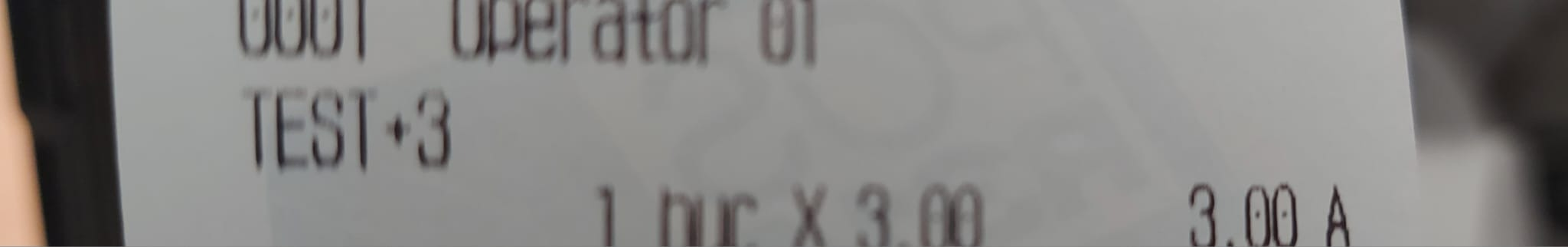

Here is the result :



[Daestrum]

As it is sent to a web address you may find you need to send

PLUName = PLUName.Replace(" ","%20")



[StarinschiAndrei]

As it is sent to a web address you may find you need to send

PLUName = PLUName.Replace(" ","%20")

thank you ! ! ! it's working



[Daestrum]

Have a look at url encoding for which chars can appear in a web address line.



[DonManfred]

it's working

check this for a more complete list

HTML URL Encoding Reference

Web browsers request pages from web servers by using a URL.

www.w3schools.com
