Android Question [SOLVED] B4XDialog picture

[makis_best]

Hello good people....

I want to ask if it is possible to show a picture using B4XDialog

Thank you



[Quandalle]

https://www.b4x.com/android/forum/threads/b4x-xui-views-cross-platform-views-and-dialogs.100836/



[Mahares]

I want to ask if it is possible to show a picture using B4XDialog

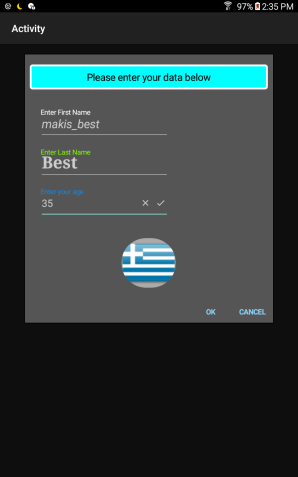

Are you looking for something like this using B4XDialog Dialog.ShowCustom. See snapshot. Can you clarify your question.



[makis_best]

Are you looking for something like this using B4XDialog Dialog.ShowCustom. See snapshot. Can you clarify your question.

Yes....
Exactly as your example.
Like you read my mind.



[Mahares]

Like you read my mind.

It looks like you solved it on your own. If you need more help the members are always around. I admire your threads. They are always real world threads with practical questions.



[makis_best]

How you set the text fields above the image?



[Mahares]

How you set the text fields above the image?

Here is the full code makis. Add your picture to Assets. I also included the layout after you load the main layout that has button1
Using the classic project. You can use B4XPages of course

Sub Button1_Click
    Dialog.Initialize(Activity)

    Dim p As B4XView = xui.CreatePanel("")
    p.SetLayoutAnimated(0, 0, 0, 500dip, 500dip)
    p.LoadLayout("MyDialog3")   'has 1 label 3 B4XFloatTextField B4Xviews and one B4XImageView

    Dim l3 As B4XView= txtFirstName.TextField   'txtFirstName is a B4XFloatTextField
    Dim f As B4XFont= xui.CreateFont(Typeface.CreateNew(Typeface.DEFAULT, Typeface.STYLE_ITALIC), 24)
    l3.Font =f

    Dim l2 As B4XView= txtLastName.TextField
    Dim f As B4XFont= xui.CreateFont(Typeface.CreateNew(Typeface.SERIF, Typeface.STYLE_BOLD), 34)
    l2.Font =f

    Label1.SetColorAndBorder(xui.Color_Cyan,4dip,xui.Color_White,4dip)
    Label1.TextColor=xui.Color_Black
    Label1.SetTextAlignment("CENTER", "CENTER")
    Dim et As EditText=age.TextField
    et.InputType= et.INPUT_TYPE_DECIMAL_NUMBERS

    Dialog.PutAtTop = True
    Dim rs As ResumableSub = Dialog.ShowCustom(p, "OK", "", "CANCEL")

    B4XImageView1.Bitmap = LoadBitmap(File.DirAssets,"gr.png")

    Wait For (rs) Complete (Result As Int)
    If Result = xui.DialogResponse_Positive Then
        Dialog.Show($"Hello ${txtFirstName.Text} ${txtLastName.Text}  ${age.Text}"$, "OK", "", "")
    End If

End Sub



[makis_best]

Ohhh.. Now I get it just set the order by what you set first and what last
I thought it was an index somehow or something.

Thank you.
