B4A Library [B4X] XUI Views - Cross platform views and dialogs

Discussion in 'Additional libraries, classes and official updates' started by Erel, Dec 27, 2018.

Thread Status:
Not open for further replies.
  1. Erel

    Erel Administrator Staff Member Licensed User

    XUI Views is a b4x library (https://www.b4x.com/android/forum/threads/100383/#content). The same b4xlib library is compatible with B4A (v8.8+), B4J (v7.0+) and B4i (v5.50+).

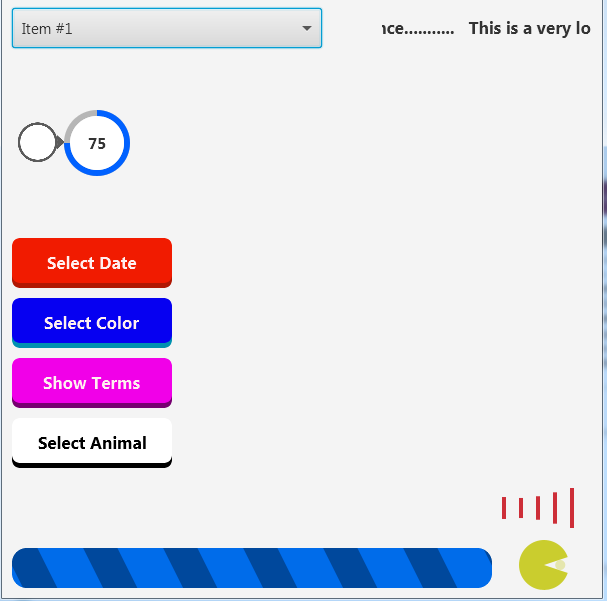

    It is a collection of custom views and dialogs. Everything is written in B4X. The source code is included inside the b4xlib file, which is a zip file.


    - B4XComboBox - Cross platform ComboBox / Spinner / ActionSheet.
    - ScrollingLabel - A label that scrolls the text when it is wider than the label.
    - AnotherProgressBar - Vertical or horizontal animated progress bar.
    - B4XLoadingIndicator - 6 different animated loading indicators.
    - RoundSlider - A round slider.
    - SwiftButton - 3d button
    - AnimatedCounter
    - B4XFloatTextField - A TextField / EditText with a floating hint
    - B4XSwitch - Nice looking two state control.
    - B4XPlusMinus - Allows the user to select a number or item from a previously set list.
    - B4XBreadCrumb - Navigation control.


    - B4XDialog - A class that provides the features required to show a dialog. There are three methods to show dialogs: Show - Shows a simple dialog with text, ShowCustom - Allows you to pass a layout of your own and show it as a dialog, ShowTemplate - Shows a dialog based on a template class. See the source code for the template structure. It is quite simple.

    Available templates:

    - B4XDateTemplate - Based on AnotherDatePicker.
    - B4XColorTemplate - Nice color picker.
    - B4XLongTextTemplate - Scrollable text.
    - B4XListTemplate - A list of items. The user can choose one of the items.
    - B4XSignatureTemplate - Captures the user signature and adds a timestamp to the bitmap.
    - B4XInputTemplate - Template for text and numeric inputs.
    - B4XSearchTemplate - A list with a search field. An evolution of SearchView.
    - B4XTimedTemplate - A template that wraps other templates and creates a dialog that closes automatically after the set time with a nice animated progress bar.

    It is simple to add more templates.
    Tutorial about B4XDialogs: https://www.b4x.com/android/forum/threads/101197

    More views and templates will be added in future versions.

    The examples projects are quite simple. Don't miss the following snippets:

    Private Sub Page1_Resize(Width As Int, Height As Int)
    If Dialog.Visible Then Dialog.Resize(Width, Height)
    End Sub

    Private Sub Application_Background
    End Sub
    Sub Activity_KeyPress (KeyCode As Int) As Boolean 'Return True to consume the event
      If KeyCode = KeyCodes.KEYCODE_BACK And Dialog.Close(XUI.DialogResponse_Cancel) Then Return True
    Return False
    End Sub

    Sub Activity_Resume
    'required to continue the animation after the activity is paused.
       AnotherProgressBar1.Visible = True
       ScrollingLabel1.Text = ScrollingLabel1.Text
    End Sub

    Sub Activity_Pause (UserClosed As Boolean)
       Dialog.Close (XUI.DialogResponse_Cancel)
    End Sub
    Sub MainForm_Resize (Width As Double, Height As Double)
    If Dialog.Visible Then Dialog.Resize(Width, Height)
    End Sub

    V2.13 - Fixes a crash that happens on old Android devices when B4XFloatTextField HintText is empty.
    V2.12 - AnimatedCounter - Fade Color designer property. You can use it together with the background color property to change the counter colors.
    V2.11 - B4XDialog.ButtonsHeight (default 40dip) and TitleBarHeight (30dip) fields.
    V2.10 - B4XBreadCrumb control: (instructions - https://www.b4x.com/android/forum/t...m-views-and-dialogs.100836/page-3#post-665765)


    V2.06 - B4XComboBox.B4iCancelButton string (only relevant to B4i). Default value is "Cancel". When this value is not an empty string the action sheet will show a Cancel button and will allow closing the sheet by clicking outside of the menu.
    V2.05 - New B4XPlusMinus control:

    Tutorial: https://www.b4x.com/android/forum/threads/b4x-b4xplusminus-spinner-wheel-alternative.105309/

    V2.01 - Fixes an issue with animated counter in B4A when targetSdkVersion is set to 28.
    V2.00 - Various internal views are now public. This was required to allow adding a light theme to preferences dialog: https://www.b4x.com/android/forum/threads/b4x-b4xpreferencesdialog-cross-platform-forms.103842/
    V1.91 - B4XSwitch.Enabled property. The thumb disappears when the switch is disabled.
    V1.90 - Many small changes and bug fixes.
    - B4XColorTemplate.SelectedColor can be set.

    V1.89 - ScrollingLabel.TextColor property.
    V1.88 - B4XDialog.ButtonsOrder field. Allows changing the order of buttons. For example:
    Dialog.ButtonsOrder = Array As Int(XUI.DialogResponse_Cancel, XUI.DialogResponse_Positive, XUI.DialogResponse_Negative)
    V1.87 - B4XListTemplate - support for multi-selection. New fields:
    SelectedItems - Holds the list of selected items. You can also set it to preselect items.
    AllowMultiSelection - Enable multi-selection.
    MultiSelectionMinimum - Minimum number of selected items required. Default value is 0.
    V1.86 - B4XFloatTextField - HintColor and NonFocusedHintColor fields are public. Call Update method after updating these colors.
    V1.85 - B4XComboBox.cmbBox field is public. Note that it only exists in B4J and B4A.
    V1.84 - SwiftButton - New Enabled property. Set to False to disable the button. It will change the button color to the "disabled color", make it flat and the not pressable.
    V1.83 - ScrollingLabel - New StartPositionDelay field. Default value is 800 (ms). Scrolling is paused for the set duration when the scroll position is 0.
    V1.82 - B4XListTemplate.CustomListView1 is public now. This allows changing the colors.
    V1.81 - B4XFloatTextField
    - NextField property. Pressing on enter or on the accept button will move the focus to the set B4XFloatTextField.
    - RequestFocusAndShowKeyboard method.
    V1.80 - B4XFloatTextField - Support for multiline fields and new accept button which triggers the EnterPressed event and closes the keyboard (especially important in iOS).


    V1.77 - SwiftButton.SetColors - allows changing the colors at runtime.
    V1.76 - Keyboard type option added to B4XFloatTextField. It affects the keyboard type in B4A and B4i.

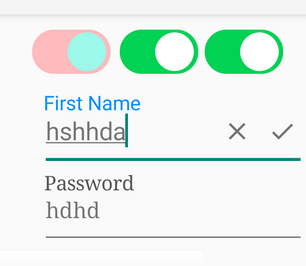

    V1.75 - New B4XSwitch control:


    V1.70 - New B4XTimedTemplate. This template wraps other templates and creates an auto-closing dialog:


    See the "options / select animal" dialog for an example. It is very simple to use.
    - AnotherProgressBar - The change speed can be set with ValueChangePerSecond field. This allows using the progress bar as a visual timer. For example to show 5 seconds progress:
    AnotherProgressBar1.ValueChangePerSecond = 100 / 5
    0'set the value immediately.
    AnotherProgressBar1.Value = 100 'animate to 100. It will take 5 seconds.

    V1.67 - Tag field added to the custom views. You can set it with the designer or at runtime.
    - B4XDialog - New fields: TitleBarTextColor, TitleBarFont and ButtonsFont. See the signature dialog for an example (the buttons font is set to FontAwesome):


    - B4XDialog - All text fields of B4XDialog accept CSBuilder objects as well as strings (B4A and B4i).
    - AnotherProgressBar is no longer limited to indeterminate state. You can modify the Value field to change its position. Note that the change is animated.
    Click on the Animated Counter button in the example to see it.

    V1.66 - All mBase views are now public and their tag is set to the custom view instance. This makes it simpler to get a custom view from the layout tree.

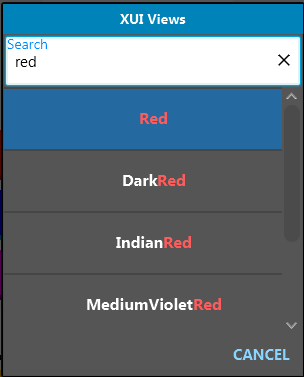

    V1.65 - New dialog template: B4XSearchTemplate


    V1.64 - Better behavior of B4XDialog and B4XInputTemplate with short screens.
    V1.63 - Fixes an issue with B4XLongTextTemplate when the text is shorter than the dialog.
    V1.62 - Small update to B4i ListTemplate layout file.

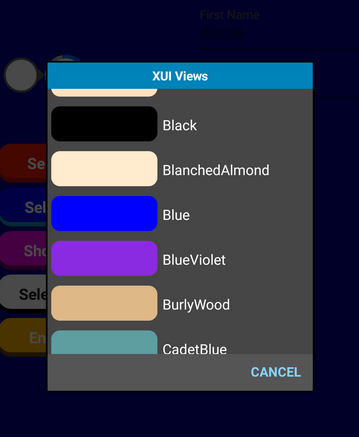

    A custom "list of colors" dialog added to the example:


    V1.61 - Allows setting the Text property of B4XInputTemplate.

    V1.60 - B4XFloatTextField reveal button in password mode:


    V1.55 - B4XComboBox.DelayBeforeChangeEvent - Used to prevent rapid events when scrolling the list with the keyboard. Default value is 500ms in B4J and 0 in other platforms (not used).

    V1.50 - B4XInputTemplate - preset configurations for numeric inputs (ConfigureForNumbers)

    V1.45 - B4XFloatTextField:

    - EnterPressed and TextChanged events.
    - Optional clear button.
    - Bug fixes.

    V1.40 - B4XFloatTextField password mode (in the designer)

    V1.35 - New B4XFloatTextField:

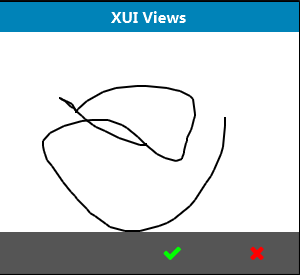

    V1.30 - New B4XSignatureTemplate:


    V1.20 - New AnimatedCounter custom view:


    V1.10 - New B4XInputTemplate - See post #2.

    Executable jar is available for download: http://www.b4x.com/b4j/files/XUI Views Example.jar - Download and double click to run.

    XUI Views is an internal library. Make sure to copy it to the internal libraries folder (C:\Program Files (x86)\Anywhere Software\Basic4android\libraries).

    Attached Files:

    Last edited: Jul 31, 2019
    MarkusR, naifnas, paragkini and 42 others like this.
  2. Erel

    Erel Administrator Staff Member Licensed User

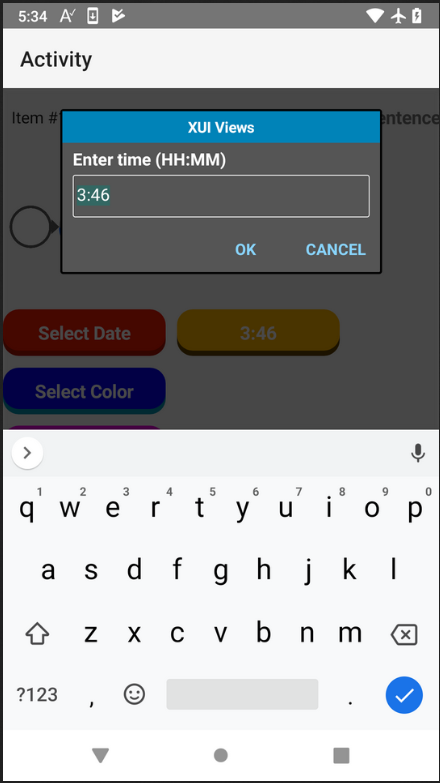

    V1.10 released with an input dialog:


    It has an optional validation feature based on regular expression.
  3. Star-Dust

    Star-Dust Expert Licensed User

    What is B4i (TBD+).?
  4. Erel

    Erel Administrator Staff Member Licensed User

    TBD - to be determined. b4xlibs will be supported in the next version of B4i. Will probably be released during January.
    Johan Hormaza and Peter Simpson like this.
  5. Star-Dust

    Star-Dust Expert Licensed User

    Ok, thank's
  6. walterf25

    walterf25 Well-Known Member Licensed User

    Wow this very nice, Thanks @Erel

  7. incendio

    incendio Well-Known Member Licensed User

    Can this lib run with B4A 8.5?

    Tried to extract XUI Views.b4xlib and add every modules manually, but got errors :
    - Unknown Member : SetBitmapToImageView
    - Unknown Type : BCPath

    - BitmapCreator 4.18
    - DateUtils 1.05
    - IME 1.10
    - xCustomListView 1.63
    - XUI 1.72
    Last edited: Dec 28, 2018
  8. Erel

    Erel Administrator Staff Member Licensed User


    "The same b4xlib library is compatible with B4A (v8.8+), B4J (v7.0+) and B4i (TBD+)."
  9. LucaMs

    LucaMs Expert Licensed User

    A cross platfom EdiText?
  10. scsjc

    scsjc Well-Known Member Licensed User

    hi, i find a little problem... i'm use in some codes the name T in a module code
    when try to compile in Debug mode....

    is possible fix it???
    thanks a lot
  11. Filippo

    Filippo Expert Licensed User

    I would give you a meaningful name for your module in your place, instead of just "t". ;)
    ivan.tellez, KMatle and Star-Dust like this.
  12. scsjc

    scsjc Well-Known Member Licensed User

  13. DonManfred

    DonManfred Expert Licensed User

    jimmyF likes this.
  14. scsjc

    scsjc Well-Known Member Licensed User

    Well, if that's right;) I did not know ... well I'll have to change to another letter

    Thank you
  15. Erel

    Erel Administrator Staff Member Licensed User

    It is not needed once you learn how to work with B4XView. Add the EditText with the designer and change its type to B4XView.

    The problem with the T module name is that there is a conflict with a variable named the same in ScrollingLabel class.
    Last edited: Dec 30, 2018
  16. Erel

    Erel Administrator Staff Member Licensed User

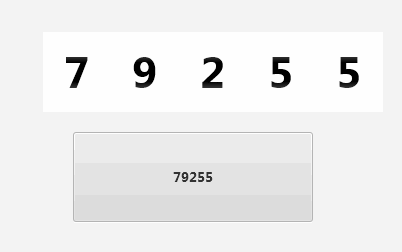

    V1.20 released. AnimatedCounter custom view added.

    Jmu5667 and scsjc like this.
  17. LucaMs

    LucaMs Expert Licensed User

    Since you are working on it... it would be useful to show a total, so to have an "AddValue" property (you can pass negative values) but with scrolling of all numbers only in one direction (better if upwards when positive value and vice versa).
    Last edited: Dec 30, 2018
  18. Erel

    Erel Administrator Staff Member Licensed User

    V1.30 released with a dialog signature template. See first post.
    Pencil3, Kiffi, jimmyF and 1 other person like this.
  19. Erel

    Erel Administrator Staff Member Licensed User

    inakigarm and DonManfred like this.
  20. Erel

    Erel Administrator Staff Member Licensed User

    V1.35 is released with a new B4XFloatTextField view:
