Android Question Tabbed UI - how to with larger image and text underneath image

[mfstuart]

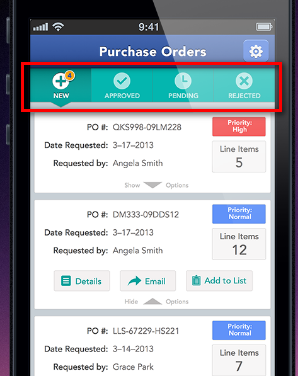

I found this image with a Google search. It's a mockup.

I'd like to mimic the top part (outlined in red), the tabbed UI look and functionality.
I've tried the TabStripViewPager by using the Chr() with the text and setting the lbl.TypeFace = TypeFace.FONTAWESOME.
With this you can't set the image size and you can't put the image on top of the text.

Anyone have any idea on how to replicate the UI and functionality like the attached image?

Thanx,
Mark Stuart



[Mahares]

Anyone have any idea on how to replicate the UI and functionality like the attached image?

This will do you for you. I am using 5 images in asset folder. cs is CSBuilder

'Below code must be located after the tabs are created.
    Dim MyList  As List
    MyList.initialize
    MyList.AddAll(Array("brazil.png", "romania.png", "france.png", "fiji.png", "benin.png"))
    For i = 0 To MyList.Size-1
        Dim c As String =MyList.Get(i)
        c=c.SubString2(0,c.IndexOf("."))
        Dim l As Label = GetAllTabLabels(TabStrip1).Get(i)  'label
        l.SingleLine = False
        cs.Initialize.Image(LoadBitmap(File.DirAssets, MyList.Get(i)), 40dip, 40dip, False).Append(CRLF).size(22).Append($"${c}"$)
        cs.PopAll
        l.Text = cs
    Next

    For Each lbl As Label In GetAllTabLabels(TabStrip1)  'based on 5 tabs
        lbl.Width = 20%x
    Next



[mfstuart]

This will do you for you. I am using 5 images in asset folder. cs is CSBuilder

'Below code must be located after the tabs are created.
    Dim MyList  As List
    MyList.initialize
    MyList.AddAll(Array("brazil.png", "romania.png", "france.png", "fiji.png", "benin.png"))
    For i = 0 To MyList.Size-1
        Dim c As String =MyList.Get(i)
        c=c.SubString2(0,c.IndexOf("."))
        Dim l As Label = GetAllTabLabels(TabStrip1).Get(i)  'label
        l.SingleLine = False
        cs.Initialize.Image(LoadBitmap(File.DirAssets, MyList.Get(i)), 40dip, 40dip, False).Append(CRLF).size(22).Append($"${c}"$)
        cs.PopAll
        l.Text = cs
    Next

    For Each lbl As Label In GetAllTabLabels(TabStrip1)  'based on 5 tabs
        lbl.Width = 20%x
    Next

Thank you. I will try your code today.
