Android Question The SetLeftAndRight is not related to the parent

[pmt]

Hi ,

I tested designer script with simple layout have 3 objects.
-Panel_Parent (with default properties) is the first panel
-Panel_Child (with default properties) is in the Panel_Parent
-Label1 (with default properties) is in the Panel_Child

The variants is 320 x 480 ,scale = 1 (160 dpi )

Please check the first attached image.

Then I ran script:

'All variants script
'AutoScaleAll
Panel_Parent.SetLeftAndRight(0,100%x)
Panel_Child.SetLeftAndRight(20,50%x)
Label1.SetLeftAndRight(0,100%x)

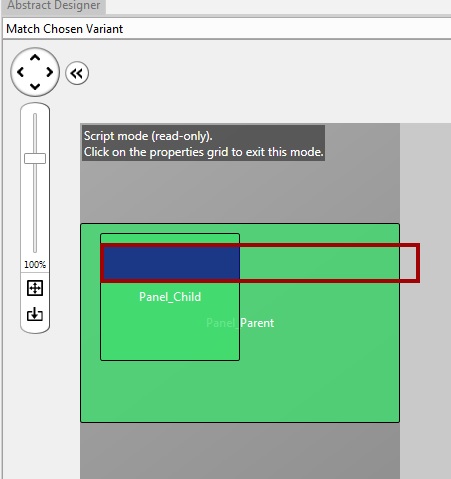

I expect the Label1 will be width 100% in the Panel_Child but the width oversize than Panel_Child .

Please check the second attached image

Is this how it work or something wrong?

Best Regards,
pmt



[NJDude]

You are doing it wrong, this line:

Panel_Child.SetLeftAndRight(20,50%x)

You are centering it using the ACTIVITY as parent, you should use the PARENT PANEL, also, you have to use dip.

e.g.

Panel_Child.SetLeftAndRight(20dip ,50%x)



[pmt]

You are doing it wrong, this line:

Panel_Child.SetLeftAndRight(20,50%x)

You are centering it using the ACTIVITY as parent, you should use the PARENT PANEL, also, you have to use dip.

e.g.

Panel_Child.SetLeftAndRight(20dip ,50%x)

Thank you for your reply NJDude.

I tried

Panel_Child.SetLeftAndRight(20dip,50%x)

Or

Panel_Child.SetLeftAndRight(0,50%x)

But not work , the Label1 's width still oversize than Panel_Child's width.

My point is why the Label1's width oversize than Panel_child 's width ?

Regards,
Pmt



[NJDude]

Try this:

Panel_Child.SetLeftAndRight(20dip, Panel_Parent.Width / 2)



[pmt]

Try this:

Panel_Child.SetLeftAndRight(20dip, Panel_Parent.Width / 2)

OK , I tried.

Panel_Child.SetLeftAndRight(0,Panel_Parent.Width/2)
Label1.SetLeftAndRight(0,Panel_Child.Width)

It 's work as I expected.


Thanks you.
Regards,
pmt
