B4R Question UTFT library

[hatzisn]

Hi everyone,

Trying to learn and improve my skills I found a video which points to the following site in order to use TFT and Touch Screens:

http://www.rinkydinkelectronics.com/

I downloaded the UTFT and URTouch libraries and had a look at the .cpp file. According to the library (reading UTFT.cpp file) when the object is initialized you have to pass to it a byte that represents the Model of the TFT screen. Looking at the code I see that according to this byte it includes a different .h file (f.e. like the following)

#include "tft_drivers/ili9341/s4p/initlcd.h"

The character (") in the #include according to the arduino forum declares a path in your sketch folder while the (<>) (f.e. #include <initlcd.h>) searches in Documents\Arduino\Libraries\<name of the .h file - without the .h>.

Given the fact that the library according to the .cpp code file includes the .h files with (""), where do I have to place the folders "hardware" and "tft_drivers" included in the related zip which is downloaded from this site? Which is the sketch folder?

Thanks in advance



[thetahsk]

Hi everyone,

Trying to learn and improve my skills I found a video which points to the following site in order to use TFT and Touch Screens:

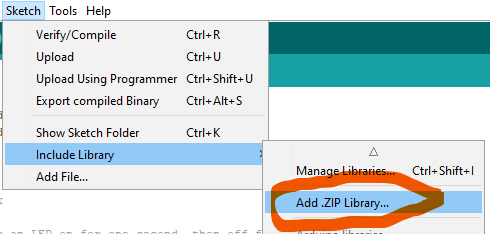

You should always add lib's through the Arduino IDE.

After installing it look at ...Documents\Arduino\Libraries\UTFT\



[hatzisn]

Thank you thetahsk for the tip...
