B4J Tutorial [Web][MiniHtml] Quick Scaffolding with Code Snippets

MiniHtml v0.20 has a big update!

With embedded Code Snippets, this is a new beginning of using reusable templates to create webpage.
Let's take a look on 2 ready-to-use "components" for creating category.html for Pakai Server project template.

Installation​

1. Download the MiniHtml.b4xlib and save it inside Additional Libraries folder under B4X or B4J.

How to use​

1. Create a new project using Pakai Server v5 template, let's give the project name Warehouse.

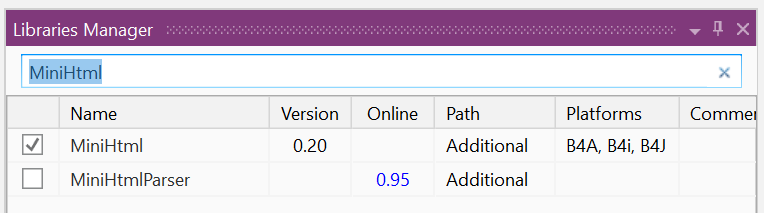

2. Add a reference to MiniHtml library from Libraries Manager tab.

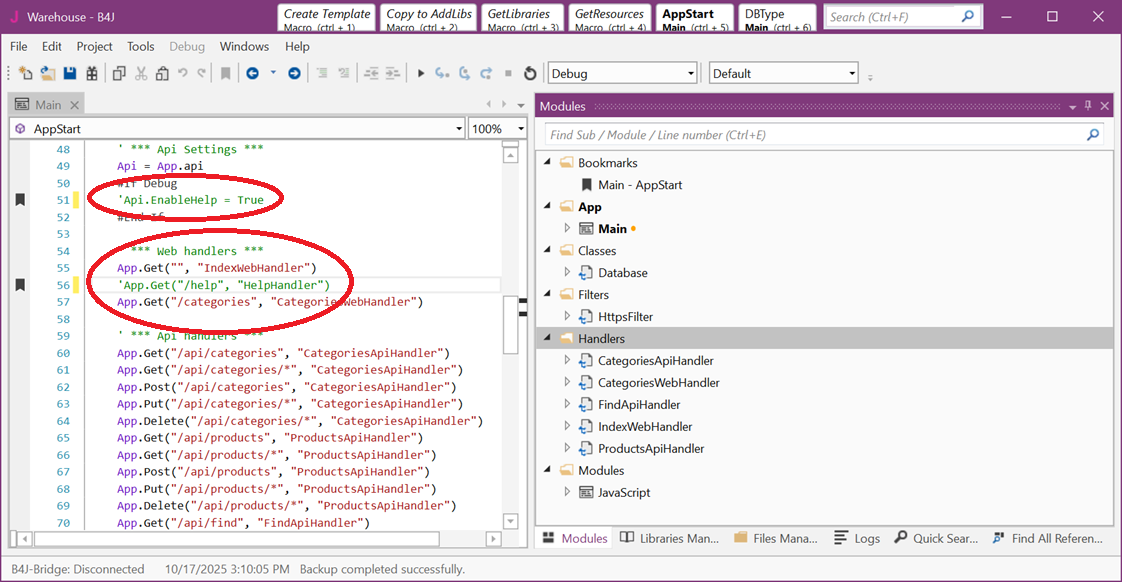

3. Remove HelpHandler class and comment the usage.


4. If you insist to use it, then you need to fix the conflict of variables name "html" and "body". Check the last section of this tutorial.

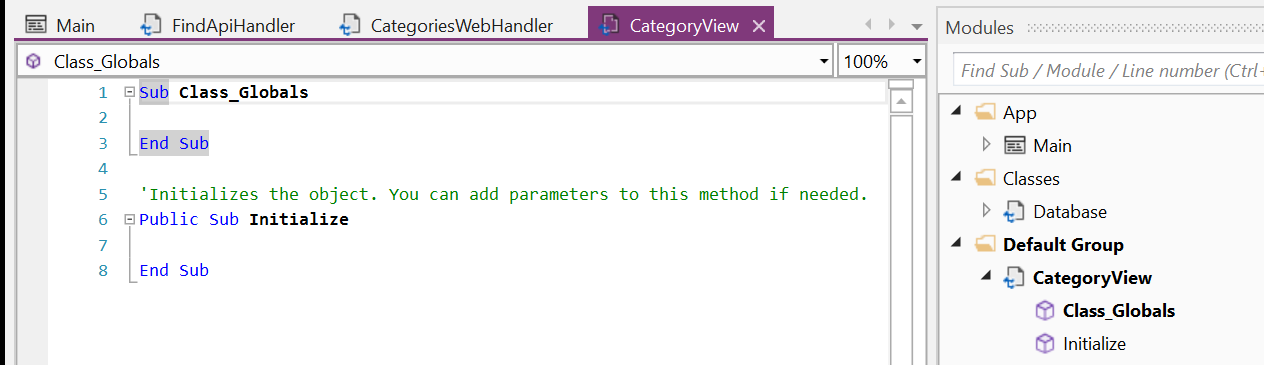

5. Create a new Standard Class and name it CategoryView. You can rename the group as Views.

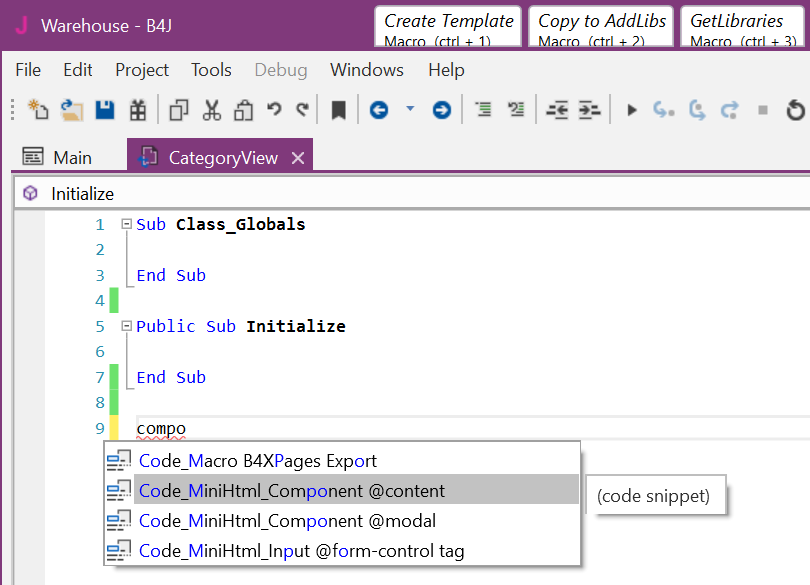

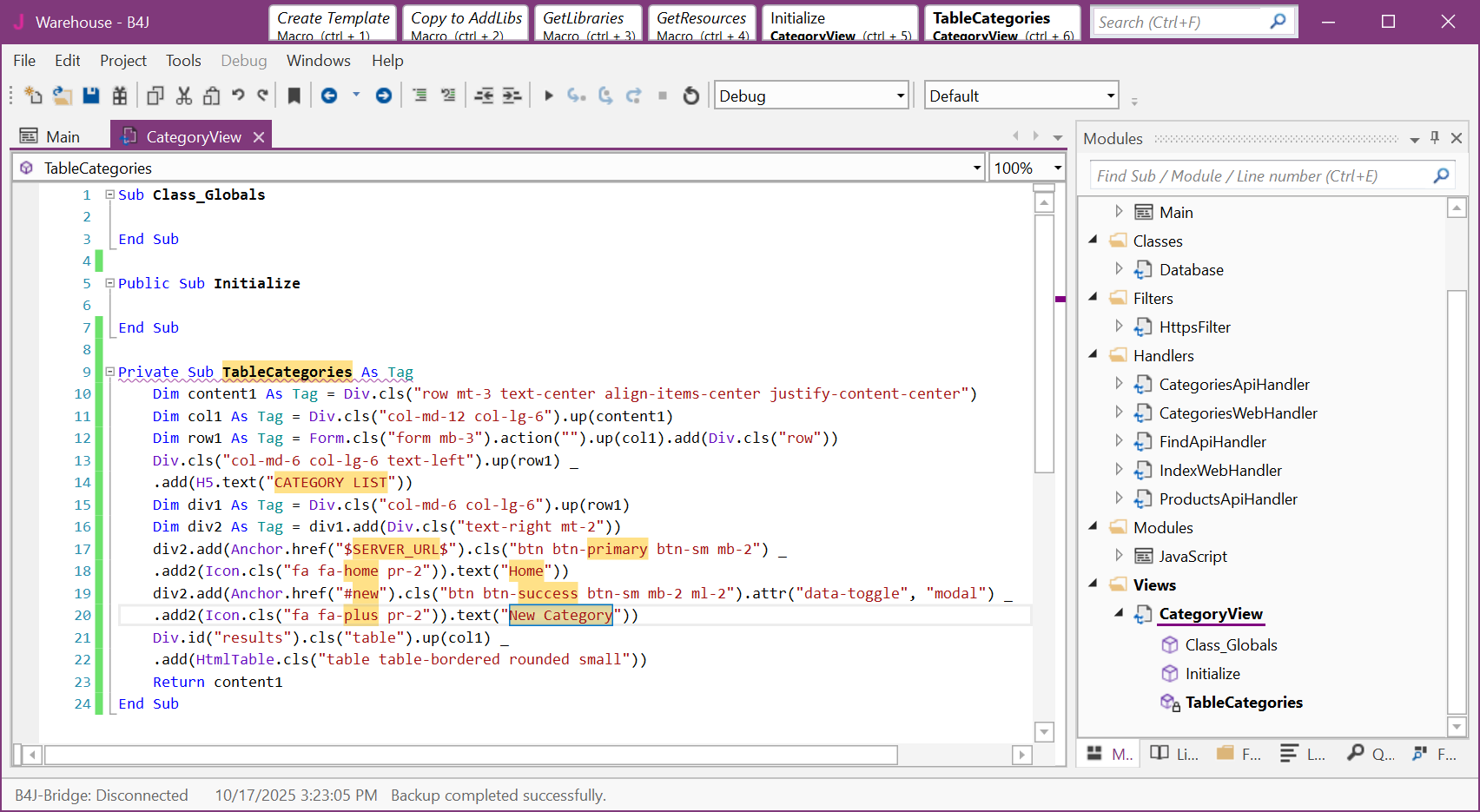

6. Start typing the keyword "compo" and select the Code Snippet "Component @content".

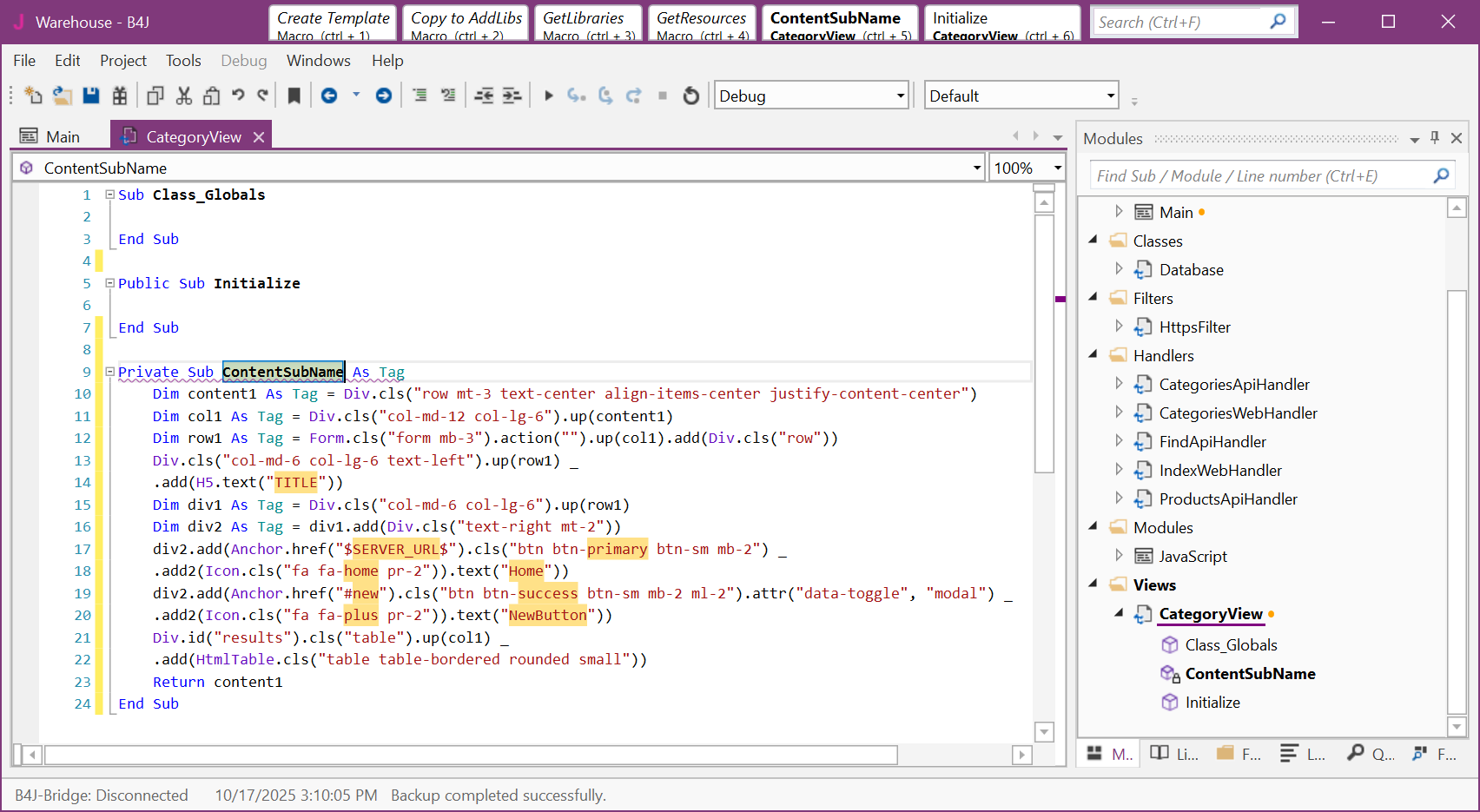

7. A template code is added. You can change the highlighted keywords or accept the suggested defaults.


8. Let's set the sub name as TableCategories and some values for the text. Press Tab to shift to another keyword. Press Enter to confirm.


9. Add a new sub calls ReturnView and write the following code inside.

   Public Sub ReturnView As String
       Dim doc As Document
       doc.Initialize
       doc.Append2(TableCategories.build3(3, False))
       Return doc.ToString
   End Sub
10. Now, we can call this class from CategoriesWebHandler class.

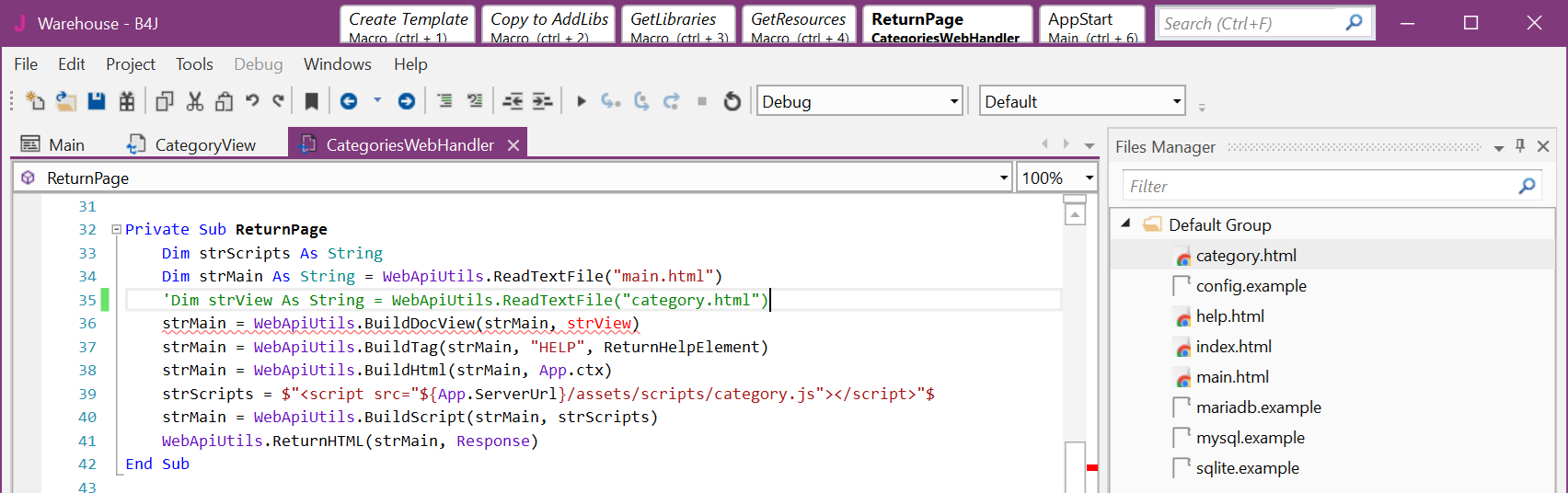

11. Let's comment the code to load category.html from assets (Files) folder.


12. Write the following code to call the ReturnView sub from CategoryView class.

    Dim view1 As CategoryView
    view1.Initialize
    Dim strView As String = view1.ReturnView
13. Next, proceed to add the modal components for New, Edit and Delete dialog.

Adding a modal component​

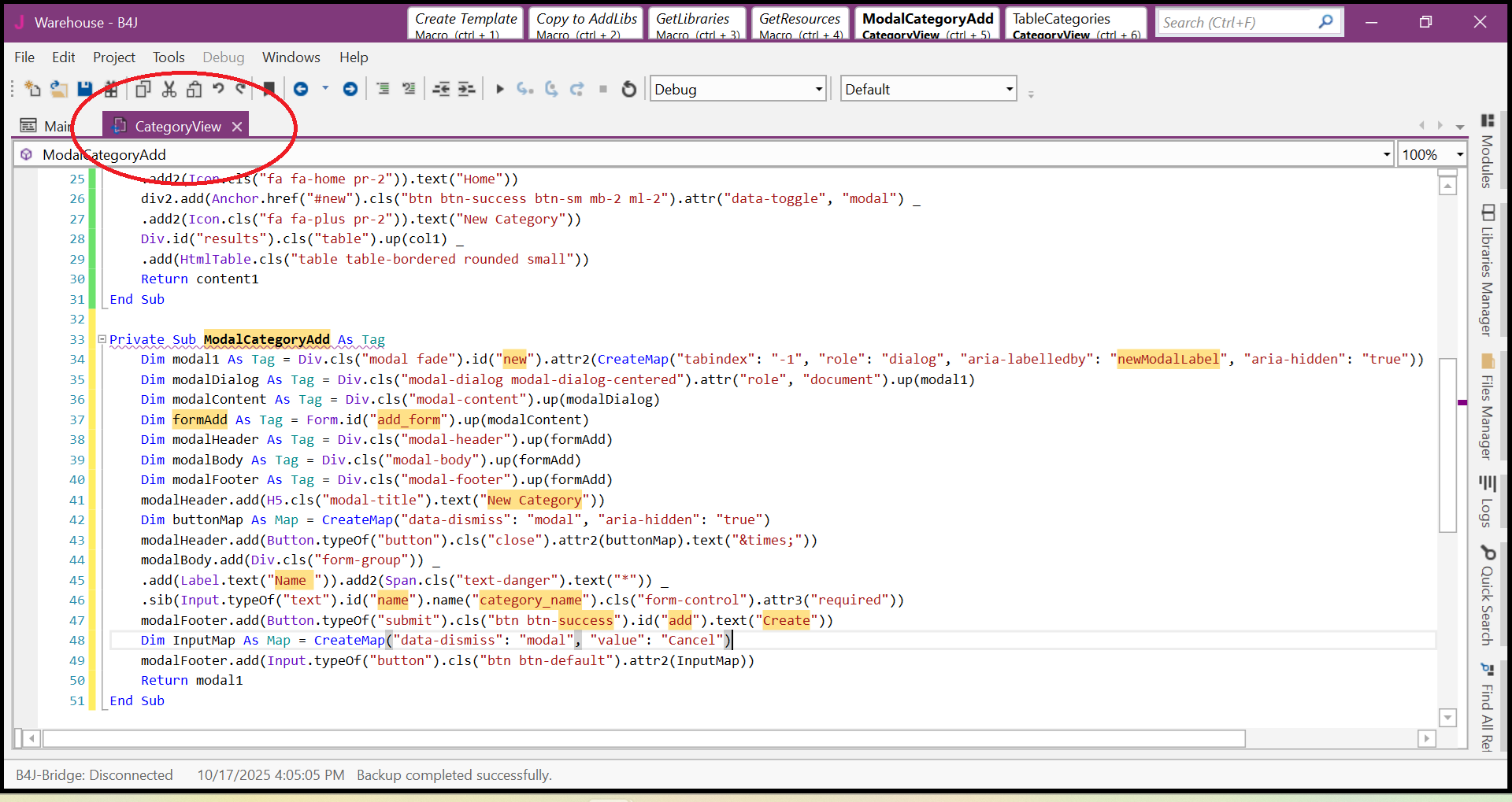

1. The steps are very similar. Start typing "compo" in CategoryView class but this time we choose the Code Snippet "Component @modal".
2. Edit the highlighted keywords as showed in the following screenshot. Press Enter to confirm.


3. Update the code in ReturnView sub.

   Public Sub ReturnView As String
       Dim doc As Document
       doc.Initialize
       doc.Append2(TableCategories.build3(3, False))
       doc.Append2(ModalCategoryAdd.build3(3, True))
       Return doc.ToString
   End Sub
4. Run the project and navigate to "Show Category" from the index page to see if it works.
5. Proceed to create the modal dialogs for Edit and Delete.
6. Make sure to use unique ids for the modals, buttons and text inputs for each modal.

Resolving conflict in HelpHandler​

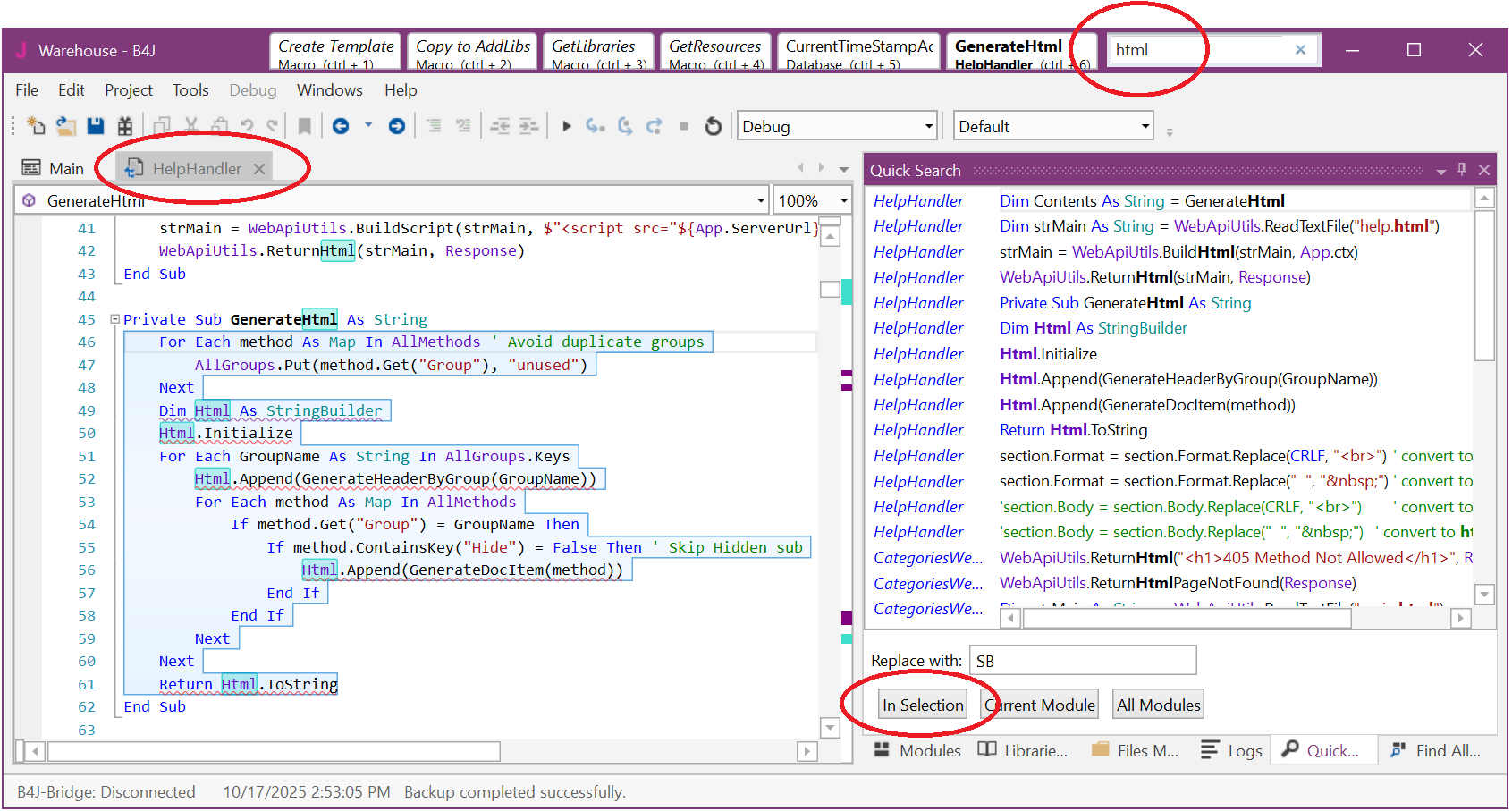

1. Press Ctrl+F or Search for the word html in the IDE.
2. Highlight the code inside GenerateHtml sub and replace the word to "SB" using the "In Selection" button.

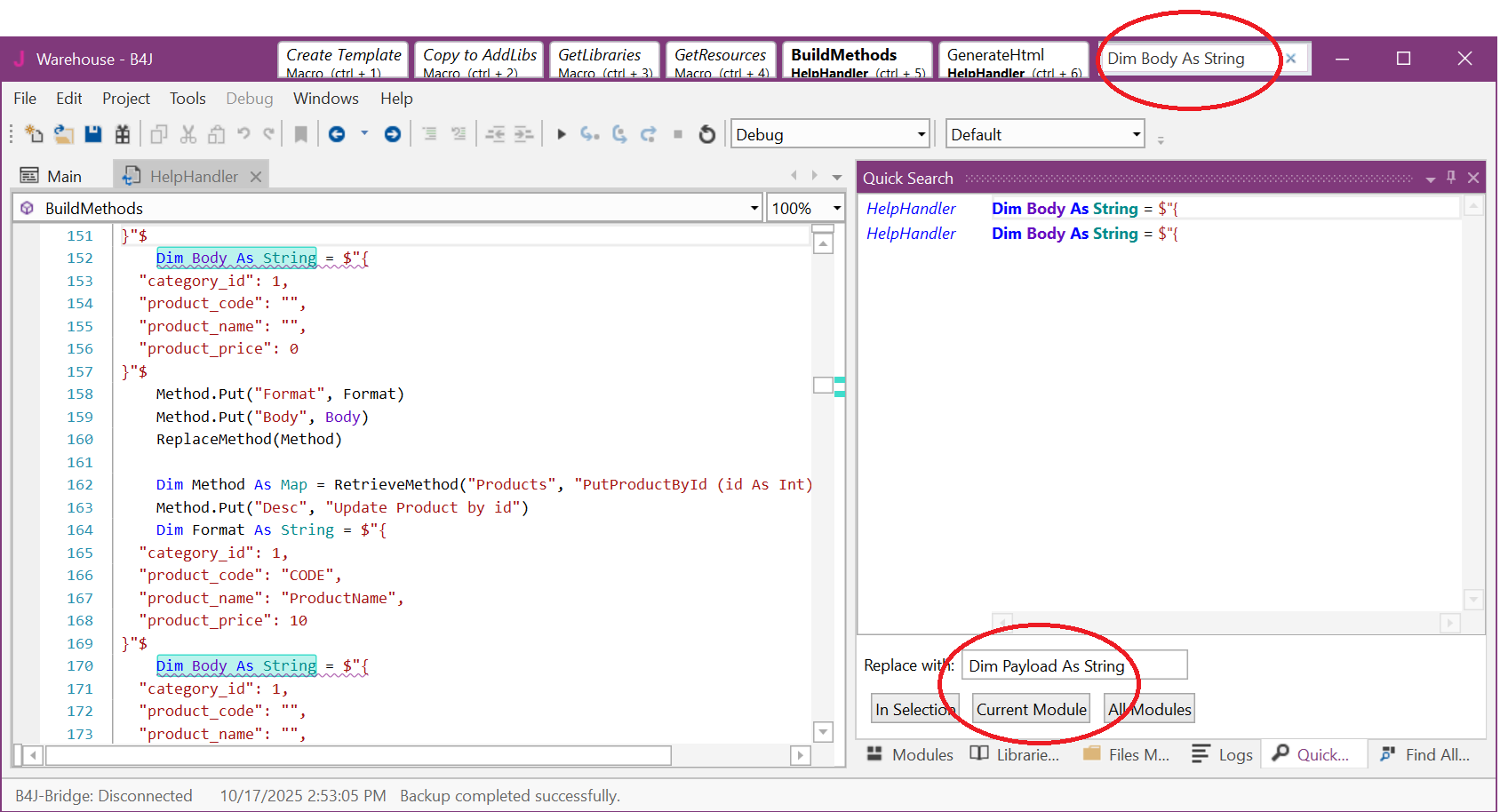

3. Change the Body variable to Payload. You can replace "Dim Body As String" with "Dim Payload As String" and click on "Current Module" button.



Then replace "Method.Put("Body", Body)" with "Method.Put("Body", Payload)" and click on "Current Module" button.

---

More ready-to-use component Code Snippets will be added to MiniHtml library in the future.
You can also create your own Code Snippets and place them to the Snippets folder in Additional libraries folder.
Hope this helps.



[aeric]

For the time being, this tutorial is to show the new usage of MiniHtml Code Snippets.
Pakai Server template is still rely on the bundled jQuery javascript and Bootstrap v4 css.
In the future version, the template may be changed to use HTMX and Bootstrap v5 as default.
The bundled html files in assets folder will also be excluded.
