Webview not the same on different screen solution?

susu · Nov 15, 2011

I'm using WebView to show an image and I want it "fit" the screen. This is my code

B4X:

Dim PZW As WebView
Dim ww As Int

PZW.Initialize("PZW")
Activity.AddView(PZW, 0, 0, 100%x, 100%y)

If Activity.Width > Activity.Height Then
   ww = Activity.Height
Else
   ww = Activity.Width
End If

PZW.LoadHtml("<html><body topmargin='0' leftmargin='0' marginwidth='0' marginheight='0'><center><img src='file:///android_asset/testimage.jpg' width='" & ww &"'/></center></body></html>")

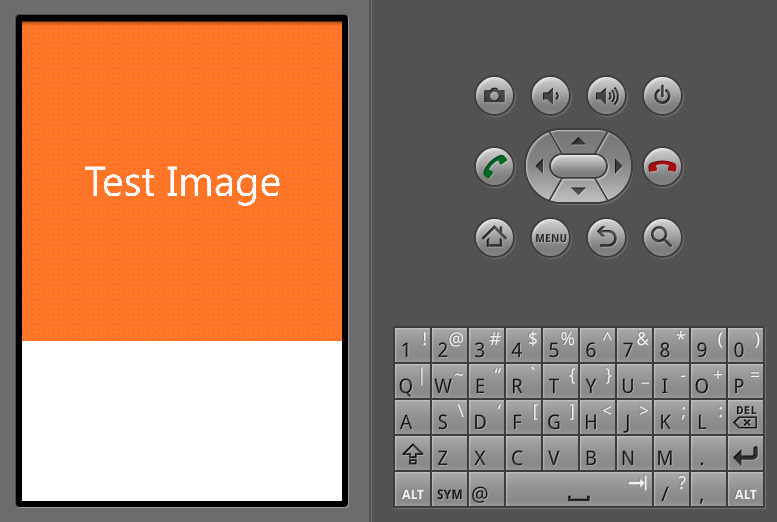

It works ok on small screen (320x480) but on bigger screen (480x800) it only shows half of image. Please view the attached files. I don't understand what's wrong here?

NJDude · Nov 15, 2011

If you want to fit the picture then you have to do this:

B4X:

PZW.LoadHtml("<html><body topmargin='0' leftmargin='0' marginwidth='0' marginheight='0'><center><img src='file:///android_asset/samplepic.jpg' width='100%' height='100%'/></center></body></html>")

That will fit the picture to the size of the WebView and NOT the Activity as you have it on your code.

susu · Nov 15, 2011

Thank you, I tried it already

http://www.b4x.com/forum/basic4android-updates-questions/8131-webview-fit-image.html#post45823

But the problem is it can't be zoomed anymore.
After a few search I found the solution here
http://www.b4x.com/forum/basic4android-updates-questions/10217-webview-zoom-scale.html#post56881

Just change "setInitialScale" value = 100. It will be fit!
