Android Question xCustomListView item panel color trasparency

[Teech]

Hi.
I'll try to create a xCLV with items where base Panel has a trasparency in backgound color but something grey always appear

My xCLV has a backgroun color: without item is all OK
My Item Layout is fully transparent (activity and all views with Color #00FFFFFF)

If i add an Item without trasparency all work well and ItemPanel is correctly colored

    Dim c As Customer=customers.Get(0)
    Dim p As B4XView=xui.CreatePanel("")
    p.SetLayoutAnimated(0,0,0,100%x,150dip)
    p.LoadLayout("CustomerItem")
    p.Color=xui.Color_White '<-- Total White is OK
    p.SetColorAndBorder(p.Color,2dip,xui.Color_ARGB(255,255,97,0),5%y)

But if i'll try to use a transparency (like in this code) there is somthing grey in some base panel that ruin my goal.

    Dim c As Customer=customers.Get(0)
    Dim p As B4XView=xui.CreatePanel("")
    p.SetLayoutAnimated(0,0,0,100%x,150dip)
    p.LoadLayout("CustomerItem")
    p.Color=xui.Color_ARGB(30,255,97,0) '<-- Color HERE
    p.SetColorAndBorder(p.Color,2dip,xui.Color_ARGB(255,255,97,0),5%y)

Any suggestions?
Thank you.



[asales]

Check the Divider Color or Divider Height of the CustomListView in the Designer.



[Teech]

I have already set Divider Height to 0.
"something grey" is in a view under the panel.
The panel color is ok but under there seem to be another grey "panel".

Tomorrow i'll try to create a little app for this problem.



[zed]

Tomorrow i'll try to create a little app for this problem.

Excellent idea. It will be easier to solve the problem.
It's definitely a minor issue.



[Teech]

Thanks for your patience.

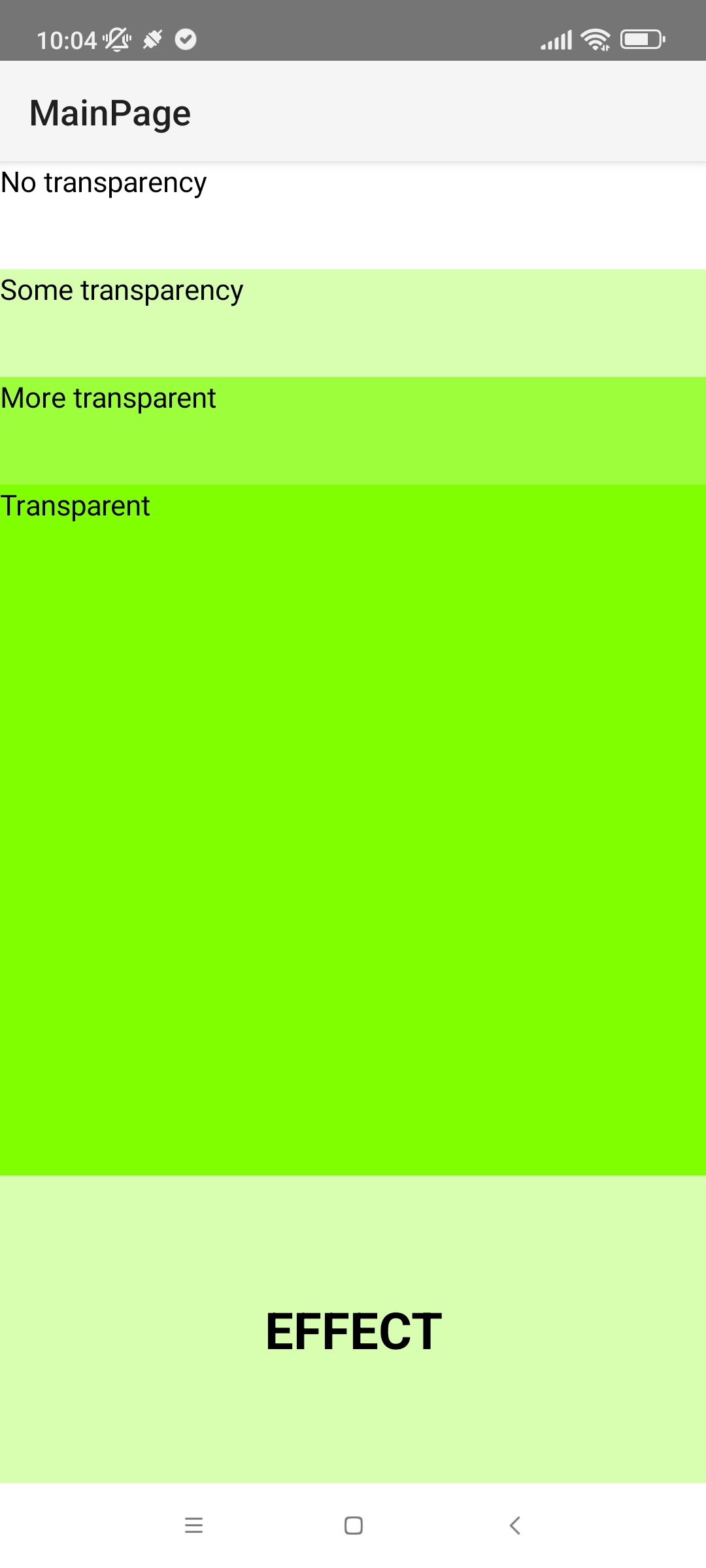

I have create a little APP that load 4 items in xCLV with 4 level of transparency.
In the Activity bottom there is a label "EFFECT" that show my purpose for relative items (when you click on it).
The difference between item background and label effect background is my issue.
It's obvious that in xCLV there is a grey panel under each item but i can't find it.

Is a B4X project but only B4A code work.

Thank in advace



[zed]

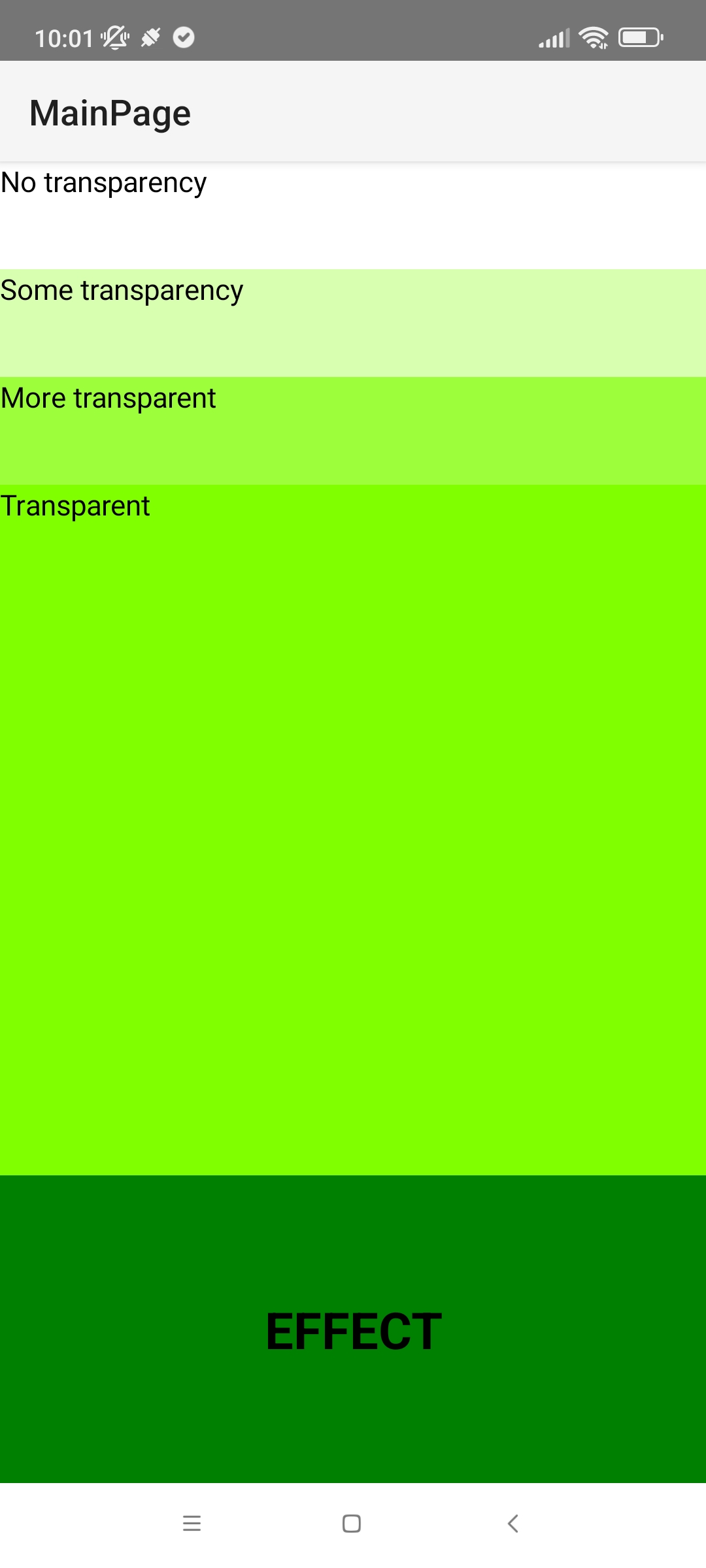

It works very well.
I just changed the colors of the views.



[Teech]

It works very well.
I just changed the colors of the views.

I can't understand.
With your APP is all good on all my devices too.

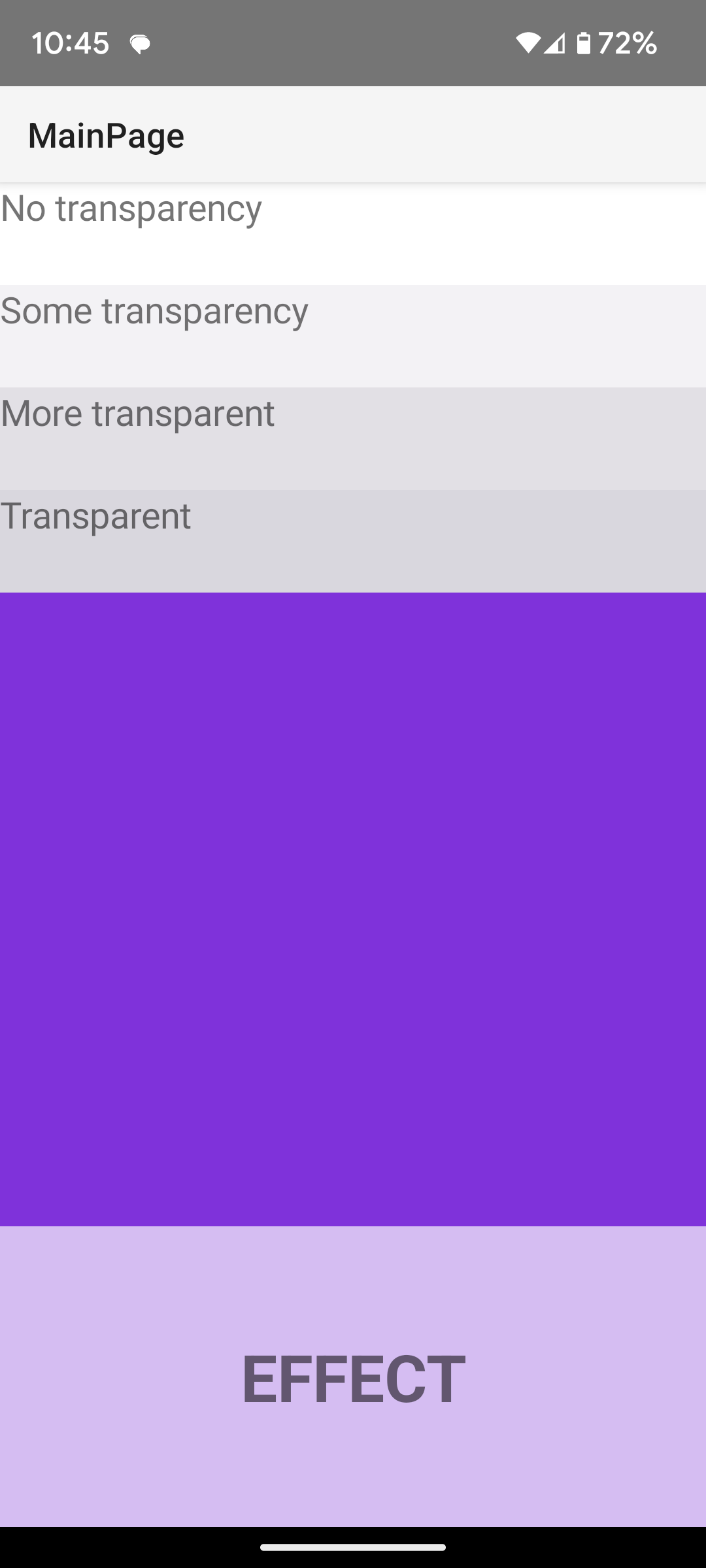

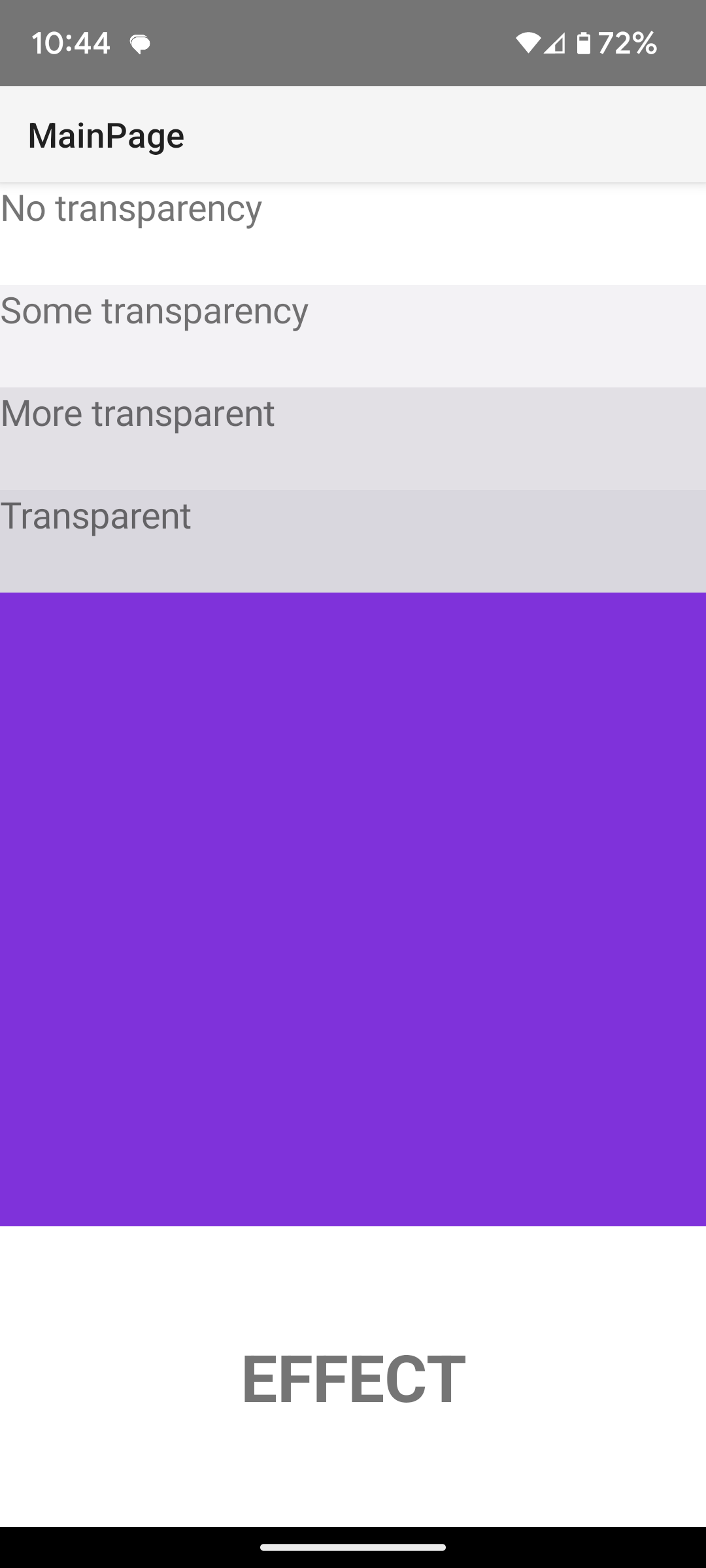

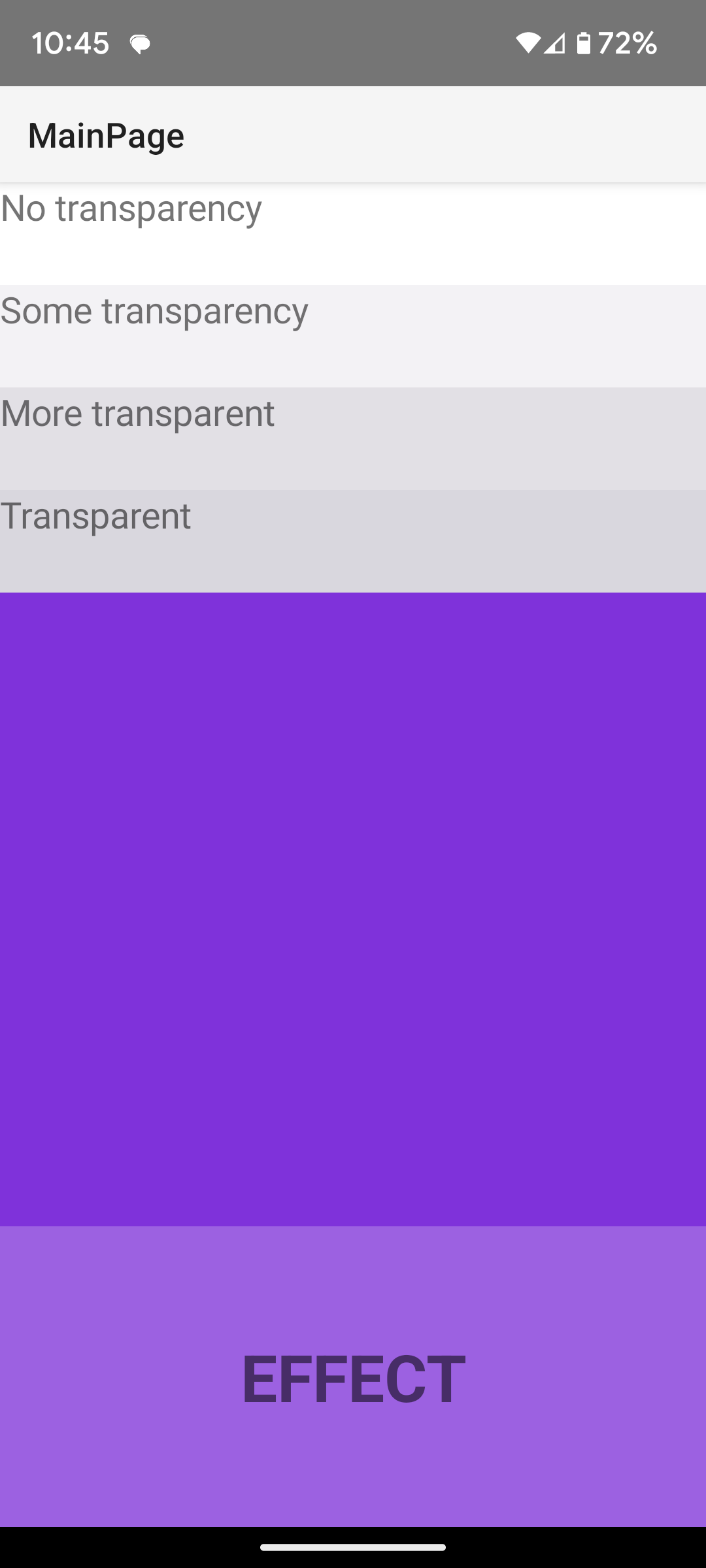

With my APP, on all my devices i have the result (with all colors) in attached screenshot.

What's different?



[zed]

It's because of the color separator.
Even on 0 it displays the color.
Set divider Color = Taransparent



[Teech]

It's because of the color separator.
Even on 0 it displays the color.
Set divider Color = Taransparent

Solved!!!
So separator is a panel a little more high then "front" panel.
Many Thanks



[zed]

The separator is a panel.
Since everything else is transparent, the panel is visible.
The separator must also be transparent
