B4A Library xSQLCipher for Android Sqlcipher 4.5.4

This library is modified based on Erel's source code. I tried popular SQLCipher libraries like Zetetic, Guardianproject but Sqlcipher worked better, even though this library is no longer updated.
Some functions, because I don't have time, I haven't tested them yet. I posted the source code here. If there are any errors, please download the source code from Github.com

* Create new database on Android OS
sqlci.initializeCipher("dtest", "swqhccKWiaLKJuPCGH2ebA==", 20)

* Copy other source from Asset folder:| If your database is blank password, it can't not change
Dim target As String = File.Combine(File.DirInternalCache, "db_cipher.db")
File.Copy(File.DirAssets, "db_cipher.db",File.DirInternalCache, "db_cipher.db")
sqlci.initializeCopy("sqlci", target, "", 1)

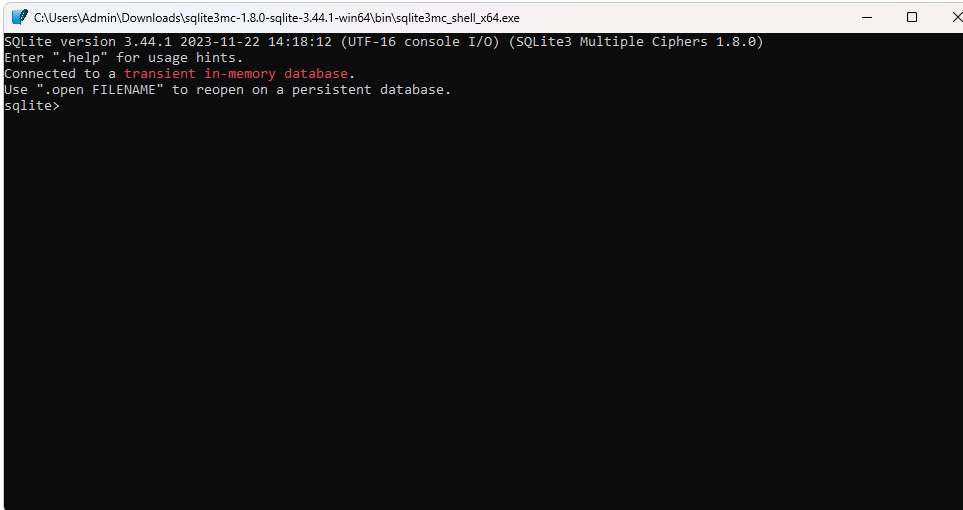

* A tool help you create Sqlcipher on desktop: (console_sqlcipher_1.8.0.zip)



New method for xSQLCipher library:
ChangePassword(password As String)
ChangePassword(password() As Byte)
getDatabasePath As String
encrypt(RealPath As String, passphrase() As Byte)
decrypt(RealPath As String, passphrase() As Byte)
isDBEncrypted() as boolean
DeleteTable(table as string, where as string, arg as string)
PageSize() as long
DatabasePath() as string

GenerateAESKey and token
xEncrypter:
Dim tken As xEncrypter
Dim token As String = tken.encrypt(tken.generateAESKey, "12345678")    ' 128 bits (16 bytes)
Dim seckey() As Byte = tken.SecretKey

Log("HEX=" & tken.parseByte2HexStr(seckey))

You can save your publickey to Preferences
TokenManager:
Dim tokenManganer As TokenManager
tokenManganer.initialize
tokenManganer.saveTokenToPreferences("sql_pass", token)


xSQLCipher:
#AdditionalJar: sqlite-2.4.0.aar
#AdditionalJar: android-database-sqlcipher-4.5.4.aar

Dim sqlci As xSQLCipher
Dim key As String = "Hello world"
Dim c As B4XCipher
Dim b() As Byte = c.Encrypt(key.GetBytes("utf8"), "12345678")
sqlci.initializeCipher(sqlci, "db3.db", "12345678", 1)

Sub Button1_Click
    sqlci.ExecNonQuery("CREATE TABLE table1 (col1 TEXT, col2 INTEGER, col3 INTEGER)")
    For i=0 To 10
        sqlci.ExecNonQuery2("INSERT INTO table1 VALUES (?, ?, ?)", Array As Object("some text" & i, i, i * 2))
    Next

End Sub

Private Sub Button2_Click
    Dim Cursor As Cursor
    Cursor = sqlci.ExecQuery("SELECT col1, col2 FROM table1")
    For i = 0 To Cursor.RowCount - 1
        Cursor.Position = i
        Log(Cursor.GetString("col1"))
        Log(Cursor.GetInt("col2"))
    Next
End Sub


Attachments

  • Test.zip
    3.8 KB · Views: 54
  • android-database-sqlcipher-4.5.4.jar
    114.5 KB · Views: 34
  • sqlite-2.4.0.jar
    30.5 KB · Views: 33
  • Test.zip
    3.9 KB · Views: 35
  • Test3.zip
    5.1 KB · Views: 30
  • xSQLCipher.zip
    25.9 KB · Views: 41
Last edited:
Click to expand...
R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
tummosoft said:
This library is modified based on Erel's source code. I tried popular SQLCipher libraries like Zetetic, Guardianproject but Sqlcipher worked better, even though this library is no longer updated.
Some functions, because I don't have time, I haven't tested them yet. I posted the source code here. If there are any errors, please download the source code from Github.com

New method for xSQLCipher library:
ChangePassword(password As String)
ChangePassword(password() As Byte)
getDatabasePath As String
encrypt(RealPath As String, passphrase() As Byte)
decrypt(RealPath As String, passphrase() As Byte)

xSQLCipher:
#AdditionalJar: sqlite-2.4.0.aar
#AdditionalJar: android-database-sqlcipher-4.5.4.aar

Dim sqlci As xSQLCipher
Dim key As String = "Hello world"
Dim c As B4XCipher
Dim b() As Byte = c.Encrypt(key.GetBytes("utf8"), "12345678")
sqlci.initializeCipher(sqlci, "db3.db", "12345678", 1)

Sub Button1_Click
    sqlci.ExecNonQuery("CREATE TABLE table1 (col1 TEXT, col2 INTEGER, col3 INTEGER)")
    For i=0 To 10
        sqlci.ExecNonQuery2("INSERT INTO table1 VALUES (?, ?, ?)", Array As Object("some text" & i, i, i * 2))
    Next

End Sub

Private Sub Button2_Click
    Dim Cursor As Cursor
    Cursor = sqlci.ExecQuery("SELECT col1, col2 FROM table1")
    For i = 0 To Cursor.RowCount - 1
        Cursor.Position = i
        Log(Cursor.GetString("col1"))
        Log(Cursor.GetInt("col2"))
    Next
End Sub
Click to expand...
Isn't SQLCipher made by Zetetic?

RBS

Alexander Stolte

Alexander Stolte

Expert
Licensed User
Longtime User
RB Smissaert said:
Isn't SQLCipher made by Zetetic?
Click to expand...
tummosoft said:
This library is modified based on Erel's source code. I tried popular SQLCipher libraries like Zetetic, Guardianproject but Sqlcipher worked better, even though this library is no longer updated.
Some functions, because I don't have time, I haven't tested them yet. I posted the source code here. If there are any errors, please download the source code from Github.com
Click to expand...

R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
This just looked confusing to me:
>> I tried popular SQLCipher libraries like Zetetic, Guardianproject but Sqlcipher worked better

RBS

R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
tummosoft said:
This library is modified based on Erel's source code. I tried popular SQLCipher libraries like Zetetic, Guardianproject but Sqlcipher worked better, even though this library is no longer updated.
Some functions, because I don't have time, I haven't tested them yet. I posted the source code here. If there are any errors, please download the source code from Github.com

New method for xSQLCipher library:
ChangePassword(password As String)
ChangePassword(password() As Byte)
getDatabasePath As String
encrypt(RealPath As String, passphrase() As Byte)
decrypt(RealPath As String, passphrase() As Byte)

xSQLCipher:
#AdditionalJar: sqlite-2.4.0.aar
#AdditionalJar: android-database-sqlcipher-4.5.4.aar

Dim sqlci As xSQLCipher
Dim key As String = "Hello world"
Dim c As B4XCipher
Dim b() As Byte = c.Encrypt(key.GetBytes("utf8"), "12345678")
sqlci.initializeCipher(sqlci, "db3.db", "12345678", 1)

Sub Button1_Click
    sqlci.ExecNonQuery("CREATE TABLE table1 (col1 TEXT, col2 INTEGER, col3 INTEGER)")
    For i=0 To 10
        sqlci.ExecNonQuery2("INSERT INTO table1 VALUES (?, ?, ?)", Array As Object("some text" & i, i, i * 2))
    Next

End Sub

Private Sub Button2_Click
    Dim Cursor As Cursor
    Cursor = sqlci.ExecQuery("SELECT col1, col2 FROM table1")
    For i = 0 To Cursor.RowCount - 1
        Cursor.Position = i
        Log(Cursor.GetString("col1"))
        Log(Cursor.GetInt("col2"))
    Next
End Sub
Click to expand...
Tried to compile but got error:
Could not find file 'C:\Program Files\Anywhere Software\B4A\libraries\sqlite-2.4.0.aar'.

Looked at your mentioned sources (Github.com), but couldn't find it.

RBS

R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
RB Smissaert said:
Ignore that, got that file now from the same site and got it compiling now.

RBS
Click to expand...
Got this working fine now after fixing an error to do with running a different password method on an already existing DB:

B4X:
Sub Activity_Create(FirstTime As Boolean)

    Dim bDBDeleted As Boolean
    Dim bStringPassword As Boolean = False

    Activity.LoadLayout("Layout")

    Dim key As String = "Hello world"
    Dim c As B4XCipher

    'if you don't delete the DB that was created with a different password method (string or byte array)
    'then there will be an error:
    'android.database.sqlite.SQLiteException: file is not a database: , while compiling:
    'select count(*) from sqlite_master;
    '----------------------------------------------------------------------------------------------------
    bDBDeleted = File.Delete(File.DirInternal, "db3.db")
    Log("bDBDeleted: " & bDBDeleted)

    If bStringPassword Then
        sqlci.initializeCipher("SQL", File.DirInternal & "/db3.db", "12345678", 1)
    Else
        Dim b() As Byte = c.Encrypt(key.GetBytes("UTF8"), "12345678")
        sqlci.initializeCipher2("SQL", File.DirInternal & "/db3.db", b, 1)
    End If

End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

Sub Button1_Click

    'as the DB was deleted on app start we don't really need the: if not exists anymore
    sqlci.ExecNonQuery("CREATE TABLE if not exists table1 (col1 TEXT, col2 INTEGER, col3 INTEGER)")

    For i = 0 To 10
        sqlci.ExecNonQuery2("INSERT INTO table1 VALUES (?, ?, ?)", Array As Object("some text" & i, i, i * 2))
    Next

End Sub

Private Sub Button2_Click

    Dim RS As ResultSet

    RS = sqlci.ExecQuery("SELECT col1, col2 FROM table1")

    Do While RS.NextRow
        Log(RS.GetString2(0))
        Log(RS.GetInt2(1))
    Loop

    Log("------------------------------------------")

End Sub

It looks you used a different encryption method than in the code written by Zetetic.
What was the reason for that?

In your Github source code I noticed sqlcipher-android-4.5.6.aar, but it looks this is not used in your wrapper.
Is this so and if so what was the reason for that?

Thank in any case you this very interesting posting.

RBS

tummosoft

tummosoft

Member
Licensed User
Longtime User
RB Smissaert said:
Isn't SQLCipher made by Zetetic?

RBS
Click to expand...
RB Smissaert said:
Isn't SQLCipher made by Zetetic?

RBS
Click to expand...
net.sqlcipher.database is old project's Zetetic LLC (stop update at 2011), their current project has namespace net.zetetic. However, someone compile the android-database-sqlcipher-4.5.4.aar, only this version working. The official library not working, it can't load native library.

tummosoft

tummosoft

Member
Licensed User
Longtime User
RB Smissaert said:
Got this working fine now after fixing an error to do with running a different password method on an already existing DB:

B4X:
Sub Activity_Create(FirstTime As Boolean)

    Dim bDBDeleted As Boolean
    Dim bStringPassword As Boolean = False

    Activity.LoadLayout("Layout")

    Dim key As String = "Hello world"
    Dim c As B4XCipher

    'if you don't delete the DB that was created with a different password method (string or byte array)
    'then there will be an error:
    'android.database.sqlite.SQLiteException: file is not a database: , while compiling:
    'select count(*) from sqlite_master;
    '----------------------------------------------------------------------------------------------------
    bDBDeleted = File.Delete(File.DirInternal, "db3.db")
    Log("bDBDeleted: " & bDBDeleted)

    If bStringPassword Then
        sqlci.initializeCipher("SQL", File.DirInternal & "/db3.db", "12345678", 1)
    Else
        Dim b() As Byte = c.Encrypt(key.GetBytes("UTF8"), "12345678")
        sqlci.initializeCipher2("SQL", File.DirInternal & "/db3.db", b, 1)
    End If

End Sub

Sub Activity_Resume

End Sub

Sub Activity_Pause (UserClosed As Boolean)

End Sub

Sub Button1_Click

    'as the DB was deleted on app start we don't really need the: if not exists anymore
    sqlci.ExecNonQuery("CREATE TABLE if not exists table1 (col1 TEXT, col2 INTEGER, col3 INTEGER)")

    For i = 0 To 10
        sqlci.ExecNonQuery2("INSERT INTO table1 VALUES (?, ?, ?)", Array As Object("some text" & i, i, i * 2))
    Next

End Sub

Private Sub Button2_Click

    Dim RS As ResultSet

    RS = sqlci.ExecQuery("SELECT col1, col2 FROM table1")

    Do While RS.NextRow
        Log(RS.GetString2(0))
        Log(RS.GetInt2(1))
    Loop

    Log("------------------------------------------")

End Sub

It looks you used a different encryption method than in the code written by Zetetic.
What was the reason for that?

In your Github source code I noticed sqlcipher-android-4.5.6.aar, but it looks this is not used in your wrapper.
Is this so and if so what was the reason for that?

Thank in any case you this very interesting posting.

RBS
Click to expand...

Because the code is not yet complete, I'm testing a few different encodings from other source code. So things are a bit messy.. and bug.

R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
tummosoft said:
net.sqlcipher.database is old project's Zetetic LLC (stop update at 2011), their current project has namespace net.zetetic. However, someone compile the android-database-sqlcipher-4.5.4.aar, only this version working. The official library not working, it can't load native library.
Click to expand...
> The official library not working, it can't load native library.

OK.
When you say official library do you mean the library that uses sqlcipher-android-4.5.6.aar?

RBS

tummosoft

tummosoft

Member
Licensed User
Longtime User
RB Smissaert said:
> The official library not working, it can't load native library.

OK.
When you say official library do you mean the library that uses sqlcipher-android-4.5.6.aar?

RBS
Click to expand...

Yes, the library has namespace is net.zetetic.database.
Many users are experiencing issues with this library. Unfortunately, no readily available solution seems to exist. I've even attempted the author's recommended approach involving the relinker library, but the problem persists.

R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
tummosoft said:
Yes, the library has namespace is net.zetetic.database.
Many users are experiencing issues with this library. Unfortunately, no readily available solution seems to exist. I've even attempted the author's recommended approach involving the relinker library, but the problem persists.
Click to expand...
OK, thanks for confirming that.

RBS

R

RB Smissaert

Well-Known Member
Licensed User
Longtime User
tummosoft said:
Yes, the library has namespace is net.zetetic.database.
Many users are experiencing issues with this library. Unfortunately, no readily available solution seems to exist. I've even attempted the author's recommended approach involving the relinker library, but the problem persists.
Click to expand...
I just tried your xSQLCipher in a large app with one large encrypted DB and one large unencrypted DB and a few smaller unencrypted DBs.
It seems that InitializeCipher creates a new DB, even if that DB already exists.
Do I need to user just the standard .Initialize?
What are the arguments to be provided to that?

RBS

tummosoft

tummosoft

Member
Licensed User
Longtime User
RB Smissaert said:
I just tried your xSQLCipher in a large app with one large encrypted DB and one large unencrypted DB and a few smaller unencrypted DBs.
It seems that InitializeCipher creates a new DB, even if that DB already exists.
Do I need to user just the standard .Initialize?
What are the arguments to be provided to that?

RBS
Click to expand...

I fixed error and update new version!

You must log in or register to reply here.

Similar Threads

JakeBullet70
  • Question
Android Question Needing okHTTP support for Android 4.x
Replies
10
Views
2K
JakeBullet70
JakeBullet70
Guenter Becker
  • Article
B4A Library TDDBUtils Functions to handle SQLite and SQLCipher
Replies
4
Views
2K
Guenter Becker
Guenter Becker
Erel
Games [XUI2D] X2 v2.0 - 2021
Replies
12
Views
11K
Erel
Erel
Erel
  • Locked
  • Article
B4A Library [B4X] [XUI] xCustomListView - cross platform CustomListView
2 3
Replies
55
Views
132K
Erel
Erel
Erel
  • Locked
  • Article
Android Tutorial Android database encryption with SQLCipher library
7 8 9
Replies
163
Views
126K
Erel
Erel
Top
