B4J Tutorial [ABMaterial] New component ABMSmartWizard

Discussion in 'B4J Tutorials' started by alwaysbusy, Mar 8, 2017.

  1. alwaysbusy

    alwaysbusy Expert Licensed User

    I'm finishing up ABMaterial 3.00 Chipmunk and a new component that has been introduced is ABMSmartWizard.

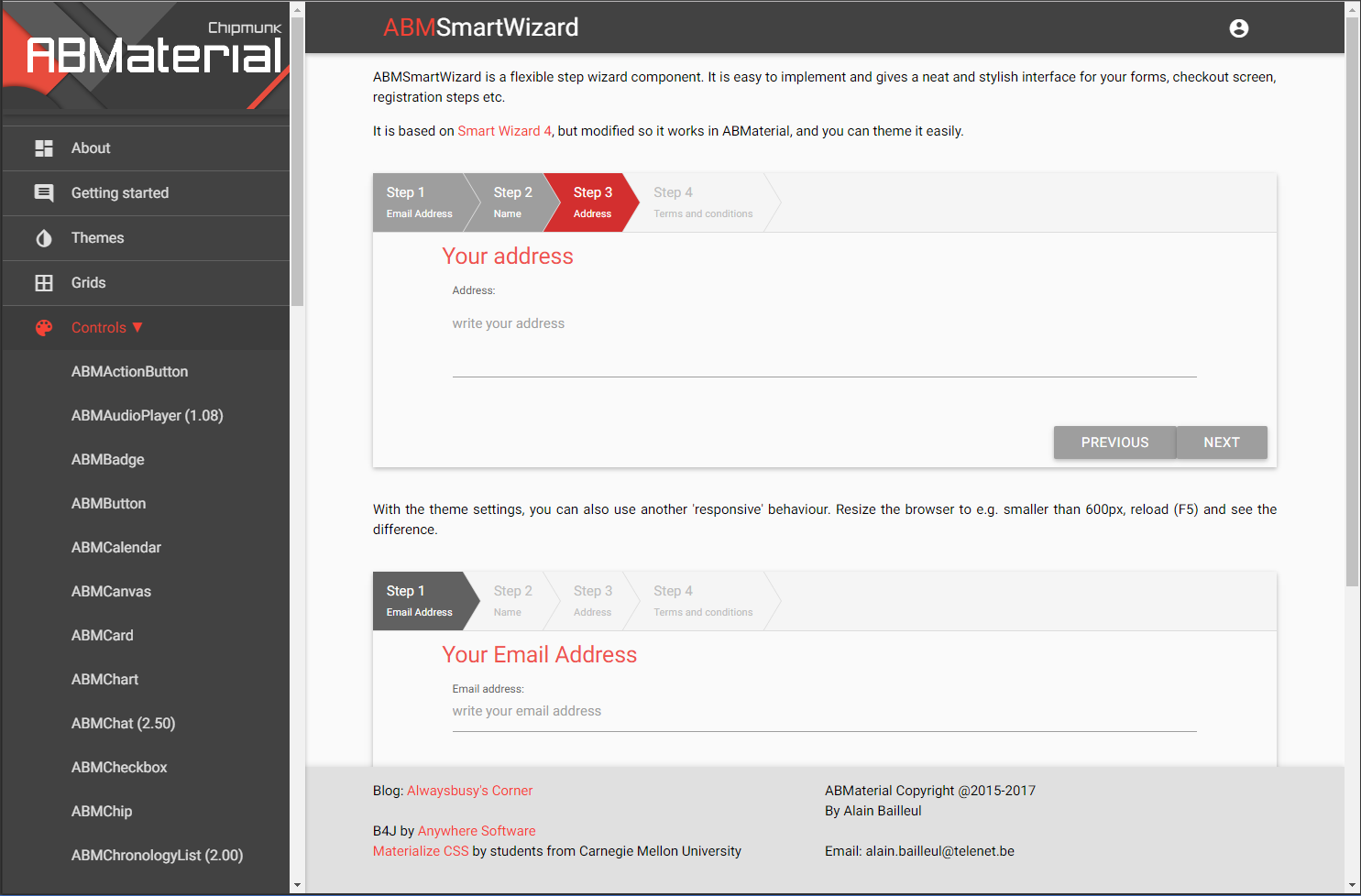

    ABMSmartWizard is a flexible step wizard component. It is easy to implement and gives a neat and stylish interface for your forms, checkout screen, registration steps etc.

    [​IMG]

    Usage example:
    Code:
    public Sub ConnectPage()
       ...

    Dim wizA As ABMSmartWizard
       wizA.Initialize(
    page"wizA","Previous""Next""Finish""wizA")
       wizA.AddStep(
    "stepA1""Step 1""Email Address","", BuildContainer("StepA1Cont"), ABM.SMARTWIZARD_STATE_ACTIVE)
       wizA.AddStep(
    "stepA2""Step 2""Name","", BuildContainer("StepA2Cont"), ABM.SMARTWIZARD_STATE_DISABLED)
       wizA.AddStep(
    "stepA3""Step 3""Address","", BuildContainer("StepA3Cont"), ABM.SMARTWIZARD_STATE_DISABLED)
       wizA.AddStep(
    "stepA4""Step 4""Terms and conditions","", BuildContainer("StepA4Cont"), ABM.SMARTWIZARD_STATE_DISABLED)

    page.CellR(1,1).AddComponent(wizA)
       ...


    ' also add the components to the footer
       ABMShared.ConnectFooterFixed(page)


    page.Refresh ' IMPORTANT


    ' NEW, because we use ShowLoaderType=ABM.LOADER_TYPE_MANUAL
       page.FinishedLoading 'IMPORTANT


    page.RestoreNavigationBarPosition
    End Sub

    Sub BuildContainer(ID As StringAs ABMContainer

    Dim cont As ABMContainer
       cont.Initialize(
    pageID"")

    Select Case ID

    Case "StepA1Cont"
           cont.AddRowsM(
    2True,0,0,"").AddCells12(1,"")
           cont.BuildGrid
    ' IMPORTANT!
           Dim emaillbl As ABMLabel = ABMShared.BuildHeader(pageID & "emaillbl""Your Email Address")
           cont.Cell(
    1,1).AddComponent(emaillbl)

    Dim emailinp As ABMInput
           emailinp.Initialize(
    pageID & "emailinp", ABM.INPUT_TEXT, "Email address:"False"input")
           emailinp.PlaceHolderText =
    "write your email address"
           cont.Cell(
    2,1).AddComponent(emailinp)

    Case "StepA2Cont"
           cont.AddRowsM(
    2True,0,0,"").AddCells12(1,"")
           cont.BuildGrid
    ' IMPORTANT!
           Dim namelbl As ABMLabel = ABMShared.BuildHeader(pageID & "namelbl""Your Name")
           cont.Cell(
    1,1).AddComponent(namelbl)

    Dim nameinp As ABMInput
           nameinp.Initialize(
    pageID & "nameinp", ABM.INPUT_TEXT, "Name:"False"input")
           nameinp.PlaceHolderText =
    "write your name"
           cont.Cell(
    2,1).AddComponent(nameinp)

    Case "StepA3Cont"
           cont.AddRowsM(
    2True,0,0,"").AddCells12(1,"")
           cont.BuildGrid
    ' IMPORTANT!
           Dim addresslbl As ABMLabel = ABMShared.BuildHeader(pageID & "addresslbl""Your address")
           cont.Cell(
    1,1).AddComponent(addresslbl)

    Dim addressinp As ABMInput
           addressinp.Initialize(
    pageID & "addressinp", ABM.INPUT_TEXT, "Address:"True"input")
           addressinp.PlaceHolderText =
    "write your address"
           cont.Cell(
    2,1).AddComponent(addressinp)

    Case "StepA4Cont"
           cont.AddRowsM(
    2True,0,0,"").AddCells12(1,"")
           cont.BuildGrid
    ' IMPORTANT!
           Dim termslbl As ABMLabel = ABMShared.BuildHeader(pageID & "termslbl""Terms and Conditions")
           cont.Cell(
    1,1).AddComponent(termslbl)

    Dim termslbl2 As ABMLabel = ABMShared.BuildParagraph(pageID & "termslbl2""Enjoy working with ABMaterial :-)")
           cont.Cell(
    1,1).AddComponent(termslbl2)

    Dim chk As ABMCheckbox
           chk.Initialize(
    pageID & "chk""I agree with Alwaysbusy!"False"checkbox")
           cont.Cell(
    2,1).AddComponent(chk)

    End Select

    Return cont
    End Sub

    ' helper method to set the states
    Sub SetWizardStepStates(wiz As ABMSmartWizard, Active As String, wizType As String)

    Dim ActiveInt As Int = Active.SubString(5)

    For i = 1 To ActiveInt - 1
         wiz.SetStepState(
    "step" & wizType & i, ABM.SMARTWIZARD_STATE_DONE)

    Next
       wiz.SetStepState(Active, ABM.SMARTWIZARD_STATE_ACTIVE)

    For i = ActiveInt + 1 To 5
         wiz.SetStepState(
    "step" & wizType & i, ABM.SMARTWIZARD_STATE_DISABLED)

    Next
    End Sub

    Sub wizA_NavigationToStep(fromReturnName As String, toReturnName As String)

    Dim wizA As ABMSmartWizard = page.Component("wizA")

    If fromReturnName.CompareTo(toReturnName) < 0 Then ' to the right
         Select Case fromReturnName

    Case "stepA1"

    Dim cont As ABMContainer = wizA.GetStep("StepA1")

    Dim emailinp As ABMInput = cont.Component("StepA1ContEmailInp")

    If emailinp.Text.IndexOf("@") = -1 Then
               wizA.SetStepState(
    "stepA1", ABM.SMARTWIZARD_STATE_ERROR)
               wizA.NavigateCancel(toReturnName)
    ' important
             Else
               SetWizardStepStates(wizA, toReturnName,
    "A")
               wizA.NavigateGoto(toReturnName)
    ' important
             End If

    Case "stepA2"

    Dim cont As ABMContainer = wizA.GetStep("StepA2")

    Dim nameinp As ABMInput = cont.Component("StepA2ContNameInp")

    If nameinp.Text = "" Then
               wizA.SetStepState(
    "stepA2", ABM.SMARTWIZARD_STATE_ERROR)
               wizA.NavigateCancel(toReturnName)
    ' important
             Else
               SetWizardStepStates(wizA, toReturnName,
    "A")
               wizA.NavigateGoto(toReturnName)
    ' important
             End If

    Case "stepA3"

    Dim cont As ABMContainer = wizA.GetStep("StepA3")

    Dim addressinp As ABMInput = cont.Component("StepA3ContAddressInp")

    If addressinp.Text = "" Then
               wizA.SetStepState(
    "stepA3", ABM.SMARTWIZARD_STATE_ERROR)
               wizA.NavigateCancel(toReturnName)
    ' important
             Else
               SetWizardStepStates(wizA, toReturnName,
    "A")
               wizA.NavigateGoto(toReturnName)
    ' important
             End If

    Case "stepA4"

    ' handled in NavigationFinished
         End Select

    Else If fromReturnName.CompareTo(toReturnName) > 0 Then ' to the left
         SetWizardStepStates(wizA, toReturnName, "A")
         wizA.NavigateGoto(toReturnName)
    ' important
       Else
         wizA.NavigateGoto(toReturnName)
    ' important
       End If
       wizA.Refresh
    ' important
    End Sub

    Sub wizA_NavigationFinished(ReturnName As String)

    Dim wizA As ABMSmartWizard = page.Component("wizA")

    Dim cont As ABMContainer = wizA.GetStep("StepA4")

    Dim chk As ABMCheckbox = cont.Component("StepA4ContChk")

    If chk.State = False Then
         wizA.SetStepState(
    "stepA4", ABM.SMARTWIZARD_STATE_ERROR)
         wizA.NavigateCancel(ReturnName)
    ' important
       Else

    ' reset the wizard
         cont = wizA.GetStep("StepA1")

    Dim emailinp As ABMInput = cont.Component("StepA1ContEmailInp")
         emailinp.Text =
    ""
         emailinp.Refresh
         cont = wizA.GetStep(
    "StepA2")

    Dim nameinp As ABMInput = cont.Component("StepA2ContNameInp")
         nameinp.Text =
    ""
         nameinp.Refresh
         cont = wizA.GetStep(
    "StepA3")

    Dim addressinp As ABMInput = cont.Component("StepA3ContAddressInp")
         addressinp.Text =
    ""
         addressinp.Refresh
         chk.State =
    False
         chk.Refresh
         SetWizardStepStates(wizA,
    "stepA1""A")
         wizA.NavigateGoto(
    "stepA1"' important
       End If
       wizA.Refresh
    ' important
    End Sub
    Release in a couple of days

  2. liulifeng77

    liulifeng77 Active Member Licensed User

    It's nice!

  3. Mashiane

    Mashiane Expert Licensed User

    Doing ABMaterial like a BOSS!!! I'm speechless, can't wait.

  4. Mashiane

    Mashiane Expert Licensed User

    Please touch on getting and setting the values or one just follows the same approach as in pages/modal sheets. I see myself having CRU (Create, Read, Update) functionality with this...

  5. alienhunter

    alienhunter Active Member Licensed User

    Hi
    how would i change the ABMSmartWizard height
    i want to have more items in there, tried to make the panel to a set height but it does not work stays the same
    thanks AH

  6. alienhunter

    alienhunter Active Member Licensed User

    I figured it out ... more items you add the height changes ..
    nice stuff
