B4J Tutorial [ABMaterial]: Sharing the goodness

Discussion in 'B4J Tutorials' started by Mashiane, May 11, 2017.

  1. Mashiane

    Mashiane Expert Licensed User

    Article 1: Generic Excel Importer Class for your ABMUpload component

    For my ABMaterial App, I needed a Ms Excel worksheet importer, so I decided to build one.

    For this, you will need the Poi libraries, available here..

    I have an ABMUpload component in my page, and a combobox to select my template, so when I drop a file there, it gets uploaded to the server and the excel importer code is fired. The ABMCombo is loaded up with the 'Description' column and the 'id' column of my templates table.

    My Page_FileUploaded method...

    Code:
    Sub Page_FileUploaded(FileName As String, success As Boolean)
        myToastId = myToastId +
    1

    If success Then

    page.ShowToast("toast" & myToastId, "toastgreen""File " & FileName & " uploaded!"3000)

    Else

    page.ShowToast("toast" & myToastId, "toastred""File " & FileName & " not uploaded!"3000)

    End If

    Dim actualFile As String = File.combine(File.DirApp, DownloadFolder & FileName)
        ExcelImportresources(actualFile)

    page.ws.Flush ' IMPORTANT
    End Sub
    This class assumes that you have a table that stores your template data, i.e. a structure or definition of the stuff you want to import, see figure 1 below:

    Figure 1


    Usage: Here I want to import Resources to the resources table, from the WB1, starting at row 1 and ending at row 10 of the worksheet. The data should be writtem to the firstname, lastname, dob and jobtitle fields in the table, from column A, B, E and F respectively, but read the column names should they change from the resourcename, surname, dateofbirth, job columns in the templates table.

    Code:
    Dim xls As clsExcelmporter
        xls.Initialize(
    "Resources Template","resources","WB1",1,10,True,True)
        xls.SetTemplate(
    "resourcestemplate","wsname","startrow","endrow")
        xls.AddColumn(
    "firstname","resourcename","","A")
        xls.addcolumn(
    "lastname","surname","","B")
        xls.addcolumn(
    "dob","dateofbirth","","E")
        xls.addcolumn(
    "jobtitle","job","","F")
        xls.Build(
    File.DirApp,"resources.txt")
    The output to copy and paste your ABMaterial project will be..

    Code:
    Sub ExcelImportresources(xlsFileName As String)

    'get the iym template to use
        Dim cboTemplate As ABMCombo = page.Component("cboTemplate")

    Dim tempID As Int = cboTemplate.GetActiveItemId

    If tempID <= 0 Then
            myToastId = myToastId +
    1

    page.ShowToast("toast" & myToastId, "toastred""The Resources Template should be selected first!"3000)

    Return

    End If

    If File.Exists("",xlsFileName) = False Then Return

    Dim jsql As SQL = ABMShared.sqlget

    'read the template from file and set the needed properties
        Dim temp As Map = ABMShared.SQLRecordRead(jsql,"resourcestemplate","id",tempID)

    If temp.IsInitialized = False Then
            myToastId = myToastId +
    1

    page.ShowToast("toast" & myToastId, "toastred""The Resources Template could not be read, please correct this!"3000)

    Return

    End If

    Dim worksheetname As String = temp.GetDefault("wsname","WB1")

    Dim startrow As Long = temp.GetDefault("startrow",1)
        startrow = startrow -
    1
    Dim endrow As Long = temp.GetDefault("endrow",10)
    'start processing the workbook
        Dim wb As PoiWorkbook

    'initialize an existing workbook
        wb.InitializeExisting("",xlsFileName,"")

    'get the worksheet names
        Dim wsl As List = wb.GetSheetNames

    'find the summary work sheet position
        Dim summaryPos As Int = wsl.IndexOf(worksheetname)

    If summaryPos = -1 Then Return

    'get the workbook
        Dim wSheet As PoiSheet = wb.GetSheet(summaryPos)

    Dim rCnt As Long

    Dim Records as List
        Records.initialize
    'Get the row positions for the fields
    'Get the column names (A-Z) for the fields
    Dim resourcenameCol As String = temp.GetDefault("resourcename","A")
    Dim surnameCol As String = temp.GetDefault("surname","B")
    Dim dateofbirthCol As String = temp.GetDefault("dateofbirth","E")
    Dim jobCol As String = temp.GetDefault("job","F")
    'Get the column positions (1..n) for the fields
    Dim resourcenameColPos As Int = ABMShared.GetColumnPos(resourcenameCol)
    Dim surnameColPos As Int = ABMShared.GetColumnPos(surnameCol)
    Dim dateofbirthColPos As Int = ABMShared.GetColumnPos(dateofbirthCol)
    Dim jobColPos As Int = ABMShared.GetColumnPos(jobCol)
    For rowCnt = startrow To endrow
    Dim resourcename As String = ABMShared.GetRowCellValue(wSheet,rowCnt, resourcenameCol)
    Dim surname As String = ABMShared.GetRowCellValue(wSheet,rowCnt, surnameCol)
    Dim dateofbirth As String = ABMShared.GetRowCellValue(wSheet,rowCnt, dateofbirthCol)
    Dim job As String = ABMShared.GetRowCellValue(wSheet,rowCnt, jobCol)
    'Create map To hold the record To add
    Dim record As Map
            record.initialize
    record.put(
    "firstname",resourcename)
    record.put(
    "lastname",surname)
    record.put(
    "dob",dateofbirth)
    record.put(
    "jobtitle",job)
    Records.Add(record)

    Next
    'Add all records to the table
    ABMShared.SQLRecordInsertMaps(jSQL,"resources",Records)
        ABMShared.SQLClose(jsql)
        myToastId = myToastId +
    1

    page.ShowToast("toast" & myToastId, "toastgreen""Resources Template data imported successfully!"3000)
    End Sub
    The additional methods on my ABMShared...

    Code:
    Sub PoiCellReturn(cell As PoiCell) As String

    If cell.IsInitialized = True Then

    Select Case cell.CellType

    Case cell.TYPE_NUMERIC

    Return cell.ValueNumeric

    Case cell.TYPE_STRING

    Return cell.ValueString

    Case cell.TYPE_FORMULA

    Return cell.ValueFormula

    Case cell.TYPE_BLANK

    Return ""

    Case cell.TYPE_BOOLEAN

    Return cell.ValueBoolean

    Case cell.TYPE_ERROR

    Return ""

    Case Else

    Return cell.Value

    End Select

    Else

    Return ""

    End If
    End Sub
    'return the column position
    Sub GetColumnPos(colAlpha As StringAs Int

    Select Case colAlpha.tolowercase

    Case "a"

    Return 1

    Case "b"

    Return 2

    Case "c"

    Return 3

    Case "d"

    Return 4

    Case "e"

    Return 5

    Case "f"

    Return 6

    Case "g"

    Return 7

    Case "h"

    Return 8

    Case "i"

    Return 9

    Case "j"

    Return 10

    Case "k"

    Return 11

    Case "l"

    Return 12

    Case "m"

    Return 13

    Case "n"

    Return 14

    Case "o"

    Return 15

    Case "p"

    Return 16

    Case "q"

    Return 17

    Case "r"

    Return 18

    Case "s"

    Return 19

    Case "t"

    Return 20

    Case "u"

    Return 21

    Case "v"

    Return 22

    Case "w"

    Return 23

    Case "x"

    Return 24

    Case "y"

    Return 25

    Case "z"

    Return 26

    Case "aa"

    Return 27

    Case "ab"

    Return 28

    Case "ac"

    Return 29

    Case "ad"

    Return 30

    Case "ae"

    Return 31

    Case "af"

    Return 32

    Case "ag"

    Return 33

    Case "ah"

    Return 34

    Case "ai"

    Return 35

    Case "aj"

    Return 36

    Case "ak"

    Return 37

    Case "al"

    Return 38

    Case "am"

    Return 39

    Case "an"

    Return 40

    Case "ao"

    Return 41

    Case "ap"

    Return 42

    Case "aq"

    Return 43

    Case "ar"

    Return 44

    Case "as"

    Return 45

    Case "at"

    Return 46

    Case "au"

    Return 47

    Case "av"

    Return 48

    Case "aw"

    Return 49

    Case "ax"

    Return 50

    Case "ay"

    Return 51

    Case "az"

    Return 52

    End Select
    End Sub
    Sub GetRowCellValue(ws As PoiSheet, rowpos As Int, colAlpha As StringAs String

    Dim cell As PoiCell = GetPoiCell(ws,rowpos,colAlpha)

    Return PoiCellReturn(cell)
    End Sub
    Sub GetPoiCell(ws As PoiSheet, rowPos As Int, colAlpha As StringAs PoiCell

    Try

    Dim rowP As Int = rowPos - 1

    Dim colP As Int = 0

    If IsNumber(colAlpha) = False Then
                colP = GetColumnPos(colAlpha) -
    1

    Else
                colP = colAlpha -
    1

    End If

    Dim row As PoiRow = ws.GetRow(rowP)
            row.IsInitialized

    Dim cell As PoiCell = row.GetCell(colP)
            cell.IsInitialized

    Return cell

    Catch

    Return Null

    End Try
    End Sub
    Code:
    Sub GetPoiCellValue(row As PoiRow, colAlpha As StringAs String

    Dim cell As PoiCell = GetPoiRowPoiCell(row,colAlpha)

    Return PoiCellReturn(cell)
    End Sub
    Sub GetPoiRow(ws As PoiSheet, rowPos As Int) As PoiRow

    Try

    Dim rowP As Int = rowPos - 1

    Dim row As PoiRow = ws.GetRow(rowP)
            row.IsInitialized

    Return row

    Catch

    Return Null

    End Try
    End Sub
    Sub GetPoiRowPoiCell(row As PoiRow, colAlpha As StringAs PoiCell

    Try

    Dim colP As Int = 0

    If IsNumber(colAlpha) = False Then
                colP = GetColumnPos(colAlpha) -
    1

    Else
                colP = colAlpha -
    1

    End If

    Dim cell As PoiCell = row.GetCell(colP)
            cell.IsInitialized

    Return cell

    Catch

    Return Null

    End Try
    End Sub
    Ta: Enjoy...


    Attached Files:

  2. Mashiane

    Mashiane Expert Licensed User

    Article 2: Overwriting files uploaded with ABMUpload.

    By just tweaking the Handle method of the ABMUploadHandler class, the files that you upload to your server can be overwritten. I had to do this for my app as each time I copied a file it said "Not Uploaded". This was achieved by checking if the file exists and then deleting it.

    Code:
    Sub Handle(req As ServletRequest, resp As ServletResponse)

    'get the callback page from the session (multiple modules can use this handler)
        Dim callback As Object = req.GetSession.GetAttribute("abmcallback")

    Dim downloadfolder As String = File.Combine(File.DirApp, req.GetSession.GetAttribute("abmdownloadfolder"))

    Dim MaxSize As Int

    Try
            MaxSize = req.GetSession.GetAttribute(
    "abmmaxsize")

    Catch
            resp.SendError(
    500LastException.Message)

    Return

    End Try

    Dim data As Map

    Dim fileName As String

    Dim tmpFileName As String

    Try
            data = req.GetMultipartData(downloadfolder, MaxSize)

    Dim filePart As Part = data.Get("upl")

    If filePart.IsInitialized Then
                fileName =     filePart.SubmittedFilename
                tmpFileName = filePart.TempFile

    If File.Exists(downloadfolder,fileName) = True Then

    File.Delete(downloadfolder,fileName)

    End If

    If ABM.HandleUpload(downloadfolder, tmpFileName, fileName) Then

    If SubExists(callback, "Page_FileUploaded"Then
                        CallSubDelayed3(callback,
    "Page_FileUploaded", fileName, True)

    End If

    Else
                    resp.SendError(
    500"Error")

    'If SubExists(callback, "Page_FileUploaded") Then
                    '    CallSubDelayed3(callback, "Page_FileUploaded", fileName, False)
                    'End If
                End If

    Else ' try image
                Dim filePart As Part = data.Get("imageFromCanvas")
                fileName = filePart.SubmittedFilename
                tmpFileName = filePart.TempFile

    If File.Exists(downloadfolder,fileName) = True Then

    File.Delete(downloadfolder,fileName)

    End If

    If ABM.HandleUpload(downloadfolder, tmpFileName, fileName) Then

    If SubExists(callback, "Page_FileUploaded"Then
                        CallSubDelayed3(callback,
    "Page_FileUploaded", fileName, True)

    End If

    Else

    If SubExists(callback, "Page_FileUploaded"Then
                        CallSubDelayed3(callback,
    "Page_FileUploaded", fileName, False)

    End If

    End If

    End If

    Catch
            resp.SendError(
    500LastException.Message)

    If SubExists(callback, "Page_FileUploaded"Then
                CallSubDelayed3(callback,
    "Page_FileUploaded"LastException.Message , False)

    End If

    End Try
    End Sub

    Cableguy likes this.
  3. Mashiane

    Mashiane Expert Licensed User

    'Description: extract all elements in a page. Able to view ids and properies and styles etc.
    'Tag: loop through page elements...

    Code:
    Sub ABMGetElements(page As ABMPage)

    Dim s As String = $"var elems = document.body.getElementsByTagName("*");
        ret=new Array();
        for (var i=0, max=elems.length; i < max; i++) {
         // Do something with the element here
         ret.push(elems[i]);
        }
        console.log(ret);"$


    page.ws.Eval(s,Null)
    End Sub
    This writes code to your internet explorer console.

  4. Mashiane

    Mashiane Expert Licensed User

  5. Harris

    Harris Well-Known Member Licensed User


    That's funny, I tried the same thing - using same code.
    If the file exists in the download folder (which I create for each new client) - delete it. Then download the new copy.
    It would often give me (File Not Downloaded). I think server still showed file existed prior to deletion completion.
    I think a better option would be Alert (msgbox2) - File name already exists - Overwrite? (yes, no)? Delete file, and callback success to add new file.

    OR - simply overwrite existing file with no warning (which it won't do currently).
    The existing file (name) may be a PDF with a phone number change. In a current session, it won't overwrite.
    Create a new session (next day after log out), and it seems to replace existing file just fine?

    Thanks

  6. Mashiane

    Mashiane Expert Licensed User

    A class that you can use in your ABMaterial project to refer to all your Font Awesome Icons.

    Code:
    Dim FA as FAIcons
    FA.Initialize

    'usage
    ...IconName = FA.fa_align_right


    Attached Files:

    Molchyn likes this.
  7. Mashiane

    Mashiane Expert Licensed User

    A class that you can use in your ABMaterial app and refer to all Google Icons

    Code:
    Dim ggle as GGLIcons

    ggle.Initialize

    ...IconName = ggle.ggle_add


    Attached Files:

    Molchyn likes this.
  8. Mashiane

    Mashiane Expert Licensed User

    A class that you can use in your ABMaterial app and refer to all MDI icons..

    Code:
    Dim mdi as MDIIcons
    mdi.Initialize

    ...IconName = mdi.mdi_add_alert


    Attached Files:

    Molchyn likes this.
  9. Mashiane

    Mashiane Expert Licensed User

    Setting, Getting Text and HTML in ABMaterial components... i.e. JQueryElement

    Code:
    'Description, get the text value of a component.
    Tag: ABMaterial, getText, JQueryElement
    public Sub GetText(page As ABMPage, id As StringAs String

    Try

    id = id.tolowercase

    Dim jqe As JQueryElement = page.ws.GetElementById(id)

    Return jqe.GetText.value

    Catch

    Return ""

    End Try
    End Sub

    'Description: Set the text of a component
    'Tag: ABMaterial, text, set, JQueryElement
    public Sub SetText(page As ABMPage, id As String, value As String)

    Try

    id = id.tolowercase

    Dim jqe As JQueryElement = page.ws.GetElementById(id)
            jqe.SetText(value)

    Catch

    End Try
    End Sub

    'Description: Get the html value of a component
    'Tag: ABMaterial, JQueryElement, get HTML
    public Sub GetHTML(page As ABMPage, id As StringAs String

    Try

    id = id.tolowercase

    Dim jqe As JQueryElement = page.ws.GetElementById(id)

    Return jqe.GetHtml.value

    Catch

    Return ""

    End Try
    End Sub

    'Description: Set the html value of a component
    'Tag: ABMaterial, setHTML, jQueryElement
    public Sub SetHTML(page As ABMPage, id As String, value As String)

    Try

    id = id.tolowercase

    Dim jqe As JQueryElement = page.ws.GetElementById(id)
            jqe.SetHtml(value)

    Catch

    End Try
    End Sub

    Molchyn likes this.
  10. alwaysbusy

    alwaysbusy Expert Licensed User

    Although these last methods can be useful in some cases, beware that using this skips some inner workings of ABM (e.g. when using this to set a value, but you retrieve the value later on using the conventional ABM properties can give wrong (or the old) results. Note that ABM uses also futures in the library.

    Mashiane likes this.
  11. Mashiane

    Mashiane Expert Licensed User

    So I keep misplacing this code... copy files from File.DirAssets to Target folder

    Code:
    'Description: Found in the forum
    Sub WebViewAssetFile (FileName As StringAs String

    #if B4J
        Return File.GetUri(File.DirAssets, FileName)
       #Else If B4A
         Dim jo As JavaObject
         jo.InitializeStatic("anywheresoftware.b4a.objects.streams.File")
         If jo.GetField("virtualAssetsFolder") = Null Then
           Return "file:///android_asset/" & FileName.ToLowerCase
         Else
           Return "file://" & File.Combine(jo.GetField("virtualAssetsFolder"), _
           jo.RunMethod("getUnpackedVirtualAssetFile", Array As Object(FileName)))
         End If
       #Else If B4i
         Return $"file://${File.Combine(File.DirAssets, FileName)}"$

    #End If
    End Sub
    Code:
    Description: Copy file from assets folder to target folder
    'Tag: File.DirAssets, CopyFile
    Public Sub File_CopyFileFromAssets(FileName As String,TargetDir As StringAs Boolean

    Dim Inp As InputStream = File.OpenInput(File.DirAssets, FileName)

    Dim outp As OutputStream = File.OpenOutput(TargetDir, FileName, False)

    File.Copy2(Inp, outp)
        outp.Close
        Inp.close

    Return File.Exists(TargetDir,FileName)
    End Sub
    Usage

    Code:
    If WebViewAssetFile("xxx.me") <> "" then
    File_CopyFileFromAssets(
    "xxx.me",File.DirApp)
    end If

  12. Mashiane

    Mashiane Expert Licensed User

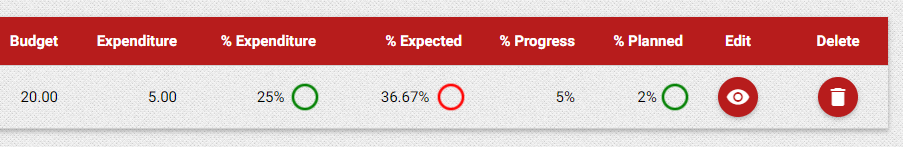

    This is a small snippet show add text and an image for KPI on a table...


    Define your theme...

    Code:
    MyTheme.AddCellTheme("centercontent")
        MyTheme.Cell(
    "centercontent").align = ABM.CELL_ALIGN_CENTER

        MyTheme.AddCellTheme(
    "rightcontent")
        MyTheme.Cell(
    "rightcontent").align = ABM.CELL_ALIGN_RIGHT
    These can be put on ABMShared

    Code:
    public Sub ABMImageBuild(page As ABMPage,id As String,imgPath As String,opacity As Double,bResponsive As Boolean,bMaterialBoxed As Boolean,sCaption As String, sAlt As String, bCircular As Boolean, bClickable As Boolean,bFixed As String, sWidth As String, sHeight As StringAs ABMImage

    Dim img As ABMImage
        img.Initialize(
    pageid, imgPath & "?" & DateTime.Now, opacity)
        img.IsResponsive = bResponsive
        img.IsMaterialBoxed = bMaterialBoxed
        img.Caption = sCaption
        img.Alt = sAlt
        img.IsCircular = bCircular
        img.IsClickable = bClickable

    If bFixed = "1" Or bFixed = True Then
            img.SetFixedSize(sWidth,sHeight)

    End If

    Return img
    End Sub

    Sub ABMTextImageRight(page As ABMPage, id As String, text As String, img As String,bFixed As Boolean,iWidth As String,iHeight As StringAs ABMContainer

    Dim ItemCont As ABMContainer
        ItemCont.Initialize(
    pageid"")
        ItemCont.AddRowsM(
    1,False,0,0"").AddCellsOSMP(1,0,0,0,10,10,10,0,0,0,10,"rightcontent").AddCellsOSMP(1,0,0,0,2,2,2,10,0,5,5,"centercontent")
        ItemCont.BuildGrid
    'IMPORTANT once you loaded the complete grid AND before you start adding components
        Dim lbl As ABMLabel
        lbl.Initialize(
    pageid & "lbl", text, ABM.SIZE_PARAGRAPH, False"")
        ItemCont.Cell(
    1,1).AddComponent(lbl)

    Dim badge As ABMImage = ABMImageBuild(page,id & "img",img,1,False,False,"","",False,False,bFixed,iWidth,iHeight)
        ItemCont.Cell(
    1,2).AddComponent(badge)

    Return ItemCont
    End Sub
    Then when adding rows to your ABMTable , retrieve the contents from the db, on the db I have a URL link to the kpi to use on my RAG scale (Red, Amber, Green)

    Code:
    Dim percentageexpenditure As String = resMap.GetDefault("percentageexpenditure""0")

    Dim budgetimage As String = resMap.GetDefault("budgetimage","../images/gray.png")

    If percentageexpenditure = "" Then
                rCellValues.Add(
    "{NBSP}")

    Else

    '*** Start output format
                percentageexpenditure = ABMShared.percentage(percentageexpenditure)

    Dim abmc As ABMContainer = ABMShared.ABMTextImageRight(page,id,percentageexpenditure,budgetimage,True,32,32)

    '*** End output format
                rCellValues.Add(abmc)

    End If

  13. Mashiane

    Mashiane Expert Licensed User

    Description: Creating self referencing AutoComplete text fields.

    In my people page, at times the entries will have the same company name, job title or project role. I did not want to create lists for these and thought of having the list of auto complete text fields generated from whatever has been saved on the same table.

    When the modal sheet opens, it gets cleared. This also loads the current existing records for the named auto complete text fields in the table. This code snippet shows how I have achieved this easily. I have defined variables for each of the input fields as their source content might change.

    Code:
    Sub msgenpeopleClear()

    'Get connection from current pool if MySQL/MSSQL
        Dim jSQL As SQL = ABMShared.SQLGet

    Dim rsTot As Int

    Dim rsCnt As Int

    Dim results As List

    Dim msgenpeople As ABMModalSheet
        msgenpeople =
    page.ModalSheet("msgenpeople")

    Dim imgprofileimg As ABMImage = msgenpeople.Content.Component("imgprofileimg")

    Dim fileinpprofileupl As ABMFileInput = msgenpeople.Content.Component("fileinpprofileupl")

    Dim txtfullname As ABMInput = msgenpeople.Content.Component("txtfullname")

    Dim txtinstitution As ABMInput = msgenpeople.Content.Component("txtinstitution")

    Dim txtjobtitle As ABMInput = msgenpeople.Content.Component("txtjobtitle")

    Dim txtprojectrole As ABMInput = msgenpeople.Content.Component("txtprojectrole")

    Dim txtemailaddress As ABMInput = msgenpeople.Content.Component("txtemailaddress")

    Dim txtmobilephone As ABMInput = msgenpeople.Content.Component("txtmobilephone")
        imgprofileimg.Source =
    "../images/User_96px.png" & "?" & DateTime.Now
        imgprofileimg.Refresh
        fileinpprofileupl.Clear
        fileinpprofileupl.Refresh

    Dim txtfullnameContents As String
        txtfullnameContents =
    ""
        txtfullname.Text = txtfullnameContents
        txtfullname.Refresh

    Dim txtinstitutionContents As String
        txtinstitutionContents =
    ""
        txtinstitution.ClearAutoComplete
        results = ABMShared.SQLExecuteMaps(jSQL,
    "select distinct institution from people order by institution"Null)

    'Loop throught each record read and process it
        rsTot = results.size - 1

    For rsCnt = 0 To rsTot

    'Get each record to process as a map
            Dim resMap As Map = results.get(rsCnt)

    Dim sinstitution As String = resMap.GetDefault("institution","")
            txtinstitution.AddAutoComplete(sinstitution,sinstitution)

    Next
        txtinstitution.Text = txtinstitutionContents
        txtinstitution.Refresh

    Dim txtjobtitleContents As String
        txtjobtitleContents =
    ""
        txtjobtitle.ClearAutoComplete
        results = ABMShared.SQLExecuteMaps(jSQL,
    "select distinct jobtitle from people order by jobtitle"Null)

    'Loop throught each record read and process it
        rsTot = results.size - 1

    For rsCnt = 0 To rsTot

    'Get each record to process as a map
            Dim resMap As Map = results.get(rsCnt)

    Dim sjobtitle As String = resMap.GetDefault("jobtitle","")
            txtjobtitle.AddAutoComplete(sjobtitle,sjobtitle)

    Next
        txtjobtitle.Text = txtjobtitleContents
        txtjobtitle.Refresh

    Dim txtprojectroleContents As String
        txtprojectroleContents =
    ""
        txtprojectrole.ClearAutoComplete
        results = ABMShared.SQLExecuteMaps(jSQL,
    "select distinct projectrole from people order by projectrole"Null)

    'Loop throught each record read and process it
        rsTot = results.size - 1

    For rsCnt = 0 To rsTot

    'Get each record to process as a map
            Dim resMap As Map = results.get(rsCnt)

    Dim sprojectrole As String = resMap.GetDefault("projectrole","")
            txtprojectrole.AddAutoComplete(sprojectrole,sprojectrole)

    Next
        txtprojectrole.Text = txtprojectroleContents
        txtprojectrole.Refresh

    Dim txtemailaddressContents As String
        txtemailaddressContents =
    ""
        txtemailaddress.Text = txtemailaddressContents
        txtemailaddress.Refresh

    Dim txtmobilephoneContents As String
        txtmobilephoneContents =
    ""
        txtmobilephone.Text = txtmobilephoneContents
        txtmobilephone.Refresh

    'Close the connection to the database
        ABMShared.SQLClose(jSQL)
    End Sub

    Johan Hormaza likes this.
  14. Mashiane

    Mashiane Expert Licensed User

    Using the ABM.SetStyleProperty, you can adjust the width of the ABMFileInput to fit the cell with..

    Code:
    ABM.SetStyleProperty(page,"fileinpimportrejectionletterbutton","width""100%")
    The ABMFileInput should have been initialized with "fileinpimportrejectionletter"

    Do this after Page.Refresh

    TA!

  15. Mashiane

    Mashiane Expert Licensed User

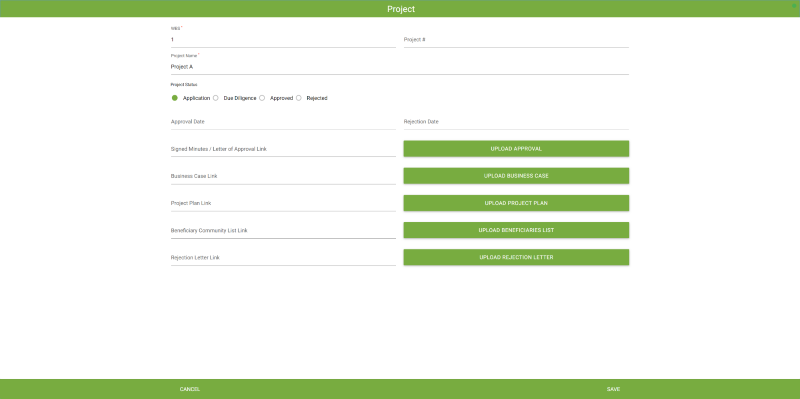

    Handling different ABMFileInput controls.


    I have about 5 ABMInput controls, each time one is clicked, I need to determine with one was clicked to upload a file and then upload the file and then update a particular text field.

    1. For each ABMInput_Change event, note that these are in the same modal sheet.

    Code:
    Sub fileinpimportbusinesscase_Changed(value As String)

    'Save the current active component in case there are multiple components
        ABMShared.SessionStorageSave(page"fileinput""fileinpimportbusinesscase")

    Dim msgenprojects As ABMModalSheet
        msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportbusinesscase As ABMFileInput = msgenprojects.Content.Component("fileinpimportbusinesscase")
        fileinpimportbusinesscase.UploadToServer
    'Here the file is uploading
    End Sub
    Code:
    Sub fileinpimportcommunitylist_Changed(value As String)

    'Save the current active component in case there are multiple components
        ABMShared.SessionStorageSave(page"fileinput""fileinpimportcommunitylist")

    Dim msgenprojects As ABMModalSheet
        msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportcommunitylist As ABMFileInput = msgenprojects.Content.Component("fileinpimportcommunitylist")
        fileinpimportcommunitylist.UploadToServer
    'Here the file is uploading
    End Sub
    Code:
    Sub fileinpimportletterofapproval_Changed(value As String)

    'Save the current active component in case there are multiple components
        ABMShared.SessionStorageSave(page"fileinput""fileinpimportletterofapproval")

    Dim msgenprojects As ABMModalSheet
        msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportletterofapproval As ABMFileInput = msgenprojects.Content.Component("fileinpimportletterofapproval")
        fileinpimportletterofapproval.UploadToServer
    'Here the file is uploading
    End Sub
    Code:
    Sub fileinpimportprojectplan_Changed(value As String)

    'Save the current active component in case there are multiple components
        ABMShared.SessionStorageSave(page"fileinput""fileinpimportprojectplan")

    Dim msgenprojects As ABMModalSheet
        msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportprojectplan As ABMFileInput = msgenprojects.Content.Component("fileinpimportprojectplan")
        fileinpimportprojectplan.UploadToServer
    'Here the file is uploading
    End Sub
    Code:
    Sub fileinpimportrejectionletter_Changed(value As String)

    'Save the current active component in case there are multiple components
        ABMShared.SessionStorageSave(page"fileinput""fileinpimportrejectionletter")

    Dim msgenprojects As ABMModalSheet
        msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportrejectionletter As ABMFileInput = msgenprojects.Content.Component("fileinpimportrejectionletter")
        fileinpimportrejectionletter.UploadToServer
    'Here the file is uploading
    End Sub
    What I do is to save the "fileinput" variable with the component id to the session. Then on Page_FileUpload I read this session variable to determine which control was last used...

    Code:
    Sub Page_FileUploaded(FileName As String, success As Boolean)

    If success Then
            ABMShared.Inform(
    page,"File " & FileName & " uploaded!")
            uploads = uploads +
    1

    Else
            ABMShared.Warn(
    page,"File " & FileName & " not uploaded!")

    page.ws.Flush

    return

    End If

    Dim actualFile As String = File.combine(File.DirApp, DownloadFolder & FileName)

    dim serverFile As String = ServerFolder & filename

    page.ws.Flush ' IMPORTANT
        Dim whichFile As String = ABMShared.SessionStorageRead(page"fileinput")

    If whichFile = "fileinpimportletterofapproval" Then

    Dim msgenprojects As ABMModalSheet
            msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportletterofapproval As ABMFileInput = msgenprojects.Content.Component("fileinpimportletterofapproval")
            fileinpimportletterofapproval.Clear

    End If

    If whichFile = "fileinpimportbusinesscase" Then

    Dim msgenprojects As ABMModalSheet
            msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportbusinesscase As ABMFileInput = msgenprojects.Content.Component("fileinpimportbusinesscase")
            fileinpimportbusinesscase.Clear

    End If

    If whichFile = "fileinpimportprojectplan" Then

    Dim msgenprojects As ABMModalSheet
            msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportprojectplan As ABMFileInput = msgenprojects.Content.Component("fileinpimportprojectplan")
            fileinpimportprojectplan.Clear

    End If

    If whichFile = "fileinpimportcommunitylist" Then

    Dim msgenprojects As ABMModalSheet
            msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportcommunitylist As ABMFileInput = msgenprojects.Content.Component("fileinpimportcommunitylist")
            fileinpimportcommunitylist.Clear

    End If

    If whichFile = "fileinpimportrejectionletter" Then

    Dim msgenprojects As ABMModalSheet
            msgenprojects =
    page.ModalSheet("msgenprojects")

    Dim fileinpimportrejectionletter As ABMFileInput = msgenprojects.Content.Component("fileinpimportrejectionletter")
            fileinpimportrejectionletter.Clear

    End If
    End Sub
    Now I will just add code to update the respective text controls for each time a file is uploaded. Cool

    Don Oso, joulongleu and Johan Hormaza like this.
  16. Mashiane

    Mashiane Expert Licensed User

    If you click the ABMInput button and upload the same file, it does not work on subsequent calls.

    Calling this method and passing the "initialize" variable name of the control just after you call a .Clear of the control enables this to work..

    Code:
    'clear the file input control
    Sub FileInputClear(page As ABMPage, id As String)

    Dim xKey As String = $"${id}buttoninput"$

    Dim script As String = $"var ${id}files = document.getElementById('${xKey}');
        ${
    id}files.value=null;"$

    page.ws.Eval(script, Array As String(xKey))
    End Sub

    joulongleu and Johan Hormaza like this.
  17. Mashiane

    Mashiane Expert Licensed User

    Ola

    You probably already have these functions somewhere and I know you will understand what they mean and do... anyway here is my implementation

    Code:
    Sub ABMSetBold(value As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{B}").Append(value).Append("{/B}")

    Return sb.tostring
    End Sub

    Sub ABMSetItalic(value As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{I}").Append(value).Append("{/I}")

    Return sb.tostring
    End Sub

    Sub ABMSetUnderline(value As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{U}").Append(value).Append("{/U}")

    Return sb.tostring
    End Sub

    Sub ABMSetSubScript(value As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{SUB}").Append(value).Append("{/SUB}")

    Return sb.tostring
    End Sub

    Sub ABMSetSuperScript(value As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{SUP}").Append(value).Append("{/SUP}")

    Return sb.tostring
    End Sub

    Sub ABMSetCode(value As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{CODE}").Append(value).Append("{/CODE}")

    Return sb.tostring
    End Sub

    Sub ABMSetColor(value As String,HexColor As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    $"{C:${HexColor}}${value}{/C}"$)

    Return sb.tostring
    End Sub

    Sub ABMSetColorIntensity(value As String,Color As String,Intensity As StringAs String

    'convert color + intensity to hex
        Dim hexValue As String = ABM.ABMColorToHex(Color, Intensity)

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    $"{C:${hexValue}}${value}{/C}"$)

    Return sb.tostring
    End Sub

    Sub ABMSetIconColorIntensity(icon As String,Color As String,Intensity As StringAs String

    'convert color + intensity to hex
        Dim hexValue As String = ABM.ABMColorToHex(Color, Intensity)

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    $"{IC:${hexValue}}${icon}{/IC}"$)

    Return sb.tostring
    End Sub

    Sub ABMSetIconColor(icon As String,HexColor As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    $"{IC:${HexColor}}${icon}{/IC}"$)

    Return sb.tostring
    End Sub

    Sub ABMSetStyle(CSS As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    "{ST:").Append(CSS).Append("{/ST}")

    Return sb.tostring
    End Sub

    Hey, check MashCSS on how you can build your css quickly

    Sub ABMSetBreak(value) As String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(value).Append(
    "{BR}")

    Return sb.tostring
    End Sub

    Sub ABMSetWideBreak(value) As String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(value).Append(
    "{WBR}")

    Return sb.tostring
    End Sub

    Sub ABMSetSpace(value) As String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(value).Append(
    "{NBSP}")

    Return sb.tostring
    End Sub

    Sub ABMSetHyperLink(Title As String, URL As StringAs String

    Dim sb As StringBuilder
        sb.Initialize
        sb.Append(
    $"{AL}${URL}{AT}${Title}{/AL}"$)

    Return sb.tostring
    End Sub

    Harris and joulongleu like this.
Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
