AHActionBar Library

corwin42 · May 10, 2013

yttrium said:
Does this action bar support the "up a level" navigation feature?
Implementing Ancestral Navigation | Android Developers
Navigation with Back and Up | Android Developers

There is a "ShowHomeAsUp" option. But it looks a bit different than in the standard Android 3+ Actionbar.

yttrium · May 10, 2013

corwin42 said:
There is a "ShowHomeAsUp" option. But it looks a bit different than in the standard Android 3+ Actionbar.

How so? Can I customize/intercept its action?

Oh, and can you reply to this?
http://www.b4x.com/forum/additional...hpreferenceactivity-library-7.html#post167967

PaulD · May 29, 2013

Setting the background color in the ActionBar

Try as I might... I have not been able to change the background color from the Red.... I don't even see where the Red is coming from?

HElp?

ab.Background = Colors.Green ?? No work...

Any thoughts?
:sign0104:

Richard Goh · Sep 19, 2013

Hi. I was trying to integrate the AHQuickAction function in my test program by using the Activity.AddMenuItem3() item instead of using button. When I clicked on the menuitem, the program hit the below error. My program was added a CustomListView by using Activity.AddView(CustomListView, x,x,x)

main_menu_click (B4A line: 296)
ac1.show(Sender)
java.lang.ClassCastException: java.lang.String cannot be cast to android.view.View
at b4a.test.main._menu_click(main.java:1033)
at java.lang.reflect.Method.invokeNative(Native Method)
at java.lang.reflect.Method.invoke(Method.java:511)
at anywheresoftware.b4a.BA.raiseEvent2(BA.java:169)
at anywheresoftware.b4a.BA.raiseEvent(BA.java:153)
at b4a.test.main$B4AMenuItemsClickListener.onMenuItemClick(main.java:142)
at com.android.internal.view.menu.MenuItemImpl.invoke(MenuItemImpl.java:144)
at com.android.internal.view.menu.MenuBuilder.performItemAction(MenuBuilder.java:874)
at com.android.internal.view.menu.ActionMenuView.invokeItem(ActionMenuView.java:603)
at com.android.internal.view.menu.ActionMenuItemView.onClick(ActionMenuItemView.java:163)
at android.view.View.performClick(View.java:4262)
at android.view.View$PerformClick.run(View.java:17351)
at android.os.Handler.handleCallback(Handler.java:615)
at android.os.Handler.dispatchMessage(Handler.java:92)
at android.os.Looper.loop(Looper.java:137)
at android.app.ActivityThread.main(ActivityThread.java:4935)
at java.lang.reflect.Method.invokeNative(Native Method)
at java.lang.reflect.Method.invoke(Method.java:511)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller.run(ZygoteInit.java:1038)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:805)
at dalvik.system.NativeStart.main(Native Method)

corwin42 · Sep 19, 2013

If you click a menu item then the sender is not a view but a simple string (The Menu text).

You have to place a dummy view (panel) somewhere on the screen and use this as an anchor object for the QuickAction.

Richard Goh · Sep 20, 2013

Hi Corwin,
thanks for your reply. I had tested with button and it's working. But can't when using MenuItem on Activity title, added using Activity.AddMenuItem3() function. Is there any refererences or sample code I can refer to?
thanks.

corwin42 · Sep 30, 2013

Here I wrote an answer to the problem. You may want to change the position of the dummy panel or make it invisible etc.

Dario126 · Jan 9, 2014

Why this code works ok in debug mode, and not in relase?

B4X:

'Part from Sub Global:

    Dim AB As ClsActionBar
    Dim PopupMenu1 As AHPopupMenu
    Dim PopupPatrolType As AHQuickAction3D


'Part from Activity_create:

    PopupMenu1.Initialize("PopupMenu1")
    AddAHActionMenuItem(PopupMenu1, 1, "STOP", "Icon Stop.png", False)    'THIS IS WHERE IT STOPS WITH ERROR
    AddAHActionMenuItem(PopupMenu1, 2, "Settings", "Icon Settings.png", False)
    AddAHActionMenuItem(PopupMenu1, 3, "About App & OS MAPS", "Icon About.png", False)


'Custom Sub to add items

Sub AddAHActionMenuItem(MenuObject As View, ItemIndex As Int, Text As String, IconFileName As String, Sticky As Boolean)

    Dim ai As AHActionItem
    Dim Icon As BitmapDrawable
    Icon.Initialize(LoadBitmap(File.DirAssets, IconFileName))

    ai.Initialize(ItemIndex, Text, Icon)

    If Sticky Then ai.Sticky = True

    'Add the item to menu
    Dim obj As AHQuickAction
    obj=MenuObject
    obj.AddActionItem(ai)

End Sub

I get this error:

B4A line: 127
AddAHActionMenuItem(PopupMenu1, 1, \
javac 1.7.0_10
src\com\omgpolice\main.java:386: error: inconvertible types
_addahactionmenuitem((anywheresoftware.b4a.objects.ConcreteViewWrapper) anywheresoftware.b4a.AbsObjectWrapper.ConvertToWrapper(new anywheresoftware.b4a.objects.ConcreteViewWrapper(), (android.view.View)(mostCurrent._popupmenu1)),(int) (1),"Project1","Icon Stop.png",anywheresoftware.b4a.keywords.Common.False);
^
required: View
found: ICSMenu

Where is mistake?

I was trying to make sub to easily add new items. Why this is not implemented or I'm missing it?

chrjak · Mar 2, 2014

I tried your introduction 3 times and always i get this:

B4X:

res\values\ahab_colors.xml:17: error: Resource at actionbar_divider appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:18: error: Resource at actionbar_title appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:19: error: Resource at actionbar_subtitle appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:20: error: Resource at actionbar_background_start appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:21: error: Resource at actionbar_background_end appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:22: error: Resource at actionbar_background_dropdown_start appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:23: error: Resource at actionbar_background_dropdown_end appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:24: error: Resource at actionbar_background_item_pressed_start appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:25: error: Resource at actionbar_background_item_pressed_end appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_colors.xml:26: error: Resource at actionbar_tab_bar_background appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_dimens.xml:17: error: Resource at actionbar_height appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_dimens.xml:18: error: Resource at actionbar_item_height appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_dimens.xml:19: error: Resource at actionbar_item_width appears in overlay but not in the base package; use <add-resource> to add.
res\values\ahab_ids.xml:4: error: Resource at actionbar_item_home appears in overlay but not in the base package; use <add-resource> to add.
res\layout\ahab_actionbar.xml:16: error: Error: No resource found that matches the given name (at 'layout_height' with value '@dimen/actionbar_height').
res\layout\ahab_actionbar.xml:49: error: Error: No resource found that matches the given name (at 'background' with value '@color/actionbar_divider').
res\layout\ahab_actionbar.xml:72: error: Error: No resource found that matches the given name (at 'background' with value '@color/actionbar_divider').
res\layout\ahab_actionbar.xml:102: error: Error: No resource found that matches the given name (at 'textColor' with value '@color/actionbar_title').
res\layout\ahab_actionbar.xml:121: error: Error: No resource found that matches the given name (at 'textColor' with value '@color/actionbar_subtitle').
res\layout\ahab_actionbar.xml:172: error: Error: No resource found that matches the given name (at 'background' with value '@color/actionbar_tab_bar_background').
res\layout\ahab_item.xml:16: error: Error: No resource found that matches the given name (at 'layout_width' with value '@dimen/actionbar_item_width').
res\layout\ahab_item_home.xml:16: error: Error: No resource found that matches the given name (at 'layout_width' with value '@dimen/actionbar_item_width').
res\layout\ahab_list_dropdown_item.xml:3: error: Error: No resource found that matches the given name (at 'layout_height' with value '@dimen/actionbar_height').
res\layout\ahab_list_dropdown_item.xml:3: error: Error: No resource found that matches the given name (at 'textColor' with value '@color/actionbar_title').
res\layout\ahab_tab.xml:35: error: Error: No resource found that matches the given name (at 'textColor' with value '@color/actionbar_title').
res\layout\ahab_title.xml:3: error: Error: No resource found that matches the given name (at 'layout_height' with value '@dimen/actionbar_height').
res\layout\ahab_title.xml:3: error: Error: No resource found that matches the given name (at 'textColor' with value '@color/actionbar_title').
res\drawable\ahab_background.xml:18: error: Error: No resource found that matches the given name (at 'startColor' with value '@color/actionbar_background_start').
res\drawable\ahab_background.xml:18: error: Error: No resource found that matches the given name (at 'endColor' with value '@color/actionbar_background_end').
res\drawable\ahab_background_dropdown.xml:18: error: Error: No resource found that matches the given name (at 'startColor' with value '@color/actionbar_background_dropdown_start').
res\drawable\ahab_background_dropdown.xml:18: error: Error: No resource found that matches the given name (at 'endColor' with value '@color/actionbar_background_dropdown_end').
res\drawable\ahab_btn_normal.xml:18: error: Error: No resource found that matches the given name (at 'startColor' with value '@color/actionbar_background_start').
res\drawable\ahab_btn_normal.xml:18: error: Error: No resource found that matches the given name (at 'endColor' with value '@color/actionbar_background_end').
res\drawable\ahab_btn_pressed.xml:18: error: Error: No resource found that matches the given name (at 'startColor' with value '@color/actionbar_background_item_pressed_start').
res\drawable\ahab_btn_pressed.xml:18: error: Error: No resource found that matches the given name (at 'endColor' with value '@color/actionbar_background_item_pressed_end').

Edit: Wie ich gerade sehe bist du aus Deutschland

Also ich hab alles gemacht, wie du gesagt hast aber bei "Generating R File" kommt immer das da oben. Ich konnte allerdings schon einmal deine Actionbar erfolgreich nutzen. Jetzt gehts egal, was ich mache in meinem neuen Projekt nicht mehr!?
Grüße
P.S. Gute Arbeit!
Edit: works now. It was a b4a v. 3.2 bug. Erel- please solve this

corwin42 · Mar 3, 2014

chrjak said:
Edit: Wie ich gerade sehe bist du aus Deutschland
Also ich hab alles gemacht, wie du gesagt hast aber bei "Generating R File" kommt immer das da oben. Ich konnte allerdings schon einmal deine Actionbar erfolgreich nutzen. Jetzt gehts egal, was ich mache in meinem neuen Projekt nicht mehr!?
Grüße
P.S. Gute Arbeit!
Edit: works now. It was a b4a v. 3.2 bug. Erel- please solve this

Yes, it's a problem with the 3.20 version of B4A if you use the #AdditionalRes attribute. Will be solved in B4A 3.50.

little3399 · Jun 16, 2014

Hi,corwin42

little3399 · Jun 23, 2014

Hi,

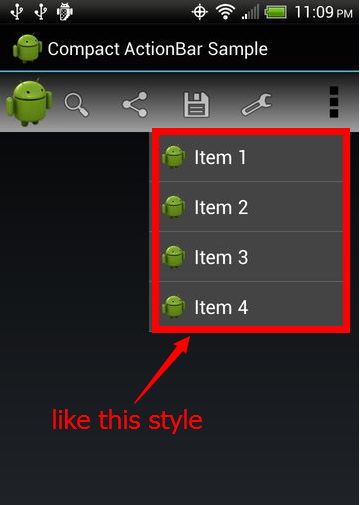

Does the AhActionbar Lib can be implemented the drop-down menu , such as like this , TKS

corwin42 · Jun 23, 2014

little3399 said:
Hi,
Does the AhActionbar Lib can be implemented the drop-down menu , such as like this , TKS

View attachment 25847

You can use AHQuickaction library for adding a PopupMenu style menu like the above.

I currently recommend to use StdActionBar library if possible. There you will have the overflow menu feature automatically included.

little3399 · Jun 23, 2014

Ok ,Tks!
