B4A Library B4AMediaBucket v1.20

Discussion in 'Additional libraries, classes and official updates' started by lonleystar, Dec 27, 2016.

  1. lonleystar

    lonleystar Well-Known Member Licensed User

    Hi guys I am proud to share with you all a new library B4AMediaBucket v1.20 explanations below:

    This library is used with B4AGridview, B4AGallery, B4ACoverflow and B4APhotoPager. right now is used only with B4AGridview till at the end of the next week I'll try to fix all library to work properly with B4AMediaBucket.

    I have uploaded a zip file, the zip includes:

    1 - library
    3 - demos with photopager and gridview
    1 - resource



    B4AMediaBucket v1.0_From_Designer - open te Designer and check it out

    B4AMediaBucket v1.0_From_Layout - can be used with LinearLayout, FrameLayot, RelativeLayout - open te Manifest and check it out.

    You can use Eclipse or AndroidStudio to build your own layout

    B4AMediaBucket v1.0_Programmatically

    below all features:


    • B4AMediaBucket
      Author: Giuseppe Salvi
      Version: 1.2

      • Fields:
        • Bottom_Inside As BucketGravity
          Text Bottom InSide
        • Bottom_OutSide As BucketGravity
          Text Bottom OutSide
        • Center_Inside As BucketGravity
          Text Center InSide
        • Text_Center As BucketGravity
          Text center
        • Text_Left As BucketGravity
          Text left
        • Text_Right As BucketGravity
          Text right
        • Top_Inside As BucketGravity
          Text Top InSide
        • Top_OutSide As BucketGravity
          Text Top OutSide

      • Fields:

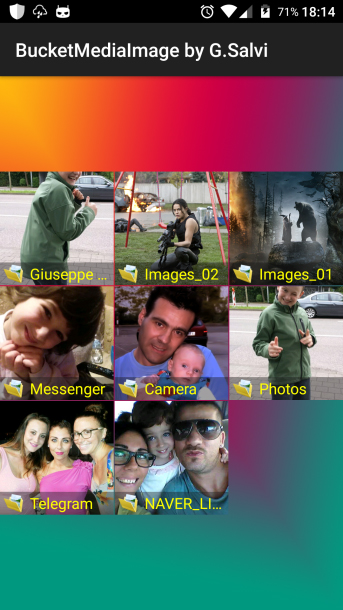

        • AUTO_FIT As Int
          Creates as many columns as can fit on screen.
        • NO_STRETCH As Int
          Disables stretching.
        • STRETCH_COLUMN_WIDTH As Int
          Stretches the spacing between columns.
        • STRETCH_SPACING As Int
          Stretches columns.
        • STRETCH_SPACING_UNIFORM As Int
          Stretches the spacing between columns.

      • Fields:
        • SCREEN_ORIENTATION_BEHIND As Int
        • SCREEN_ORIENTATION_FULL_SENSOR As Int
        • SCREEN_ORIENTATION_LANDSCAPE As Int
        • SCREEN_ORIENTATION_NOSENSOR As Int
        • SCREEN_ORIENTATION_PORTRAIT As Int
        • SCREEN_ORIENTATION_REVERSE_LANDSCAPE As Int
        • SCREEN_ORIENTATION_REVERSE_PORTRAIT As Int
        • SCREEN_ORIENTATION_SENSOR As Int
        • SCREEN_ORIENTATION_SENSOR_LANDSCAPE As Int
        • SCREEN_ORIENTATION_SENSOR_PORTRAIT As Int
        • SCREEN_ORIENTATION_UNSPECIFIED As Int
        • SCREEN_ORIENTATION_USER As Int

      • Fields:
        • Center As ScaleType
          Center the image in the view, but perform no scaling.
        • Center_Crop As ScaleType
          Scale the image uniformly (maintain the image's aspect ratio) so that both dimensions (width and height) of the image
          will be equal to or larger than the corresponding dimension of the view (minus padding).
        • Center_Inside As ScaleType
          Scale the image uniformly (maintain the image's aspect ratio) so that both dimensions (width and height) of the image
          will be equal to or less than the corresponding dimension of the view (minus padding).
        • Fit_Center As ScaleType
          Scale the image using CENTER.
        • Fit_End As ScaleType
          Scale the image using END.
        • Fit_Start As ScaleType
          Scale the image using START.
        • Fit_XY As ScaleType
          Scale the image using FILL.
        • Matrix As ScaleType
          Scale using the image matrix when drawing.

      • Fields:
        • Default As Typeface
          The default NORMAL typeface object.
        • Default_Bold As Typeface
          The default BOLD typeface object.
        • Monospace As Typeface
          The NORMAL style of the default monospace typeface.
        • Sans_Serif As Typeface
          The NORMAL style of the default sans serif typeface.
        • Serif As Typeface
          The NORMAL style of the default serif typeface.
        • Style_Bold As Int
          The default BOLD style int.
        • Style_Bold_Italic As Int
          The default BOLD ITALIC style int.
        • Style_Italic As Int
          The default ITALIC style int.
        • Style_Normal As Int
          The default NORMAL style int.
        Methods:
        • LoadFontFromAssets (file As String) As Typeface
          Create a new typeface from the specified font data from assets.
        • LoadFontFromFile (file As String) As Typeface
          Create a new typeface from the specified font data from sdcard.

      • MediaBucketGallery
        Events:
        • ItemClick (Position As Int, Value As Object)
        • ItemLongClick (Position As Int, Value As Object)
        • Ready
        Methods:
        • AddThisView
          Adds view to this activity 100%x,100%y.
        • BringToFront
        • ClearDiskCache
          Clears disk cache.
        • ClearMemoryCache
          Clears memory cache
        • DesignerCreateView (base As PanelWrapper, label As LabelWrapper, props As Map)
          This method is only for the B4A Designer. Don't call it directly.
        • Initialize (EventName As String)
          Initialize the object.
          EventName:
        • Initialize2 (EventName As String, cacheDir As String)
          Initialize the object and set own cache dir.
          EventName:
          cacheDir:
        • InitializeFromLayout (EventName As String, cacheDir As String, Layout As String, LayoutID As String)
          Initialize the object from layout.
          EventName:
          cacheDir:
          Layout:
          LayoutID:
        • Invalidate
        • Invalidate2 (arg0 As Rect)
        • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
        • IsInitialized As Boolean
        • RemoveView
        • RequestFocus As Boolean
        • SendToBack
        • SetBackgroundImage (arg0 As Bitmap)
        • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
        • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
        • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
        • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
        • ShowMediaFromBucket
          Show media from bucket.
        Permissions:
        • android.permission.INTERNET
        • android.permission.MEDIA_CONTENT_CONTROL
        • android.permission.READ_EXTERNAL_STORAGE
        • android.permission.WRITE_EXTERNAL_STORAGE
        Properties:
        • Background As Drawable
        • CacheInMemory As Boolean [write only]
          Sets whether loaded image will be cached in memory.
        • CacheOnDisk As Boolean [write only]
          Sets whether loaded image will be cached on disk.
        • Color As Int [write only]
        • Enabled As Boolean
        • Gravity As Int [write only]
          Specifies the gravity within each cell.
        • Height As Int
        • Icon As String [write only]
          Sets own folder icon.
        • IconVisible As Boolean
          Get or Sets the visibility of the icon displayed right to the text - by default is false.
        • ImageOnFail As String [write only]
          Sets own error icon.
        • ImageOnLoading As String [write only]
          Sets own on loading icon.
        • ItemHeight As Int
          Get or Set ItemHeight
        • ItemWidth As Int
          Get or Sets ItemWidth
        • Left As Int
        • LoadFontFromAssets As String [write only]
          Loads a new Typeface from the specified font data.
        • LoadFontFromFile As String [write only]
          Loads a new Typeface from the specified font data.
        • Padding()() As Int
        • Parent As Object [read only]
        • ReflectionAlpha As Int [write only]
          Sets alpha by default is 125
        • ReflectionGap As Int [write only]
          Sets gap by default is 4
        • ScaleType As BucketScaleType
          Controls how the image should be resized or moved to match the size of this ImageView.
          by default ScaleType.CENTER_CROP
        • ShowReflection As Boolean [write only]
          Set to true if reflection must be shown by default is false
        • Spacing As Int [write only]
          Sets the spacing between items in a Gallery
        • Tag As Object
          Get or Sets this view's tag.
        • TextBackGroundColor As String
          Get or Sets the background color for this view.
          Example:
          TextBackGroundColor = "#88666666"
          or
          TextBackGroundColor = Colors.ARGB(100,20,20,20)
        • TextColor As String
          Get or Sets Text Color - by default White.
        • TextGravity As BucketGravity [write only]
          Set the position alignment of the text that will be used.
          <b>param Text_Left</b>
          <b>param Text_Center</b>
          <b>param Text_Right</b>
        • TextPosition As BucketTextPosition
          Get or Sets the position alignment of the TextView that will be used.
          <b>param Top_Outside</b>
          <b>param Top_Inside</b>
          <b>param Center_Inside</b>
          <b>param Bottom_Inside</b>
          <b>param Bottom_Outside</b>
        • TextSize As Int
          Get or Sets Text Size - by default 14.
        • TextStyle As Int [write only]
          Sets the style in which the text should be displayed.
        • TextTypeFace As BucketTypefaceUtils
          Get or Sets the typeface and style in which the text should be displayed.
          Note that not all Typeface families actually have bold and italic variants,
          so you may need to use TextStyle(style) to get the appearance that you actually want.
        • TextVisible As Boolean
          Get or Sets the visibility of the text - by default is false.
        • Top As Int
        • Version As String [read only]
          Version of the library
        • Visible As Boolean
        • Width As Int

      • MediaBucketGrid
        Events:
        • ItemClick (Position As Int, Value As Object)
        • ItemLongClick (Position As Int, Value As Object)
        • Ready
        Methods:
        • AddThisView
          Adds view to this activity 100%x,100%y.
        • BringToFront
        • ClearDiskCache
          Clears disk cache.
        • ClearMemoryCache
          Clears memory cache
        • DesignerCreateView (base As PanelWrapper, label As LabelWrapper, props As Map)
          This method is only for the B4A Designer. Don't call it directly.
        • Initialize (EventName As String)
          Initialize the object.
          EventName:
        • Initialize2 (EventName As String, cacheDir As String)
          Initialize the object and set own cache dir.
          EventName:
          cacheDir:
        • InitializeFromLayout (EventName As String, cacheDir As String, Layout As String, LayoutID As String)
          Initialize the object from layout.
          EventName:
          cacheDir:
          Layout:
          LayoutID:
        • Invalidate
        • Invalidate2 (arg0 As Rect)
        • Invalidate3 (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
        • IsInitialized As Boolean
        • RemoveView
        • RequestFocus As Boolean
        • SendToBack
        • SetBackgroundImage (arg0 As Bitmap)
        • SetColorAnimated (arg0 As Int, arg1 As Int, arg2 As Int)
        • SetLayout (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int)
        • SetLayoutAnimated (arg0 As Int, arg1 As Int, arg2 As Int, arg3 As Int, arg4 As Int)
        • SetVisibleAnimated (arg0 As Int, arg1 As Boolean)
        • ShowMediaFromBucket
          Show media from bucket.
        Permissions:
        • android.permission.INTERNET
        • android.permission.MEDIA_CONTENT_CONTROL
        • android.permission.READ_EXTERNAL_STORAGE
        • android.permission.WRITE_EXTERNAL_STORAGE
        Properties:
        • Background As Drawable
        • CacheInMemory As Boolean [write only]
          Sets whether loaded image will be cached in memory.
        • CacheOnDisk As Boolean [write only]
          Sets whether loaded image will be cached on disk.
        • Color As Int [write only]
        • ColumnWidth As Int
          Get or Sets Specifies the fixed width for each column.
        • Enabled As Boolean
        • Gravity As Int [write only]
          Specifies the gravity within each cell.
        • Height As Int
        • HorizontalSpacing As Int [write only]
          Defines the default horizontal spacing between columns.
        • Icon As String [write only]
          Sets own folder icon.
        • IconVisible As Boolean
          Get or Sets the visibility of the icon displayed right to the text - by default is false.
        • ImageOnFail As String [write only]
          Sets own error icon.
        • ImageOnLoading As String [write only]
          Sets own on loading icon.
        • ItemHeight As Int
          Get or Set ItemHeight
        • ItemWidth As Int
          Get or Sets ItemWidth
        • Left As Int
        • LoadFontFromAssets As String [write only]
          Loads a new Typeface from the specified font data.
        • LoadFontFromFile As String [write only]
          Loads a new Typeface from the specified font data.
        • NumColumns As Int
          Get or Sets the number of columns in the grid.
        • Orientation As ActivityOrientation
          Constant corresponding to unspecified, reverseLandscape, portrait in the screen Orientation attribute.
        • Padding()() As Int
        • Parent As Object [read only]
        • ScaleType As BucketScaleType
          Controls how the image should be resized or moved to match the size of this ImageView.
          by default ScaleType.CENTER_CROP
        • StretchMode As BucketStretchMode
          Defines how columns should stretch to fill the available empty space, if any.
          Examples:
          GridView.StretchMode = GridView.StretchMode.STRETCH_SPACING
        • Tag As Object
          Get or Sets this view's tag.
        • TextBackGroundColor As String
          Get or Sets the background color for this view.
          Example:
          TextBackGroundColor = "#88666666"
          or
          TextBackGroundColor = Colors.ARGB(100,20,20,20)
        • TextColor As String
          Get or Sets Text Color - by default White.
        • TextGravity As BucketGravity [write only]
          Set the position alignment of the text that will be used.
          <b>param Text_Left</b>
          <b>param Text_Center</b>
          <b>param Text_Right</b>
        • TextPosition As BucketTextPosition
          Get or Sets the position alignment of the TextView that will be used.
          <b>param Top_Outside</b>
          <b>param Top_Inside</b>
          <b>param Center_Inside</b>
          <b>param Bottom_Inside</b>
          <b>param Bottom_Outside</b>
        • TextSize As Int
          Get or Sets Text Size - by default 14.
        • TextStyle As Int [write only]
          Sets the style in which the text should be displayed.
        • TextTypeFace As BucketTypefaceUtils
          Get or Sets the typeface and style in which the text should be displayed.
          Note that not all Typeface families actually have bold and italic variants,
          so you may need to use TextStyle(style) to get the appearance that you actually want.
        • TextVisible As Boolean
          Get or Sets the visibility of the text - by default is false.
        • Top As Int
        • Version As String [read only]
          Version of the library
        • VerticalSpacing As Int [write only]
          Defines the default vertical spacing between rows.
        • Visible As Boolean
        • Width As Int


    Attached Files:

    Last edited: Feb 12, 2017
  2. cambopad

    cambopad Active Member Licensed User

    Thanks for this cool lib! Anyway, is this something similar to B4AGallery?

  3. lonleystar

    lonleystar Well-Known Member Licensed User

    coming soon

  4. lonleystar

    lonleystar Well-Known Member Licensed User

    Hi guys B4AMediaBucket has been updated to v1.10. What's new:

    fixed:

    Initialize2 - to set your own cache

    TextBackGroundColor - the value as object example:

    TextBackGroundColor = Colors.ARGB(100,20,20,20) - Colors.RGB(20,20,20)
    or
    TextBackGroundColor = "#AA335577"
    in any case you forget to add the character ( # ) in the string will be added automatically

    TextColor like above

    InitializeFromLayout(EventName,cacheDir,Layout,LayoutID) instead of InitializeFromLayout(EventName,Container,Layout,LayoutID)


    removed:

    TextBackGroundColor2
    TextColor2

    P.S.

    ** if you use B4AMediaBucket with B4AGridView you should set both the cache name **

    Myron likes this.
  5. lonleystar

    lonleystar Well-Known Member Licensed User

    Hi guys B4AMediaBucket has been updated to v1.20. What's new:

    Changed:
    MediaBucketGrid instead of MediaBucket (show as Grid)

    Added:
    ClearDiskCache
    ClearMemoryCache
    ItemHeight(Get,Set)
    ItemWidth(Get,Set)
    ScaleType(Get,Set)
    Orientation(Get,Set)

    MediaBucketGallery(show as Gallery)

    Removed unnecessary code.

    Best Regard

  6. lonleystar

    lonleystar Well-Known Member Licensed User

    Sorry I forgot to say these commands below can be used also in Designer.

    ItemHeight(Get,Set)
    ItemWidth(Get,Set)
    ScaleType(Get,Set)
    Orientation(Get,Set)

    Best Regard

  7. mcqueccu

    mcqueccu Member Licensed User

    what about this error? Stucked
    Compiling generated Java code. (4.66s)
    Convert byte code - optimized dex. Error
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LA;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LB;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LC;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LCode;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LD;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LF;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LH;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LI;
    Uncaught translation error: java.lang.IllegalArgumentException: already added: LL;
    UNEXPECTED TOP-LEVEL EXCEPTION:
    java.lang.RuntimeException: Translation has been interrupted
    at com.android.dx.command.dexer.Main.processAllFiles(Main.java:689)
    at com.android.dx.command.dexer.Main.runMonoDex(Main.java:313)
    at com.android.dx.command.dexer.Main.run(Main.java:279)
    at com.android.dx.command.dexer.Main.main(Main.java:247)
    at com.android.dx.command.Main.main(Main.java:106)
    Caused by: java.lang.InterruptedException: Too many errors
    at com.android.dx.command.dexer.Main.processAllFiles(Main.java:681)
    ... 4 more

    I could not run any of the example code provided here with.
    It shows the above error for all the example provide.What is this? and how can i solve this?Plz help

    Last edited: Aug 19, 2017
  8. Kwame Twum

    Kwame Twum Active Member Licensed User

    Bro, did you find any solution for this please?

Loading...
  1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
    By continuing to use this site, you are consenting to our use of cookies.
    Dismiss Notice
