Share My Creation B4R Arduino MIDI Drum

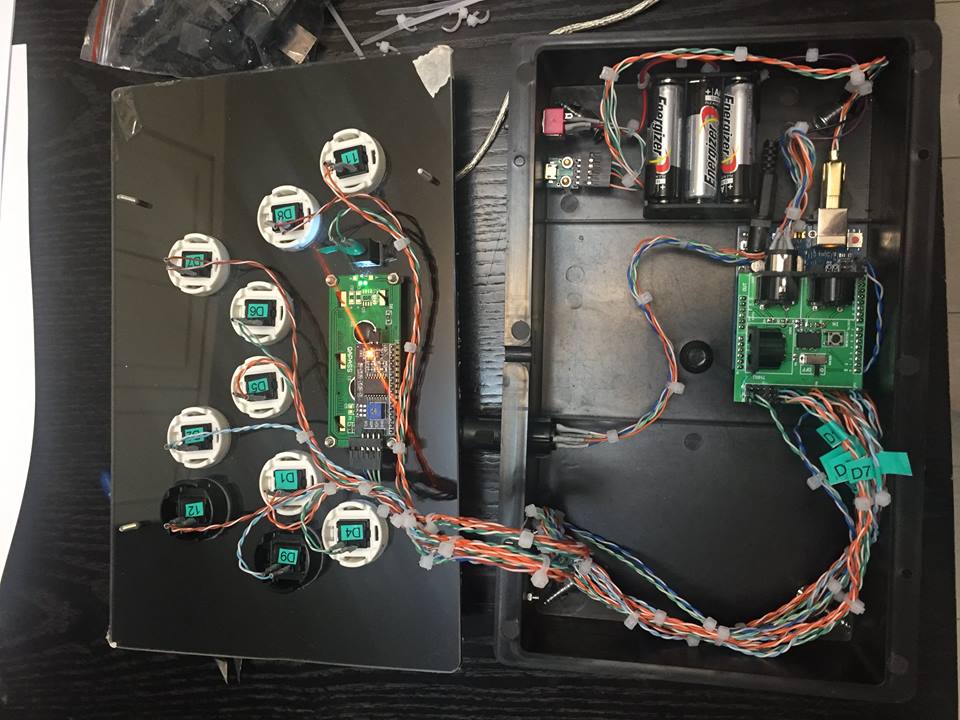

My 2nd B4R Project using buttons and LCD. Thanks B4R!

Features:

- Preset Sound
- Change Drum Note
- Volumne Change (+ / -)
- Metronome
- Midi Out (can connect to midi device or Apple GarangeBand (via camera kit and midi interface) )
- Bass Drum Pedal
- HiHat Pedal








Hypnos

Active Member
Licensed User
Very nice!

How is it connected to the MIDI device?

Hi Erel, please check below web site for the midi HW setup for Arduino, it's very simply, but I want my HW more clean and don't want too much wiring so I purchase the arduino midi shield from the online store.

If connect to midi device like midi keyboard, just need a midi cable. But for iPad, I need a usb midi interface and a camera kit.

https://www.arduino.cc/en/tutorial/midi


BTW, Apple (GarageBand) support MIDI over bluetooth, I'm wondering maybe I can just use a ESP32 connect to iPad by BLE without any HW.... My ESP32 already arrived, hope I can have some more spare time checking the web to see whether it's possible in that way.
