B4R Tutorial B4R PIR (Passive Infrared Sensor) Example

Thanks to Erel for this great product !! (again)

Here's a PIR example (presence detection) with Arduino and B4R; the PIR sensor is the PIR HC-SR501

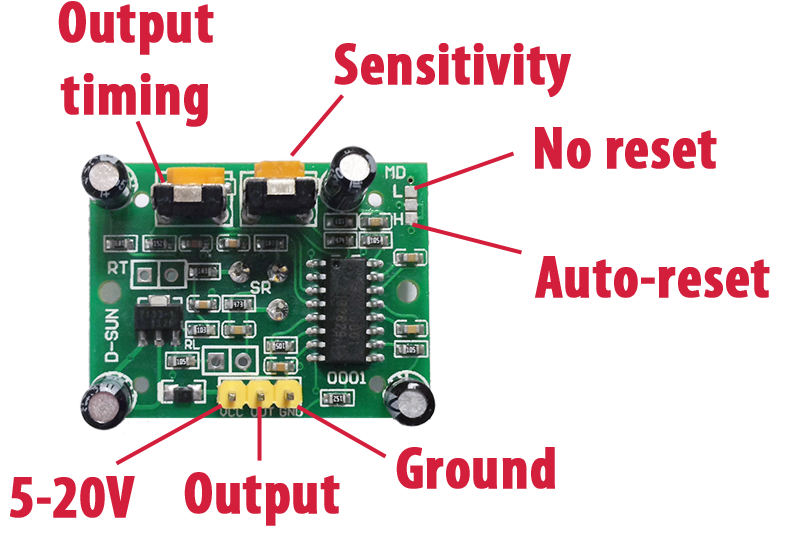

Spoiler: PIR sensor

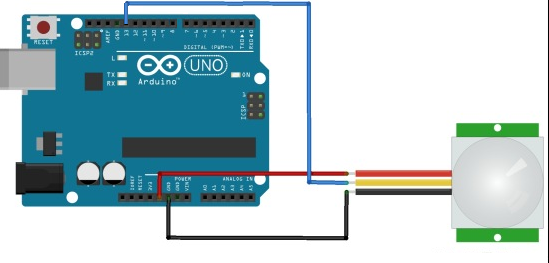

Spoiler: Schematic Connection

Code:

#Region Project Attributes
    #AutoFlushLogs: True
    #StackBufferSize: 300
#End Region


Sub Process_Globals
   Public Serial1 As Serial
   Private pin13 As Pin
End Sub

Private Sub AppStart
   Serial1.Initialize(115200)
   Log("AppStart")
   pin13.Initialize (13, pin13.MODE_INPUT_PULLUP)
   pin13.AddListener("Change_state")

End Sub

Sub Change_state (State As Boolean)

  Select Case State
      Case True
        Log("state: Detected")
    Case False
        Log("state: Not Detected")
  End Select

End Sub



[Erel]

I think that it is better to use a different port as port 13 is connected to the internal led.



[inakigarm]

That's because I've used the 13 pin; that way I can "visually" detect when the PIR detects motion (activates the Pin 13 input of Arduino); Testing right performance of B4R (and logs) there's no need to use the pin13 as the PIR connection pin.



[Cableguy]

Shouldn't this be in the Tutorials section?



[inakigarm]

Shouldn't this be in the Tutorials section?

Yes, can't change it



[Cableguy]

Only EREL can



[ingo.tw]

I can't compile



[derez]

I can't compile

If you just want to tell us your feelings - the right place is in chit-chat post.
If it is support you seek - the way to write it is to provide detailed data, like:
The board you use,
The sensor you use,
How did you connect it,
Versions of s/w,
Error messages,
etc.



[inakigarm]

I can't compile

Some more info is needed to help this question as @derez said



[ingo.tw]

The board can compile is ok



[ingo.tw]

Thanks to Erel for this great product !!
