Android Example [B4X] AS Settings - Custom Property

[B4X] [XUI] AS Settings

Introducing a new library that allows you to create your own settings page with minimal code. This library comes equipped with automatic saving and loading features, making it incredibly easy to manage your settings. It supports booleans, free text, numbers, comboboxes, action buttons and more...

www.b4x.com

With this property you can add your own view or layout

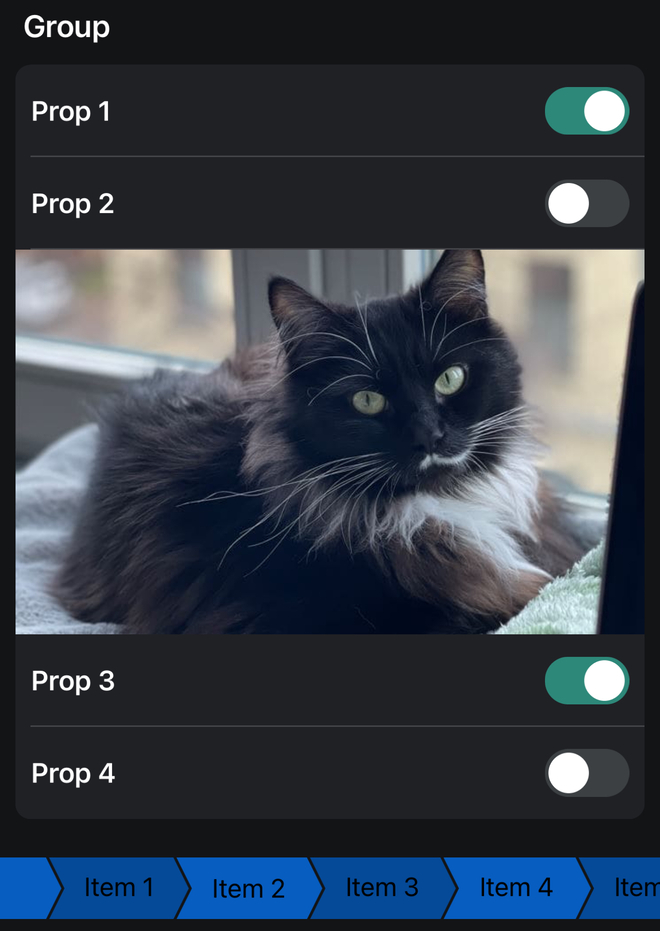

In the following example, I add a B4XImageView to a group and the B4XBreadCrumb comes outside the group

Example

    AS_Settings1.MainPage.AddGroup("Group1","Group")

    AS_Settings1.MainPage.AddProperty_Boolean("Group1","Prop1","Prop 1","",Null,True)
    AS_Settings1.MainPage.AddProperty_Boolean("Group1","Prop2","Prop 2","",Null,False)

    AS_Settings1.MainPage.AddProperty_Custom("Group1","Custom1",250dip) 'Custom Property in Group

    AS_Settings1.MainPage.AddProperty_Boolean("Group1","Prop3","Prop 3","",Null,True)
    AS_Settings1.MainPage.AddProperty_Boolean("Group1","Prop4","Prop 4","",Null,False)

    AS_Settings1.MainPage.AddSpaceItem("MainPage","",20dip)

    AS_Settings1.MainPage.AddProperty_Custom("","Custom2",50dip) 'Custom Property without a group

    AS_Settings1.MainPage.Create

Private Sub AS_Settings1_CustomDrawCustomProperty(CustomProperty As AS_Settings_CustomDrawCustomProperty)

    Select CustomProperty.Property.PropertyName
        Case "Custom1"

            CustomProperty.BackgroundPanel.LoadLayout("frm_CustomLayout_1")

            Dim xiv_CustomImage1 As B4XImageView = CustomProperty.BackgroundPanel.GetView(0).Tag
            xiv_CustomImage1.ResizeMode = "FILL_WIDTH"
            xiv_CustomImage1.Bitmap = xui.LoadBitmap(File.DirAssets,"mycat01.jpg")

        Case "Custom2"

            CustomProperty.BackgroundPanel.LoadLayout("frm_CustomLayout_2")
            CustomProperty.BackgroundPanel.Color = AS_Settings1.BackgroundColor

            Dim B4XBreadCrumb1 As B4XBreadCrumb = CustomProperty.BackgroundPanel.GetView(0).Tag
            B4XBreadCrumb1.Items.Add("Item 1")
            B4XBreadCrumb1.Items.Add("Item 2")
            B4XBreadCrumb1.Items.Add("Item 3")
            B4XBreadCrumb1.Items.Add("Item 4")
            B4XBreadCrumb1.Items.Add("Item 5")

            #If B4A
            B4XBreadCrumb1.Base_Resize(B4XBreadCrumb1.mBase.Width,B4XBreadCrumb1.mBase.Height) 'is needed in B4A for some reasons
            #End If
    End Select

End Sub

You need V2.18+ for this example
