Android Example [B4X] AS Settings with AS BottomDatePicker

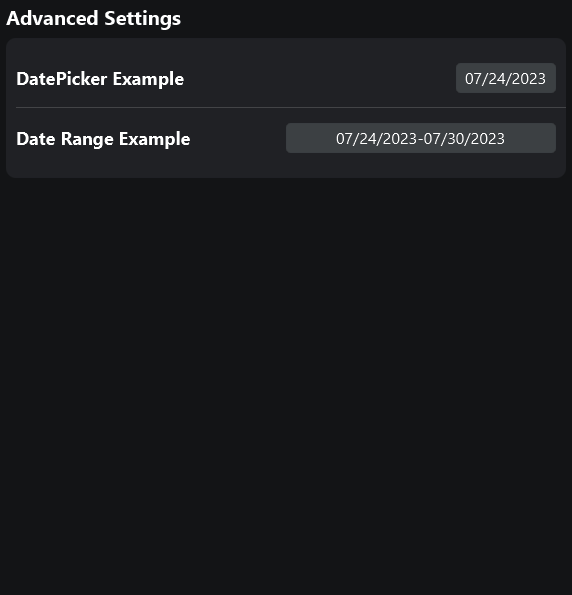

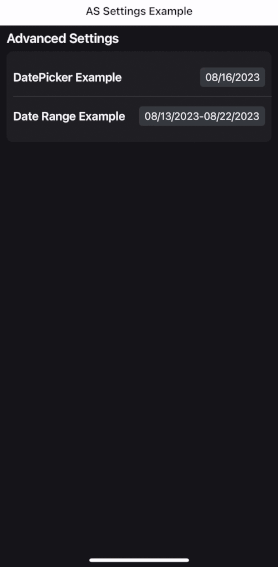

In this example it is shown how to realize date entries with the AS_Settings library.

You need AS_Settings V2.00+ and AS_BottomDatePicker V1.01+ for this example.

Private Sub B4XPage_Created (Root1 As B4XView)
    Root = Root1
    Root.LoadLayout("frm_main")

    B4XPages.SetTitle(Me,"AS Settings Example")

    AS_Settings1.MainPage.AddGroup("Advanced","Advanced Settings")

    AS_Settings1.PropertyProperties.xFont = xui.CreateDefaultFont(16)

    AS_Settings1.MainPage.AddProperty_Chooser("Advanced","PropertyName_1","DatePicker Example","",Null,"",100dip)
    AS_Settings1.MainPage.AddProperty_Chooser("Advanced","PropertyName_2","Date Range Example","",Null,"",180dip)

    AS_Settings1.MainPage.Create

End Sub

Private Sub B4XPage_KeyboardStateChanged (Height As Float)

    AS_Settings1.Base_Resize(Root.Width,Root.Height - Height)

End Sub

Private Sub AS_Settings1_ValueChanged(Property As AS_Settings_Property, Value As Object)
    Log("ValueChanged " & Property.PropertyName & ": " & Value)
End Sub


Private Sub AS_Settings1_ChooserTextFieldClicked(Property As AS_Settings_Property)
    Log("ChooserTextFieldClicked")
    If Property.PropertyName = "PropertyName_1" Then
        ShowDatePicker(Property,False)
    Else If Property.PropertyName = "PropertyName_2" Then
        ShowDatePicker(Property,True)
    End If

End Sub


Private Sub ShowDatePicker(Property As AS_Settings_Property,isRangeDate As Boolean)

    BottomDatePicker.Initialize(Me,"BottomDatePicker",Root)
    BottomDatePicker.Tag = Property
    BottomDatePicker.ConfirmationMode = BottomDatePicker.ConfirmationMode_Button

    If isRangeDate Then
        BottomDatePicker.SelectMode = BottomDatePicker.SelectMode_Range
    Else
        BottomDatePicker.SelectMode = BottomDatePicker.SelectMode_Day
    End If

    BottomDatePicker.ShowPicker
    BottomDatePicker.ConfirmationButton.Text = "Confirm Date"

End Sub

Private Sub BottomDatePicker_ConfirmButtonClicked
    Dim BottomDatePicker As AS_BottomDatePicker = Sender
    Dim Property As AS_Settings_Property = BottomDatePicker.Tag


    If Property.PropertyName = "PropertyName_1" Then
        Property.Value = BottomDatePicker.SelectedDate
        Property.DisplayValueText = DateTime.Date(BottomDatePicker.SelectedDate)
    Else If Property.PropertyName = "PropertyName_2" Then
        Property.Value = CreateMap("StartDate":BottomDatePicker.SelectedStartDate,"EndDate":BottomDatePicker.SelectedEndDate)
        Property.DisplayValueText = DateTime.Date(BottomDatePicker.SelectedDate) & "-" & DateTime.Date(BottomDatePicker.SelectedEndDate)
    End If

    AS_Properties.PutProperty(Property.PropertyName,Property.Value)
    AS_Properties.PutPropertyDisplayValueText(Property.PropertyName,Property.DisplayValueText)

    AS_Settings1.GetTopPage.Refresh

End Sub

Have Fun
