B4J Library [B4X] xRotaryTimeLimitbar b4xlib

The xRotaryTimeLimitbar is a B4X CustomView, ity allows the selection of two time values with two sliders from a rotary slider bar.
It is b4xlib library running on all three platforms.

The xRotaryTimeLimitbar.zip demo project and the xRotaryTimeLimitbar.b4xlib library files are added.
You must copy the xRotaryTimeLimitbar.b4xlib file into the AdditionalLibraries\B4X folder.
The recommended AdditionalLibraries folder structure is explained HERE.

Current version: 1.0

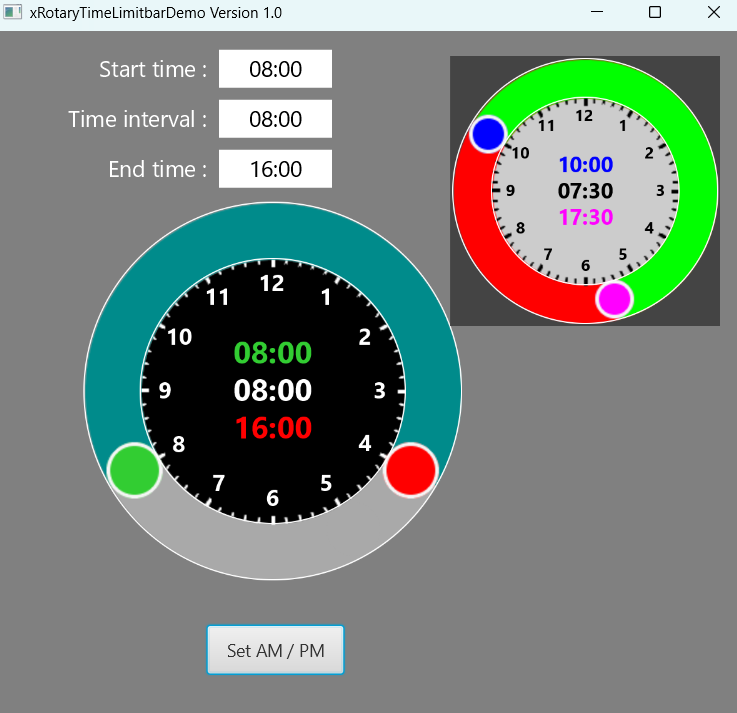

The three times displayed in the inner circle are the start time on top, the end time at the bottom and the time interval in between.
The three times displayed on top of the from are displayed by code outsides the library on the same layout as the xRotaryTimeLimitbar CustomView.
Yes, the upper one looks awful, but shows that all colors can be defined either in the Designer or by code.
The one is loaded by code in the B4J project.
All internal sizes are calculated automatically in the library.

xRotaryTimeLimitbar

Author: Klaus CHRISTL (klaus)
Version: 1.0

• xRotaryTimeLimitbar
  • Events:
    • TimeChanged (Times() As String, TimeInterval As String)
  • Fields:
    • mBase As B4XView
    • Tag As Object
  • Functions:
    • AddToParent (Parent As B4XView, Left As Int, Top As Int, Width As Int)
      Add a xRotaryListbar onto a Panel / Pane
      Parent = Panel / Pane which gets the xRotaryListbar
      Left, Top and Width = position and width of xRotaryListbar, there is no Height property
      The xRotaryListbar costum view is a square, therefor no Height property
    • Convert24ToAMPM (Time As String) As String
      Convert a time string from 24 hours to AM/PM
    • ConvertAMPMTo24 (Time As String) As String
      Convert a time string from AM/PM to 24 hours
    • ConvertAngleToTime (Angle As Double) As String
      Converts the internal Angle of the slider into a time given by HH:MM
      Example: -120° returns "08:00" or "08:08 AM" depending on the Mode24Hours property
    • ConvertMinutesToTime (Minutes As Int) As String
      Converts the number of minutes into a time string
      Example: it depends on the Mode24Hours proprty
      900 returns "15:00" or "03:00 PM" depending on the Mode24Hours proprty
    • ConvertTimeToAngle (Time As String) As Double
      Converts a time given by HH:MM into the internal Angle of the slider
      Example: "08:00" or "08:08 AM" returns -120°
    • ConvertTimeToMinutes (Time As String) As Int
      Converts a time given by HH:MM into the number of minutes
      Examples:
      "15:00" returns 900
      "03:00 PM" returns 900
    • DesignerCreateView (Base As Object, Lbl As Label, Props As Map)
      Base type must be Object
    • Initialize (Callback As Object, EventName As String)
    • SetSliderBitmapFileNames (SliderBeginBitmapFileName As String, SliderEndBitmapFileName As String)
      You can define bitmaps for the sliders
    • SetStartAndEndTimesToFuture
      Sets the start slider at now and the end slide to now + MinTimeInterval
  • Properties:
    • BackgroundColor As Int
      Sets or gets the BackgroundColor property
    • EarliestEndTime As String
      Sets or gets the EarliestEndTime property
      It is the earliest end time, the slider will stop at this time
      Example: "9:30" or "9:30 PM"
    • EarliestStartTime As String
      Sets or gets the EarliestStartTime property
      It is the earliest start time, the slider will stop at this time
      Example: "07:30" or "07:30 AM"
    • EndTime As String
      Sets or gets the EndTime property
      Example: "15:30"
    • LatestEndTime As String
      Sets or gets the setLatestEndTime property
      It is the latest end time, the slider will stop at this time
      Example: "21:30" or "09:30 PM"
    • LatestStartTime As String
      Sets or gets the LatestStartTime property
      It is the latest start time, the slider will stop at this time
      Example: "18:30" 0t "06:30 PM"
    • Left As Int
      Sets or gets the Left property
    • MaxTimeInterval As Int
      Sets or gets the MaxTimeInterval property
      Maximum time interval between the Start and End times, in minutes
      The End time cannot be higher than the Start time + MaxTimeInterval
    • MinTimeInterval As Int
      Sets or gets the MinTimeInterval property
      Minimum time interval between the Start and End times, in minutes
      The End time cannot be smaller than the Start time + MinTimeInterval
    • MinuteResolution As Int
      Sets or gets the MinuteResolution property
      These are the stpes of the Sliders mouvements
      Valid values are 2, 5, 10, 15, 20, 30
    • Mode24Hours As Boolean
      Sets or gets the Mode24Hours property
      True = 24 hours time display
      False = AM / PM time display
    • NotUsedTimeColor As Int
      Sets or gets the NotUsedTimeColor property
      Color of the ring outsides the sliders when the time between the sliders is less than 12 hours
    • OverTimeColor As Int
      Sets or gets the OverTimeColor property
      Color of the ring of the overlapping zone between the two sliders when the time between them is higher than 12 hours
    • ScaleBackgroundColor As Int
      Sets or gets the ScaleBackgroundColor property
      Color of the inner circle
    • ScaleColor As Int
      Sets or gets the ScaleColor property
      Color of the scale and time in the inner circle
    • SliderBeginColor As Int
      Sets or gets the SliderBeginColor property
      Color of the begin time slider
    • SliderEndColor As Int
      Sets or gets the SliderEndColor property
      Color of the end time slider
    • StartTime As String
      Sets or gets the StartTime property
      Example: "07:30"
    • TimeIntervalColor As Int
      Sets or gets the TimeIntervalColor property
      Color of the ring between the two sliders
    • Top As Int
      Sets or gets the Top property
    • Visible As Boolean
      Sets or gets the Visible property
    • Width As Int
      Sets or gets the Width property



[BlueVision]

In my opinion, this is the ultimate timepicker. Great work Klaus!
