Android Question [B4XTable] Change text colour of a cell by value

[vecino]

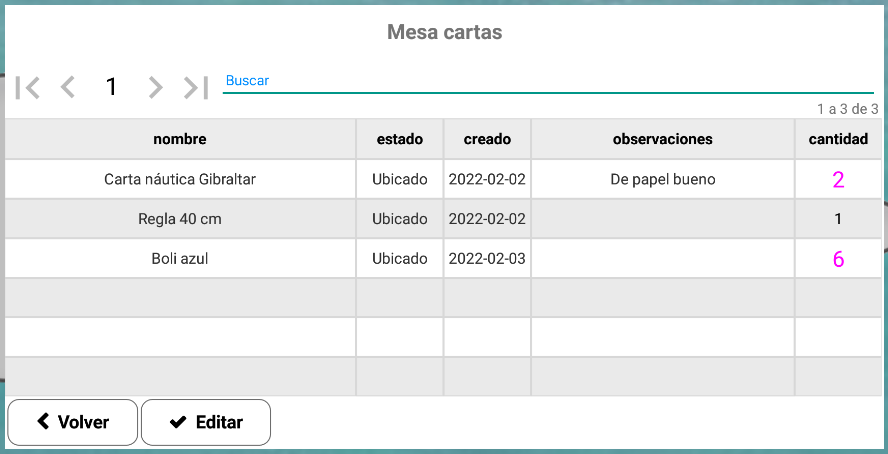

Hi, I want to show a different colour of a cell as shown in this image (Interesting Number), how can I do it?
I know there was a thread explaining this, but I can't find it.
Thank you.



[Xfood]

maybe you were referring to this?

[SOLVED]How to change the color of a B4XTable row according to content and then disable it?

Hi everyone! Well.. I'm working on a B4Xtable and I'd like to change X Row according to content.. Ex: I have the column "state" below it shows "Exists" and "Not Exists" and I need to change the row's color if it's "Not Exists" I've seen this post: B4XTable How do I change the color of a row ...

www.b4x.com



[vecino]

? Thank you very much.



[vecino]

Hi, I can't seem to change the colour of the text in the cell I need. In that link they explain how to change the background of the cell, but I can't find how to change the text.
It should be easy, but so far I can't do it.



[vecino]

I already found it in the initial example of Erel presenting B4XTable.
Thank you, friends.



[vecino]

Finally, after adapting to take advantage of here's example, I cannot get it to work.
I'm using this code, I don't know what I need to add or change.
What I want is to change the colour of the text in the column "cantidad" (col5), if the value is greater than 1, show the text in green.
Thank you.

Sub ShowContent( llrows As List )
    Dim col0, col1, col2, col3, col4, col5, col6 As B4XTableColumn
    '
    col0 = tbVC.AddColumn("id",tbVC.COLUMN_TYPE_NUMBERS)
    col1 = tbVC.AddColumn("nombre",tbVC.COLUMN_TYPE_TEXT)
    col2 = tbVC.AddColumn("estado",tbVC.COLUMN_TYPE_TEXT)
    col3 = tbVC.AddColumn("creado",tbVC.COLUMN_TYPE_TEXT)
    col4 = tbVC.AddColumn("observaciones",tbVC.COLUMN_TYPE_TEXT)
    col5 = tbVC.AddColumn("cantidad",tbVC.COLUMN_TYPE_TEXT)
    CreateCustomFormat(col5)
    col6 = tbVC.AddColumn("nombresintildes",tbVC.COLUMN_TYPE_TEXT)
    col0.Width = -1
    col1.Width = tbVC.mBase.Width * 0.40
    col2.Width = tbVC.mBase.Width * 0.10
    col3.Width = tbVC.mBase.Width * 0.10
    col4.Width = tbVC.mBase.Width * 0.30
    col5.Width = tbVC.mBase.Width * 0.10
    col6.Width = -1
    '
    For Each tc As B4XTableColumn In Array(col0,col2,col3,col5)
        tc.Searchable = False
    Next
    '
    tbVC.Refresh
    tbVC.SearchField.RequestFocusAndShowKeyboard
    '
    tbVC.SetData(llrows)
End Sub

Private Sub CreateCustomFormat (c As B4XTableColumn)
    Dim formatter As B4XFormatter
    formatter.Initialize
    c.Formatter = formatter
    ' >1
    Dim Mayor1 As B4XFormatData = c.Formatter.NewFormatData
    Mayor1.TextColor = tbVC.TextColor
    Mayor1.FormatFont = xui.CreateDefaultFont(16)
    c.Formatter.AddFormatData(Mayor1, 2, c.Formatter.MAX_VALUE, True)
    '    <=1
    Dim Menor2 As B4XFormatData = c.Formatter.CopyFormatData(Mayor1)
    Menor2.TextColor = xui.Color_Green
    Menor2.FormatFont = xui.CreateDefaultBoldFont(16)
    Menor2.Prefix = "("
    Menor2.Postfix = ")"
    c.Formatter.AddFormatData(Menor2,c.Formatter.MIN_VALUE,1, False)
End Sub



[Mahares]

col5 = tbVC.AddColumn("cantidad",tbVC.COLUMN_TYPE_TEXT)

I am pretty sure the formatting applies to NUMBERS columns like this:

 col5 = tbVC.AddColumn("cantidad",tbVC.COLUMN_TYPE_NUMBERS)

Check it out and come back



[vecino]

Nor does it



[Mahares]

Nor does it

I checked and it has to be NUMBERS and not set up as TEXT when you prepare the columns. It has to be after all the columns are defined, not between col5 and col6
To make sure you got things right try this. It works for me. Use your table name, mine is B4XTable1 It does not solve your problem, just to make sure you are on the right track:

CreateColorFormat(B4XTable1.GetColumn("candidad"), Colors.Magenta) 'line after setting data type. the column MUST be of type NUMBERS

Sub CreateColorFormat (c As B4XTableColumn, clr As Int )
Dim formatter As B4XFormatter
formatter.Initialize
c.Formatter = formatter
c.Formatter.GetDefaultFormat.TextColor =clr
End Sub



[vecino]

Just in case, I've simplified it and it doesn't work either.

Sub ShowVerContent( llrows As List )
    Dim col0, col1, col2, col3, col4, col5, col6 As B4XTableColumn

    col0 = tbVC.AddColumn("id",tbVC.COLUMN_TYPE_NUMBERS)
    col1 = tbVC.AddColumn("nombre",tbVC.COLUMN_TYPE_TEXT)
    col2 = tbVC.AddColumn("estado",tbVC.COLUMN_TYPE_TEXT)
    col3 = tbVC.AddColumn("creado",tbVC.COLUMN_TYPE_TEXT)
    col4 = tbVC.AddColumn("observaciones",tbVC.COLUMN_TYPE_TEXT)
    col5 = tbVC.AddColumn("cantidad",tbVC.COLUMN_TYPE_NUMBERS)
    col6 = tbVC.AddColumn("nombresintildes",tbVC.COLUMN_TYPE_TEXT)

'    CreateCustomFormat(col5)
    CreateColorFormat(tbVC.GetColumn("candidad"), Colors.Magenta) 'line after setting data type. the column MUST be of type NUMBERS

    tbVC.Refresh
    tbVC.SetData(llrows)
End Sub

Sub CreateColorFormat (c As B4XTableColumn, clr As Int )
    Dim formatter As B4XFormatter
    formatter.Initialize
    c.Formatter = formatter
    c.Formatter.GetDefaultFormat.TextColor =clr
End Sub



[vecino]

Now that works!!!!!
I had just "copied and pasted" it.

GetColumn("candidad")
It is "cantidad".



[Mahares]

Now that works!!!!!

You are definitely in the right track. Sometimes it is hard when you are not seeing the project in full in front of you. You can wait, hopefully someone will spot it or post a little project using your code for the formatting.



[vecino]

Thank you, and now how can I make it change colour only when the value is greater than 1?



[Mahares]

how can I make it change colour only when the value is greater than 1

CreateCustomFormat(B4XTable1.GetColumn("cantidad"))
 formatter.GetDefaultFormat.TextColor = xui.Color_Black   'you need this line too

Private Sub CreateCustomFormat (c As B4XTableColumn)
    Dim formatter As B4XFormatter
    formatter.Initialize
    c.Formatter = formatter
    Dim Positive As B4XFormatData = c.Formatter.NewFormatData
    Positive.TextColor = xui.Color_Red
'    Positive.TextColor = B4XTable1.TextColor
    Positive.FormatFont = xui.CreateDefaultFont(22)
    c.Formatter.AddFormatData(Positive, 2, c.Formatter.MAX_VALUE, True)   'this is for 2 and bigger. Change it to your minimum
End Sub



[vecino]

formatter.GetDefaultFormat.TextColor = xui.Color_Black 'you need this line too

¿formatter? But that gives error, what is formatter there?



[Mahares]

formatter? But that gives error, what is formatter there?

You need to declare it in globals

Private  formatter As B4XFormatter    'so it is recognized in another sub

You probably want to comment it in the CreateCustomFormat sub



[vecino]

It has no effect
When are you told to write in a different colour when the value is greater than 1?



[Mahares]

When are you told to write in a different colour when the value is greater than 1?

It works for me. Look at my code my man

Private  formatter As B4XFormatter

CreateCustomFormat(B4XTable1.GetColumn("Student_Num"))
    formatter.GetDefaultFormat.TextColor = xui.Color_Black

Private Sub CreateCustomFormat (c As B4XTableColumn)
    formatter.Initialize
    c.Formatter = formatter
    Dim Positive As B4XFormatData = c.Formatter.NewFormatData
    Positive.TextColor = xui.Color_Red
'    Positive.TextColor = B4XTable1.TextColor
    Positive.FormatFont = xui.CreateDefaultFont(22)
    c.Formatter.AddFormatData(Positive, 114.01, c.Formatter.MAX_VALUE, True) 'change your 114.01 to 1.01
End Sub



[vecino]

I now understand how it works ?
Thank you very much.



[Mahares]

I now understand how it works

Great. I was making an app to demonstrate it further with numbers similar to yours, but I am glad you got it:
