B4J Tutorial [BANano] (v7) Using Background Workers in your WebApps (introduction)

The next release of BANano will have the possibility to use background workers in your WebApps (for the moment, Build() only projects, not e.g. for BuildForServer() projects see Post #4). It can not be added in a BANanoLibrary, so it must be done in your final project. Background workers are actually Web Workers, but I prefer using the term 'Background Worker' as it is familiar to the B4J language.

BackgroundWorkers are a simple means for web content to run scripts in background threads. The worker thread can perform tasks without interfering with the user interface. In addition, they can perform I/O using BANanoFetch. Once created, a worker can send messages to the main thread code (that created it) by posting messages with BANano.SendFromBackgroundWorker() to a BANano_MessageFromBackgroundWorker() event handler specified by that code (and vice versa by using the BANano.RunBackgroundWorkerMethod()).

IMPORTANT NOTES:
1. BackgroundWorkers can NOT access:
- The DOM: they cannot read or modify the HTML document. In addition, you cannot access global variables or JavaScript functions within the page
- The window, the document and the parent objects

2. Data send to BackgroundWorkers is copied, NOT shared. So changing the value of a variable (that you passed with RunBackgroundWorkerMethod()) in a BackgroundWorker will NOT be changed in the caller class. You will have to pass on the new value to the caller class with SendFromBackgroundWorker().

3. A worker can not be run directly from the filesystem. It can only be run via a server.

HOW IT WORKS:

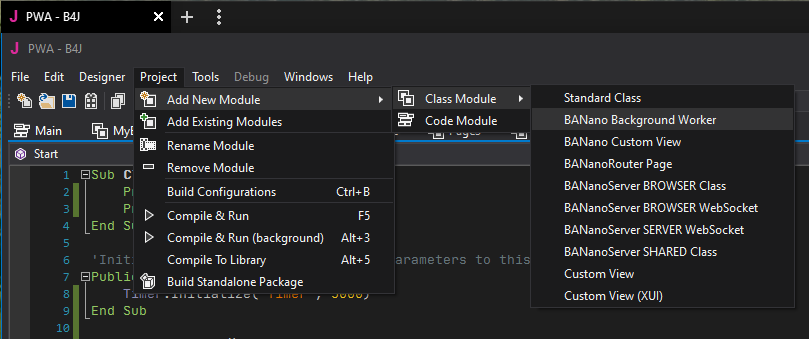

1. Add a new BANano Background Worker Class, let's call it MyBackgroundWorker:


Result:
B4X:
'This is a BANano Background worker template class
Sub Class_Globals
    Private BANano As BANano 'ignore
    Private mTimer As Timer
    Private mTimerTickMs As Int = 1000
End Sub

' can have additional parameters
Public Sub Initialize(TicksMs As Int)
    ' additional javscript needed in the Worker
    ' THESE CAN NOT CONTAIN JAVASCRIPT CODE THAT MANUPULATE THE DOM
    ' BANano.DependsOnAsset("myCode.js")

    mTimerTickMs = TicksMs
    mTimer.Initialize("Timer", mTimerTickMs)
    mTimer.Enabled = True

End Sub

' can have additional parameters
Public Sub BANano_StopBackgroundWorker()
    mTimer.Enabled = False

End Sub

Sub Timer_Tick
    'do the work required


    ' Send something back to the calling class
    ' BANano.SendFromBackgroundWorker("SomeTag", Array(SomeValues), Null)

End Sub

Now we can make it do something, e.g. we want it do run in the background every second and add +1 to a counter. When it reaches counter mod 10, send the current value back to the calling class. We also add a method AddToCounter to immidately add some value to the counter variable from the calling class. The Initialize method has been changed to accept an additional parameter Title too:

B4X:
'This is a BANano Background worker template class
Sub Class_Globals
    Private BANano As BANano 'ignore
    Private mTimer As Timer
    Private mTimerTickMs As Int = 1000
    Private mCounter As Int = 0
    Private mTitle As String
End Sub

' can have additional parameters
Public Sub Initialize(Title As String, TicksMs As Int)
    ' additional javscript needed in the Worker, just to show the syntax, doesn't really do something in this example
    ' THESE CAN NOT CONTAIN JAVASCRIPT CODE THAT MANUPULATE THE DOM
    BANano.DependsOnAsset("myCode.js")

    mTitle = Title
    mTimerTickMs = TicksMs

    mTimer.Initialize("Timer", mTimerTickMs)
    mCounter = 0
    mTimer.Enabled = True
End Sub

' can have additional parameters
Public Sub BANano_StopBackgroundWorker()
    mTimer.Enabled = False
End Sub

Sub Timer_Tick
    'do the work required
    mCounter = mCounter + 1
    Log(mTitle & ": every " & mTimerTickMs & ", Counter: " & mCounter)
    If mCounter Mod 10 = 0 Then
        ' can only be used in a BackgroundWorker!
        BANano.SendFromBackgroundWorker("Mod10", Array(mCounter), Null)
    End If
End Sub

public Sub AddToCounter(value As Int)
    mCounter = mCounter + value
End Sub

Now, how to use our Background Worker?

First me must create a couple of instances of the worker. This MUST be predefined in the AppStart() method. E.g. here, we are going to use two instances of our MyBackgroundWorker somewhere in our code later:
B4X:
Sub AppStart (Form1 As Form, Args() As String)
...
    BANano.AddBackgroundWorker("worker1", "MyBackgroundWorker")
    BANano.AddBackgroundWorker("worker2", "MyBackgroundWorker")
...
End Sub

When we need our Background Workers, we can start them like this, e.g. in BANano_Ready():
B4X:
' run de Start method of the Background Workers
BANano.StartBackgroundWorker("worker1", Array("From Worker 1", 1000)) ' start Worker1, and in our Initialize of our MyBackgroundWorker we need two parameters (Title and TicksMs)
BANano.StartBackgroundWorker("worker2", Array("From Worker 2", 2000))

Now all we have to do is add the event BANano_MessageFromBackgroundWorker() to receive messages from our Background Workers. e.g. In MyBackgroundWorker, we do use a BANano.SendFromBackgroundWorker() call to send the current counter back to our calling class with a Tag "Mod10".
B4X:
public Sub BANano_MessageFromBackgroundWorker(WorkerName As String, Tag As String, Value As Object, Error As Object)
    ' the Tag will define the type of message send by the Background Worker
    If Tag = "Mod10" Then
        Log(WorkerName)
        Log("Current Error: " & Error)
        Log("Current Value: " & Value)
    End If
End Sub

Somewhere else in our code, e.g. by pressing a button, we can call the AddToCounter method from our class that initialized the workers to immidiately add 1000 to the counter:
B4X:
Sub BtnAdd_Click (event As BANanoEvent)
      BANano.RunBackgroundWorkerMethod("Worker1", "", "AddToCounter", Array(1000))
End Sub

We can stop the Background Workers with:
B4X:
' calls the BANano_StopBackgroundWorker event in the BackgroundWorker Class
BANano.StopBackgroundWorker("worker1", Null)
BANano.StopBackgroundWorker("worker2", Null)

This concludes the introduction to Background workers with BANano Web Apps. This didn't really do anything very useful, but I will see if I can get an example ready before the release where it does something useful like fetching a big JSON file, while the user can still interact with the WebApp.

Alwaysbusy

Last edited:

Mashiane

Expert
Licensed User
My... powerful.

  • Can something like this be used to run a backup of BANanoSQL lets say, at 2:pM?
  • Lets say you are in the rural areas where internet can be problematic, can something like this be used to detect your internet connection and if for example its offline at that moment, use BANano.SetLocalStorage to keep your records / use BANanoSQL
  • What if perhaps you want to synchronize your BANanoSQL (work you did offline) and are now online and want to ensure that these are "synced" online via API calls?
This is gonna be exciting...

Thanks...

  • Like
Reactions: LJG

Mashiane

Expert
Licensed User
' additional javscript needed in the Worker, just to show the syntax, doesn't really do something in this example ' THESE CAN NOT CONTAIN JAVASCRIPT CODE THAT MANUPULATE THE DOM BANano.DependsOnAsset("myCode.js")
What does the "show syntax" mean? It wont be "compulsory" to add such a file? What could be an example of a case where an additional js file is needed by a background worker, besides this case?

I mean with BANano doing most of the heavy lifting, writing javascript code outside of it to use inside it wouldnt be a plan, unless of course, its a js library, that can work with service workers... thing is I cant think of any example (I dont know that much). Any ideas of what that could be?


alwaysbusy

Expert
Licensed User
UPDATE: Added also Background Workers to BANanoServer projects, which makes it now very simple to make a Rest API call from your WebApp to the B4J jServer (e.g. to sync, put/get data in the database, make a MQTT call etc) in the background of your WebApp.

Notes for BANanoServer projects:
1. The Background worker class name has to start with the BROWSER prefix
2. The handler is a normal B4J Server handler, with its name starting with the SERVER prefix

Usage:
The BROWSERMyBackgroundWorker code:
B4X:
' TEMP -----------------------------------------------------------------------
Sub Class_Globals
    Private BANano As BANano 'ignore
    Private mTimer As Timer
    Private mTimerTickMs As Int = 1000
End Sub

' can have additional parameters
Public Sub Initialize(TicksMs As Int)
    mTimerTickMs = TicksMs

    mTimer.Initialize("Timer", mTimerTickMs)
    mTimer.Enabled = True
End Sub

' can have additional parameters
Public Sub BANano_StopBackgroundWorker()
    mTimer.Enabled = False
End Sub

Sub Timer_Tick
    ' make an Rest API call to our server handler
    Dim fetch As BANanoFetch
    Dim fetchResponse As BANanoFetchResponse
    Dim data As Map

    fetch.Initialize("http://localhost:55055/apitest", Null)
    fetch.Then(fetchResponse)
            Return fetchResponse.Json 'ignore
    fetch.Then(data)
            Log(data.Get("status"))
    fetch.Else(fetchResponse)
            Log(fetchResponse)
    fetch.End
End Sub

The SERVERRestApi handler code:
B4X:
'Handler class
Sub Class_Globals

End Sub

Public Sub Initialize

End Sub

Sub Handle(req As ServletRequest, resp As ServletResponse)
    Log(req.FullRequestURI)
    ' send something back
    resp.Write($"{"status": "ok"}"$)
End Sub

In AppStart, add some background workers and the "SERVERRestApi":
B4X:
' must be added in AppStart() before Server.BANano.BuildForServer
Server.BANano.AddBackgroundWorker("worker1", "BROWSERMyBackgroundWorker")
Server.BANano.AddBackgroundWorker("worker2", "BROWSERMyBackgroundWorker")

Server.AddHandler("/apitest", "SERVERRestApi", False)

In e.g. Your BROWSERAbout page:
B4X:
...
Sub WebSocket_Connected()
    Log("Connected ===> My B4J PageId: " & BANano.GetPageID)
    ...
    BANano.StartBackgroundWorker("worker1", Array(10000))
    BANano.StartBackgroundWorker("worker2", Array(20000))
End Sub

public Sub Stop()
    ' stop anything for this class first

    ' calls the BANano_StopBackgroundWorker event in the BackgroundWorker Class
    BANano.StopBackgroundWorker("worker1", Null)
    BANano.StopBackgroundWorker("worker2", Null)
End Sub

public Sub BANano_MessageFromBackgroundWorker(WorkerName As String, Tag As String, Value As Object, Error As Object)
    ' the Tag will define the type of message send by the Background Worker

End Sub

Sub WebSocket_Disconnected(event As BANanoEvent)
    Log("Websocket closed")
    Stop
End Sub

I'll release the update for BANano v7 that allows this somewhere next week.

Alwaysbusy

Last edited:
