Android Question BBCodeView Printout the Text Backword

Addo

Addo

Well-Known Member
Licensed User
following this thread

replace text in label with b4xgifview

I am planning to use xclv as a chatbox with supporting of animated gifs in it like animated smilyes .. https://www.b4x.com/android/forum/threads/b4x-b4xgifview-cross-platform-animated-gif-view.118550/#content i have followed this tutorial that posted previously by using regex and csbuilder...
www.b4x.com www.b4x.com

I am using String builder along with regex to create a string and replace some regex matches with new string
i know that i can simply use string.replace but that is not the case that i aim for

simply i have a string just looks like that

" hello -) how is everything -) "
i have set the makepattern function to use string builder to remove each -) character and create an image string and replace the targeted character with it

i have used substring to remove the matched character in the regex pattern and then i have added the new image string inside the stringbuilder

but the output comes backword "-) everything is how -) hello"
what i am doing wrong ?

B4X:
Sub MarkPattern(Input As String, Pattern As String, GroupNumber As Int) As String
    Dim sb As StringBuilder
    Dim lastMatchEnd As Int = 0
    Dim m As Matcher = Regex.Matcher(Pattern, Input)
    sb.Initialize

    Do While m.Find
        Dim currentStart As Int = m.GetStart(GroupNumber)
        Dim SmileCode As String
        Dim SmileCodeToimage As String
        SmileCode = m.Group(GroupNumber)
        SmileCodeToimage = CreateSmileyImage(0, 0, DipToCurrent(30), DipToCurrent(30), SmileCode&".gif")
        sb.Append(Input.SubString2(lastMatchEnd, currentStart) & SmileCodeToimage)
        lastMatchEnd = m.GetEnd(GroupNumber)

    Loop
    If lastMatchEnd < Input.Length Then
        sb.Append(Input.SubString(lastMatchEnd))
    End If
    Return sb.ToString
End Sub

Last edited:
Sort by date Sort by votes
E

emexes

Expert
Licensed User
PassionDEV said:
simply i have a string just looks like that

" hello -) how is everything -) "

but the output comes backword "-) everything is how -)"
Click to expand...

I don't have time to look at this right now, but at first glance:

what happened to the "hello" in the source string?

It doesn't look like the output is backwards, it looks more like it has just lopped off the leading "hello".

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
emexes said:
I don't have time to look at this right now, but at first glance:

what happened to the "hello" in the source string?

It doesn't look like the output is backwards, it looks more like it has just lopped off the leading "hello".
Click to expand...
It was a mistyped since i wrote the results forget to include it, the thing is the whole string printed backwards

Upvote 0
E

emexes

Expert
Licensed User

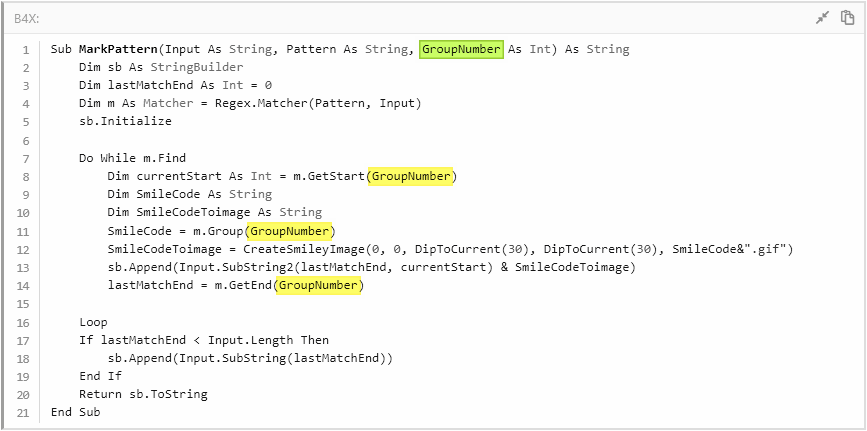

What value does GroupNumber have? And is it always the same value for each iteration of the Do While m.find loop?



PassionDEV said:
i know that i can simply use string.replace but that is not the case that i aim for
Click to expand...

Why not? It feels like it would do the job here, if CreateSmilyImage is indeed returning the image as a String. 🤔

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
The full function were mentioned here

replace text in label with b4xgifview

I am planning to use xclv as a chatbox with supporting of animated gifs in it like animated smilyes .. https://www.b4x.com/android/forum/threads/b4x-b4xgifview-cross-platform-animated-gif-view.118550/#content i have followed this tutorial that posted previously by using regex and csbuilder...
www.b4x.com www.b4x.com

And yes the createsmile function should return a string that will be added later in BBCodeView

Like mentioned here

[B4X] SMM + BBCodeView - a great pair

SMM (SimpleMediaManager) is one of the more useful tools available for B4X developers. It takes care of many difficult tasks related to various media types: https://www.b4x.com/android/forum/threads/b4x-simplemediamanager-smm-framework-for-images-videos-and-more.134716/#content It is quite...
www.b4x.com www.b4x.com

The string builder should remove the smile operator and place the generated SMM String but i have no idea why the final results printed out backwards

Upvote 0
E

emexes

Expert
Licensed User
PassionDEV said:
The string builder should remove the smile operator and place the generated SMM String but i have no idea why the final results printed out backwards
Click to expand...

In the words that programmers love: it seems to be working ok here 🤔

Perhaps it's a northern-hemisphere vs southern-hemisphere thing, similar to: which way does water spin into drain hole.

Or... are you using a right-to-left language? Unicode does some interesting stuff in those cases, especially if the text also includes left-to-right numbers.

B4X:
Sub AppStart (Args() As String)

    Dim SmileyPattern as string = "\-\)"  'is actually "-)" after escaping non-alphanumeric regex characters

    Dim TestInput As String = " hello -) how is everything -) "
    Dim TestOutput As String = MarkPattern(TestInput, SmileyPattern, 0)

    Log("Input string = """ & TestInput & """")
    Log("Output string = """ & TestOutput & """")

End Sub

Sub MarkPattern(Input As String, Pattern As String, GroupNumber As Int) As String
    Dim sb As StringBuilder
    Dim lastMatchEnd As Int = 0
    Dim m As Matcher = Regex.Matcher(Pattern, Input)
    sb.Initialize

    Do While m.Find
        Dim currentStart As Int = m.GetStart(GroupNumber)
        Dim SmileCode As String
        Dim SmileCodeToimage As String
        SmileCode = m.Group(GroupNumber)
        SmileCodeToimage = "[[SMILEY CODE]]"    '''CreateSmileyImage(0, 0, DipToCurrent(30), DipToCurrent(30), SmileCode&".gif")
        sb.Append(Input.SubString2(lastMatchEnd, currentStart) & SmileCodeToimage)
        lastMatchEnd = m.GetEnd(GroupNumber)
    Loop
    If lastMatchEnd < Input.Length Then
        sb.Append(Input.SubString(lastMatchEnd))
    End If
    Return sb.ToString
End Sub

Log file output:
Waiting for debugger to connect...
Program started.
Input string = " hello -) how is everything -) "
Output string = " hello [[SMILEY CODE]] how is everything [[SMILEY CODE]] "

ps congrats on your code retaining the leading and trailing spaces; many first-draft string de/re-construction algorithms would have lost one or both of them 👍

Last edited:
Upvote 0
Addo

Addo

Well-Known Member
Licensed User
emexes said:
In the words that programmers love: it seems to be working ok here 🤔

Perhaps it's a northern-hemisphere vs southern-hemisphere thing, similar to: which way does water spin into drain hole.

Or... are you using a right-to-left language? Unicode does some interesting stuff in those cases, especially if the text also includes left-to-right numbers.

B4X:
Sub AppStart (Args() As String)

    Dim SmileyPattern as string = "\-\)"  'is actually "-)" after escaping non-alphanumeric regex characters

    Dim TestInput As String = " hello -) how is everything -) "
    Dim TestOutput As String = MarkPattern(TestInput, SmileyPattern, 0)

    Log("Input string = """ & TestInput & """")
    Log("Output string = """ & TestOutput & """")

End Sub

Sub MarkPattern(Input As String, Pattern As String, GroupNumber As Int) As String
    Dim sb As StringBuilder
    Dim lastMatchEnd As Int = 0
    Dim m As Matcher = Regex.Matcher(Pattern, Input)
    sb.Initialize

    Do While m.Find
        Dim currentStart As Int = m.GetStart(GroupNumber)
        Dim SmileCode As String
        Dim SmileCodeToimage As String
        SmileCode = m.Group(GroupNumber)
        SmileCodeToimage = "[[SMILEY CODE]]"    '''CreateSmileyImage(0, 0, DipToCurrent(30), DipToCurrent(30), SmileCode&".gif")
        sb.Append(Input.SubString2(lastMatchEnd, currentStart) & SmileCodeToimage)
        lastMatchEnd = m.GetEnd(GroupNumber)
    Loop
    If lastMatchEnd < Input.Length Then
        sb.Append(Input.SubString(lastMatchEnd))
    End If
    Return sb.ToString
End Sub

Log file output:
Waiting for debugger to connect...
Program started.
Input string = " hello -) how is everything -) "
Output string = " hello [[SMILEY CODE]] how is everything [[SMILEY CODE]] "

ps congrats on your code retaining the leading and trailing spaces; many first-draft string de/re-construction algorithms would have lost one or both of them 👍
Click to expand...
You are correct when BBCodeView Right to Left Property is set to true the text printed out backward thats very weird the behavior shouldn't happened.
but the more weird is when i dont add SmileCodeToimage into sb.Append(Input.SubString2(lastMatchEnd, currentStart))
the text printed out in BBcodeview Correctly .. i really don't understand why such behavior caused

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
as example this printed out the output correctly even with RTL Property is set to true but it will only substring the smileCode from the input string and will not add the image string .
B4X:
Sub MarkPattern(Input As String, Pattern As String, GroupNumber As Int) As String
    Dim sb As StringBuilder
    Dim lastMatchEnd As Int = 0
    Dim m As Matcher = Regex.Matcher(Pattern, Input)
    sb.Initialize

    Do While m.Find
        Dim currentStart As Int = m.GetStart(GroupNumber)
        Dim SmileCode As String
        Dim SmileCodeToimage As String
        SmileCode = m.Group(GroupNumber)
        SmileCodeToimage = SetSmiley(0, 0, DipToCurrent(30), DipToCurrent(30),SmileCode&".gif")
        sb.Append(Input.SubString2(lastMatchEnd, currentStart)) ' this will shows normally in BBCodeview
        lastMatchEnd = m.GetEnd(GroupNumber)

    Loop
    If lastMatchEnd < Input.Length Then
        sb.Append(Input.SubString(lastMatchEnd))
    End If
    Return sb.ToString
End Sub


but this will add the image instead of the SmileCode but it will be showing backwarded in BBcodeView which i dont know why this has been caused and how to fix it

B4X:
Sub MarkPattern(Input As String, Pattern As String, GroupNumber As Int) As String
    Dim sb As StringBuilder
    Dim lastMatchEnd As Int = 0
    Dim m As Matcher = Regex.Matcher(Pattern, Input)
    sb.Initialize

    Do While m.Find
        Dim currentStart As Int = m.GetStart(GroupNumber)
        Dim SmileCode As String
        Dim SmileCodeToimage As String
        SmileCode = m.Group(GroupNumber)
        SmileCodeToimage = SetSmiley(0, 0, DipToCurrent(30), DipToCurrent(30),SmileCode&".gif")
        sb.Append(Input.SubString2(lastMatchEnd, currentStart) & SmileCodeToimage)  ' substring the smilecode and add SmileCodeToimage
        lastMatchEnd = m.GetEnd(GroupNumber)

    Loop
    If lastMatchEnd < Input.Length Then
        sb.Append(Input.SubString(lastMatchEnd))
    End If
    Return sb.ToString
End Sub

Upvote 0
E

emexes

Expert
Licensed User
PassionDEV said:
simply i have a string just looks like that
" hello -) how is everything -) "

but the output comes backword "-) everything is how -) hello"
Click to expand...
PassionDEV said:
but this will add the image instead of the SmileCode but it will be showing backwarded in BBcodeView which i dont know why this has been caused and how to fix it
Click to expand...

Lol I am so confused now, but perhaps I misunderstood the problem.

Which of these is backward? :
- the string returned by MarkPattern()
- the on-screen display of that string by BBcodeView
- the embedded smiley image(s) eg is the gif :-> but the BBcodeView display of that gif <-: ?

The log file output of post #6 indicates that MarkPattern() is not causing the backwardness (with two smileys, at least) :
Log file output:
Waiting for debugger to connect...
Program started.
Input string = " hello -) how is everything -) "
Output string = " hello [[SMILEY CODE]] how is everything [[SMILEY CODE]] "

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
emexes said:
Lol I am so confused now, but perhaps I misunderstood the problem.

Which of these is backward? :
- the string returned by MarkPattern()
- the on-screen display of that string by BBcodeView

The log file output of post #6 indicates that MarkPattern() is not causing the backwardness (with two smileys, at least) :
Log file output:
Waiting for debugger to connect...
Program started.
Input string = " hello -) how is everything -) "
Output string = " hello [[SMILEY CODE]] how is everything [[SMILEY CODE]] "
Click to expand...
The BBCodeView with the property of RTL enabled. In the beginning i was doubt that iam doing something wrong in the makepattern function. But at the end its BBCodeView related thing if RTL property enabled which something not related to the whole code

Last edited:
Upvote 0
E

emexes

Expert
Licensed User
PassionDEV said:
The BBCodeView with the property of RTL enabled
Click to expand...

Interesting. Are you actually working with a RTL language eg Arabic, Hebrew, Kurdish ?

I remember some strange goings-on a couple of years back to do with Hebrew language and... I think it was zero-width-joiners being used to superimpose some characters to make up a currency symbol. Hang on a min while I test out the forum search feature. :cool:

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
emexes said:
Interesting. Are you actually working with a RTL language eg Arabic, Hebrew, Kurdish ?

I remember some strange goings-on a couple of years back to do with Hebrew language and... I think it was zero-width-joiners being used to superimpose some characters to make up a currency symbol. Hang on a min while I test out the forum search feature. :cool:
Click to expand...
I have searched about BBCodeView RTL and found only one post that asks for RTL feature. I will use BBCodeView to view text messages and for sure i had to enable RTL for multilingual support

Upvote 0
E

emexes

Expert
Licensed User
emexes said:
I remember some strange goings-on a couple of years back to do with Hebrew language and... I think it was zero-width-joiners being used to superimpose some characters to make up a currency symbol.
Click to expand...

Well, I was in the ball-park: it was to do with Hebrew language, and the currency symbol being moved about to the "wrong" side of the number.

https://www.b4x.com/android/forum/threads/hebrew-currency-with-number-string.107612/#post-672849

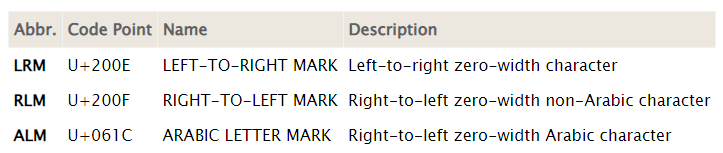

The fix there was to use a Unicode control code Chr(0x200F) to (temporarily?) override the text direction. Whether that same trick will work re: embedded gif images, I don't know, but perhaps it's worth a try.


Upvote 0
E

emexes

Expert
Licensed User

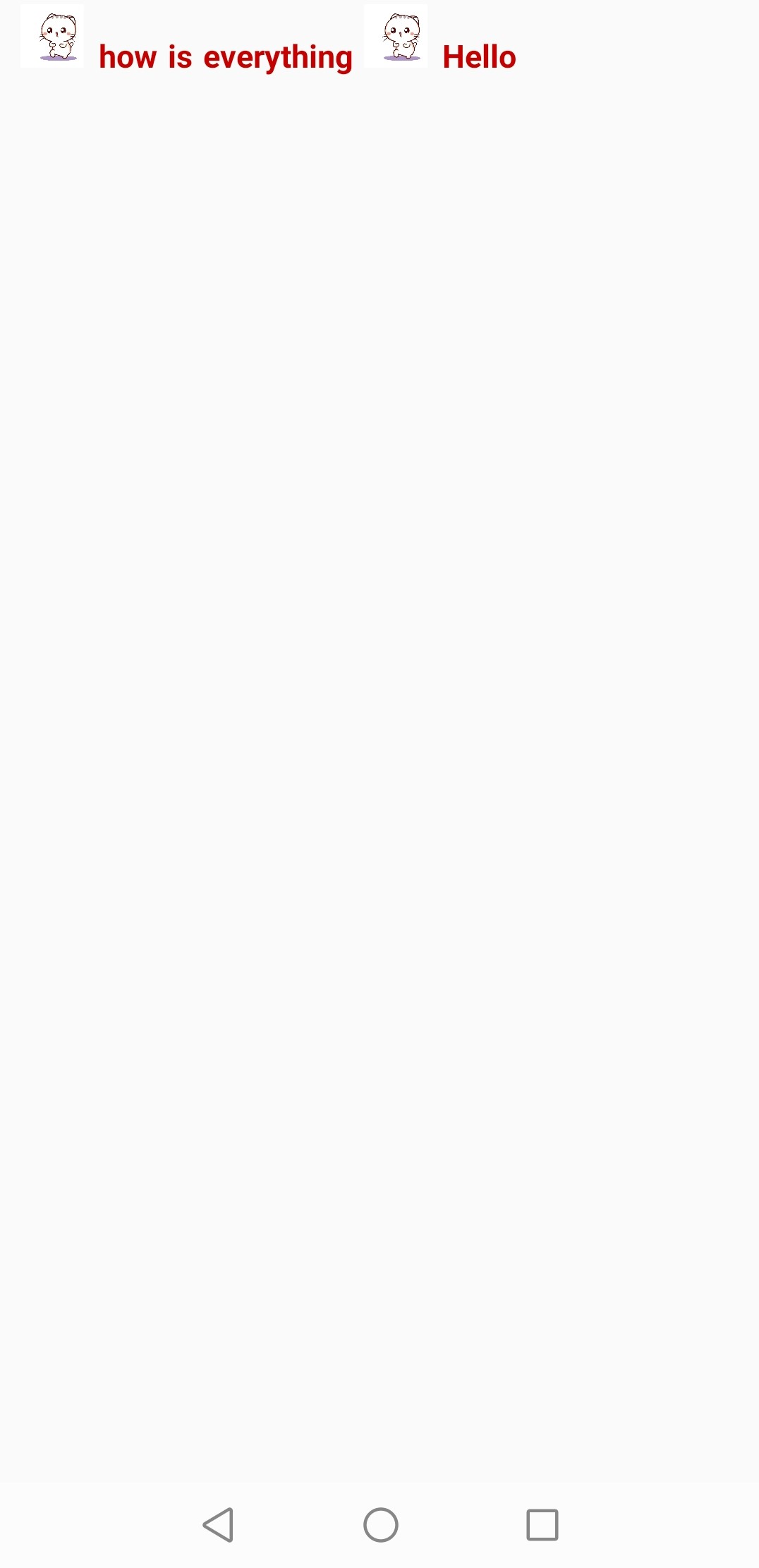

Could you show a screen dump of
- the " hello -) how is everything -) " string being passed into MarkPattern(), and
- the BBCodeView displayed output for that string?

Also, I'm still not certain on: are you actually working with a RTL language eg Arabic, Hebrew, Kurdish ?

And if you've got BBCodeView in RTL mode per:
PassionDEV said:
I will use BBCodeView to view text messages and for sure i had to enable RTL for multilingual support
Click to expand...
then: what happens if you disable RTL?

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
emexes said:
- the BBCodeView displayed output for that string?
Click to expand...
the log output is

Hello [View=view0/] how is everything [View=view1/]

which is expected.

emexes said:
Could you show a screen dump of
- the " hello -) how is everything -) " string being passed into MarkPattern(), and
Click to expand...
Screenshot attached.

emexes said:
Also, I'm still not certain on: are you actually working with a RTL language eg Arabic, Hebrew, Kurdish ?

And if you've got BBCodeView in RTL mode per:

then: what happens if you disable RTL?
Click to expand...
if RTL property is set to False in BBcodeview the text printed out correctly , but this wont help since arabic,kurdish,hebrew language are supported in my app.


Attachments

  • Screenshot_20220904_073637_b4a.example.jpg
    72.5 KB · Views: 71

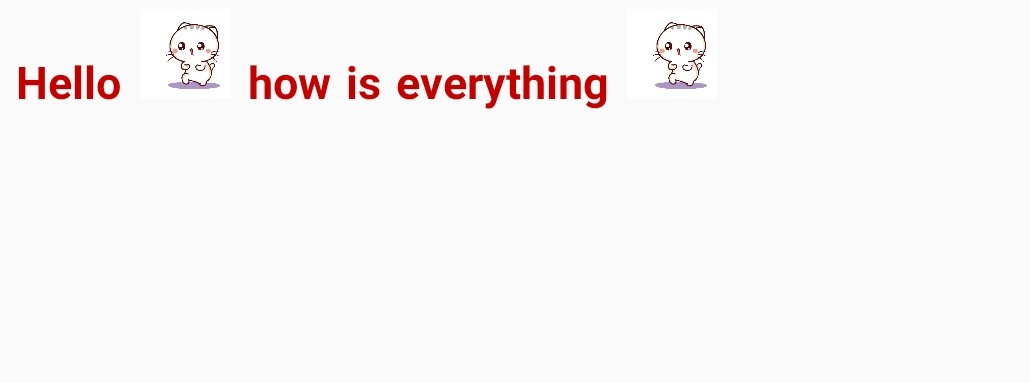

  • RTLDisabled.jpg
    40.9 KB · Views: 70
Upvote 0
E

emexes

Expert
Licensed User
PassionDEV said:
if RTL property is set to False in BBcodeview the text printed out correctly , but this wont help since arabic,kurdish,hebrew language are supported in my app.
Click to expand...

I'm thinking your app set the BBCodeView RTL property to True only if your app (or the phone locale?) is using a RTL language.

With luck this is something that you need do only when a layout is loaded.

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
emexes said:
I'm thinking your app set the BBCodeView RTL property to True only if your app (or the phone locale?) is using a RTL language.

With luck this is something that you need do only when a layout is loaded.
Click to expand...
No dude RTL are always enabled during BBCodeView initialization, since those messages in the chat room should be showing correctly from each user. Its not based on user devices

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
an ugly workaround can be something Like this

B4X:
' by default we will set RTL to /false
BBCodeView1.RTL = False

' this is an ugly way to detect if input string is english or arabic or hebrew if so set rtl to true
If TextInput.ToLowerCase = TextInput.ToUpperCase Then
BBCodeView1.RTL = True
End If

Since setting RTL to True cause English text gets backwarded in BBcodeView while adding views Like this
B4X:
Hello [View=view0/] how is everything [View=view1/]
and doesn't have a similar behavior on none English text so i make that ugly check that mentioned above to check if text is none English letters.

Upvote 0
Addo

Addo

Well-Known Member
Licensed User
to beautify things more we can use regex :D

B4X:
Sub CheckRTL(inputText As String) As Boolean

    Dim matcher1 As Matcher
    ' check code range for {hebrew,arabic,persain,Chinese}...
    matcher1 = Regex.Matcher("[\u0591-\u07FF-\u4E00-\u9FA5]", inputText)

    Dim strfound As Boolean = matcher1.Find

    Return strfound

End Sub

usage

B4X:
dim rtlstr as String = "זזه الا"
If CheckRTL(rtlstr)Then
BBCodeView1.RTL = True
End If

Upvote 0
You must log in or register to reply here.

Similar Threads

Erel
  • Article
Android Tutorial [B4X] BBCodeView Anchors Example
Replies
0
Views
868
Erel
Erel
D
  • Solved
Android Question ScrollTo() in BBCodeView?
Replies
5
Views
761
doncx
D
Erel
  • Article
B4J Code Snippet [B4X] SMM + BBCodeView - a great pair
Replies
0
Views
2K
Erel
Erel
Toky Olivier
  • Question
Android Question [Solved] Center vertically text in BBCodeView
Replies
6
Views
2K
Erel
Erel
Erel
  • Locked
  • Article
B4A Library [B4X] BCTextEngine / BBCodeView - Text engine + BBCode parser + Rich Text View
7 8 9
Replies
164
Views
75K
Erel
Erel
Top
