Android Code Snippet BLE CSC (cadence/speed)

Based on Erel's Heartratemonitor this code can detect the BLE candence/speed sensors.
Checked on Panobike sensor.
Note: BT documentation about 0x1826 gives info that there should be 13 bytes
1-byte flags
4-bytes wheel total revolutions (u32)
2-bytes wheel revolution time (1/1024 sec, u16))
4-bytes cadence total revolutions (u32)
2-bytes cadence revolution time (1/024 sec , u16)
Panobike gives however 2 bytes total crankrevolutions, thus 11 bytes

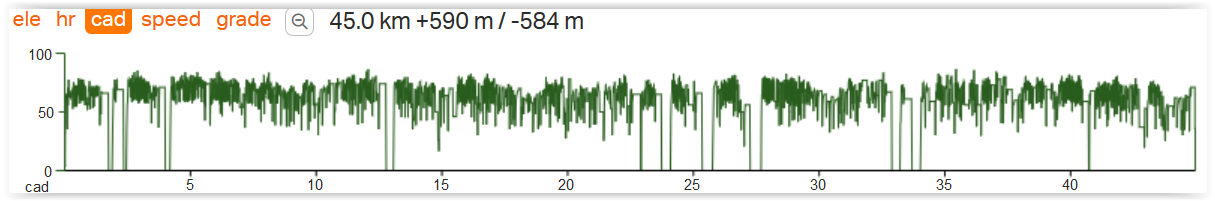

picture of test:


Screen Shot 09-06-20 at 06.52 PM.PNG


Attachments

  • CadenceMonitor.zip
    1.6 KB · Views: 323
