B4R Question Button - Am I doing something wrong?

Discussion in 'B4R Questions' started by hatzisn, Jul 16, 2019.

  1. hatzisn

    hatzisn Active Member Licensed User

    Hi everyone,

    continuing my tests I test a button. This is the code of the program:

    Code:
    #Region Project Attributes

    #AutoFlushLogs: True

    #CheckArrayBounds: True

    #StackBufferSize: 300
    #End Region

    Sub Process_Globals


    Public Serial1 As Serial


    Dim tm As Timer

    Private buttonin, buttonout As Pin

    End Sub

    Private Sub AppStart

        Serial1.Initialize(
    115200)

    Log("AppStart")


        buttonin.Initialize(
    34, buttonin.MODE_OUTPUT)
        buttonout.Initialize(
    35, buttonout.MODE_INPUT)


        tm.Initialize(
    "tm_Tick"1000'1000ms = 1 second

        buttonout.AddListener(
    "buttonout_StateChanged")
        buttonout.DigitalWrite(
    False)



    'Enable trigger with Timer interval


    End Sub

    Private Sub buttonout_StateChanged(State As Boolean)
        Delay (
    300)

    Log(State)


        tm.Enabled = State



    If State = True Then

    Log("Button Pressed")

    Else

    Log("Button Not Pressed")

    End If

    End Sub


    Sub tm_Tick

    Log(Millis)
    End Sub


    And these are the logs:

    AppStart
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0
    Button Not Pressed
    1
    Button Pressed
    0


    In these logs I 've never pressed the button.

    When I press it it stays in :
    0
    Button not Pressed

    and never see any millis. Am I doing something wrong or is it poor quality of the button?

    Thanks in advance

  2. janderkan

    janderkan Active Member Licensed User

    You have to provide a schematic so we can see your wiring.

    You get statechanged event because your input is floating, you must hold it high or low with a resistor.
    An input can be normally high and then you should pull it to ground with the button or
    it is low and the you pull it high with the button.
    If you dont use a resistor you can initialize with MODE_INPUT_PULLUP and use the built in resistor and pull down with the button.

    The delay in statechanged event is compensating for a bad button but 10 millis should be enough.
    You dont see the millis because when you enable the timer the tick event appears after 1000 millis
    and before that the button is released and the timer is disabled again.

  3. hatzisn

    hatzisn Active Member Licensed User

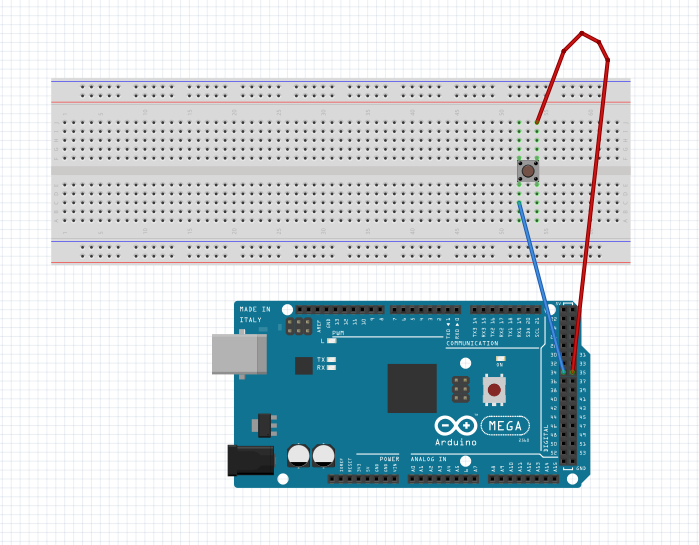

    This is the schematic:


    I changed the corresponding line in to this:

    Code:
    buttonout.Initialize(35, buttonout.MODE_INPUT_PULLUP)
    and I am still getting the same results.

  4. janderkan

    janderkan Active Member Licensed User

    You must connect the blue line to ground.

    KMatle likes this.
  5. hatzisn

    hatzisn Active Member Licensed User

    Got that working. There were two errors apparent.
    1) First blue wire goes to GND
    2) I had to remove this line of code:

    Code:
    buttonout.DigitalWrite(False)
    And another thing I had to do was to handle the bouncing voltage with this code as described in the b4r manual (v1.1)

    Code:
    Private Sub buttonout_StateChanged(State As Boolean)


    If State = False Then

    If Millis - BounceMillis < BounceDelay Then

    Return

    Else

    Log(CRLF)

    Log(Millis)

    Log("Button Pressed")

    Log("Checking distance")
                CheckDistance
                BounceMillis = Millis

    End If

    End If

    End Sub
